(2PCS) M29F800AB-90N1 Flash Mem Parallel 5V 8M-Bit 1M x 512K x 16 90ns 48-TSOP
Tax included.

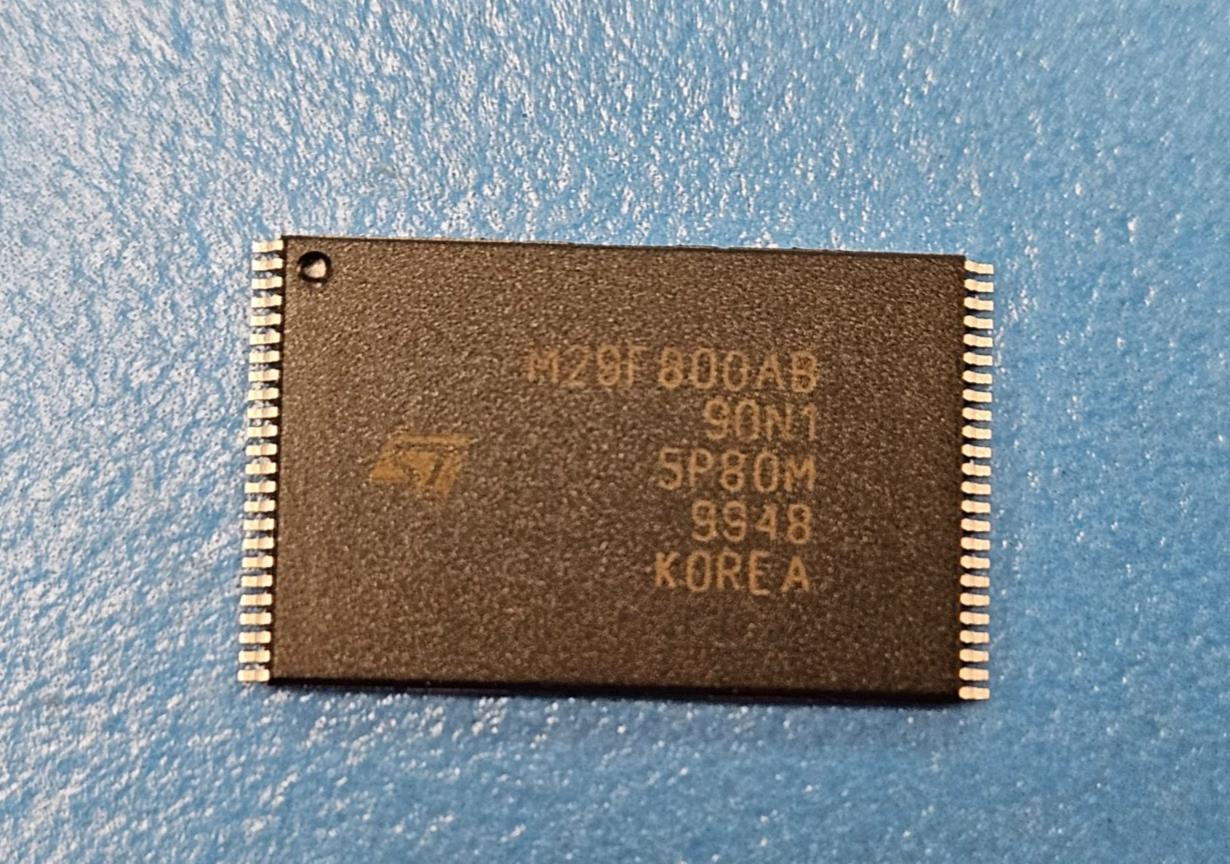

This listing is for (2pcs) of M29F800AB-90N1 by ST Micro
Mfr Package Description 12 X 20 MM, PLASTIC, TSOP-48
Status Transferred
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 90.0 ns
Boot Block BOTTOM
Command User Interface YES
Data Polling YES
Endurance 100000.0 Write/Erase Cycles
JESD-30 Code R-PDSO-G48
JESD-609 Code e0
Memory Density 8388608.0 bit
Memory IC Type FLASH
Memory Width 16
Alternate Memory Width 8.0
Number of Functions 1
Number of Sectors/Size 1,2,1,15
Number of Terminals 48
Number of Words 524288.0 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 512KX16
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP48,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Ready/Busy YES
Seated Height-Max 1.2 mm
Standby Current-Max 1.5E-4 Amp
Supply Current-Max 0.02 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Toggle Bit YES
Length 18.4 mm
Width 12.0 mm
Additional Feature BOTTOM BOOT BLOCK
