(2PCS) LT3010EMS8E#PBF LINEAR TECHNOLOGY IC REG LINEAR POS ADJ 50MA 8MSOP
Tax included.

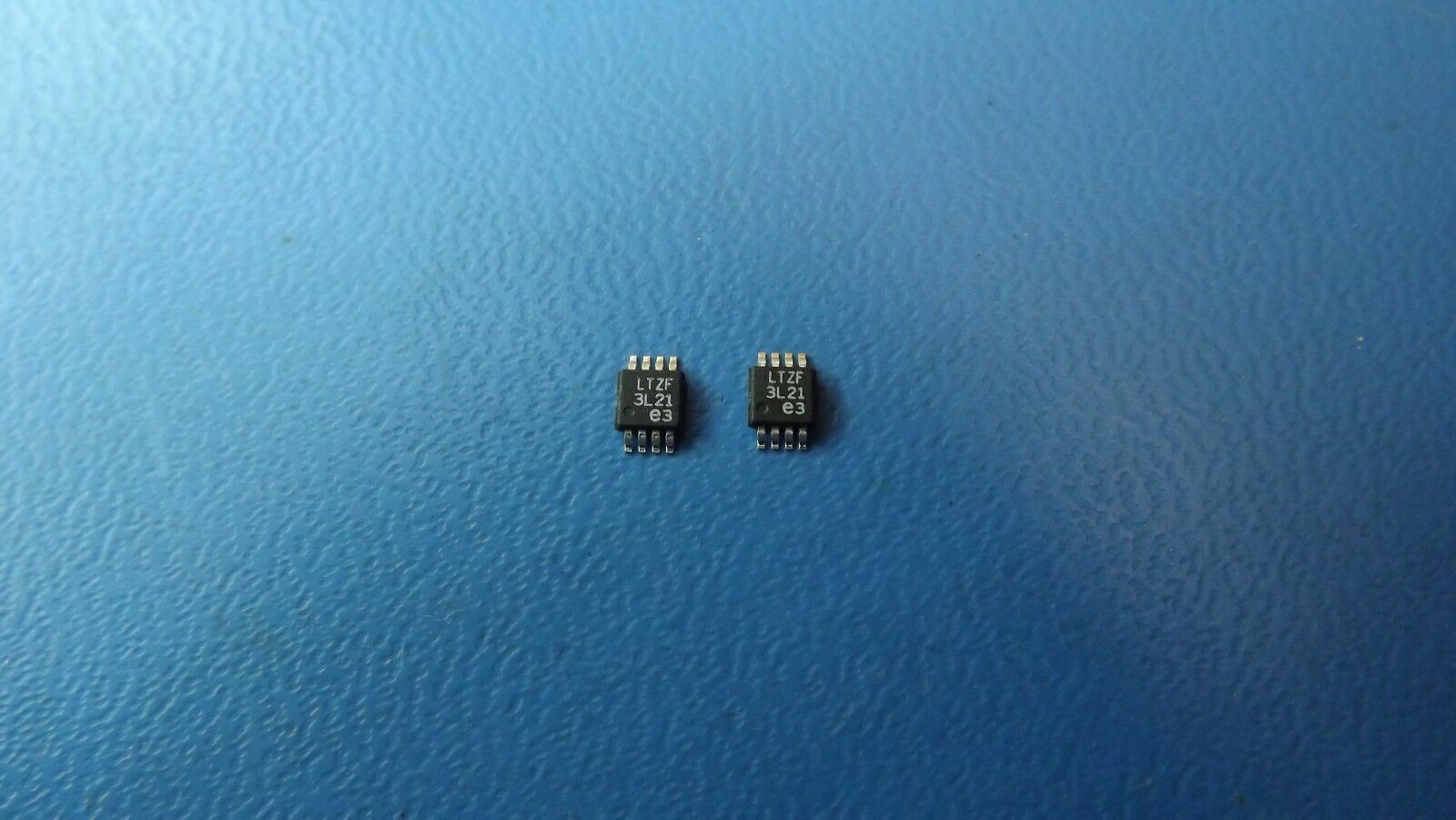

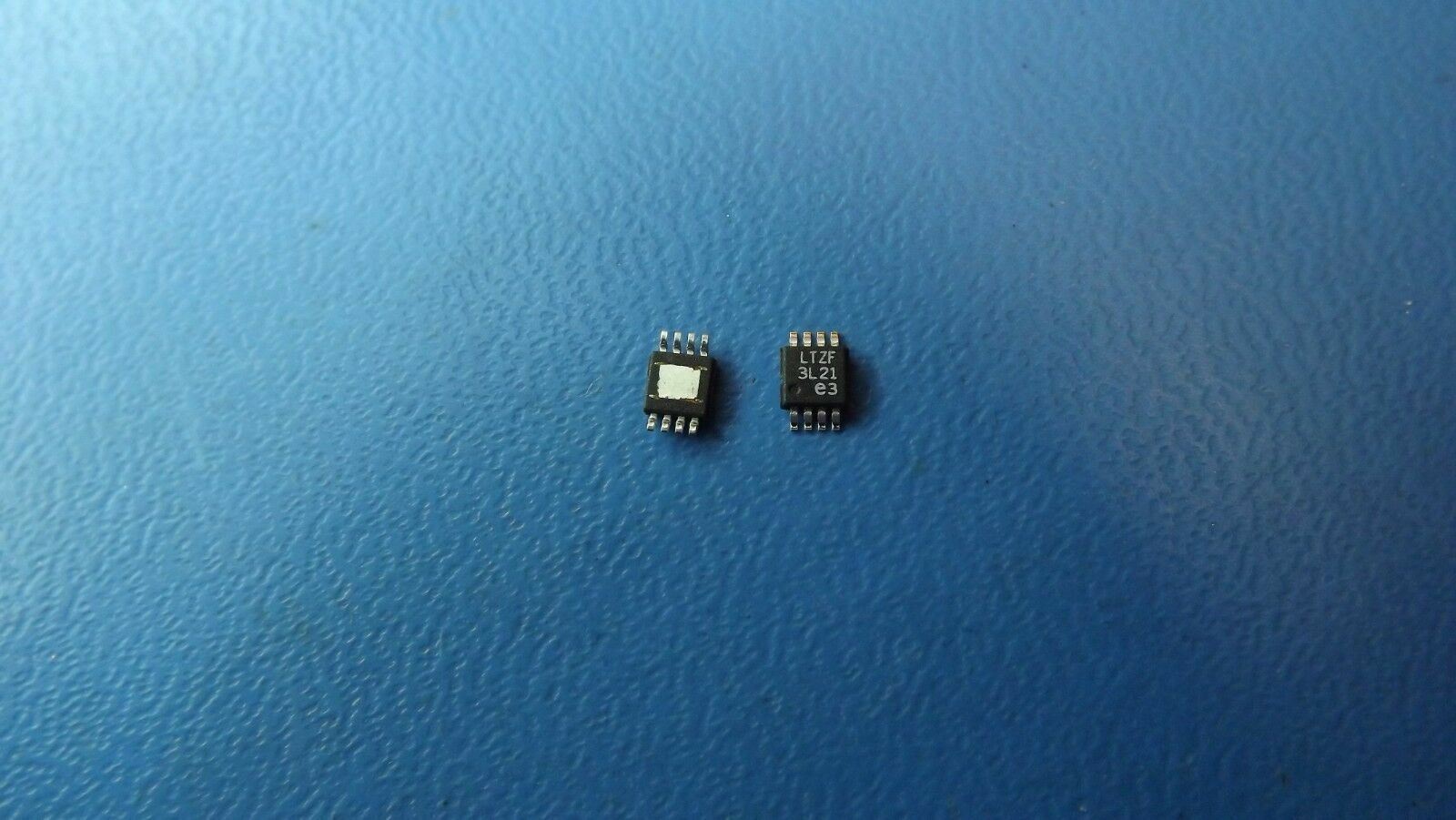

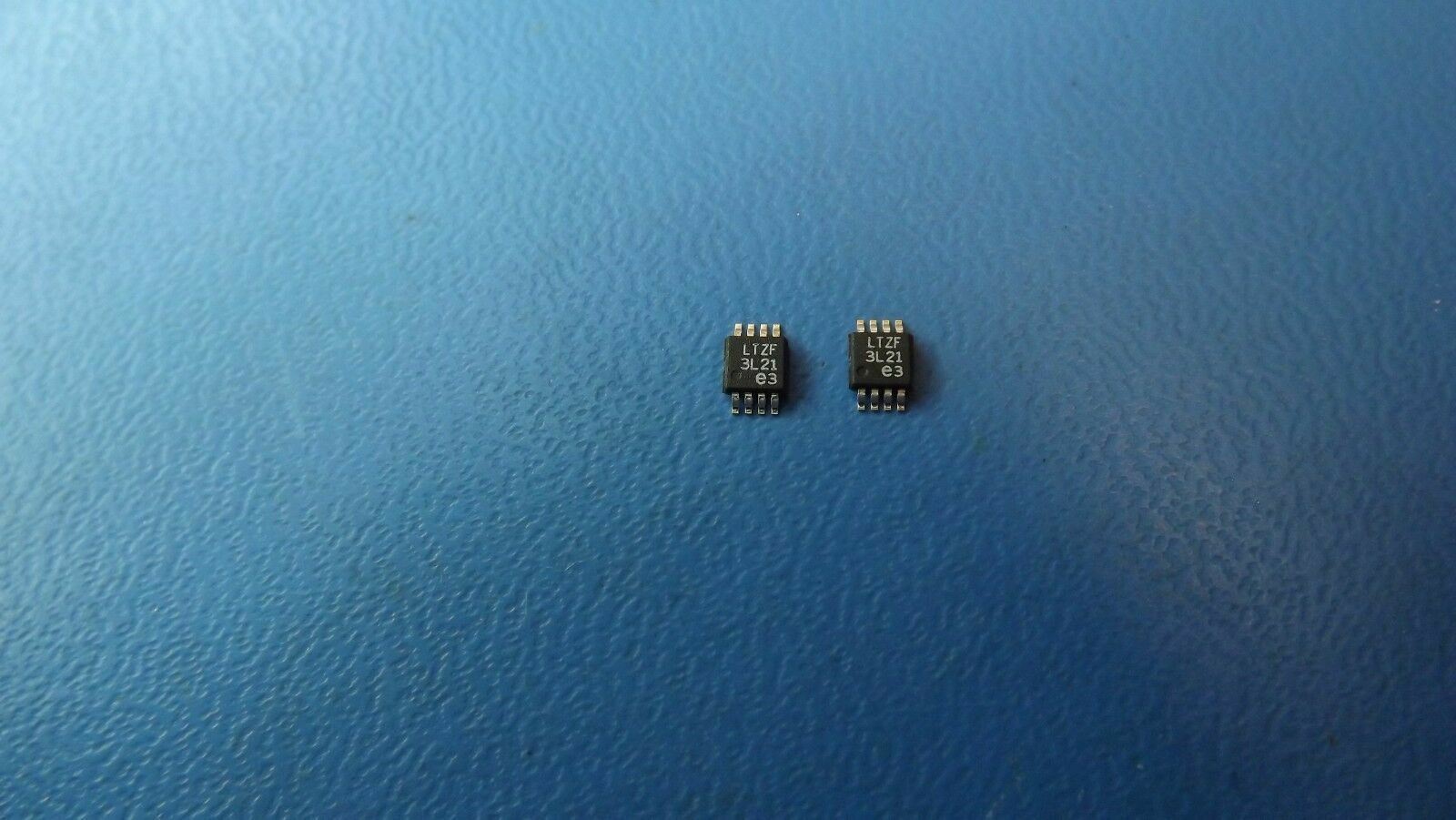

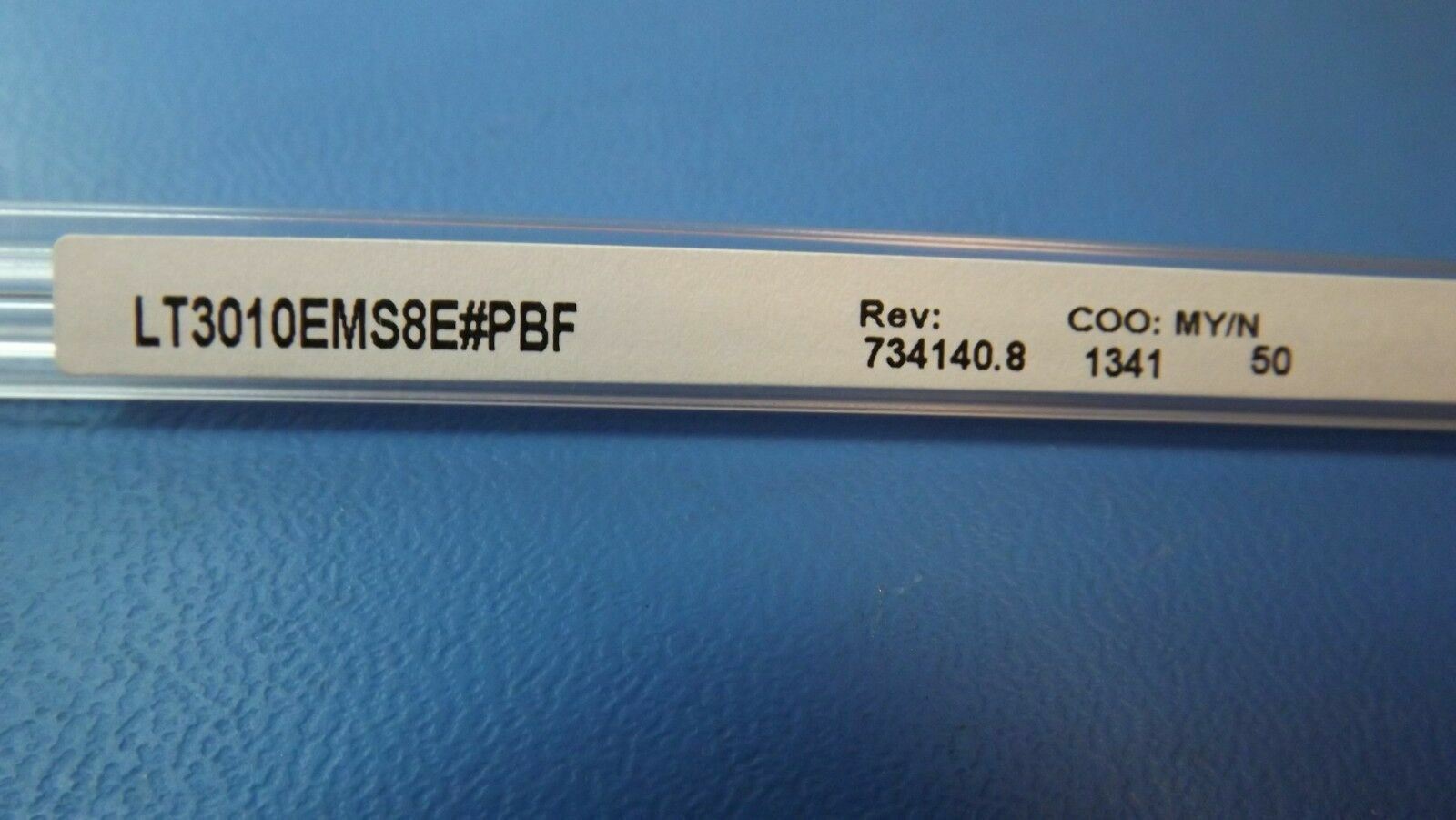

THIS LISTING IS FOR (2PCS) OF LT3010EMS8E#PBF BY LINEAR TECHNOLOGY
SPECIFICATIONS
| Mfr Package Description | LEAD FREE, PLASTIC, MSOP-8 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR |
| Adjustability | ADJUSTABLE |
| Dropout Voltage1-Nom | 0.3 V |
| Dropout Voltage1-Max | 0.55 V |
| Input-Output Voltage Differential-Min | 3.0 V |
| Input-Output Voltage Differential-Max | 80.0 V |
| JESD-30 Code | S-PDSO-G8 |
| JESD-609 Code | e3 |
| Line Regulation-Max (%/V) | 0.013 |
| Load Regulation-Max(%) | 2.5 % |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 8 |
| Operating Temperature, TJ-Min | 0.0 Cel |
| Operating Temperature, TJ-Max | 125.0 Cel |
| Output Current1-Max | 0.05 A |
| Output Voltage1-Min | 1.275 V |
| Output Voltage1-Max | 60.0 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | HTSSOP |
| Package Equivalence Code | TSSOP8,.19 |
| Package Shape | SQUARE |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.1 mm |
| Sub Category | Other Regulators |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 3.0 mm |
| Width | 3.0 mm |
