(2PCS) LP3874ES-3.3/NOPB LDO Regulator Pos 3.3V 0.8A 6-Pin(5+Tab) TO-263
(2PCS) LP3874ES-3.3/NOPB LDO Regulator Pos 3.3V 0.8A 6-Pin(5+Tab) TO-263
(2PCS) LP3874ES-3.3/NOPB LDO Regulator Pos 3.3V 0.8A 6-Pin(5+Tab) TO-263
(2PCS) LP3874ES-3.3/NOPB LDO Regulator Pos 3.3V 0.8A 6-Pin(5+Tab) TO-263

(2PCS) LP3874ES-3.3/NOPB LDO Regulator Pos 3.3V 0.8A 6-Pin(5+Tab) TO-263

Tax included.
Only 16 left!

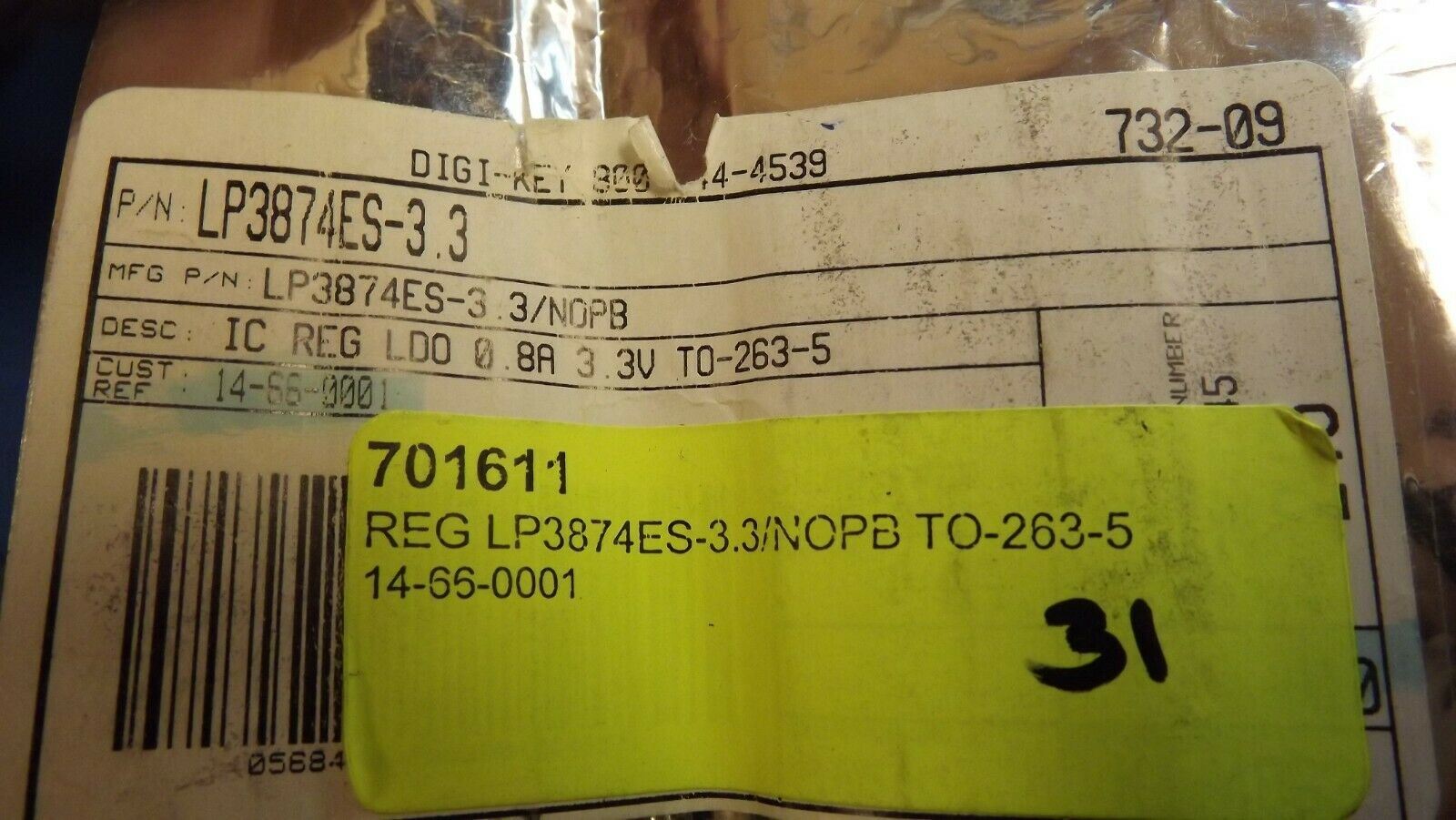

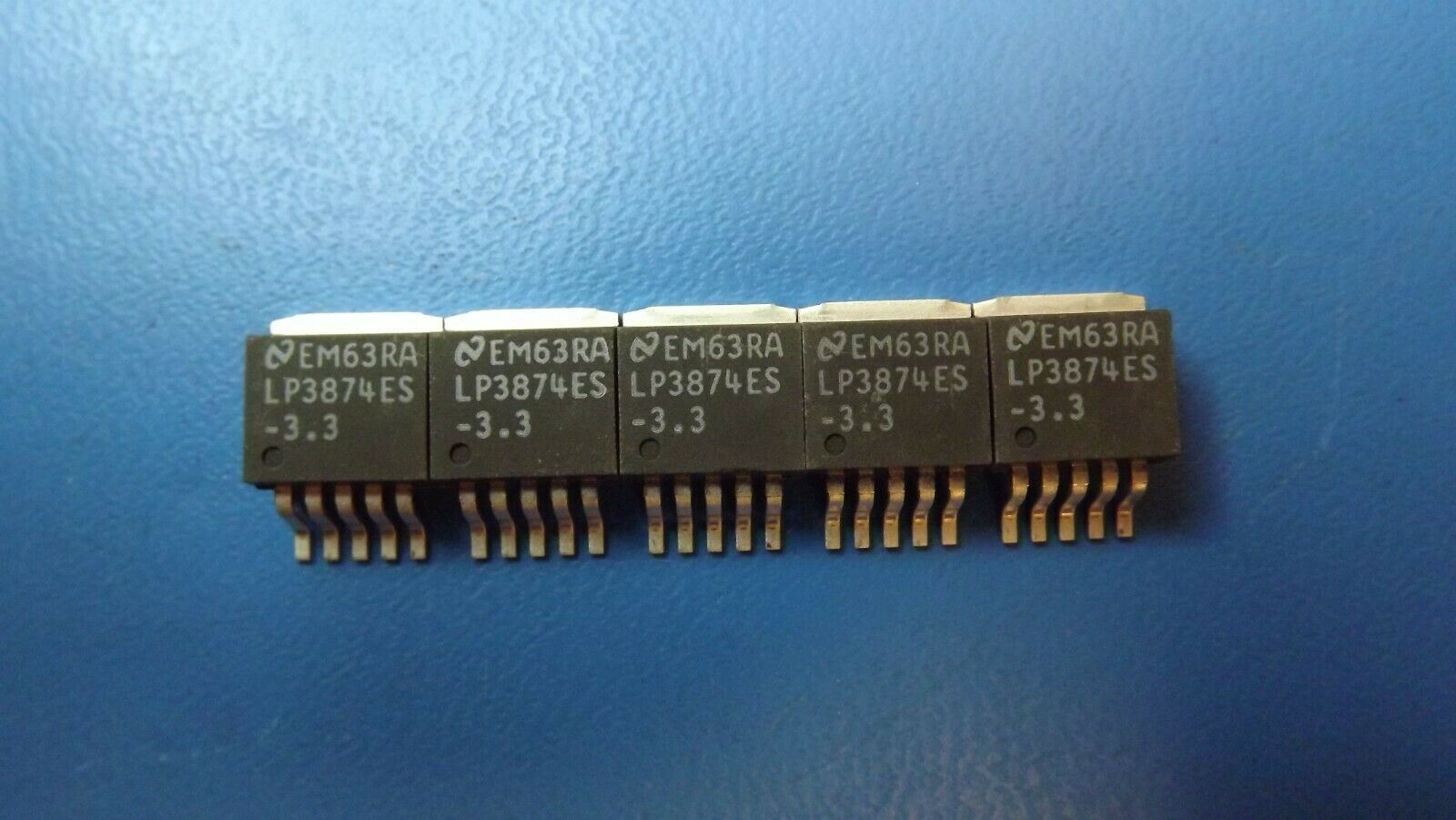

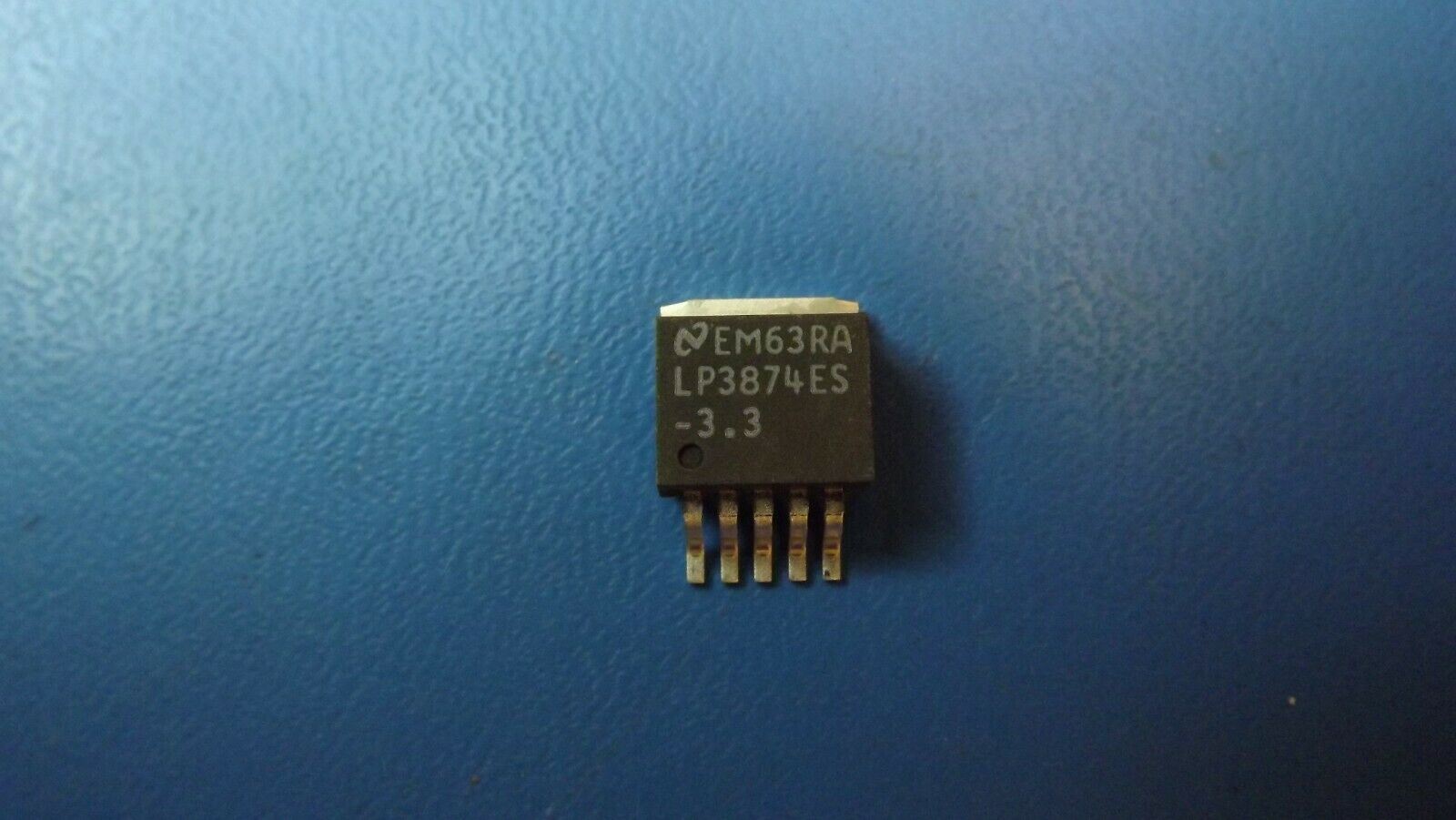

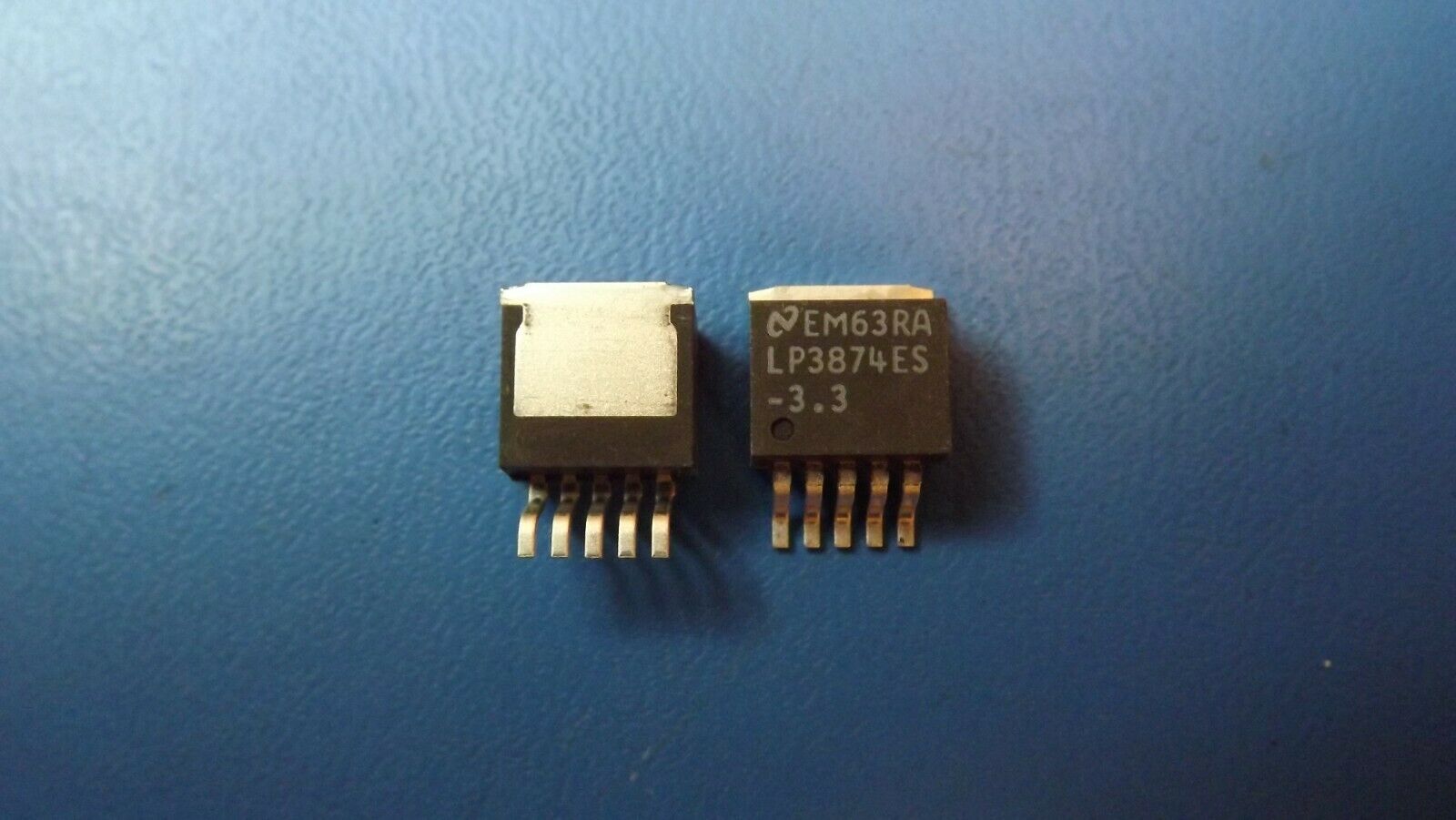

THIS LISTING IS FOR (2PCS) OF LP3874ES-3.3/NOPB BY NSC

Manufacturer: NSC
Product Category:LDO Voltage Regulators
RoHS: Details
Mounting Style:SMD/SMT
Package / Case:TO-263-5
Output Voltage:3.3 V
Output Current:800 mA
Number of Outputs:1 Output
Polarity:Positive
Input Voltage MAX:7 V
Input Voltage MIN:2.5 V
Output Type:Fixed
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 125 C
Dropout Voltage:240 mV
Series:LP3874
Packaging:Tube
Operating Temperature Range:- 40 C to + 125 C
Product:Fast Ultra LDO Linear Regulators
Tolerance:+/- 3 %
Type:Ultra Low Dropout Voltage
Brand: NSC
Dropout Voltage - Max:0.035 V at 80 mA, 0.3 V at 800 mA
PSRR / Ripple Rejection - Typ:73 dB
Voltage Regulation Accuracy:+/- 1.5 %
Ib - Input Bias Current:6 mA
Line Regulation:0.02 %
Load Regulation:0.04 %
Moisture Sensitive:Yes
Operating Supply Current:5 mA
Product Type:LDO Voltage Regulators
