(2PCS) LM6364M NSC Operational Amplifier 1 Func 11000uV Offset-Max BIPolar SOIC8
Tax included.

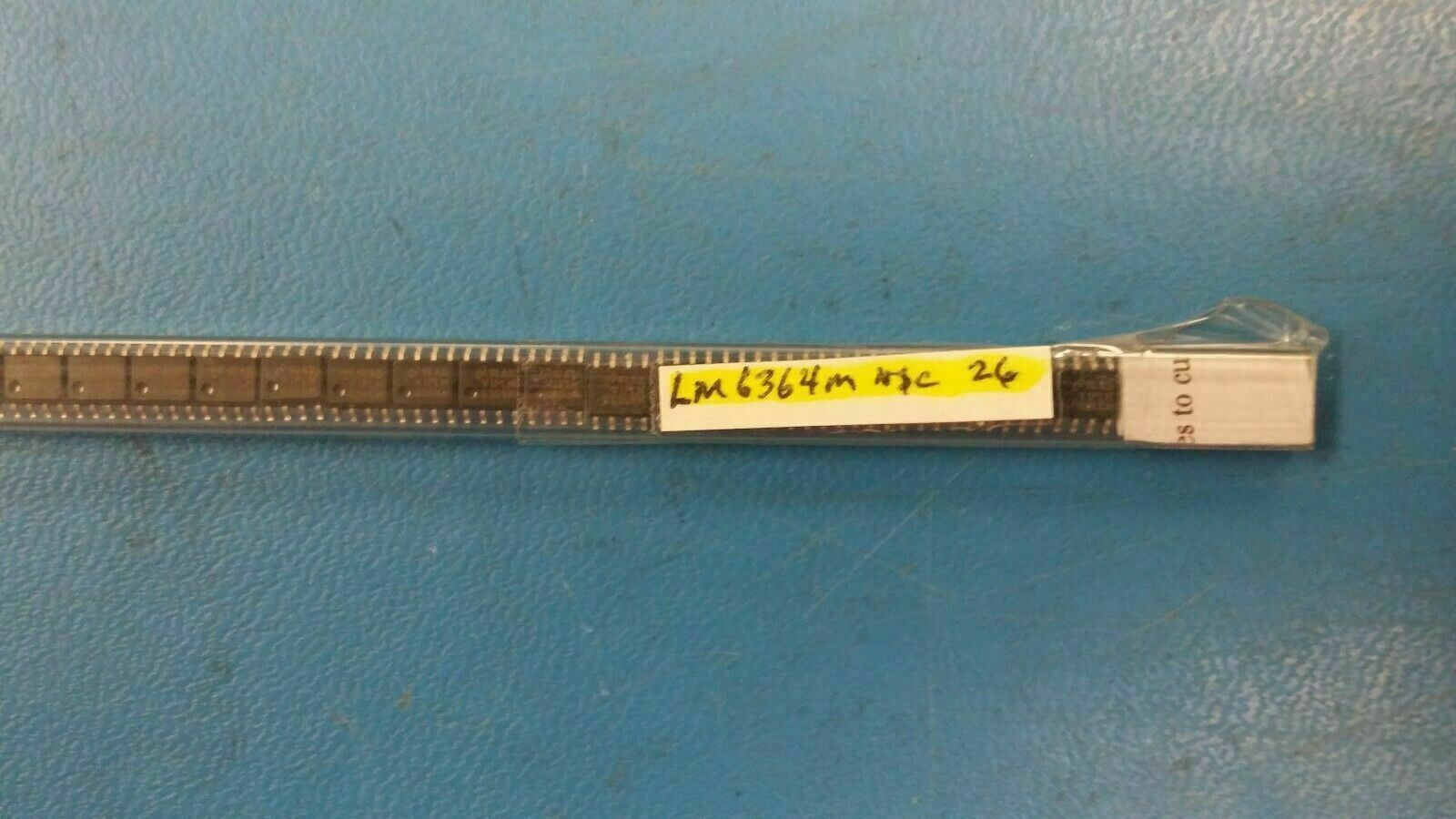

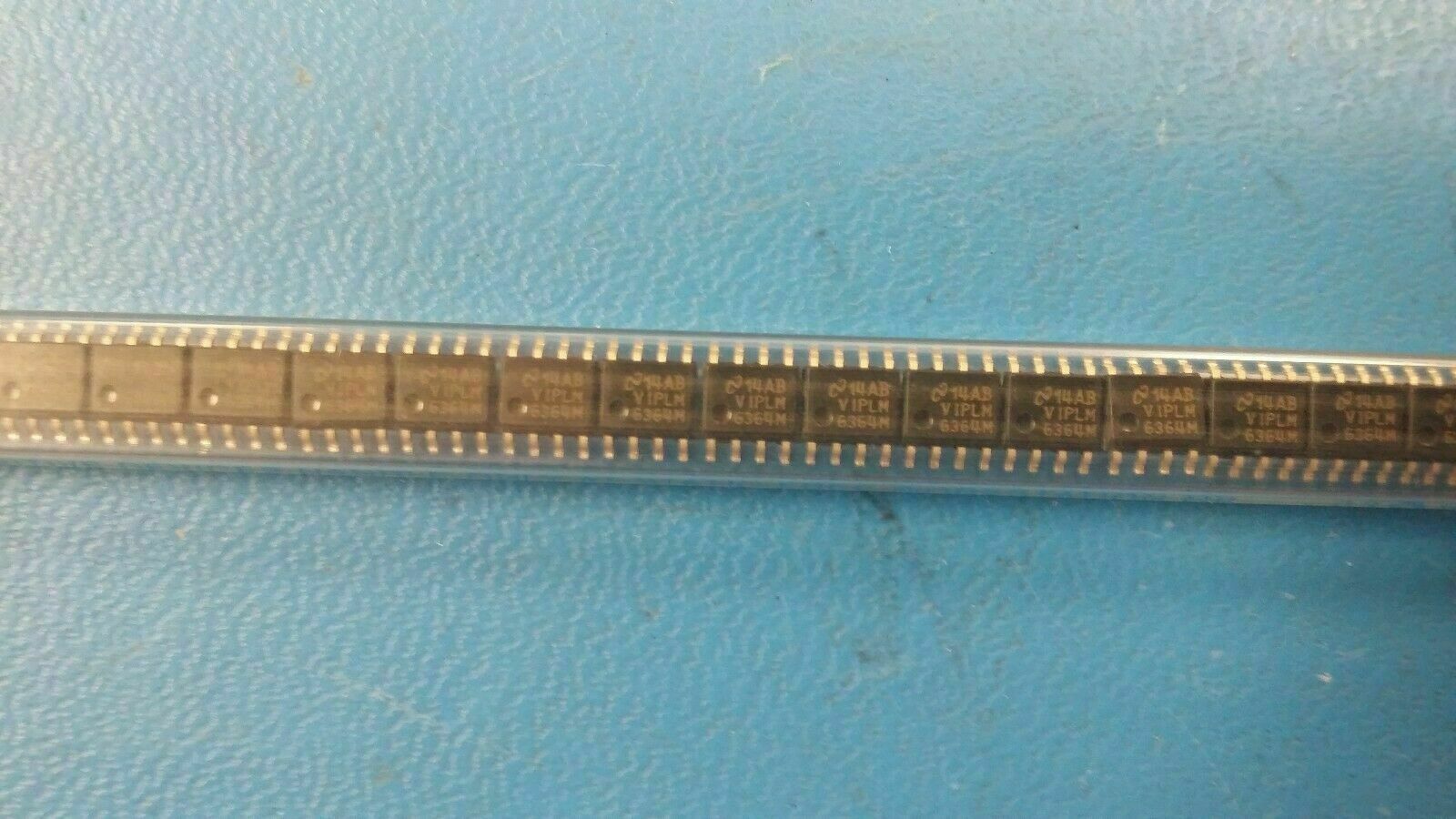

THIS LISTING IS FOR (2 PCS) OF LM6364M BY NSC
Operational Amplifier 1 Func 11000uV Offset-Max BIPolar SOIC8
Part #: LM6364M
Part Category: Amplifiers
Manufacturer: National Semiconductor
Description: Operational Amplifier, 1 Func, 11000uV Offset-Max, BIPolar, PDSO8
Manufacturer: National Semiconductor
Description: Operational Amplifier, 1 Func, 11000uV Offset-Max, BIPolar, PDSO8
| Mfr Package Description | PLASTIC, SOP-8 |
| Status | Discontinued |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 6.0 µA |
| Bias Current-Max (IIB) @25C | 3.0 µA |
| Common-mode Reject Ratio-Nom | 105.0 dB |
| Common-mode Reject Ratio-Min | 80.0 dB |
| Frequency Compensation | YES (AVCL>=5) |
| Input Offset Voltage-Max | 11000.0 µV |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Low-Offset | NO |
| Neg Supply Voltage Limit-Max | -16.0 V |
| Neg Supply Voltage-Nom (Vsup) | -15.0 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Slew Rate-Nom | 300.0 V/us |
| Slew Rate-Min | 200.0 V/us |
| Sub Category | Operational Amplifiers |
| Supply Current-Max | 6.9 mA |
| Supply Voltage Limit-Max | 16.0 V |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Unity Gain BW-Nom | 175000.0 kHz |
| Voltage Gain-Min | 1300.0 |
| Wideband | YES |
| Length | 4.9 mm |
| Width | 3.9 mm |
