(2PCS) K6T4008C1B-VB55 SRAM 5V 4M-Bit 512K x 8 55ns 32-Pin TSOP-II
Tax included.

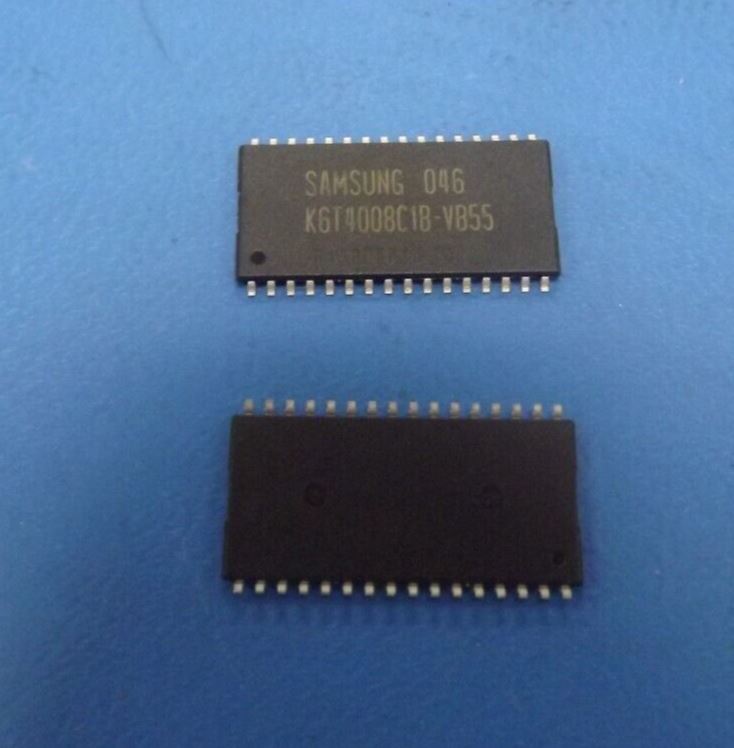

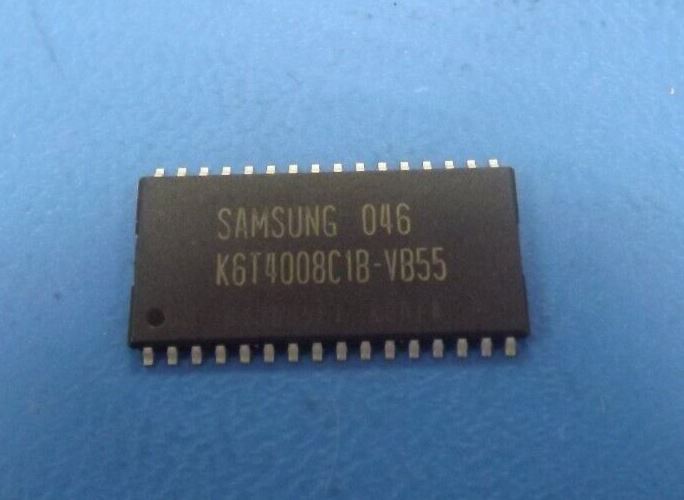

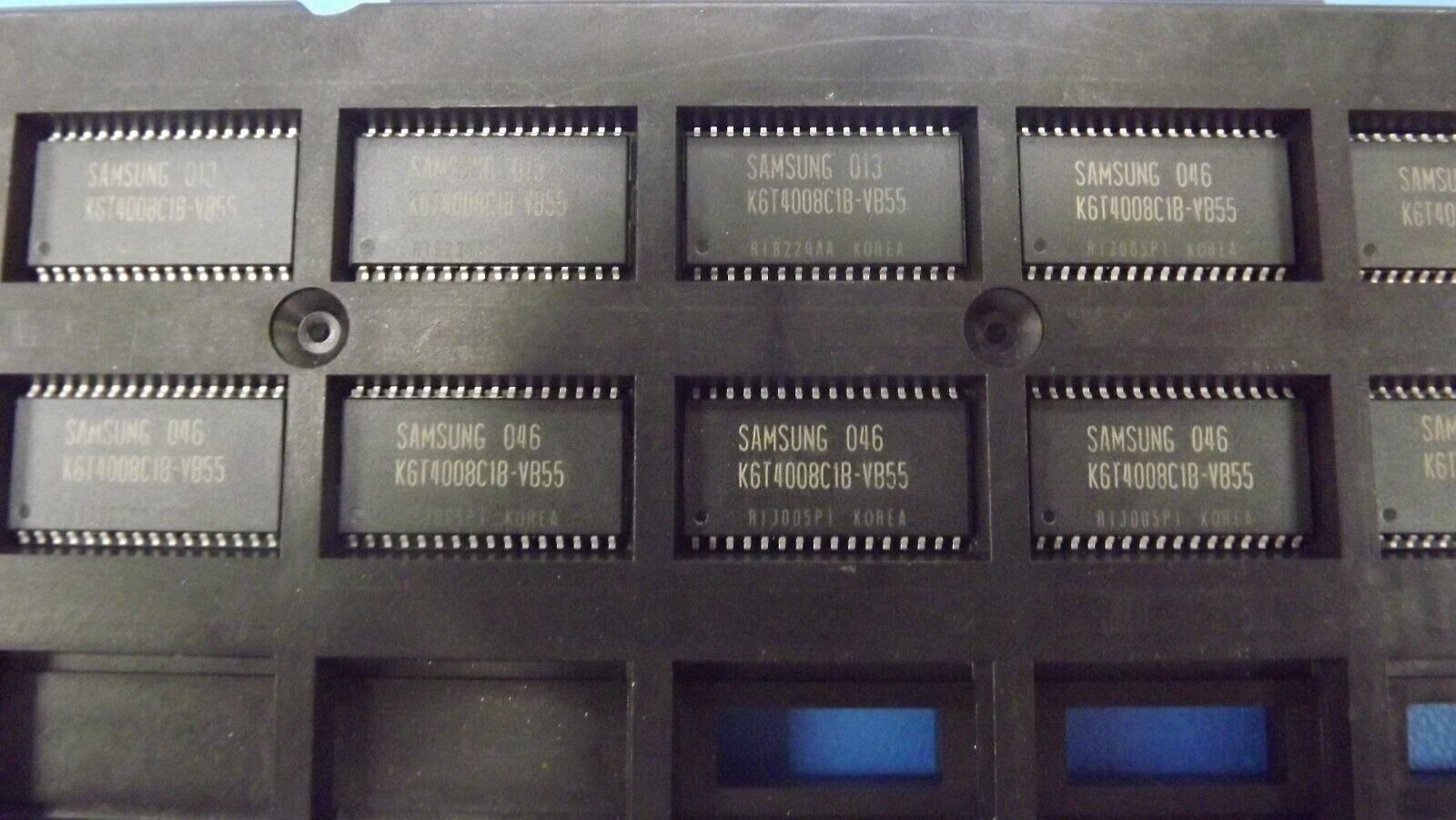

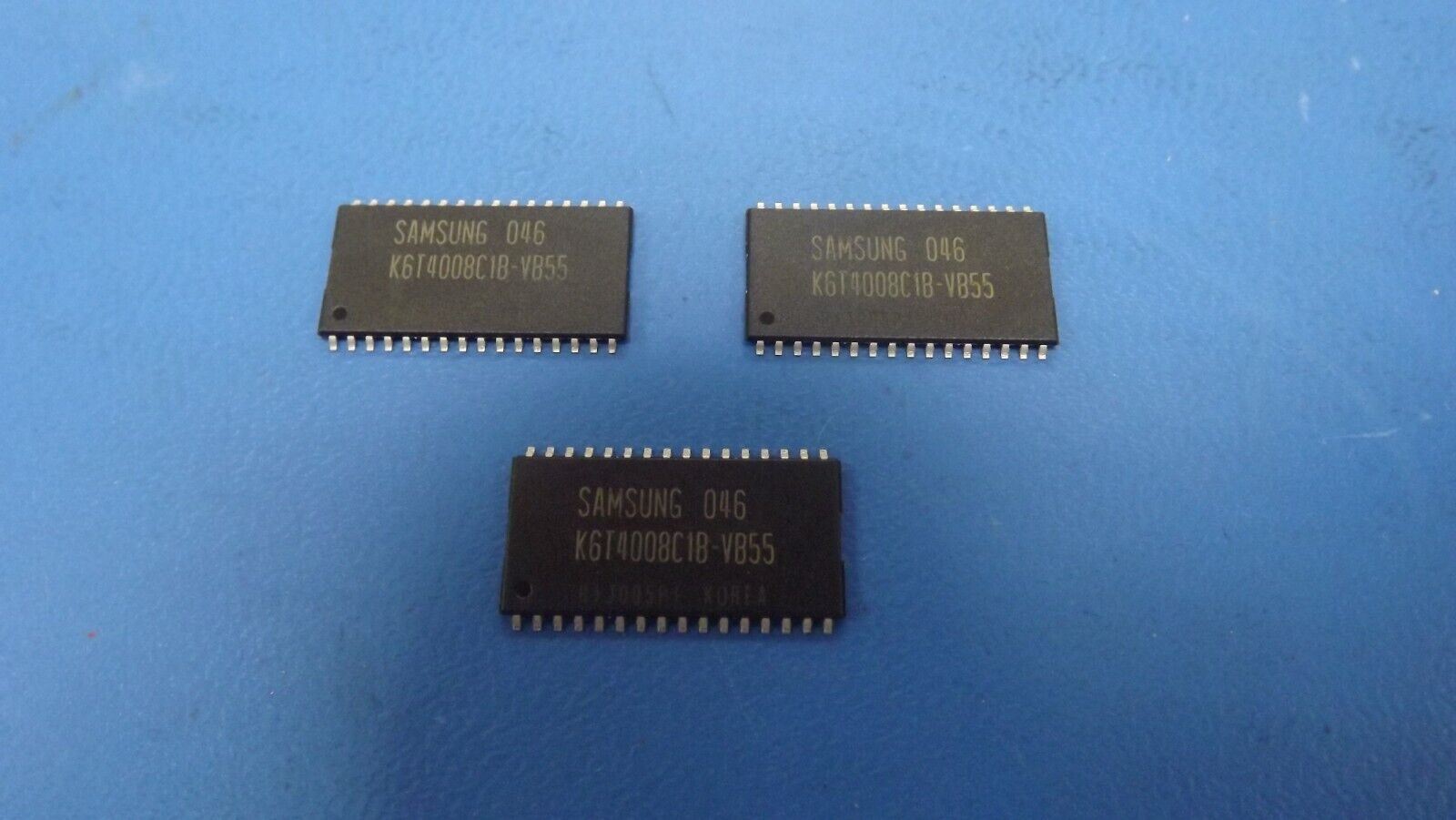

THIS LISTING IS FOR (2PCS) OF K6T4008C1B-VB55 BY SAMSUNG
Mfr Package Description 0.400 INCH, TSOP2-32
Status Discontinued
Sub Category SRAMs
Access Time-Max 55.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G32
JESD-609 Code e0
Memory Density 4194304.0 bit
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 524288.0 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 512KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP2
Package Equivalence Code TSOP32,.46
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Standby Voltage-Min 2.0 V
Supply Current-Max 0.08 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 20.95 mm
Width 10.16 mm
