(2PCS) ICL3241ECA-T INTERSIL Line Transceiver 3 Func 3 Driver 5 Rcvr CMOS SSOP28
Tax included.

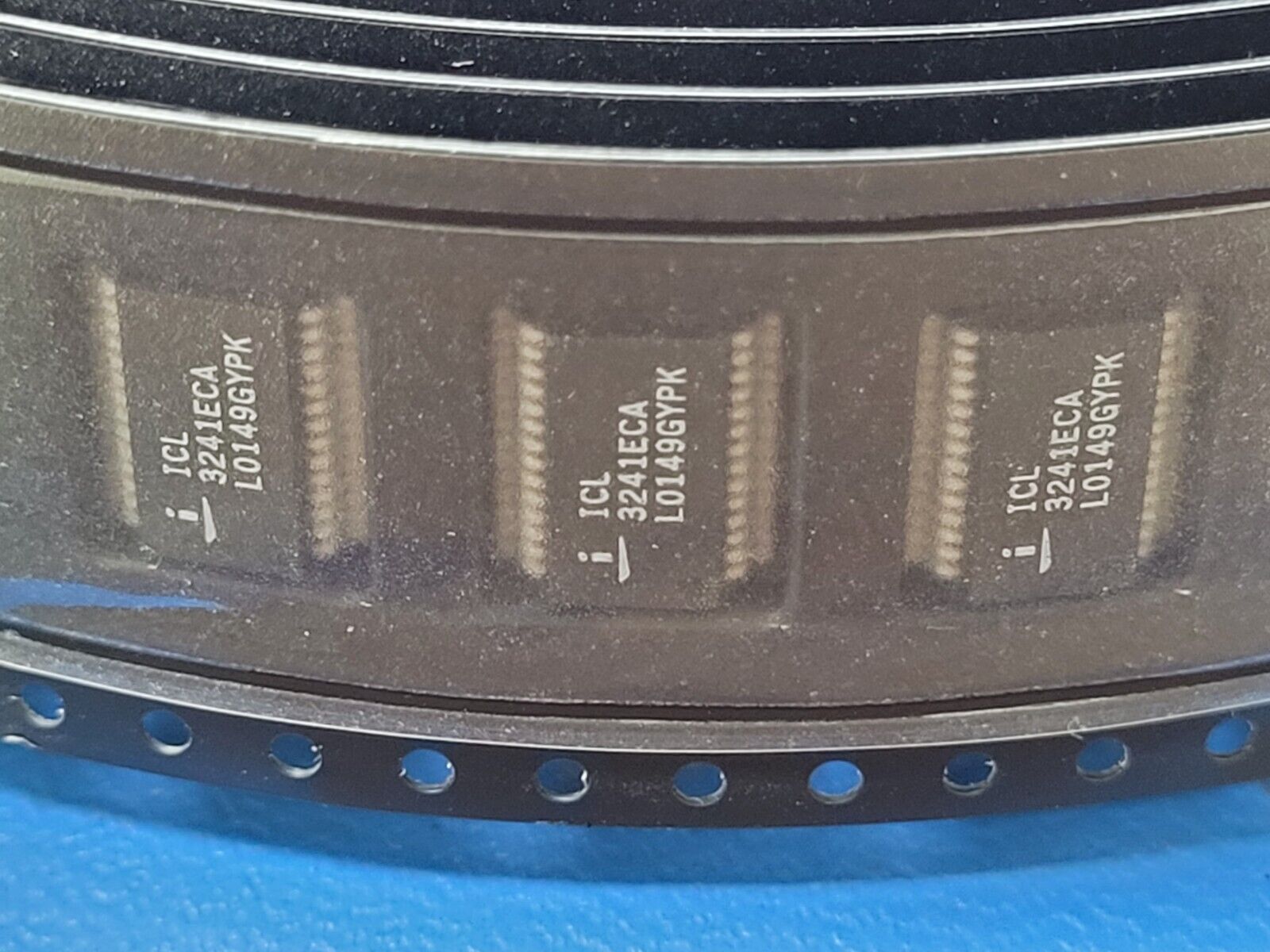

THIS IS FOR (2 PCS) OF ICL3241ECA-T BY INTERSIL
Line Transceiver 3 Func 3 Driver 5 Rcvr CMOS SSOP28
Part #: ICL3241ECA-T
Part Category: Interface ICs
Manufacturer: Intersil Corporation
Description: Line Transceiver, 3 Func, 3 Driver, 5 Rcvr, CMOS, PDSO28
Mfr Package Description PLASTIC, MO-150AH, SSOP-28
Status Discontinued
Interface IC Type LINE TRANSCEIVER
Differential Output NO
Driver Number of Bits 3.0
Input Characteristics SCHMITT TRIGGER
Interface Standard EIA-232; TIA-232; V.24; V.28
JESD-30 Code R-PDSO-G28
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Functions 3
Number of Terminals 28
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Out Swing-Min 10.0 V
Output Low Current-Max 0.0016 Amp
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP28,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Qualification Status Not Qualified
Receive Delay-Max 0.0 ns
Receiver Number of Bits 5.0
Seated Height-Max 2.0 mm
Sub Category Line Driver or Receivers
Supply Current-Max 1.0 mA
Supply Voltage-Nom 3.15 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Length 10.2 mm
Width 5.3 mm
