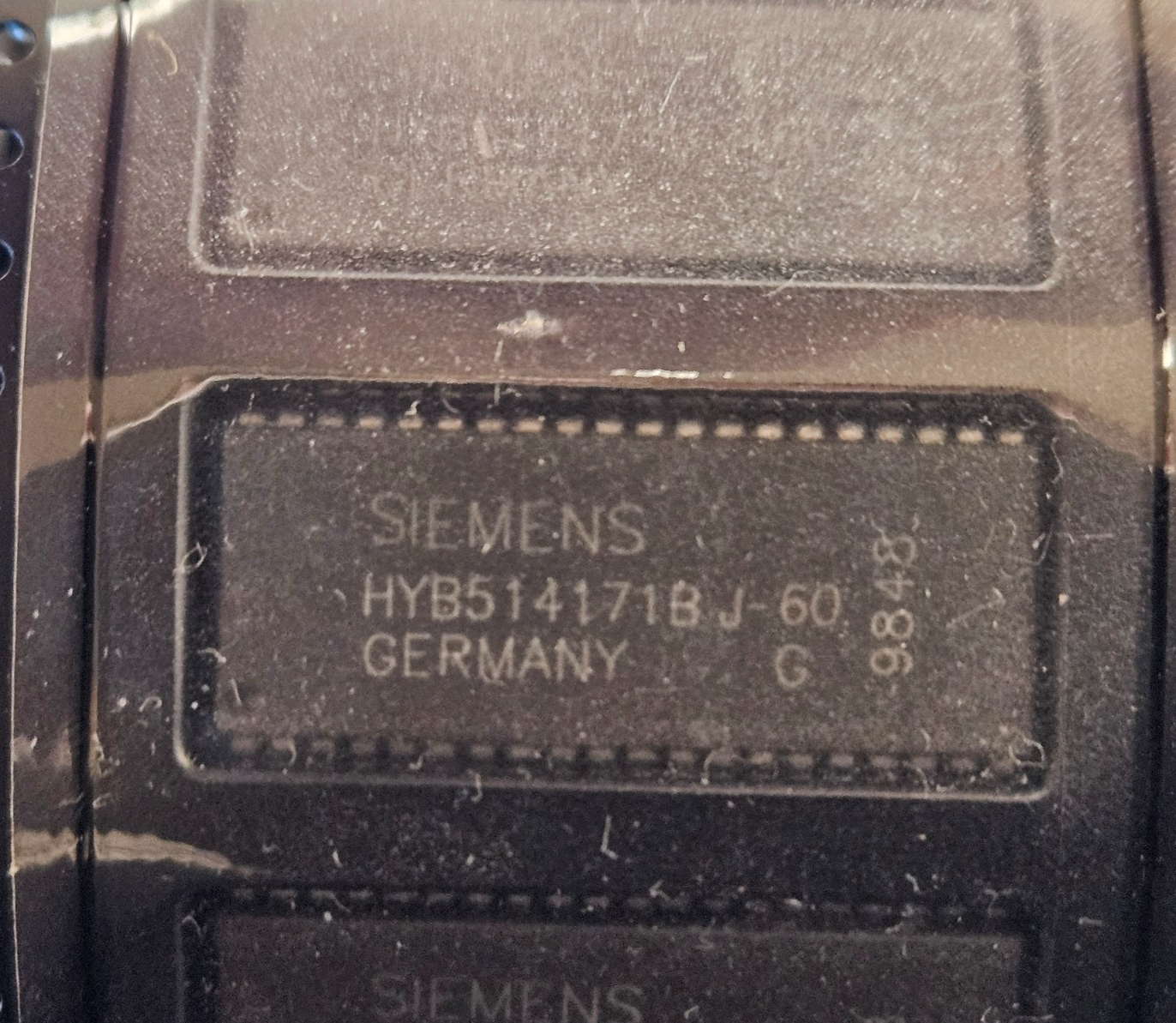

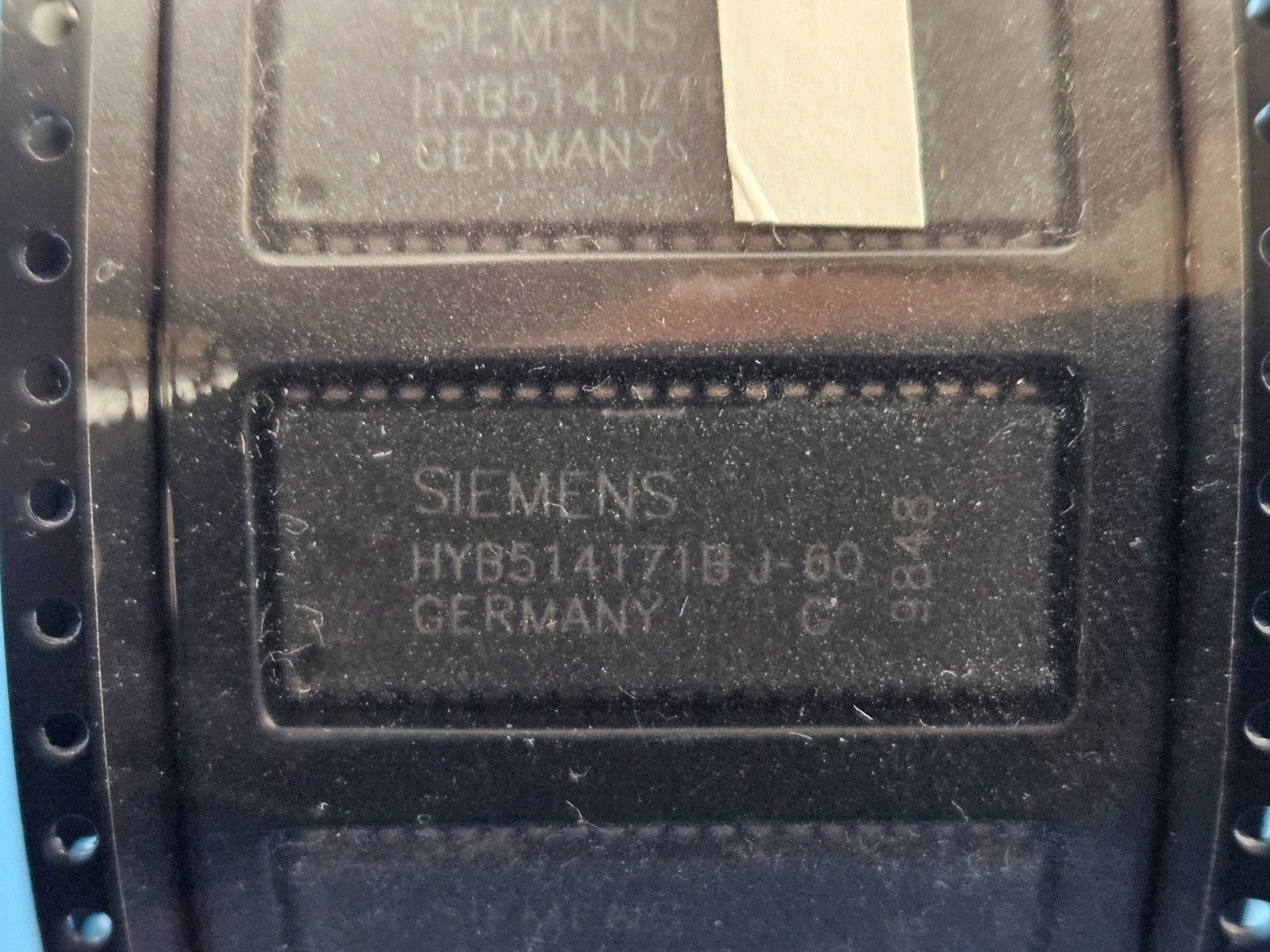

(2PCS) HYB514171BJ-60 Siemens Fast Page DRAM, 256KX16, 60ns, CMOS, SOJ-40
Tax included.
This listing is for (2PCS) of HYB514171BJ-60 by Siemens
Status Transferred
Access Mode FAST PAGE
Access Time-Max (ns) 60.0000000000000000
Additional Feature RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 Code R-PDSO-J40
Memory Density (bits) 4194304.0000000000000000
Memory IC Type FAST PAGE DRAM
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 40
Number of Words (words) 262144.0000000000000000
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 256KX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
DLA Qualification Not Qualified
Refresh Cycles 512
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form J BEND
Terminal Position DUAL
