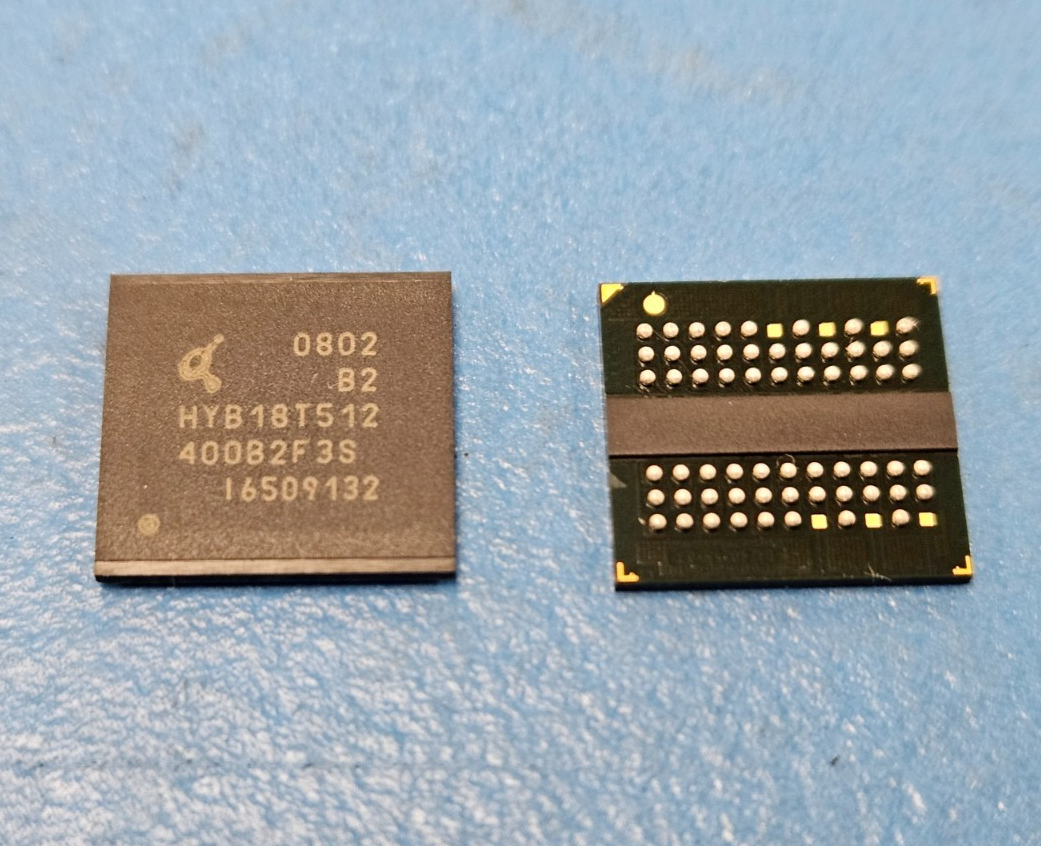

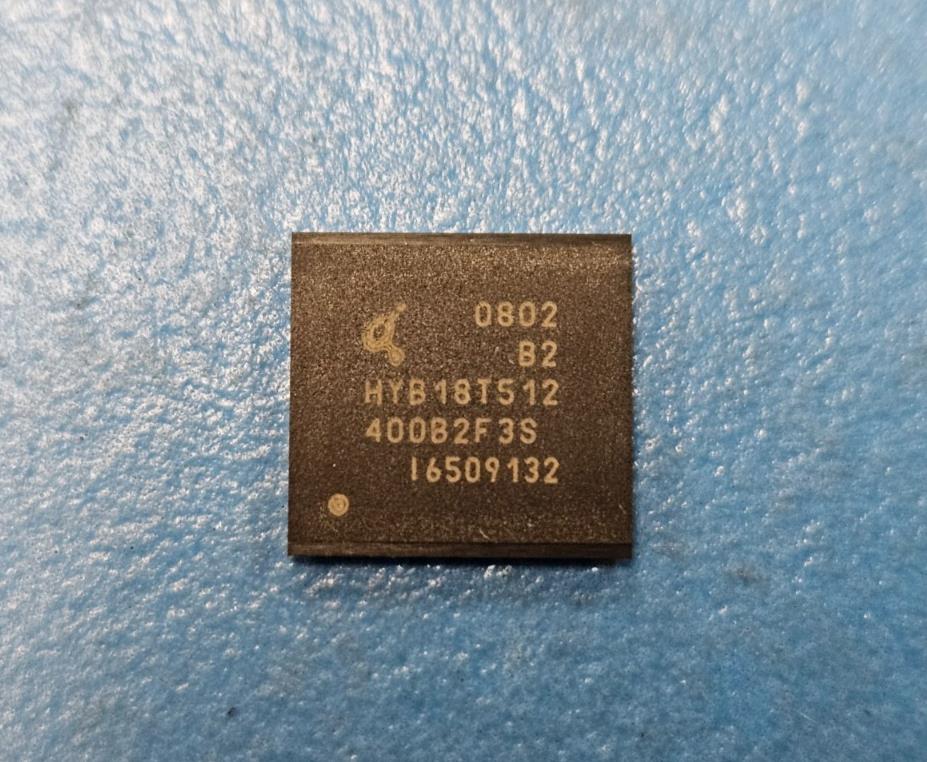

(2PCS) HYB18T512400B2F-3S Qimonda DDR2 DRAM, 128MX4, 0.45ns, CMOS, PBGA60
Tax included.
This listing is for (2pcs) of HYB18T512400B2F-3S by Qimonda
Status Discontinued
Access Mode FOUR BANK PAGE BURST
Access Time-Max (ns) 0.4500000000000000
Additional Feature AUTO/SELF REFRESH
Clock Frequency-Max (MHz) 333.00000
I/O Type COMMON
Interleaved Burst Length 4,8
JESD-30 Code R-PBGA-B60
Length (mm) 10.5000
Memory Density (bits) 536870912.0000000000000000
Memory IC Type DDR2 DRAM
Memory Width 4
Moisture Sensitivity Level 3
Number of Functions 1
Number of Ports 1
Number of Terminals 60
Number of Words (words) 134217728.0000000000000000
Number of Words Code 128M
Operating Mode SYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 128MX4
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TFBGA
Package Equivalence Code BGA60,9X11,32
Package Shape RECTANGULAR
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
DLA Qualification Not Qualified
Refresh Cycles 8192
Seated Height-Max (mm) 1.2000
Self Refresh YES
Sequential Burst Length 4,8
Standby Current-Max (A) 0.003000000000000
Supply Current-Max (mA) 148.000000000000000
Supply Voltage-Max (V) 1.90000
Supply Voltage-Min (V) 1.70000
Supply Voltage-Nom (V) 1.8
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form BALL
Terminal Pitch (mm) 0.800
Terminal Position BOTTOM
Width (mm) 10.0000
