(2PCS) HM6789JP-25 Hitachi Standard SRAM, 16KX4, 25ns, BICMOS, SOJ24
Tax included.

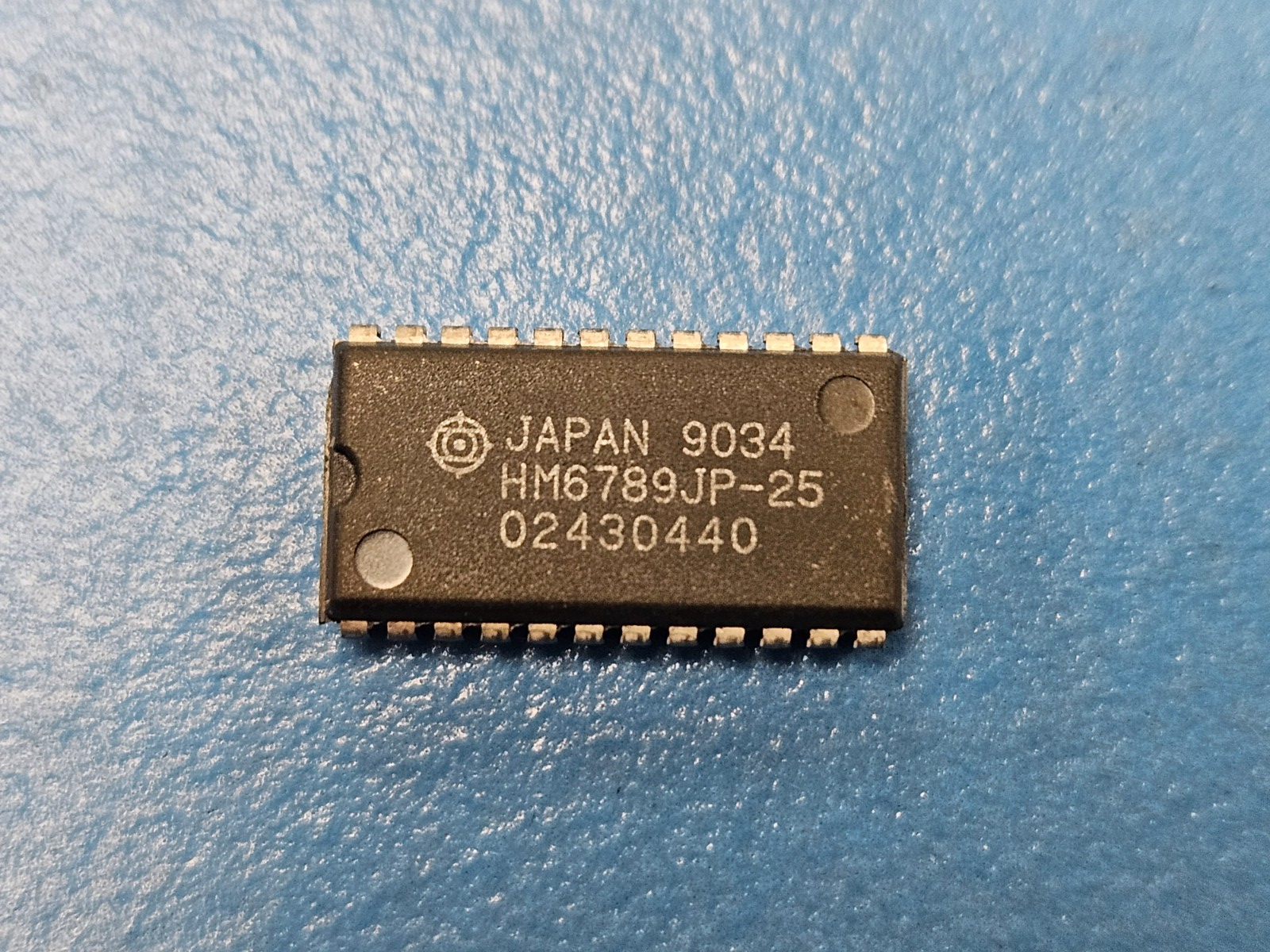

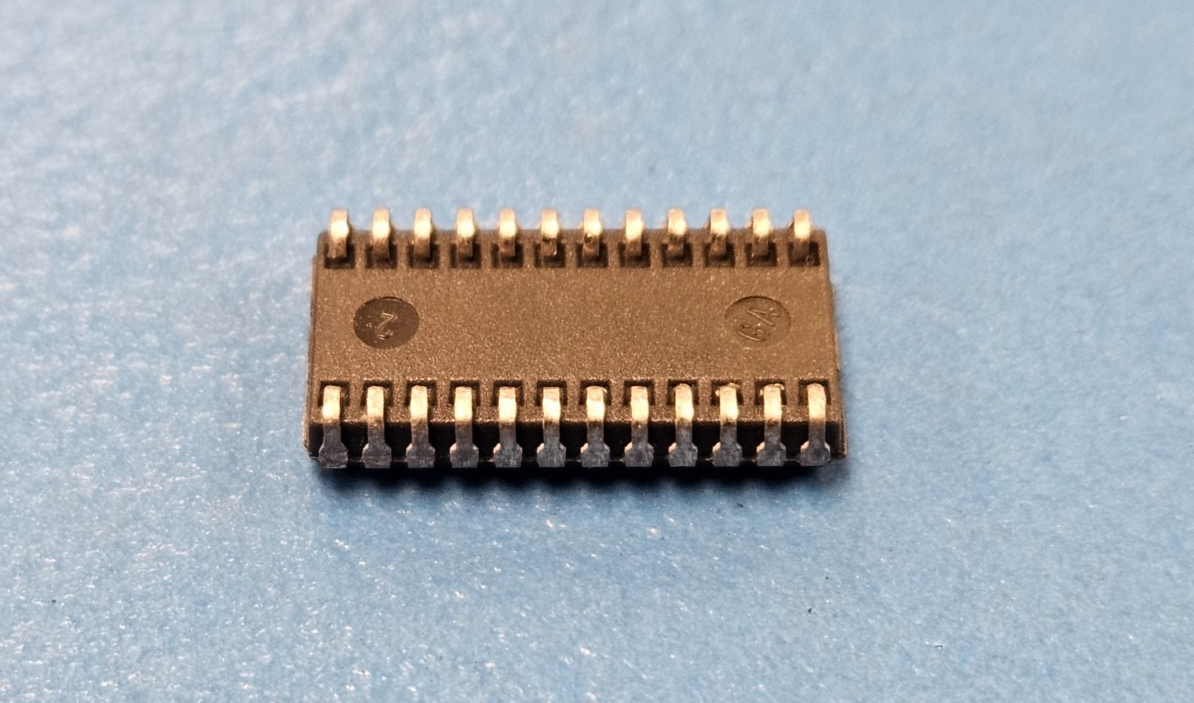

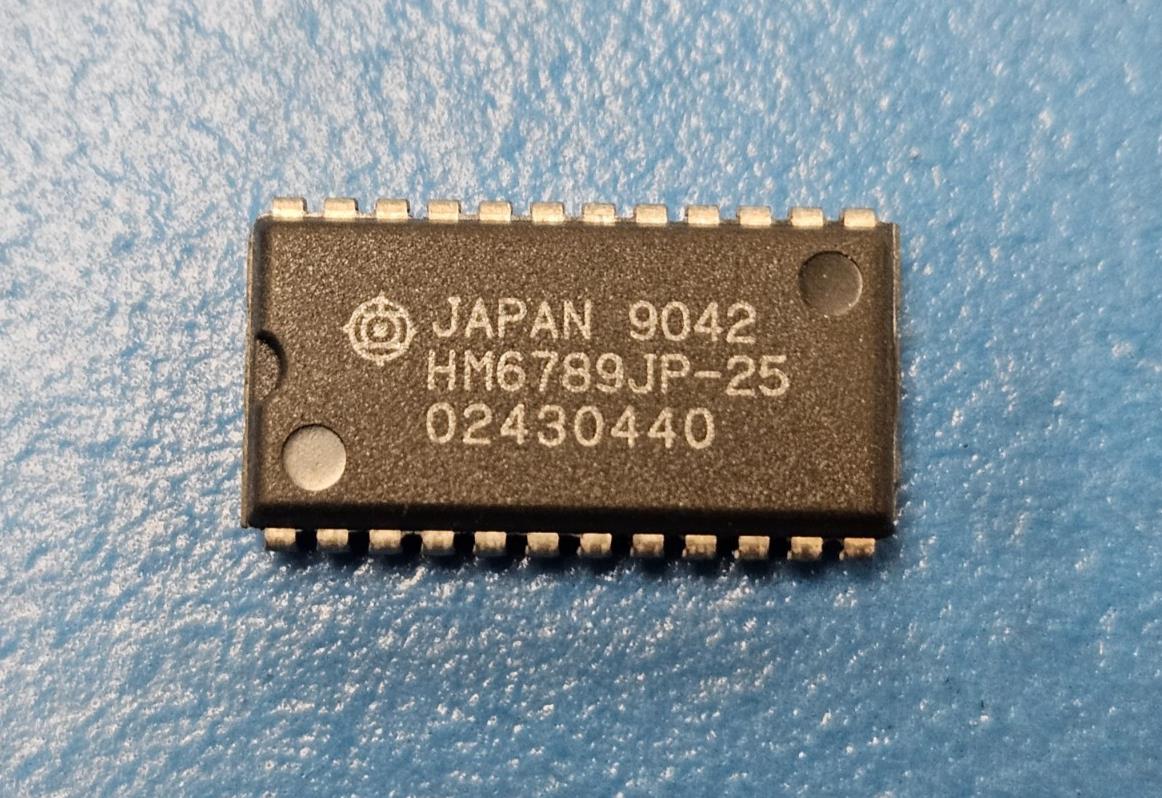

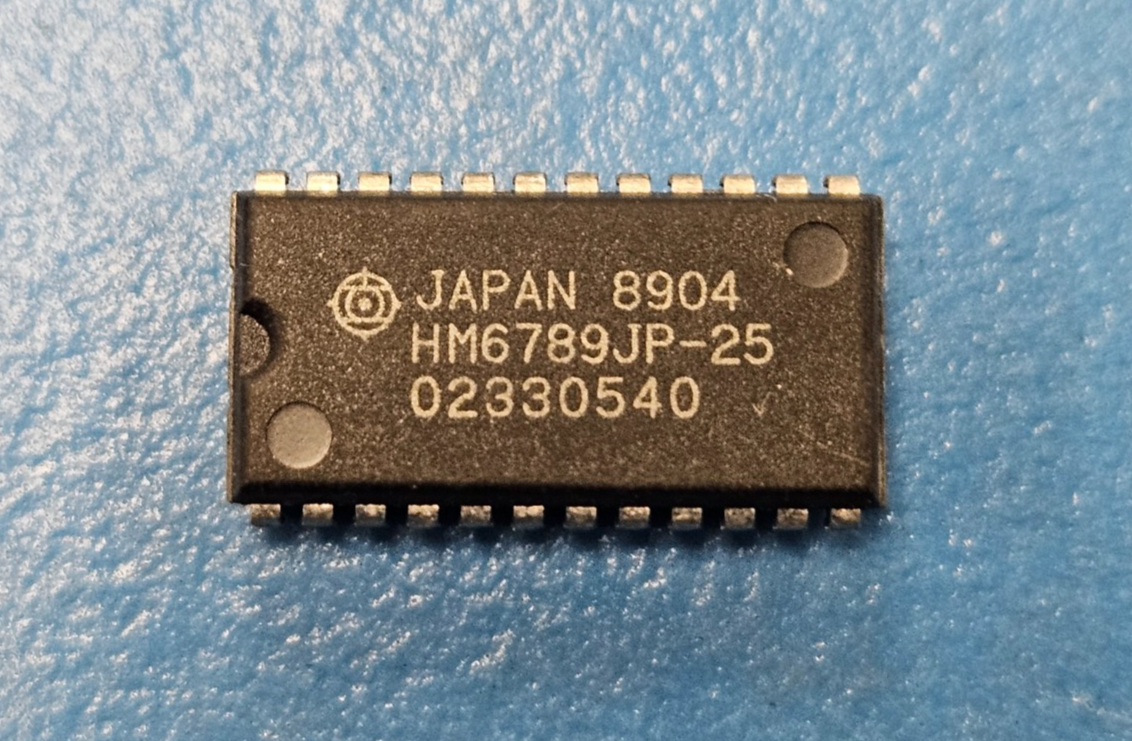

This listing is for (2PCS) of HM6789JP-25 by Hitachi
Status Transferred
Access Time-Max (ns) 25.0000000000000000
I/O Type COMMON
JESD-30 Code R-PDSO-J24
J-STD-609 Code e0
Length (mm) 15.6300
Memory Density (bits) 65536.0000000000000000
Memory IC Type STANDARD SRAM
Memory Width 4
Number of Functions 1
Number of Ports 1
Number of Terminals 24
Number of Words (words) 16384.0000000000000000
Number of Words Code 16K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 16KX4
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ24,.34
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
DLA Qualification Not Qualified
Seated Height-Max (mm) 3.7600
Standby Current-Max (A) 0.010000000000000
Supply Current-Max (mA) 120.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology BICMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 7.6200
