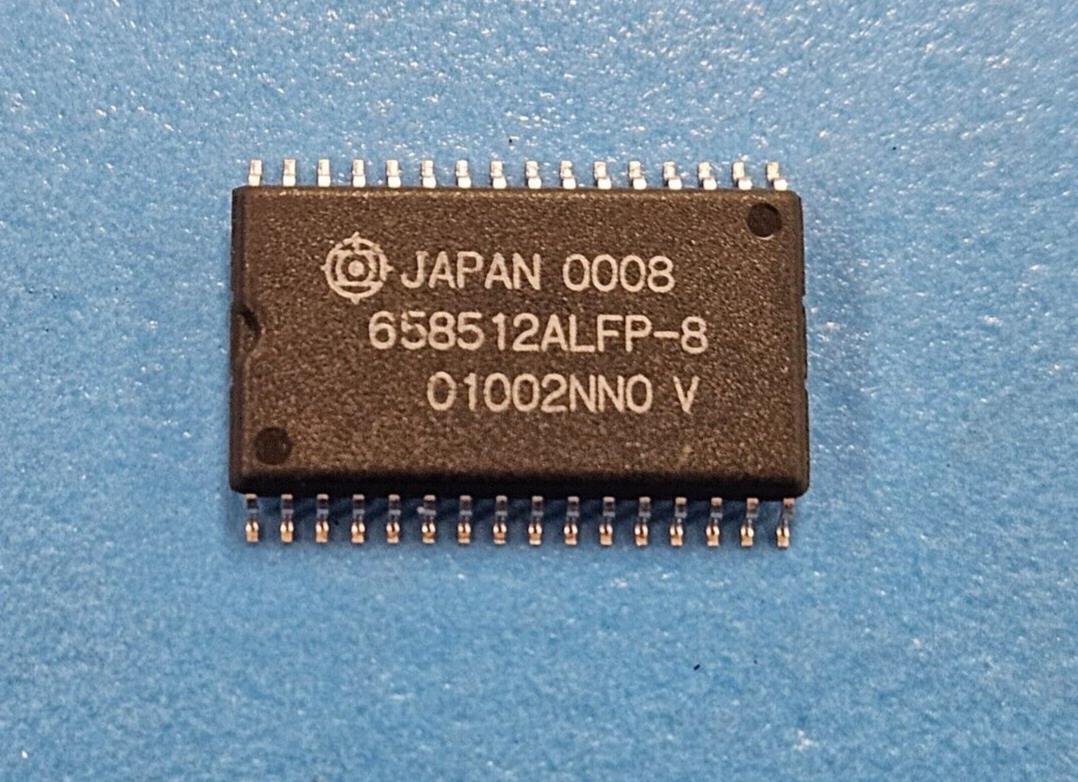

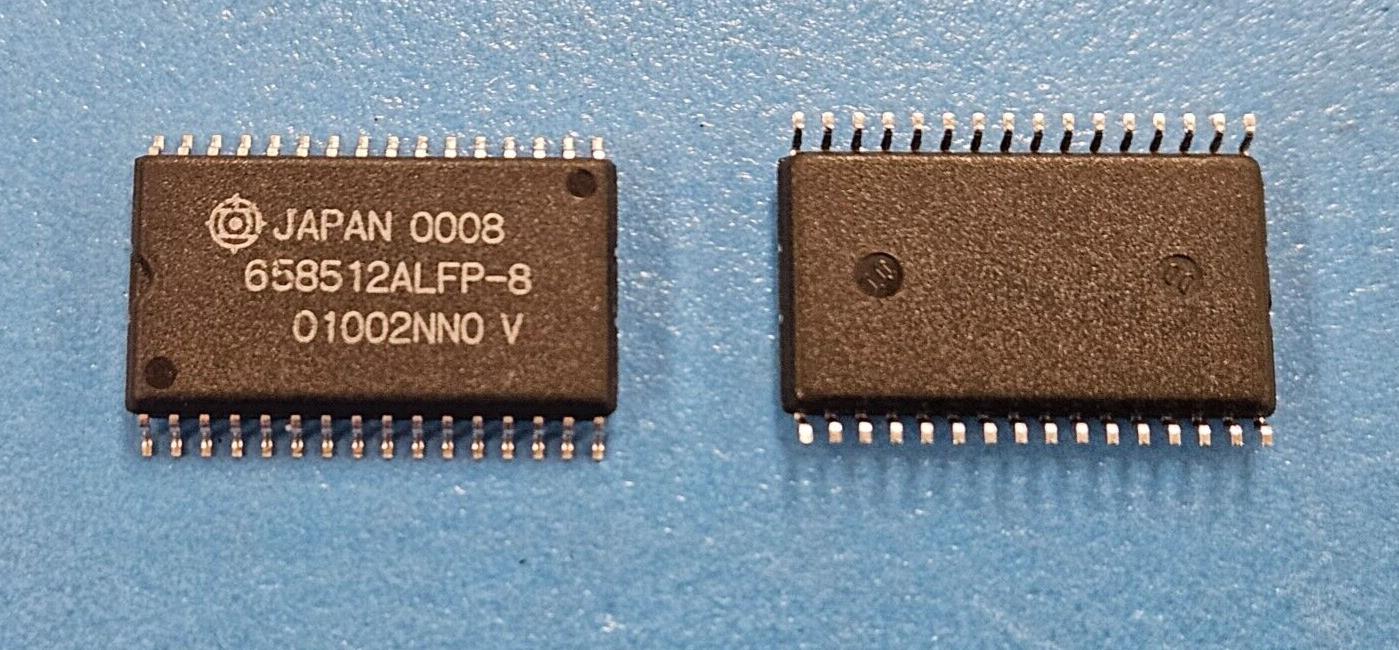

(2PCS) HM658512ALFP-8 Hitachi 4 M PSRAM (512-kword ' 8-bit) 32P SOIC
Tax included.
THIS LISTING IS FOR (2PCS) OF HM658512ALFP-8 BY HITACHI
Mfr Package Description 0.525 INCH, PLASTIC, SOP-32
Status Discontinued
Sub Category Other Memory ICs
Access Time-Max 80.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G32
JESD-609 Code e0
Memory Density 4194304.0 bit
Memory IC Type PSEUDO STATIC RAM
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 524288.0 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 512KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP32,.56
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 3.0 mm
Self Refresh YES
Standby Current-Max 2.0E-4 Amp
Standby Voltage-Min 4.5 V
Supply Current-Max 0.075 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 20.45 mm
Width 11.3 mm
