(2PCS) HM628128BLFPI-10 Standard SRAM, 128KX8, 100ns, CMOS, SOIC32
Tax included.

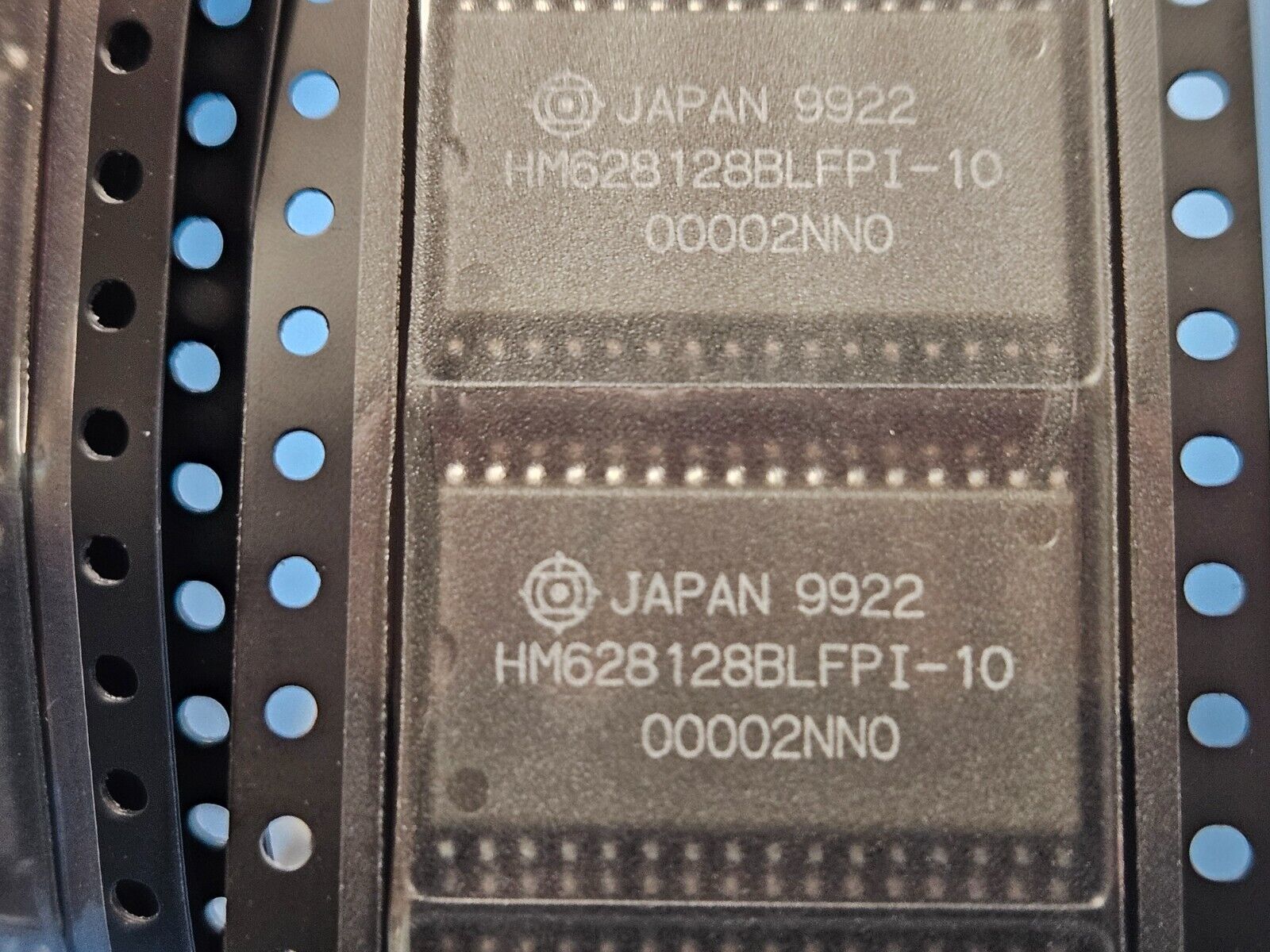

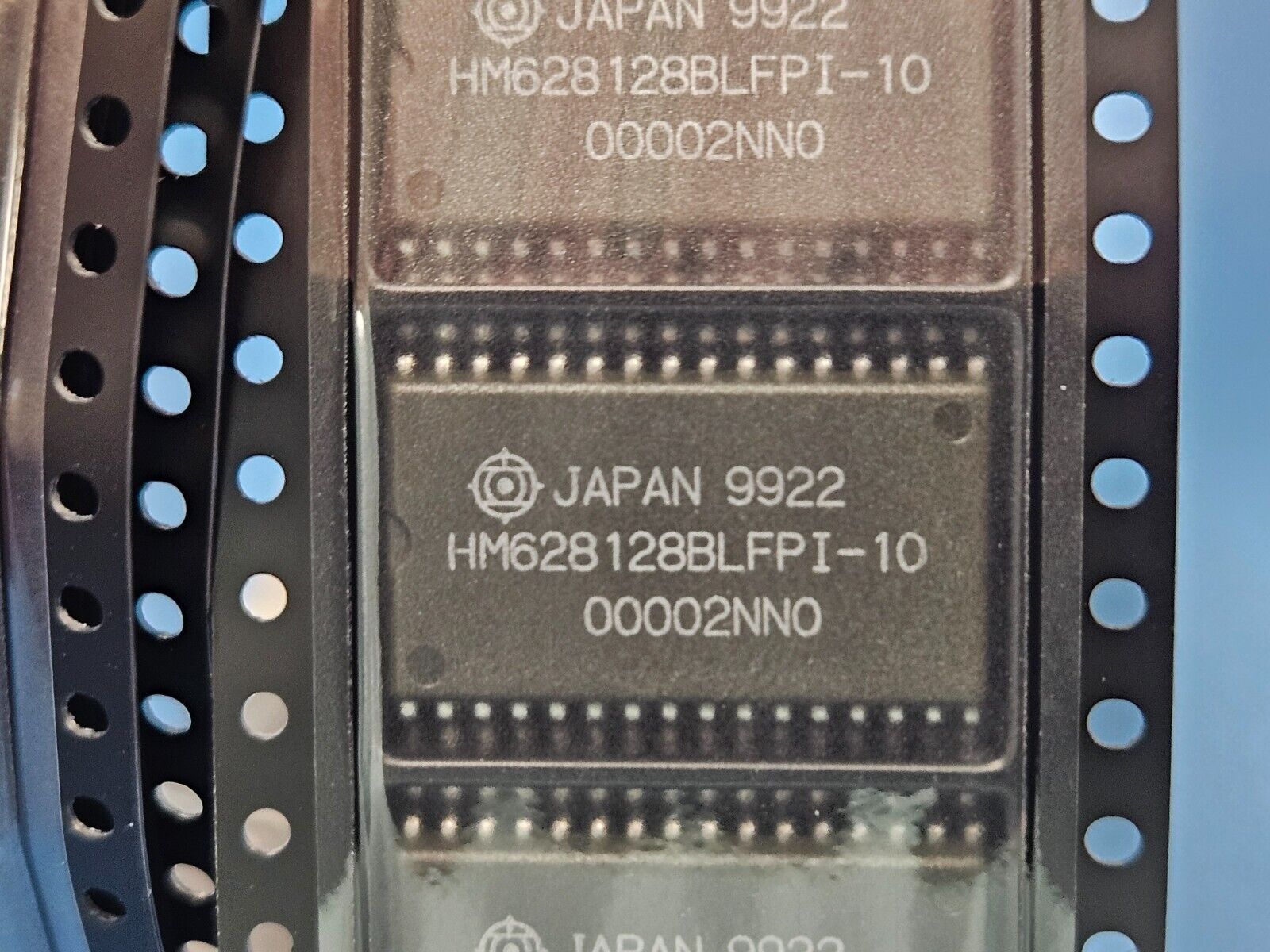

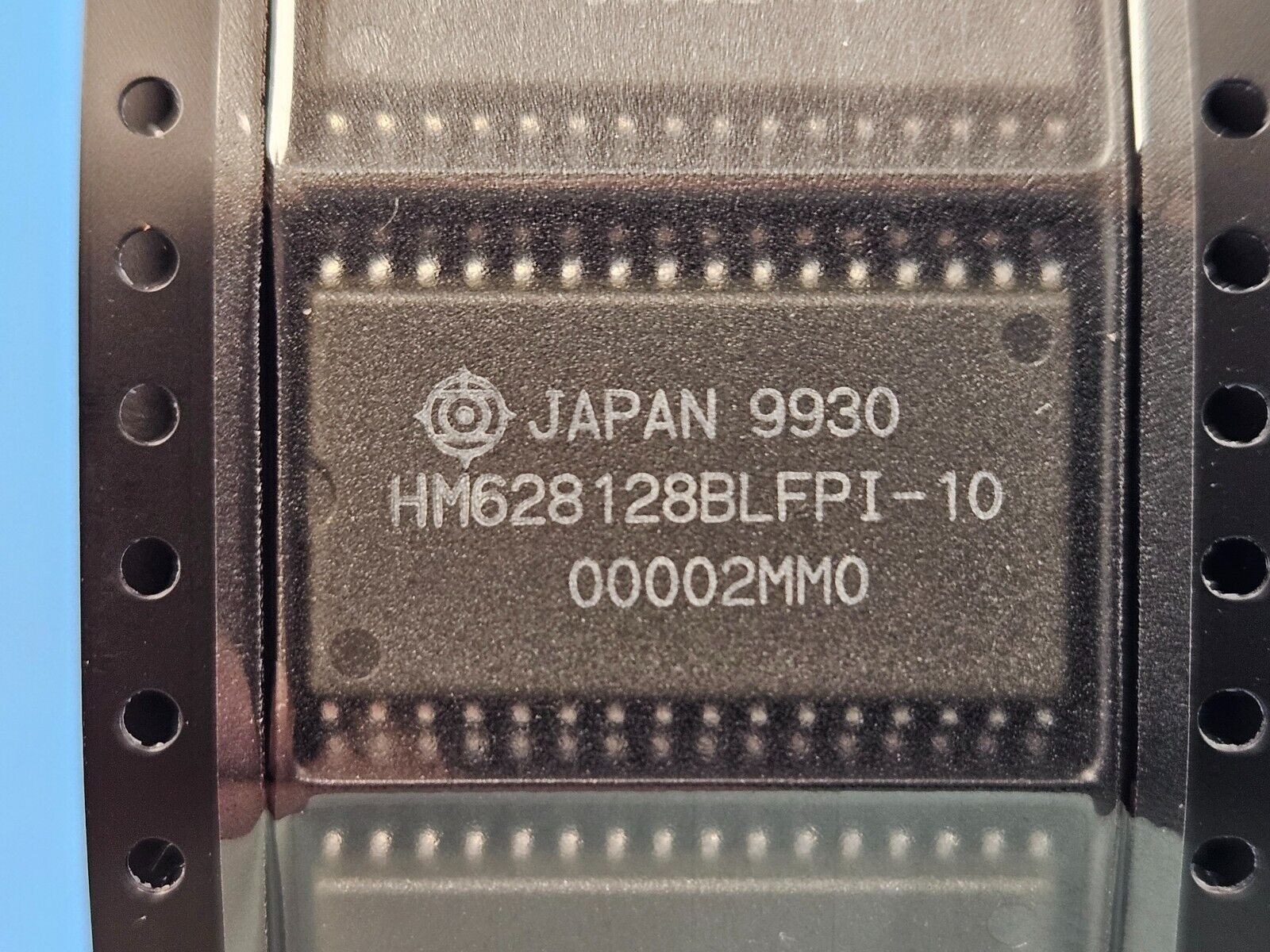

This listing is for (2pcs) of HM628128BLFPI-10 by Hitachi
Mfr Package Description 0.525 INCH, PLASTIC, SOP-32
Status Discontinued
Sub Category SRAMs
Access Time-Max 100.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G32
JESD-609 Code e0
Memory Density 1048576.0 bit
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Ports 1
Number of Terminals 32
Number of Words 131072.0 words
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 128KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP32,.56
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 3.0 mm
Standby Current-Max 5.0E-5 Amp
Standby Voltage-Min 2.0 V
Supply Current-Max 0.07 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 20.45 mm
Width 11.3 mm
