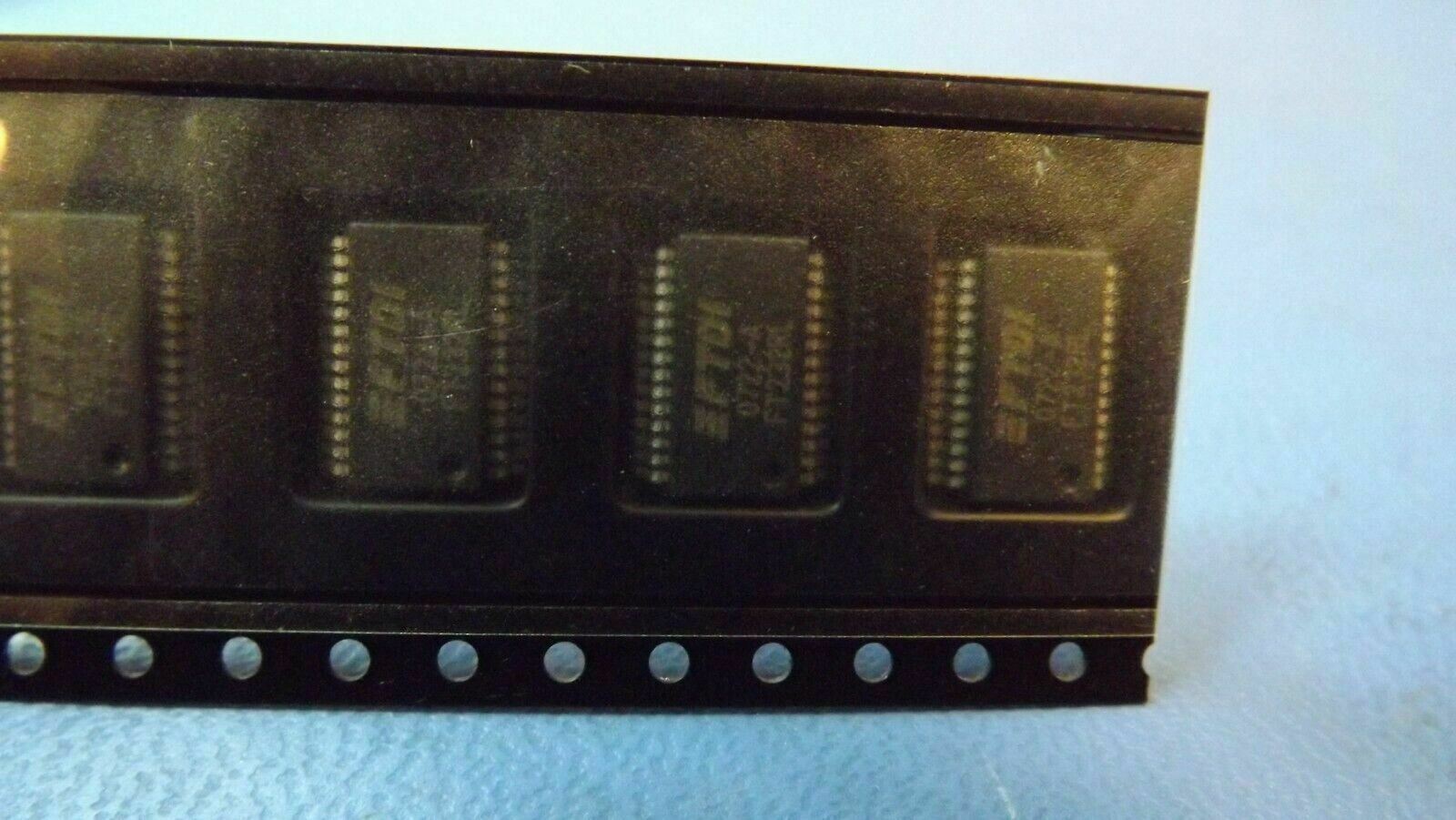

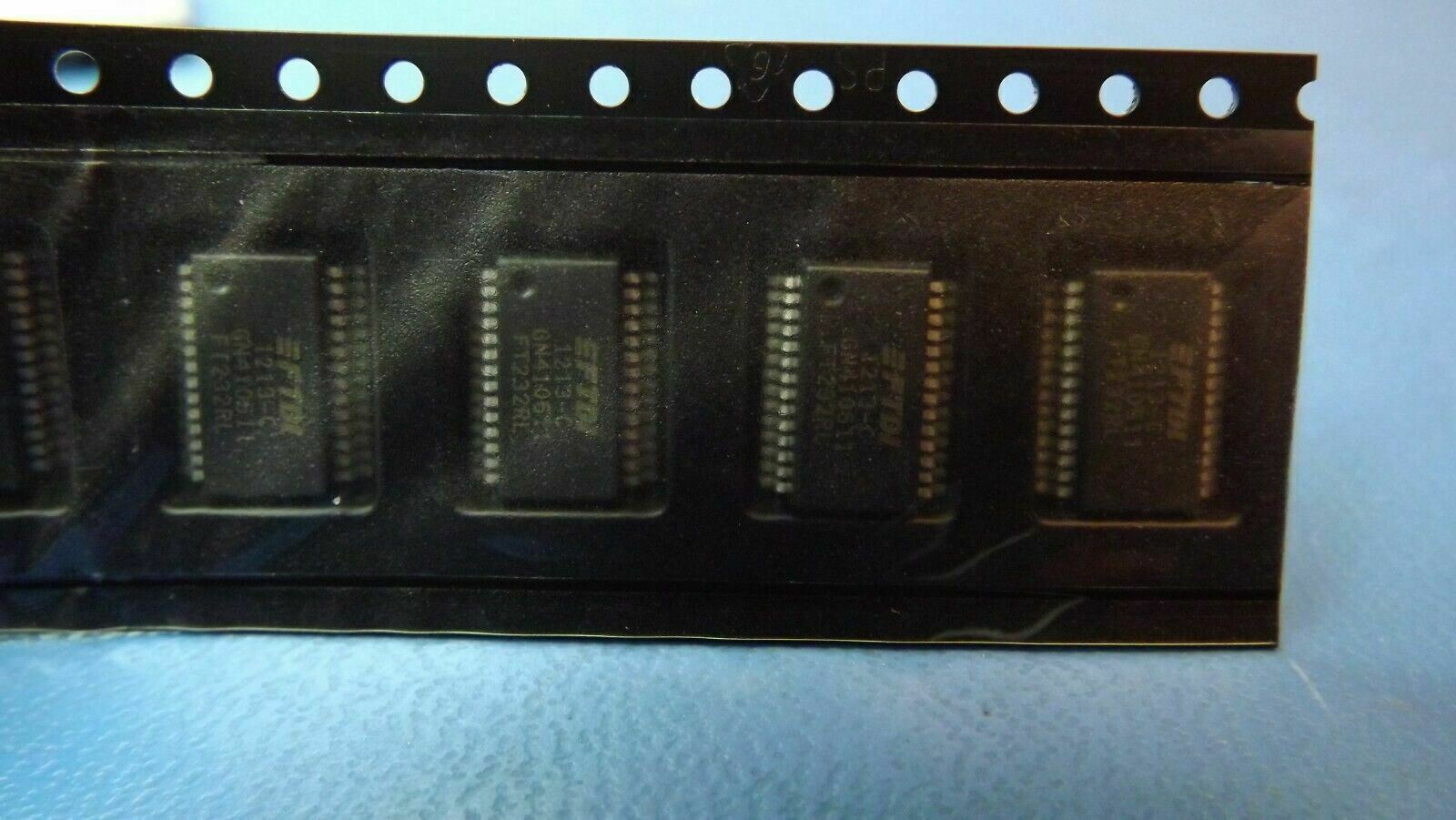

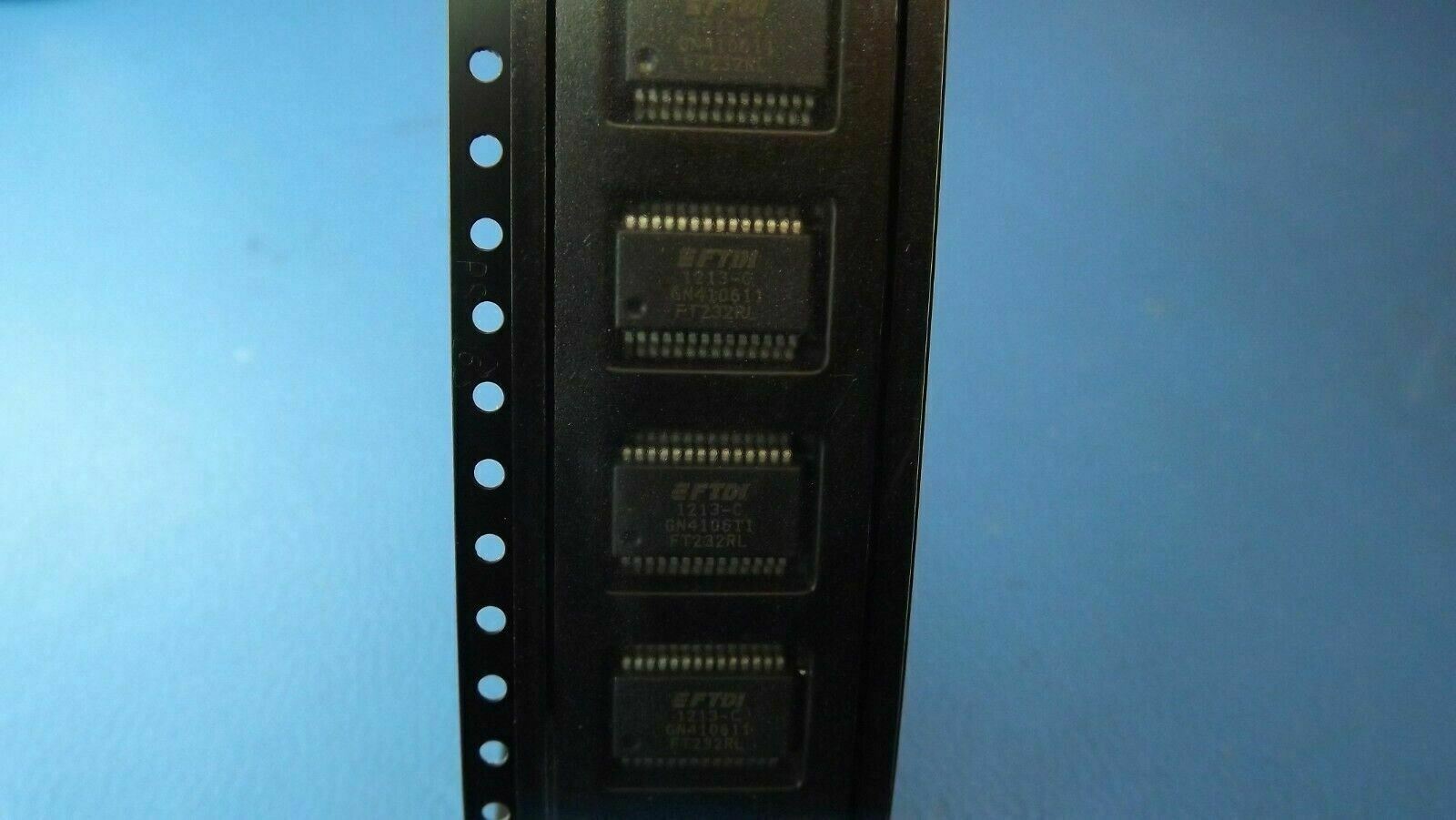

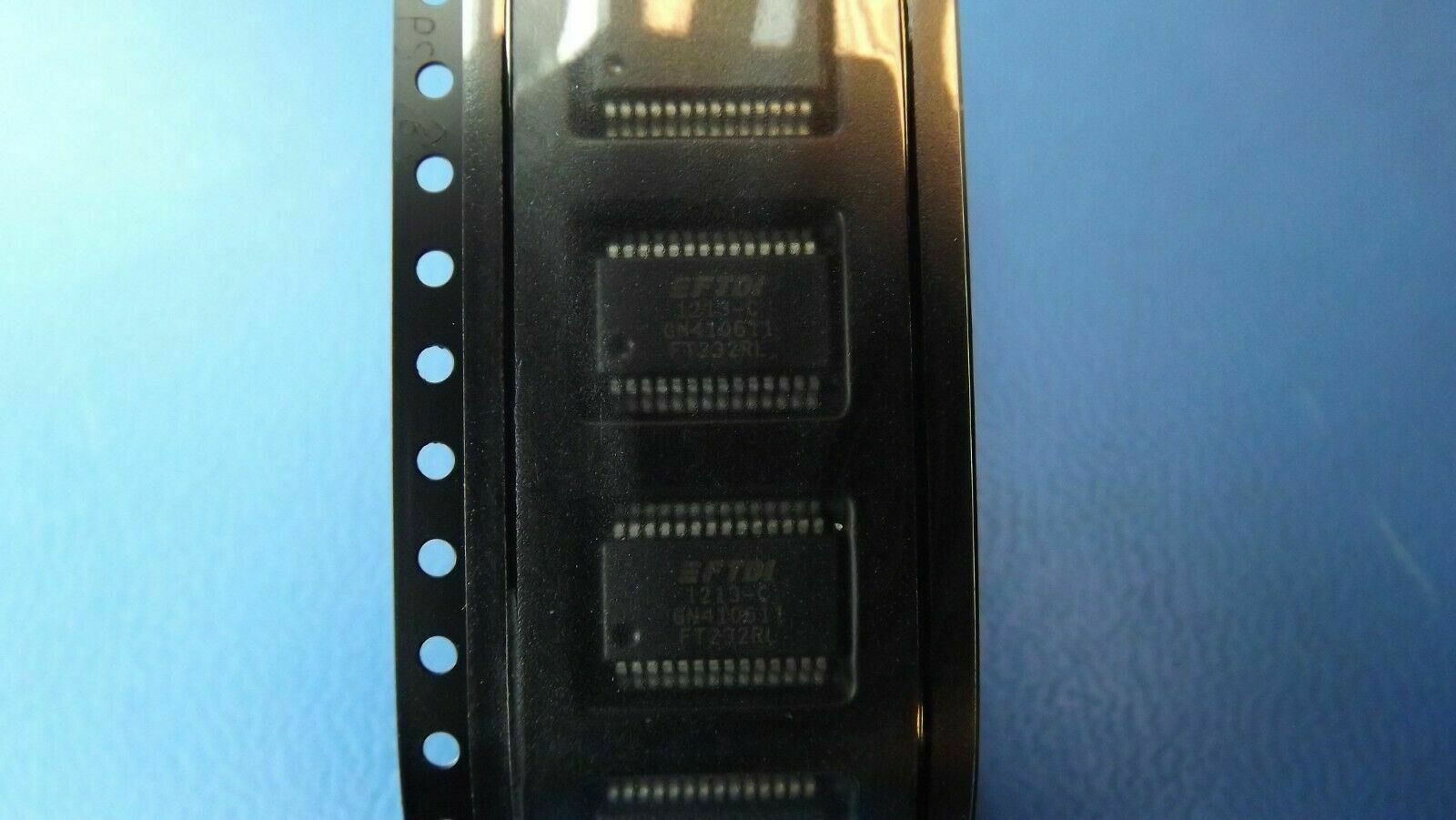

(2PCS) FT232RL FTDI USB-to-UART 1-CH 256byte FIFO 5V 28-Pin SSOP
Tax included.
THIS LISTING IS FOR (2PCS) OF FT232RL BY FTDI
SPECIFICATIONS
| Mfr Package Description | 5.30 X 10.20 MM, 0.65 MM PITCH, GREEN, SSOP-28 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Microprocessor/Microcontroller/Peripheral IC Type | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL |
| Clock Frequency-Max | 12.02 MHz |
| JESD-30 Code | R-PDSO-G28 |
| Moisture Sensitivity Level | 3 |
| Number of Terminals | 28 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SSOP |
| Package Equivalence Code | SSOP28,.3 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 2/5,3.3/5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.0 mm |
| Sub Category | Serial IO/Communication Controllers |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 3.3 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Length | 10.2 mm |
| Width | 5.3 mm |
