(2PCS) FCN-727J044-G/CM IDC Board Connector 44 Pin 2 Row Female 0.079 inch Pitch
Tax included.

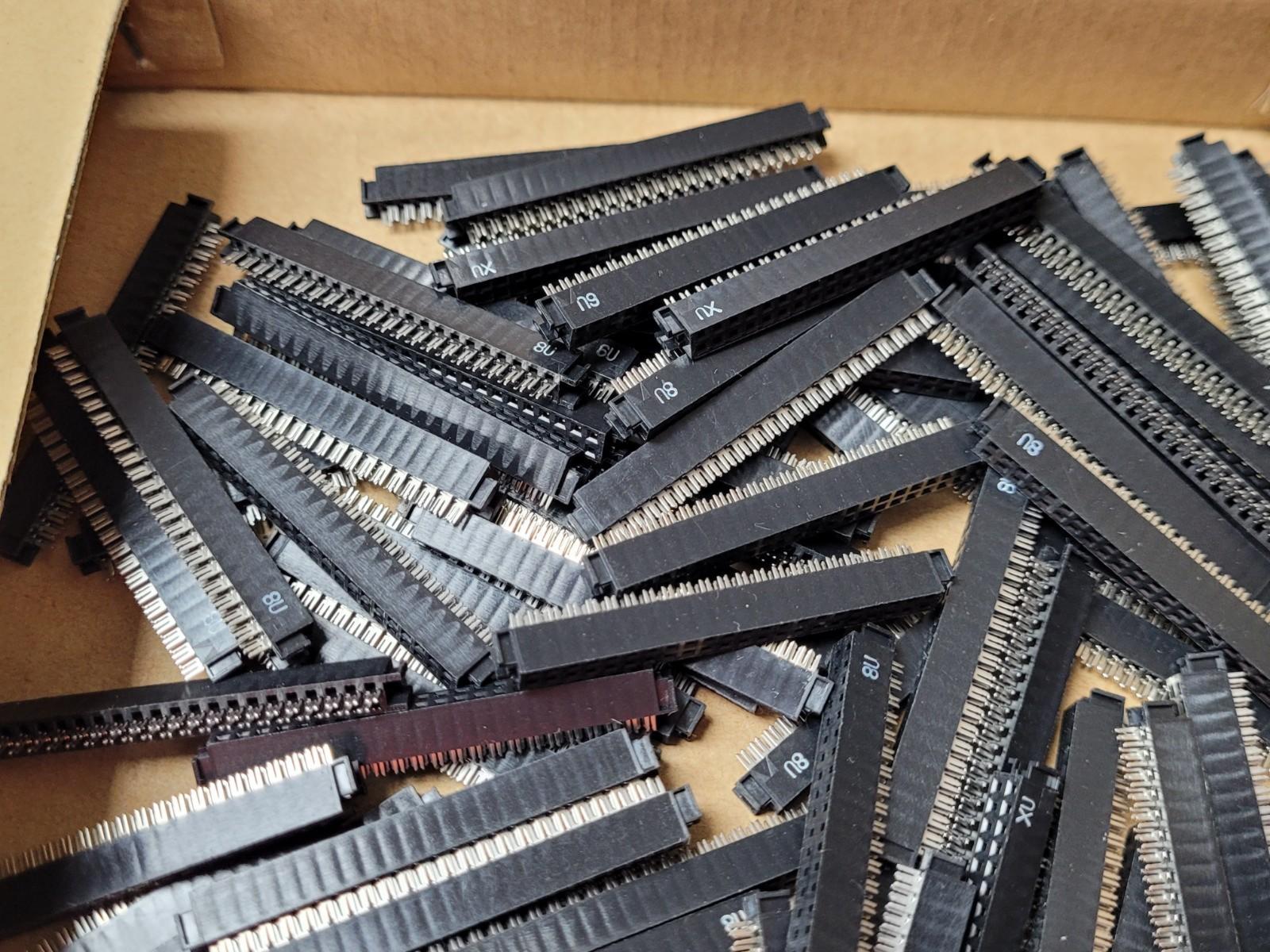

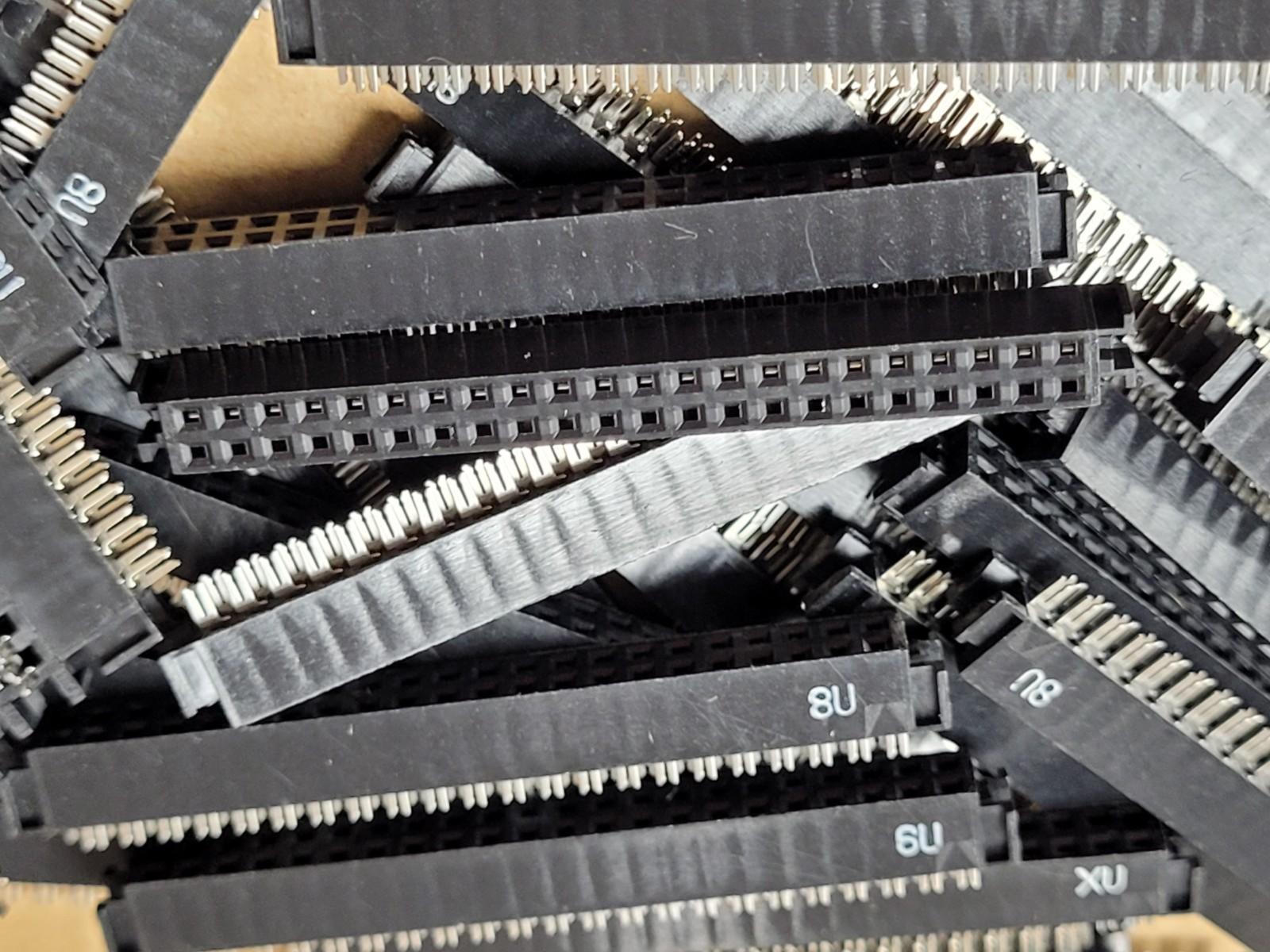

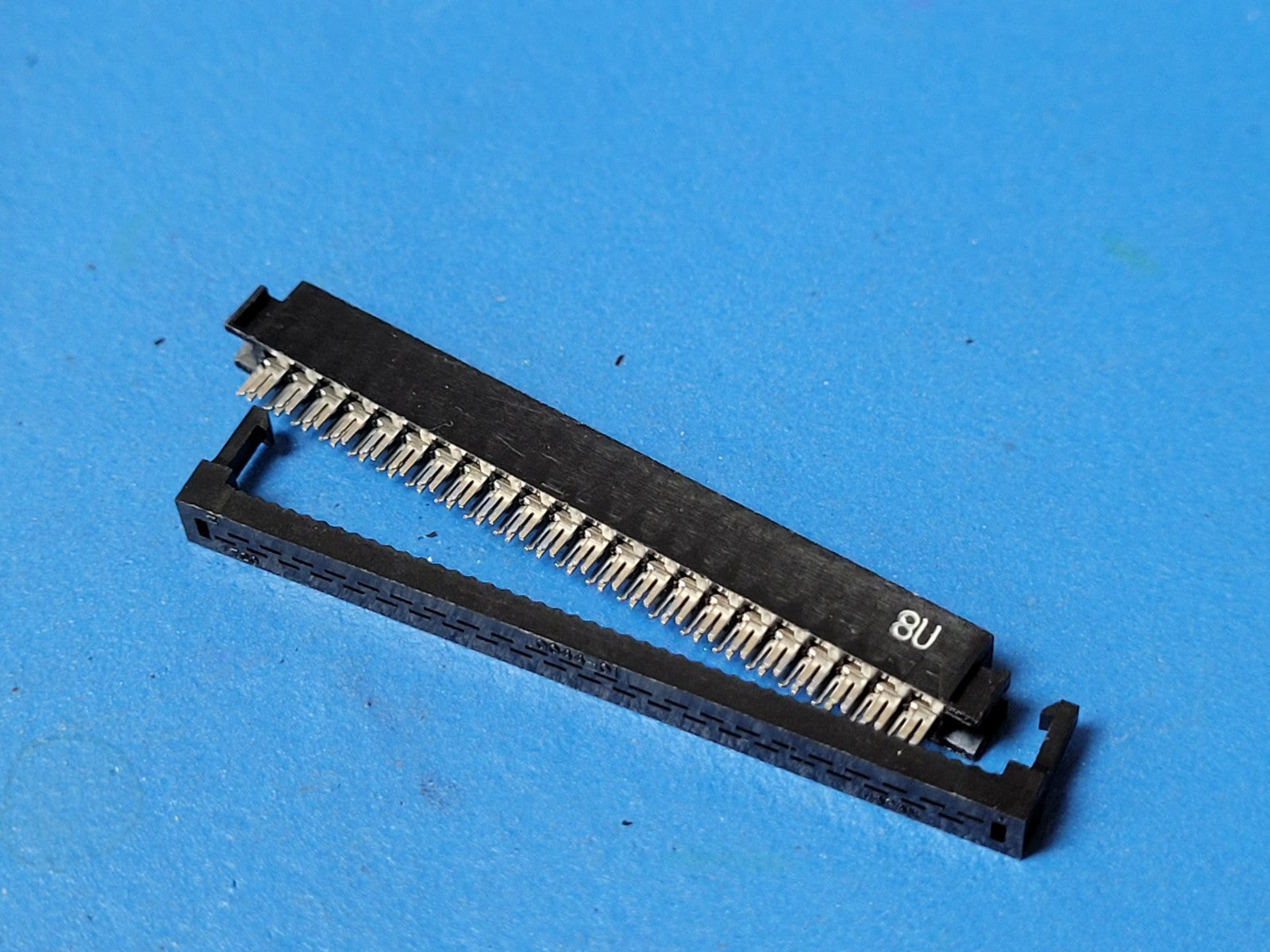

THIS IS FOR (2 PCS) OF FCN-727J044-G/CM BY FUJITSU
IDC Board Connector 44 Pin 2 Row Female 0.079 inch Pitch
Part #: FCN-727J044-G/CM
Part Category: Connectors
Manufacturer: Fujitsu Limited
Description: Board Connector, 44 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking
Status Discontinued
Connector Type BOARD CONNECTOR
Body Breadth 0.161 inch
Body Depth 0.196 inch
Body Length 1.913 inch
Contact Design PREASSEM CONN
Contact Finish - Mating AU
Contact Finish - Termination PALLADIUM
Contact Gender FEMALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Resistance 20.0 mohm
Contact Style SQ PIN-SKT
Insulation Resistance 1.0E9 ohm
Insulator Material POLYESTER
Manufacturer Series 720M
Mounting Option 1 LOCKING
Mounting Type CABLE
Number of Rows Loaded 2
Operating Temperature-Min -55.0 Cel
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 1.0 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.086 inch
Total Number of Contacts 44
