(2PCS) EPM7064LC44-15 CPLD 1.25K Gates 64 Macro Cells 76.9MHz CMOS 5V 44-PLCC
Tax included.

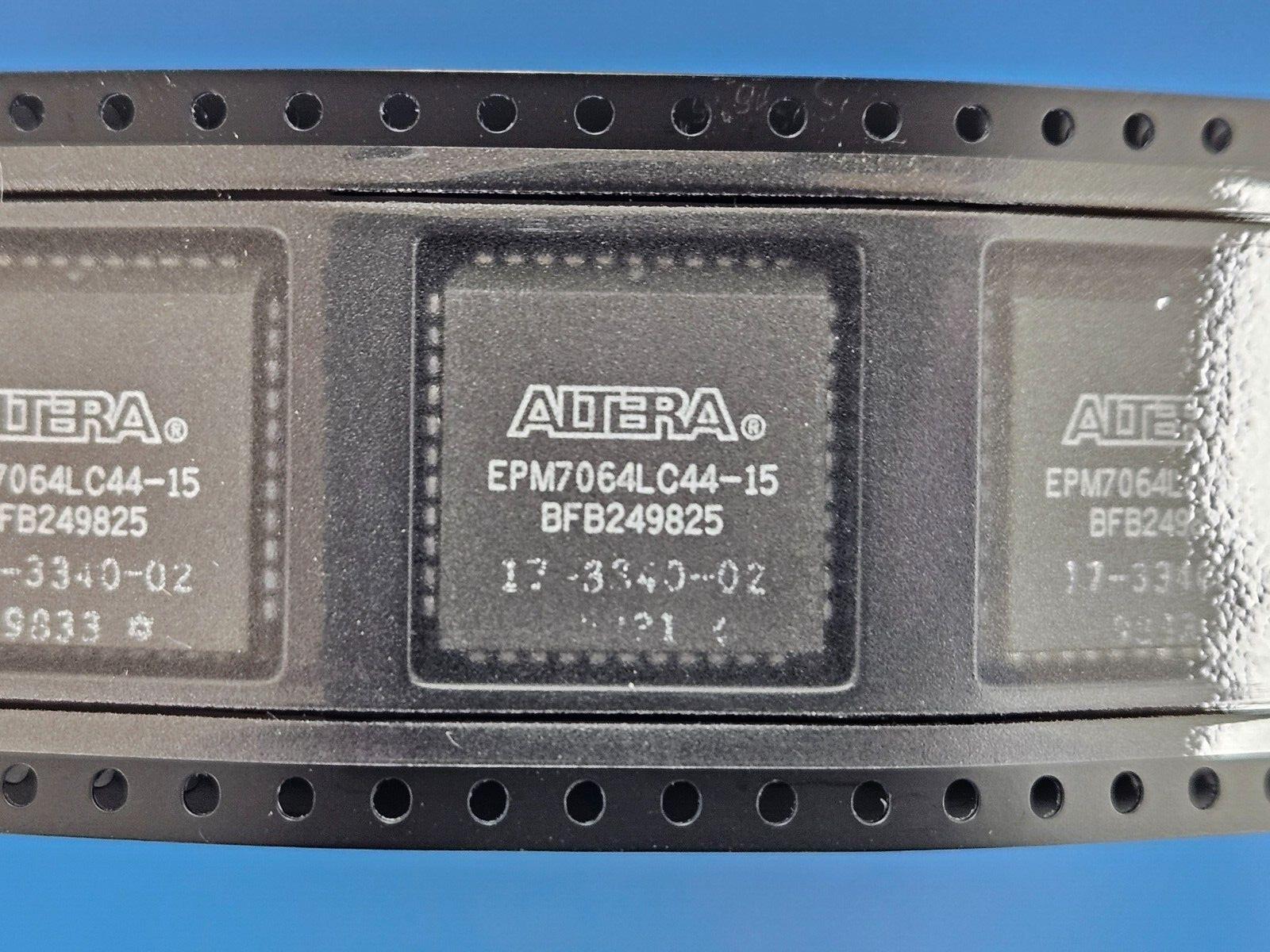

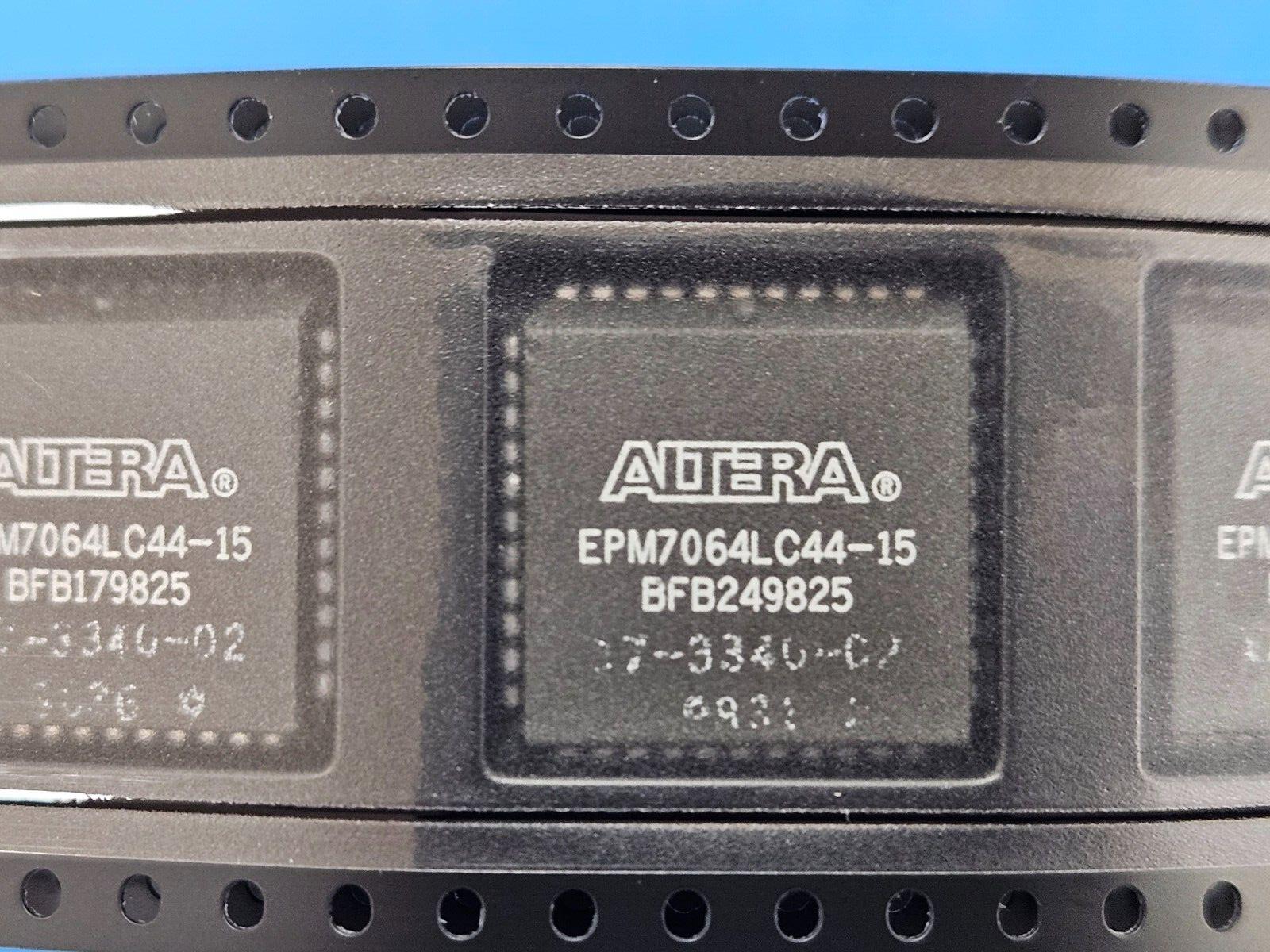

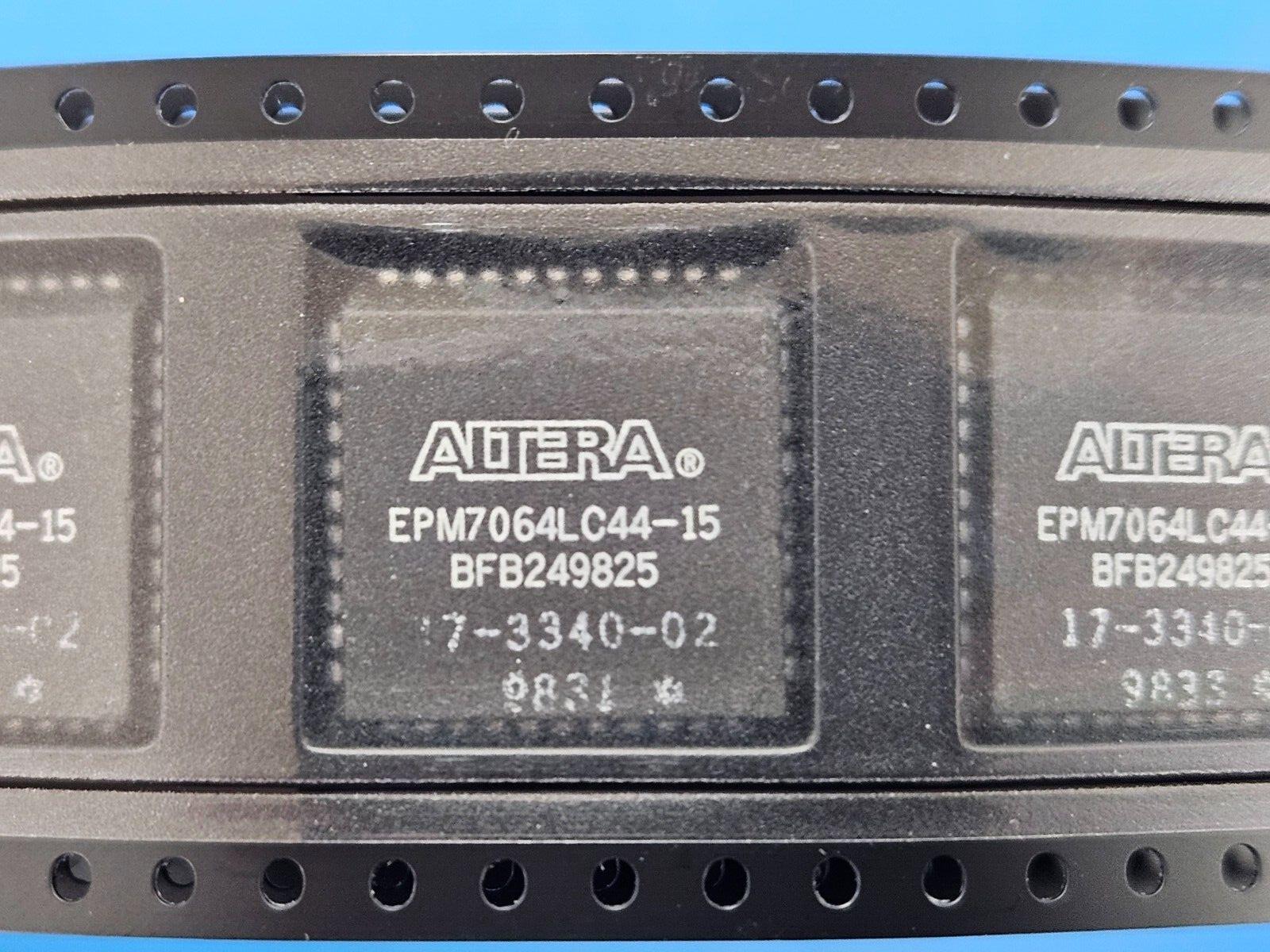

This listing is for (2PCS) of EPM7064LC44-15 by Alters
***These have been re-tinned and leads straightened. Program Stamps on components. These are electronically erasable.
Mfr Package Description PLASTIC, LCC-44
Status Transferred
Programmable Logic Type EE PLD
Clock Frequency-Max 100.0 MHz
In-System Programmable NO
JESD-30 Code S-PQCC-J44
JESD-609 Code e0
JTAG BST NO
Moisture Sensitivity Level 1
Number of Dedicated Inputs 0.0
Number of I/O Lines 36.0
Number of Macro Cells 64.0
Number of Terminals 44
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 0 DEDICATED INPUTS, 36 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 220
Power Supplies 5
Propagation Delay 15.0 ns
Qualification Status Not Qualified
Seated Height-Max 4.572 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 16.5862 mm
Width 16.5862 mm
Additional Feature LABS INTERCONNECTED BY PIA; 4 LABS; 64 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
