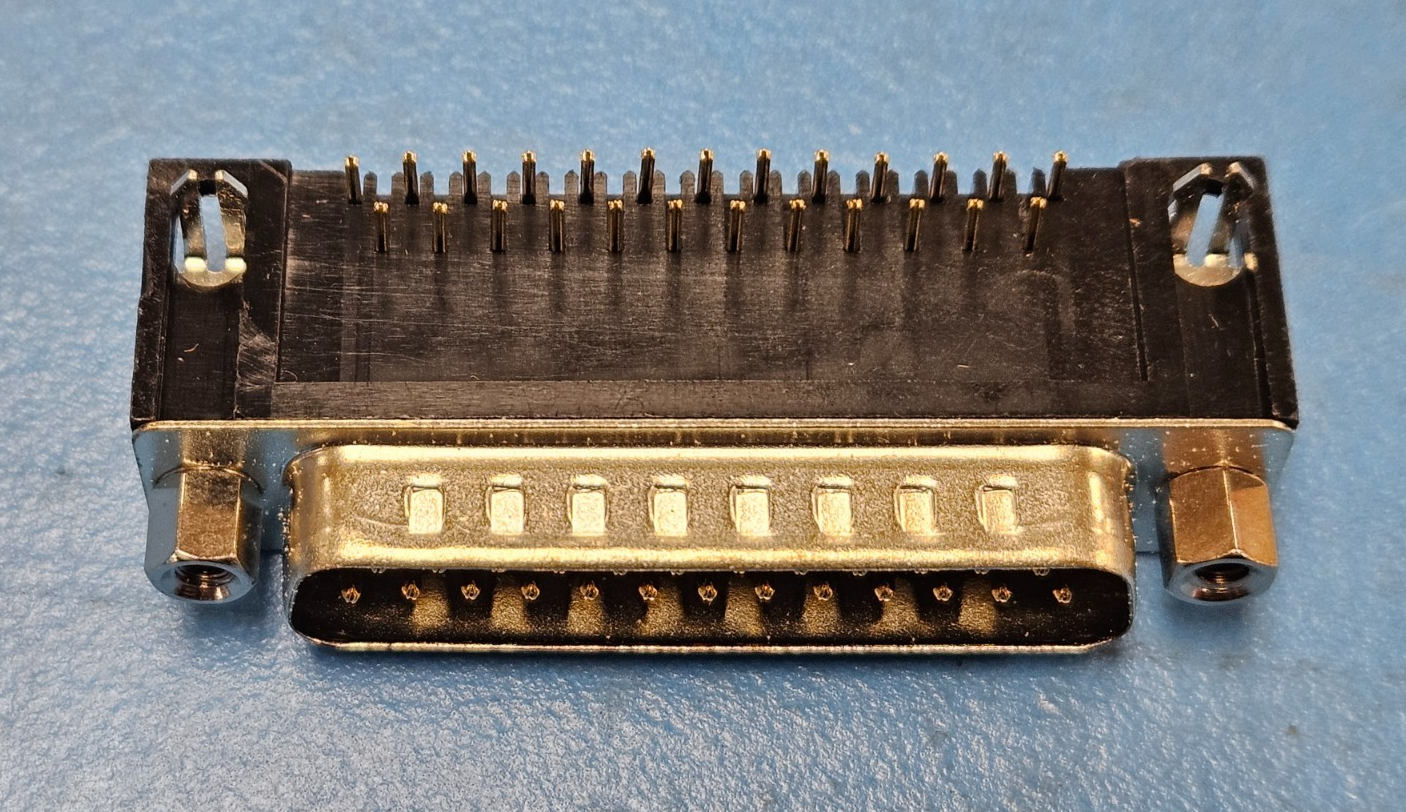

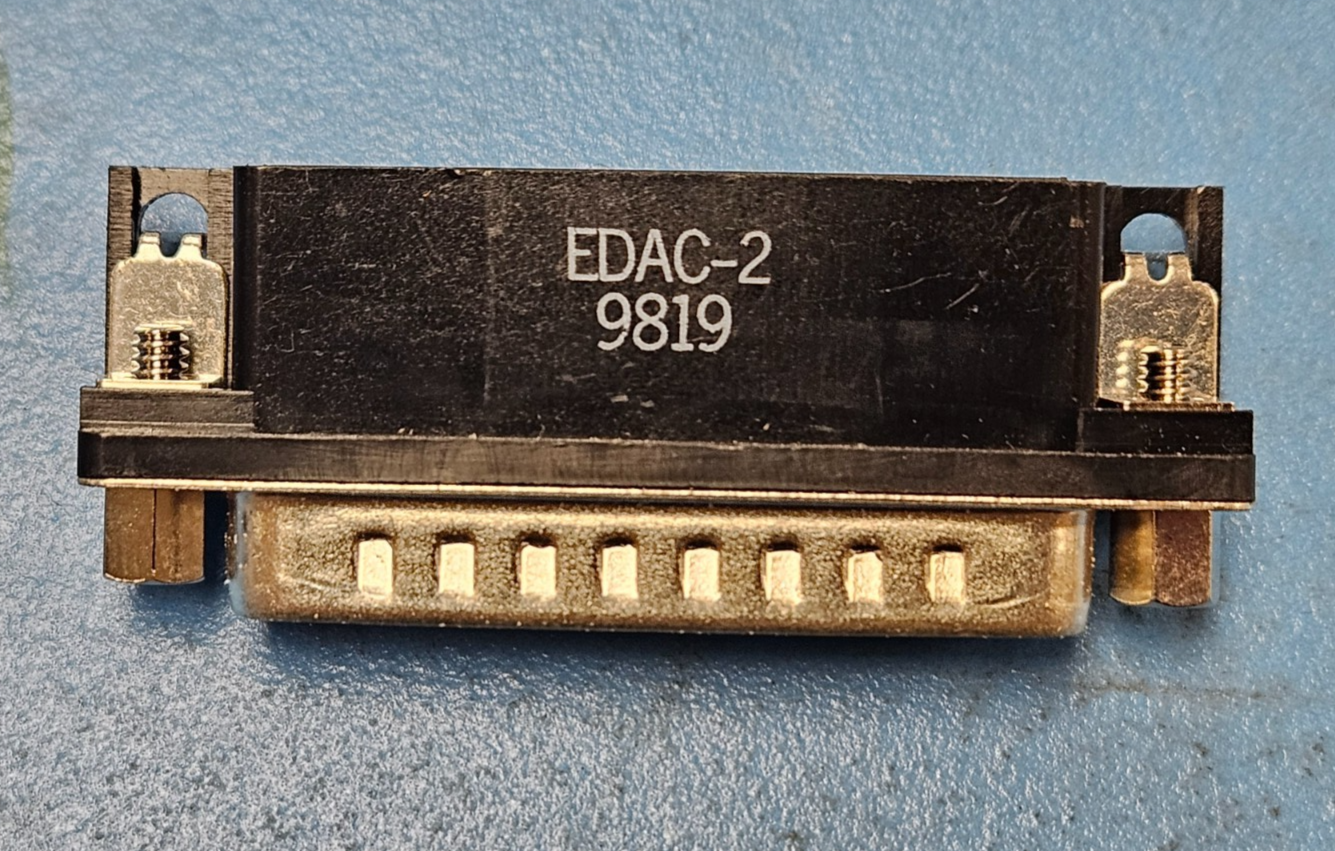

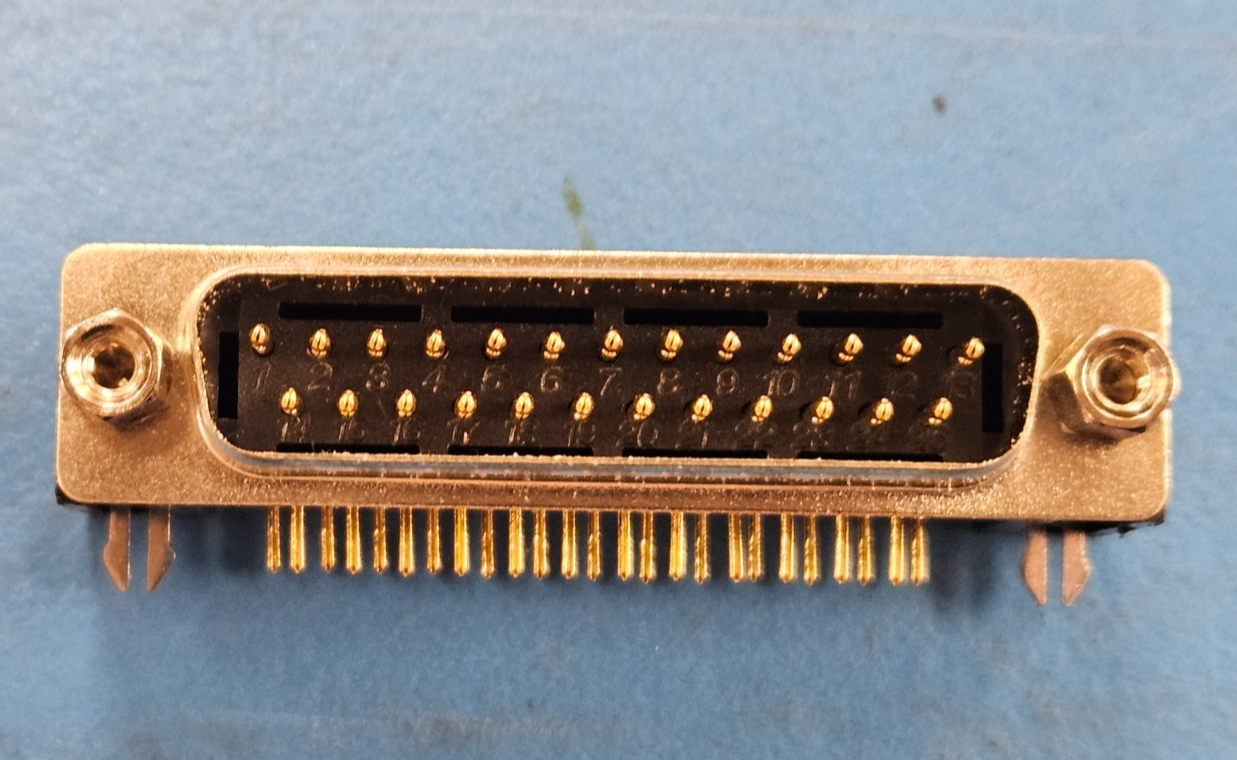

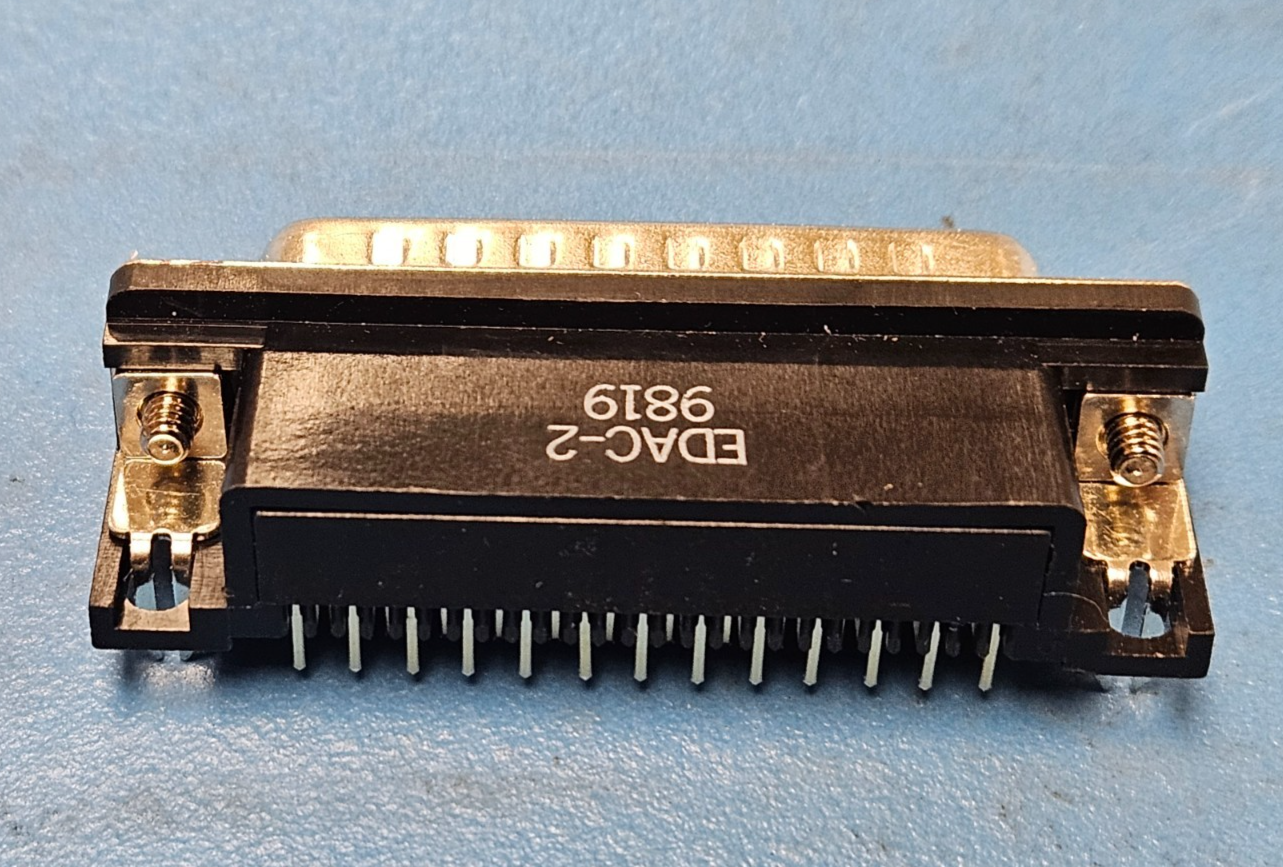

(2PCS) EDAC-2 D Subminiature Connector, 25 Contact, Male, #4-40 629-025-240-033
Tax included.
This listing is for (2PCS) of ECAC-2
Status Active
Additional Feature POLARIZED
Board Mounting Option BOARD LOCK
Body Breadth (inch) 0.494000
Body Depth (inch) 0.574000
Body Length (inch) 2.088000
Body/Shell Style PLUG
Connector Type D SUBMINIATURE CONNECTOR
Contact Gender MALE
Contact Pattern STAGGERED
Contact Resistance (mohm) 25.000000000000000
Contact Style RND PIN-SKT
Dielectric Withstanding Voltage (V) 1000VAC
Empty Shell NO
Filter Feature NO
Insertion Force-Max (N) 4.45
Insulation Resistance (ohm) 5000000000.000000000000000
Insulator Color BLACK
Insulator Material POLYETHYLENE/POLYESTER
Mating Contact Pitch (inch) 0.109
Mating Contact Row Spacing (inch) 0.112
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 #4-40
Mounting Option 2 THREADED STANDOFF
Mounting Style RIGHT ANGLE
Mounting Type BOARD AND PANEL
Number of Connectors ONE
Number of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 2.54
Plating Thickness (inch) FLASH
Rated Current (A) 3.0000000000000000
Screening Level / Reference Standard UL
Shell Finish NICKEL
Shell Material STEEL
Shell Size 3/B
Terminal Length (inch) 0.149000
Terminal Pitch (mm) 2.77
Termination Type SOLDER
Number of Contacts 25
UL Flammability Code 94V-0
Withdrawl Force-Min (N) 0.28
