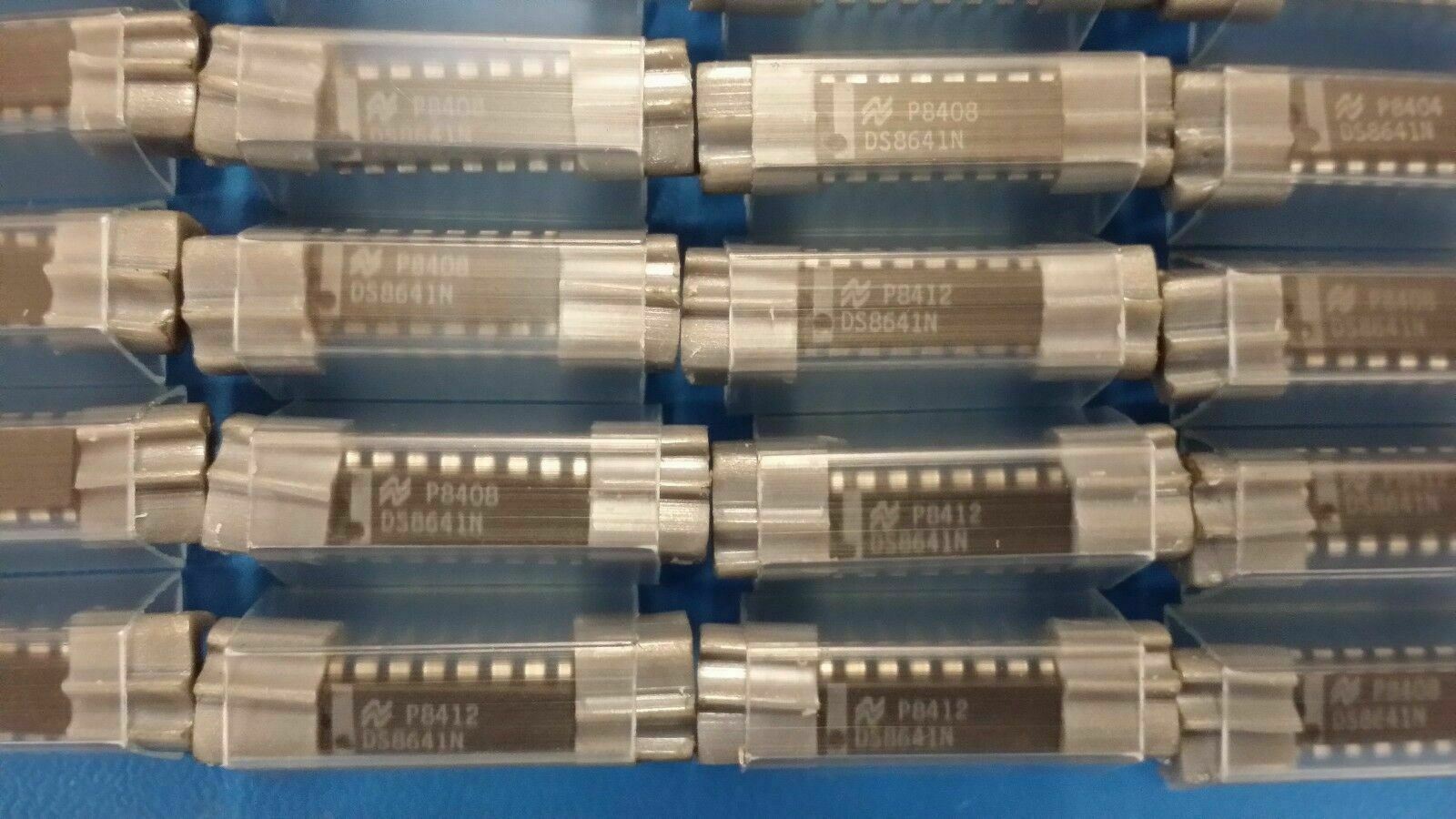

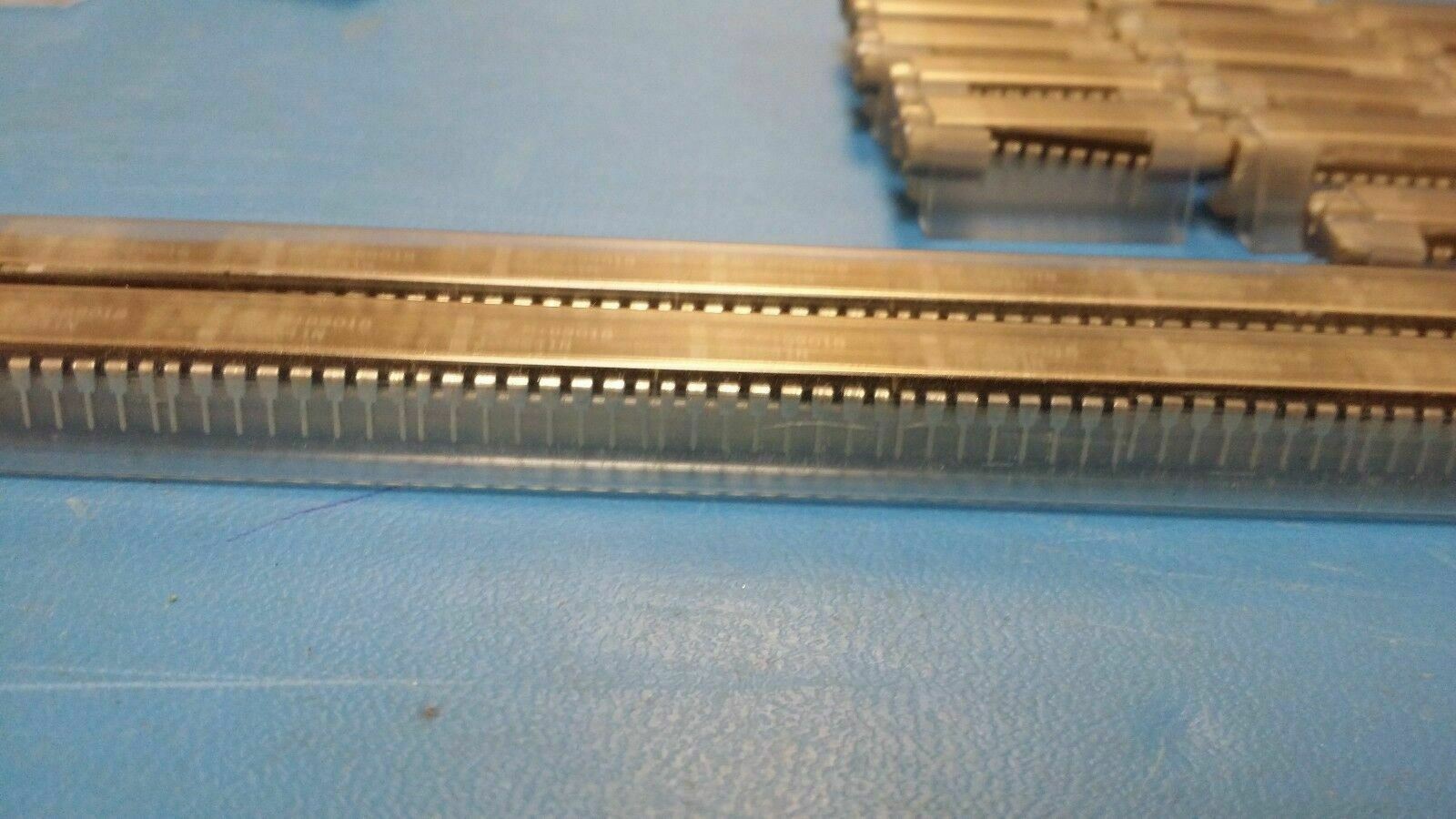

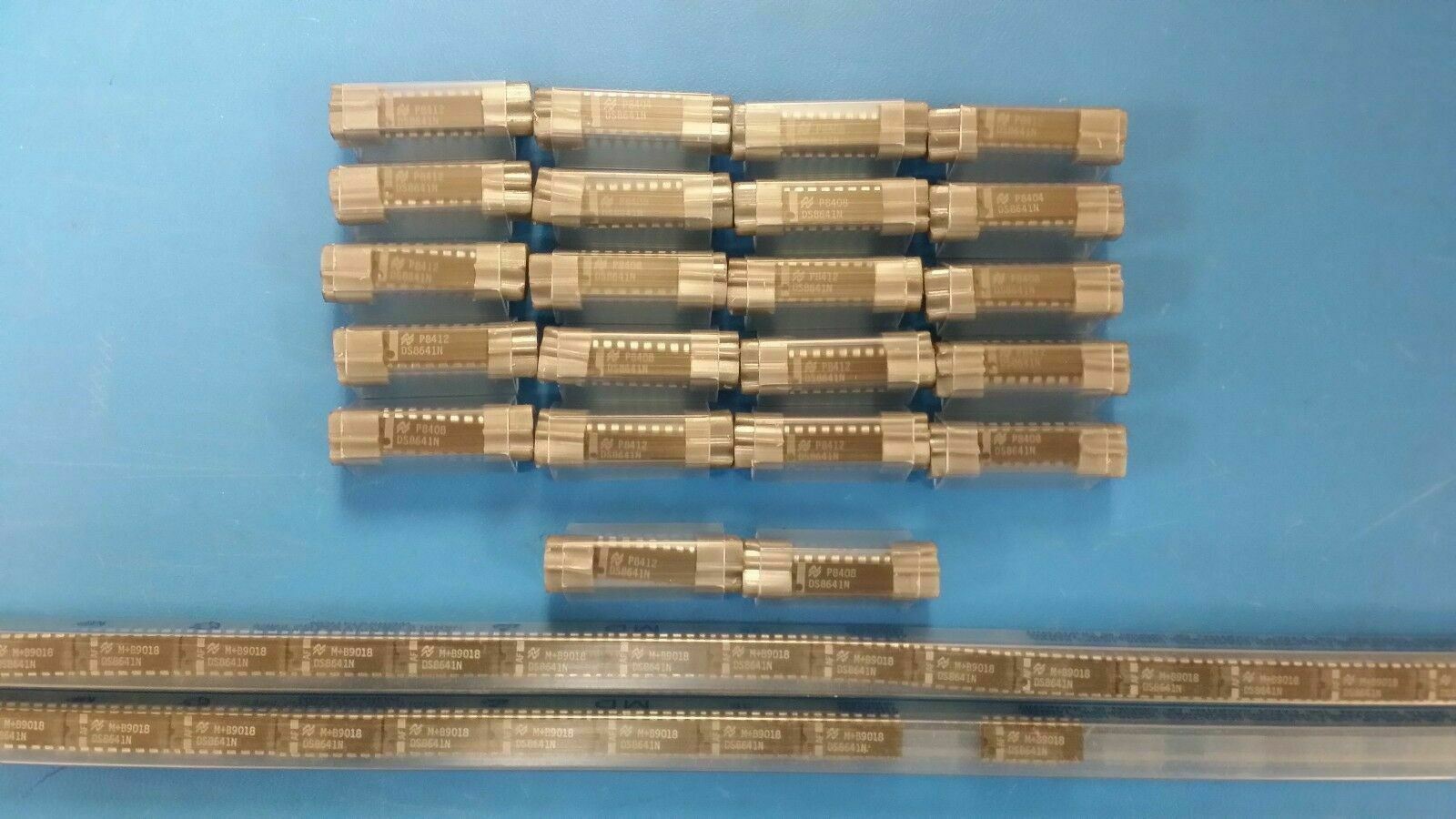

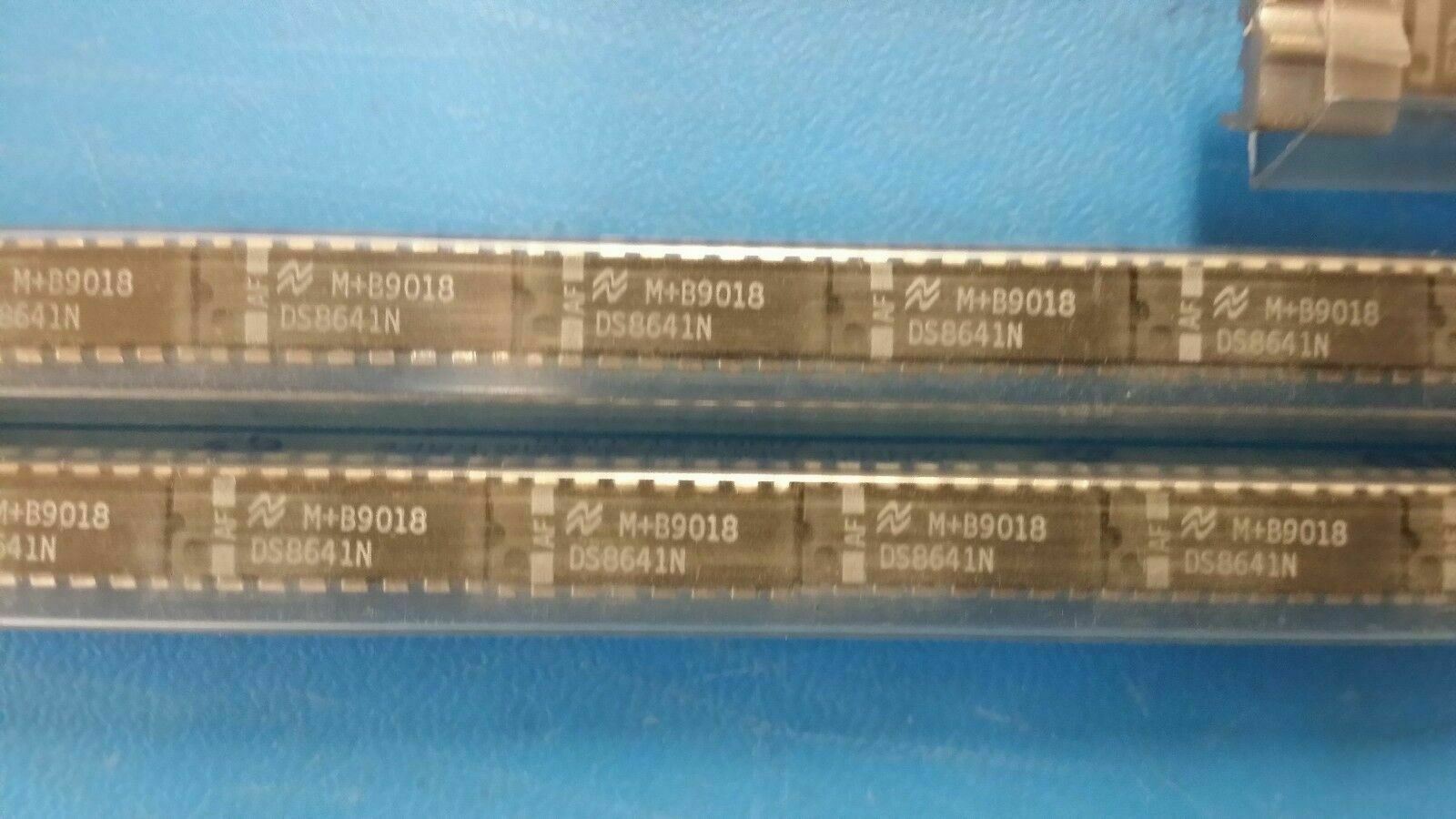

(2PCS) DS8641N QUAD LINE TRANSCEIVER, PDIP16
Tax included.
THIS LISTING IS FOR (2PCS) OF DS8641N BY NATIONAL SEMICONDUCTOR
SPECIFICATIONS
| Mfr Package Description | PLASTIC, DIP-16 |
| Status | Discontinued |
| Interface IC Type | LINE TRANSCEIVER |
| Differential Output | NO |
| Driver Number of Bits | 4 |
| Input Characteristics | SCHMITT TRIGGER |
| Interface Standard | GENERAL PURPOSE |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e0 |
| Number of Functions | 4 |
| Number of Terminals | 16 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70 Cel |
| Output Characteristics | OPEN-COLLECTOR |
| Output Polarity | INVERTED |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Receive Delay-Max | 30 ns |
| Receiver Number of Bits | 4 |
| Seated Height-Max | 5.08 mm |
| Supply Current-Max | 70 mA |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Transmit Delay-Max | 25 ns |
| Length | 21.75 mm |
| Width | 7.62 mm |
