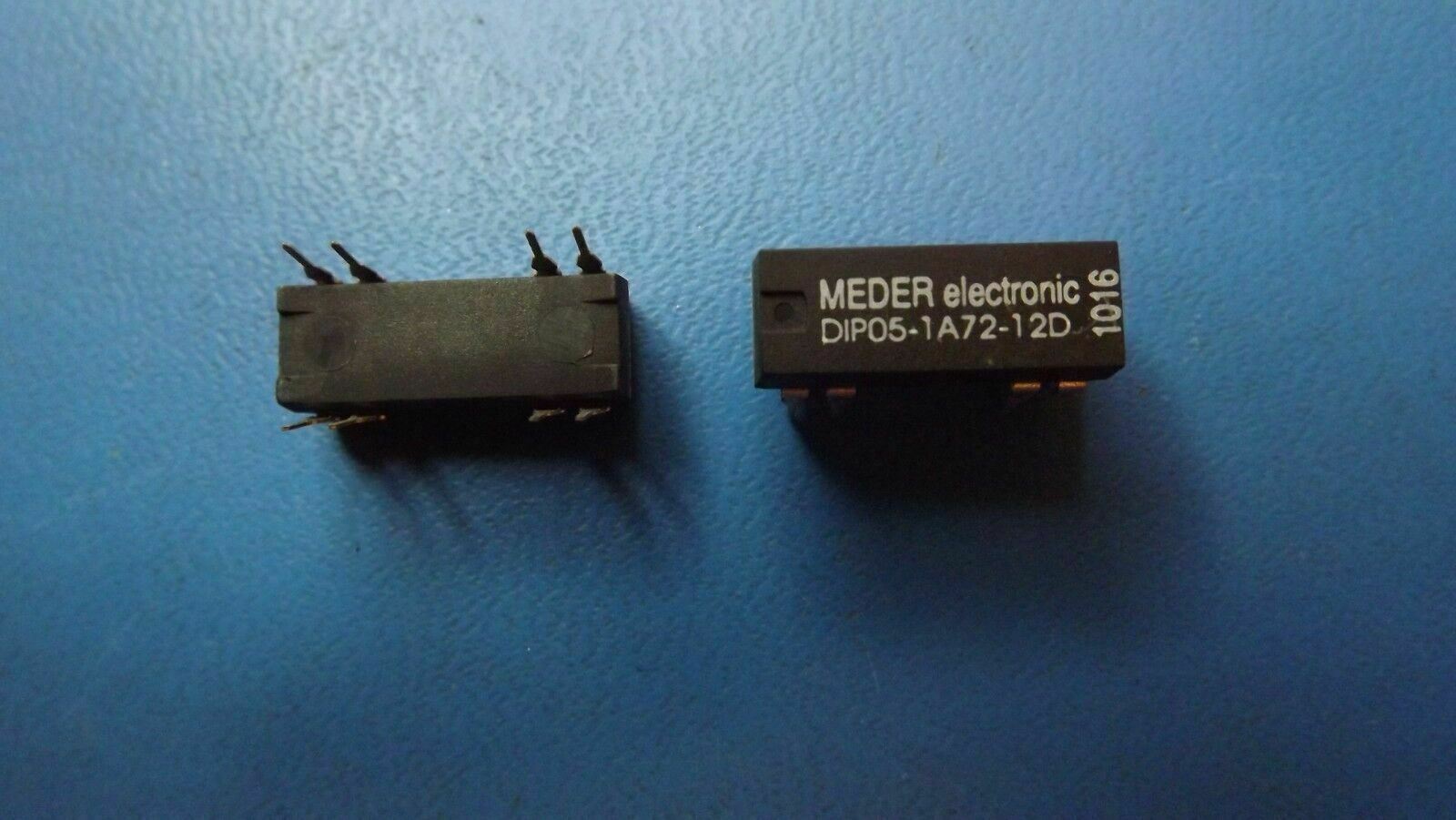

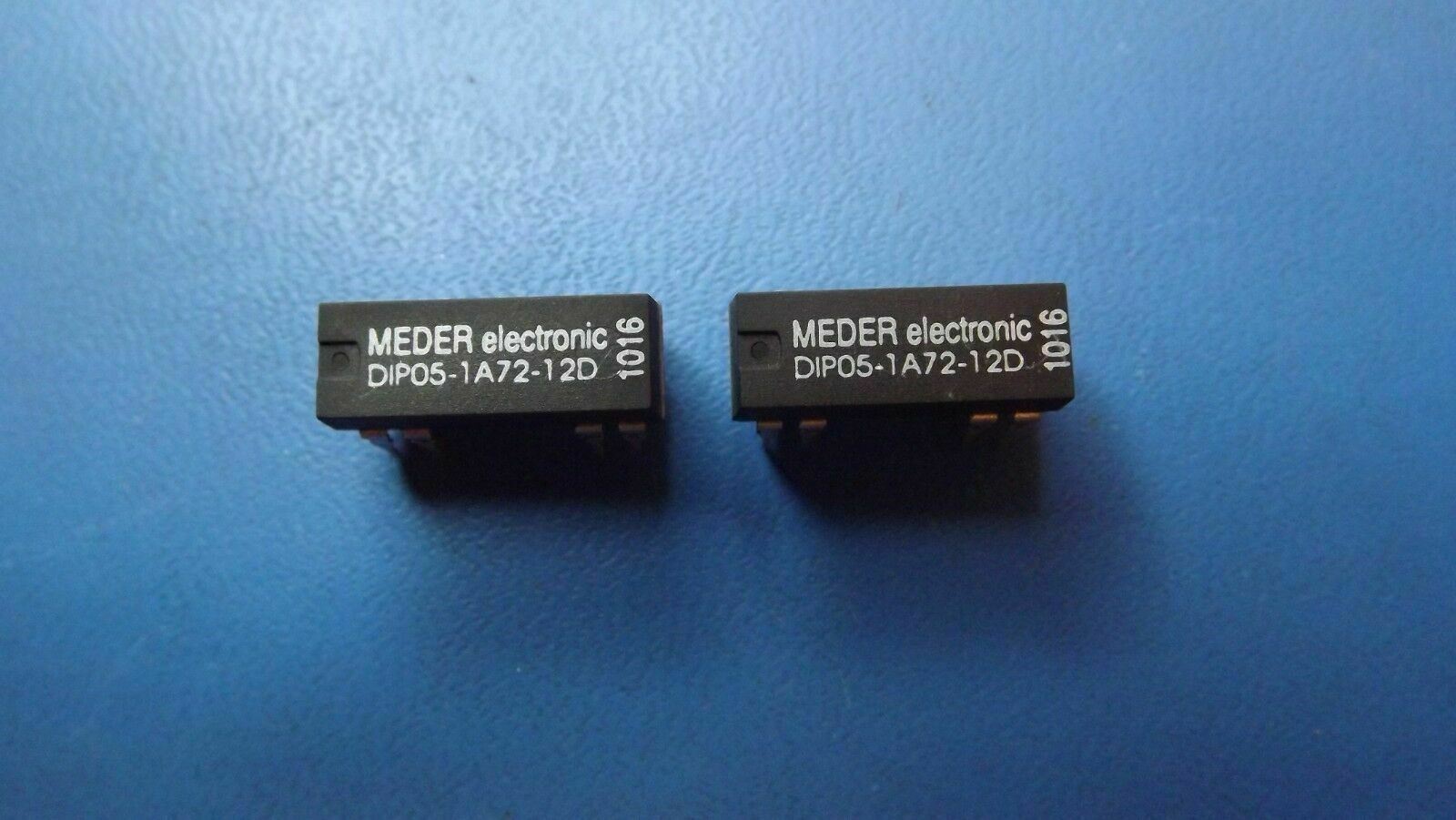

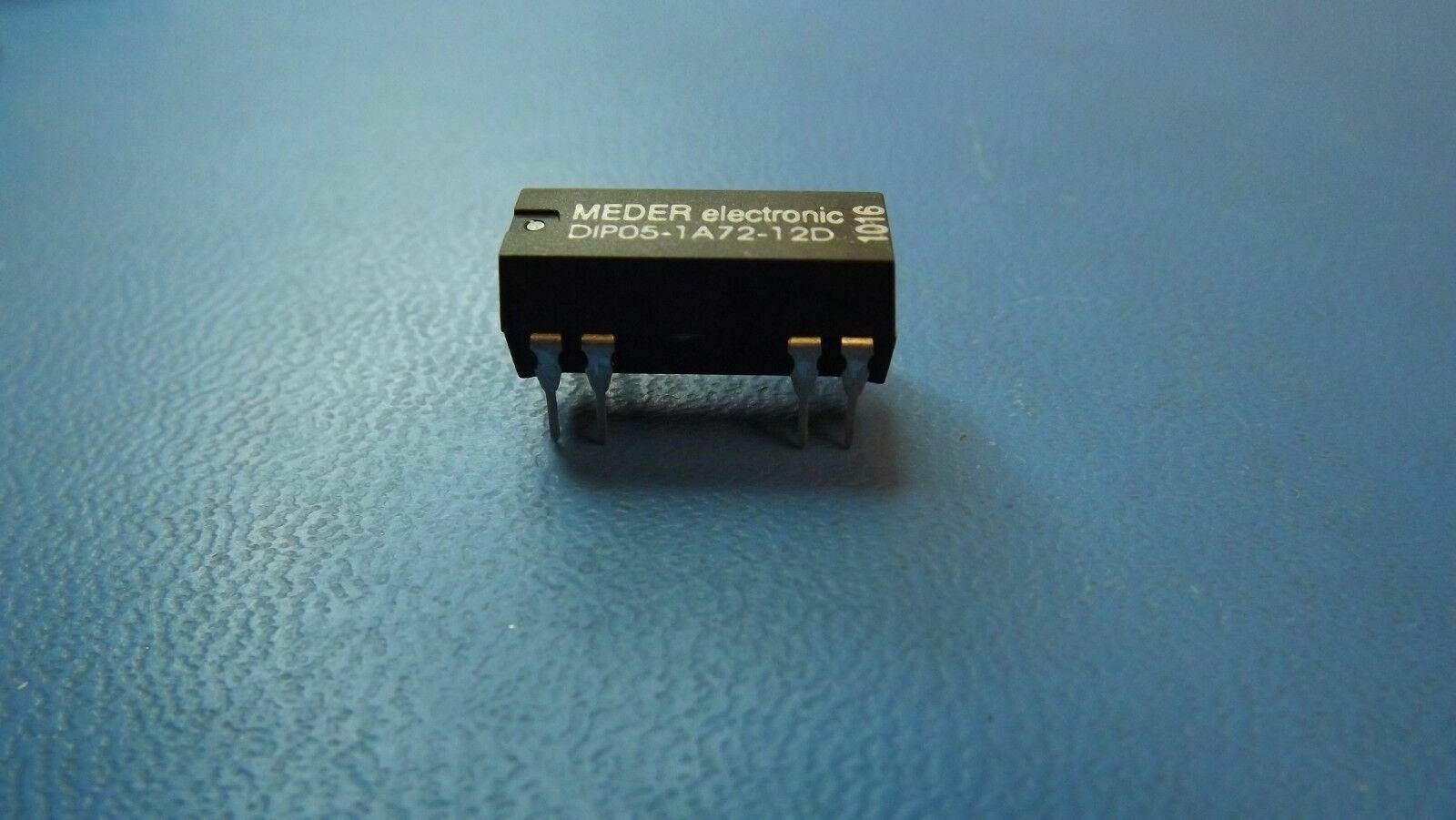

(2PCS) DIP05-1A72-12D MEDER Reed Relay, 1 Form A, SPST-NO, 5V Molded DIP w/Diode
Tax included.
THIS LISTING IS FOR (2PCS) OF DIP05-1A72-12D BY MEDER ELECTRONIC
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT |
| Status | Transferred |
| Relay Type | DRY REED RELAY |
| Body Breadth | 7.0 mm |
| Body Height | 7.5 mm |
| Body Length or Diameter | 19.3 mm |
| Coil Current(DC)-Max | 0.014 A |
| Coil/Input Supply Type | DC |
| Coil Operate Voltage(DC) | 3.5 V |
| Coil Power (mW) | 50 |
| Coil Release Voltage(DC) | 0.75 V |
| Coil Resistance | 550.0 ohm |
| Coil Voltage(DC)-Max | 7.5 V |
| Contact AC Max Rating R Load | 1A@200VAC |
| Contact Current(AC)-Max | 1.0 A |
| Contact Current(DC)-Max | 1.0 A |
| Contact DC Max Rating R Load | 1A@200VDC |
| Contact/Output Supply Type | AC/DC |
| Contact Voltage(AC)-Max | 200.0 V |
| Contact Voltage(DC)-Max | 200.0 V |
| Electrical Life | 1.0E9 Cycle(s) |
| JESD-609 Code | e3 |
| Manufacturer Series | DIP |
| Mounting Feature | THROUGH HOLE-STRAIGHT MOUNT |
| Operate Time | 0.5 ms |
| Operating Temperature-Min | -20.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Packing Method | TUBE |
| Physical Dimension | 19.3mm x 7mm x 7.5mm |
| Reference Standard | UL |
| Relay Action | MOMENTARY |
| Relay Function | SPST |
| Release Time | 0.1 ms |
| Sealing | WATER PROOF |
| Terminal Finish | TIN |
| Termination Type | SOLDER |
