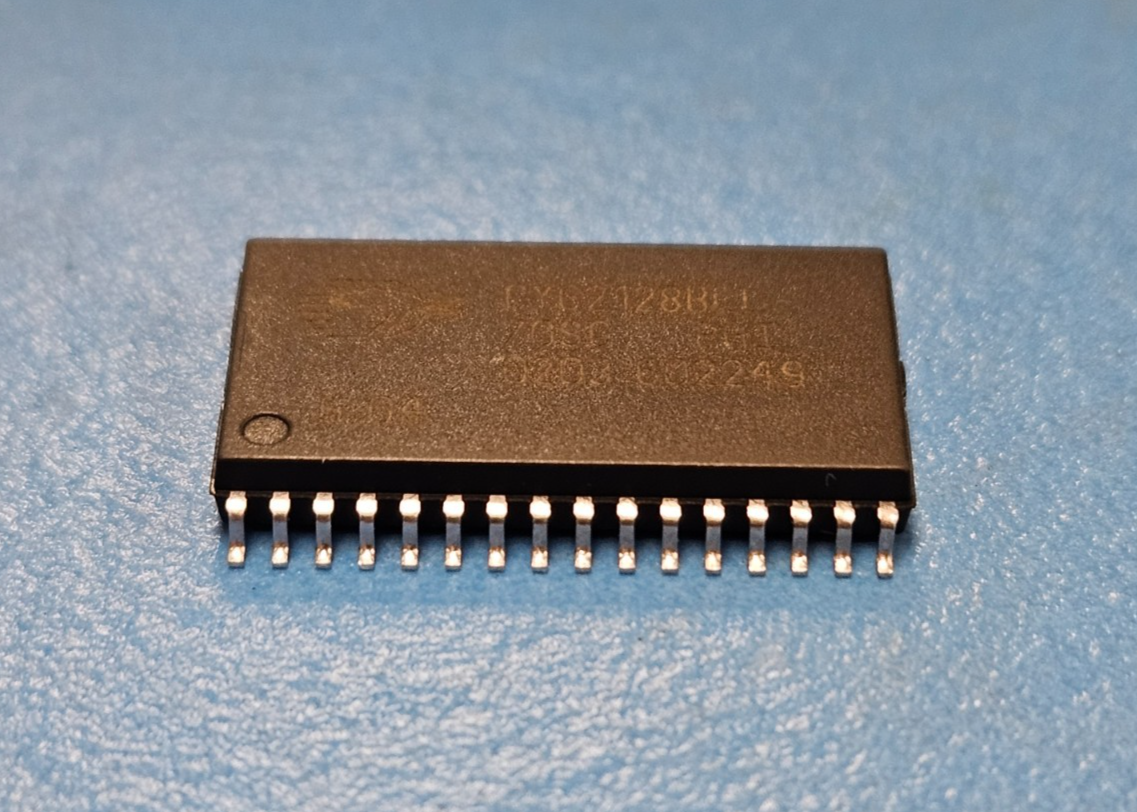

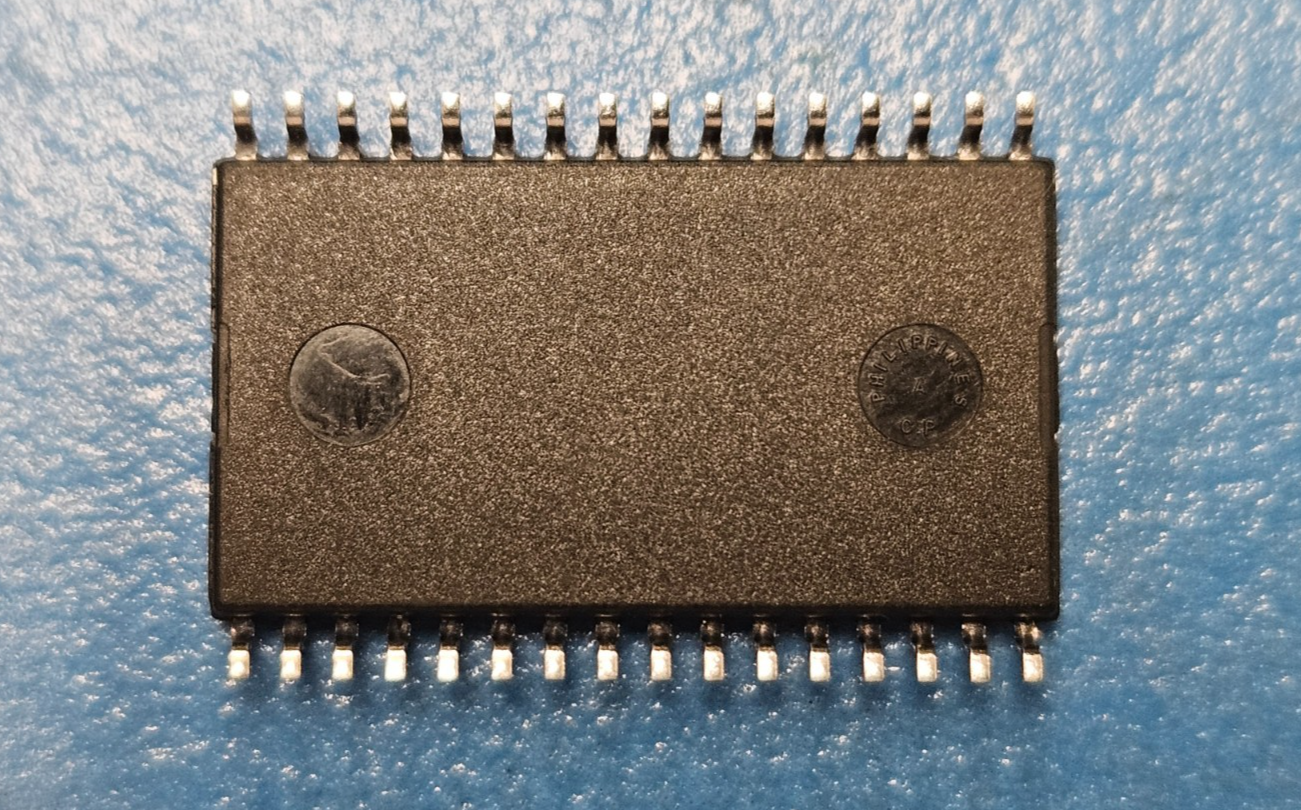

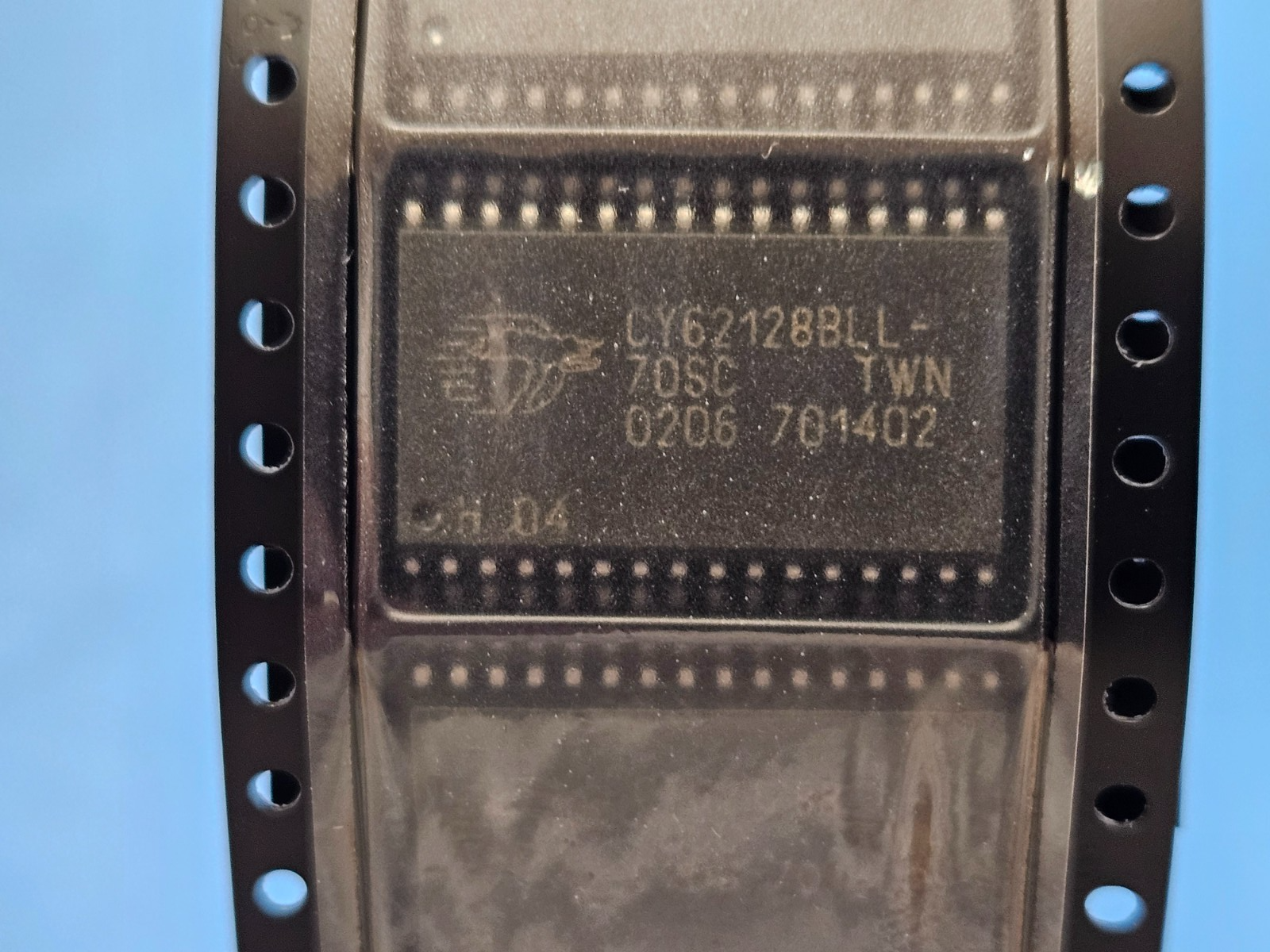

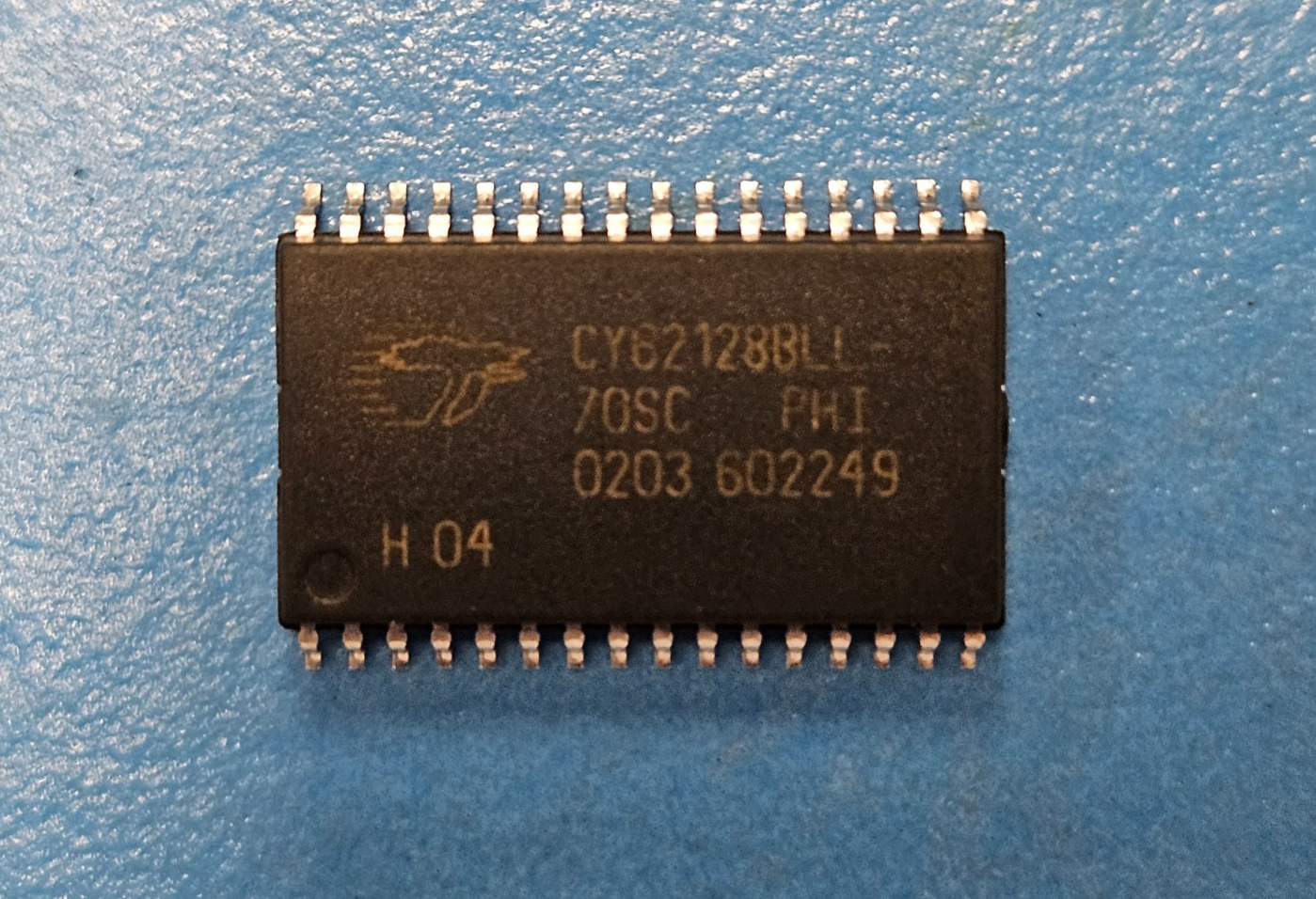

(2PCS) CY62128BLL-70SC Cypress Standard SRAM, 128KX8, 70ns, CMOS, SOIC32
Tax included.
This listing is for (2PCS) of CY62128BLL-70SC by Cypress Semiconductor
Status Discontinued
Access Time-Max (ns) 70.0000000000000000
I/O Type COMMON
JESD-30 Code R-PDSO-G32
J-STD-609 Code e0
Length (mm) 20.4465
Memory Density (bits) 1048576.0000000000000000
Memory IC Type STANDARD SRAM
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 32
Number of Words (words) 131072.0000000000000000
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 128KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP32,.56
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 220
DLA Qualification Not Qualified
Seated Height-Max (mm) 2.9970
Standby Voltage-Min (V) 2.000000
Supply Current-Max (mA) 15.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 20
Width (mm) 11.3300
