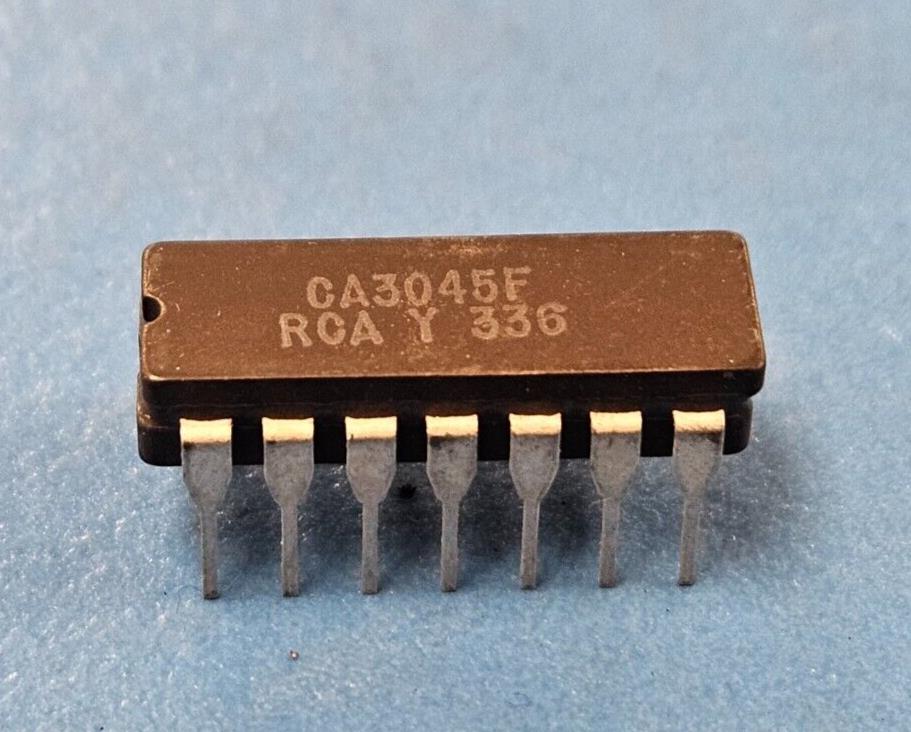

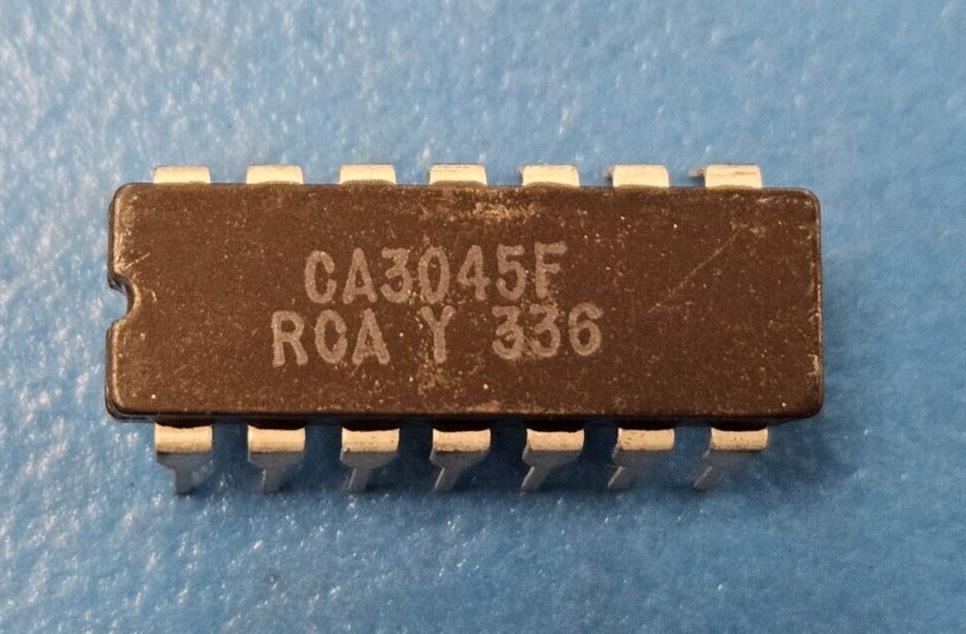

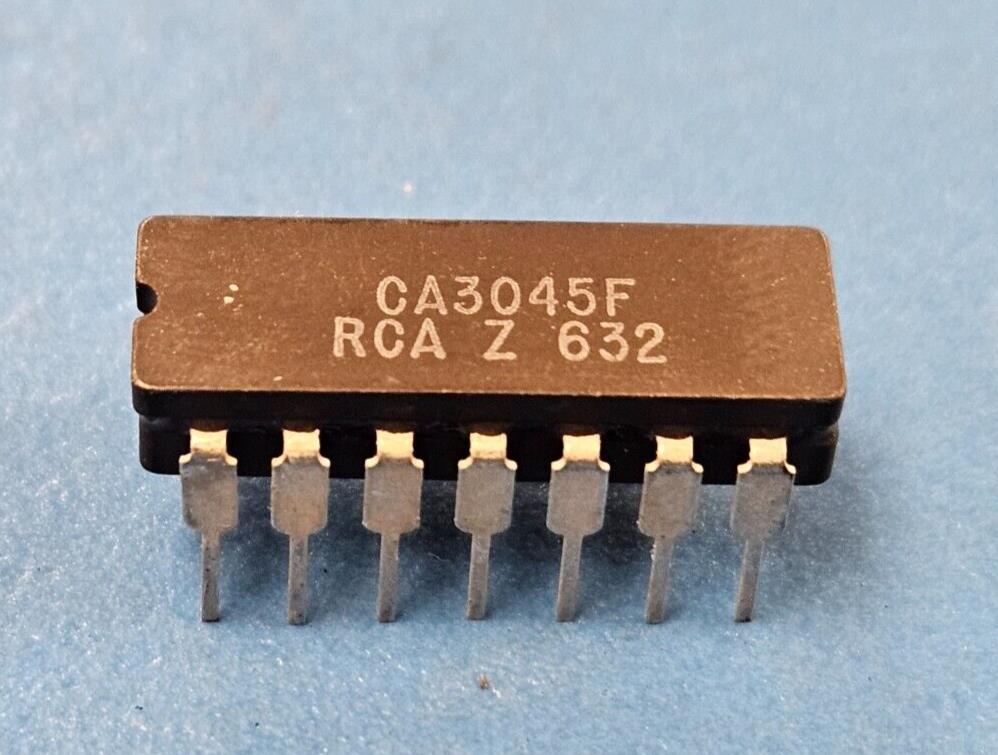

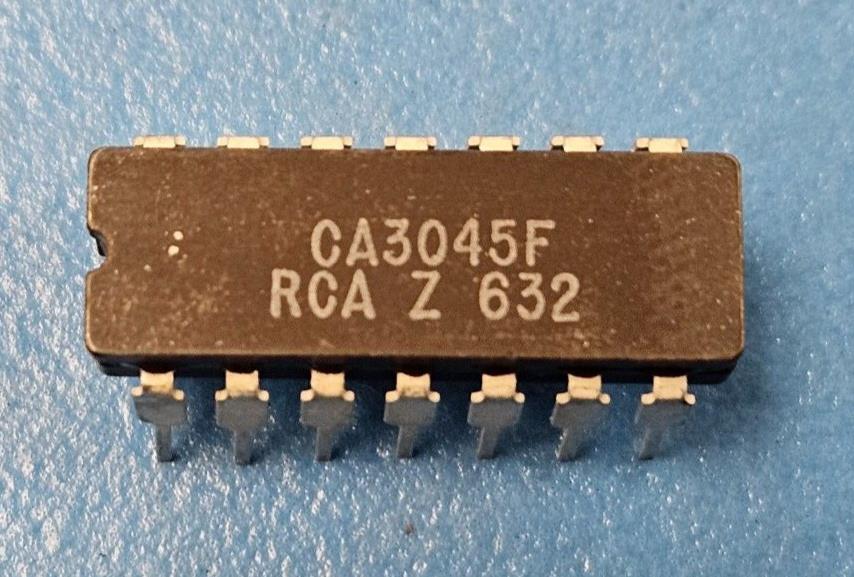

(2PCS) CA3045F RCA Transistor, 0.05A, 5-Element, Silicon, NPN, DIP14
Tax included.
This listing is for (2PCS) of CA3045F by RCA
Status Transferred
Collector Current-Max (IC) 0.05 A
Collector-emitter Voltage-Max 15.0 V
Configuration COMPLEX
DC Current Gain-Min (hFE) 40.0
Highest Frequency Band VERY HIGH FREQUENCY BAND
JEDEC-95 Code MO-001AB
JESD-30 Code R-GDIP-T14
JESD-609 Code e0
Number of Elements 5.0
Number of Terminals 14
Operating Temperature-Max 125.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Shape RECTANGULAR
Package Style IN-LINE
Polarity/Channel Type NPN
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Transistor Application AMPLIFIER
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 550.0 MHz
Additional Feature LOW NOISE
