(2PCS) BRR1A16G AGERE Line Receiver, 1 Func, 4 Rcvr, BICMOS, PDSO16
Tax included.

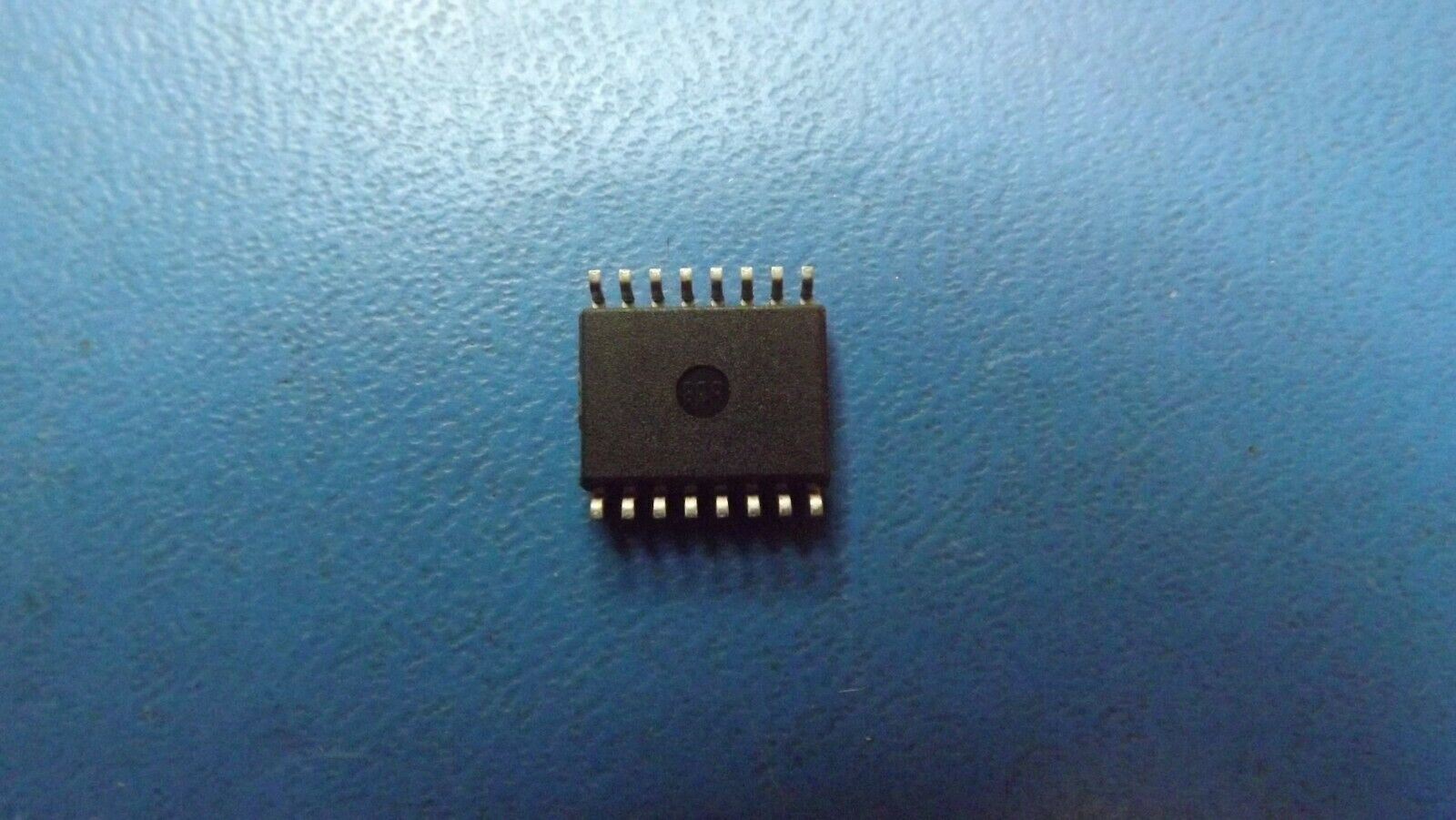

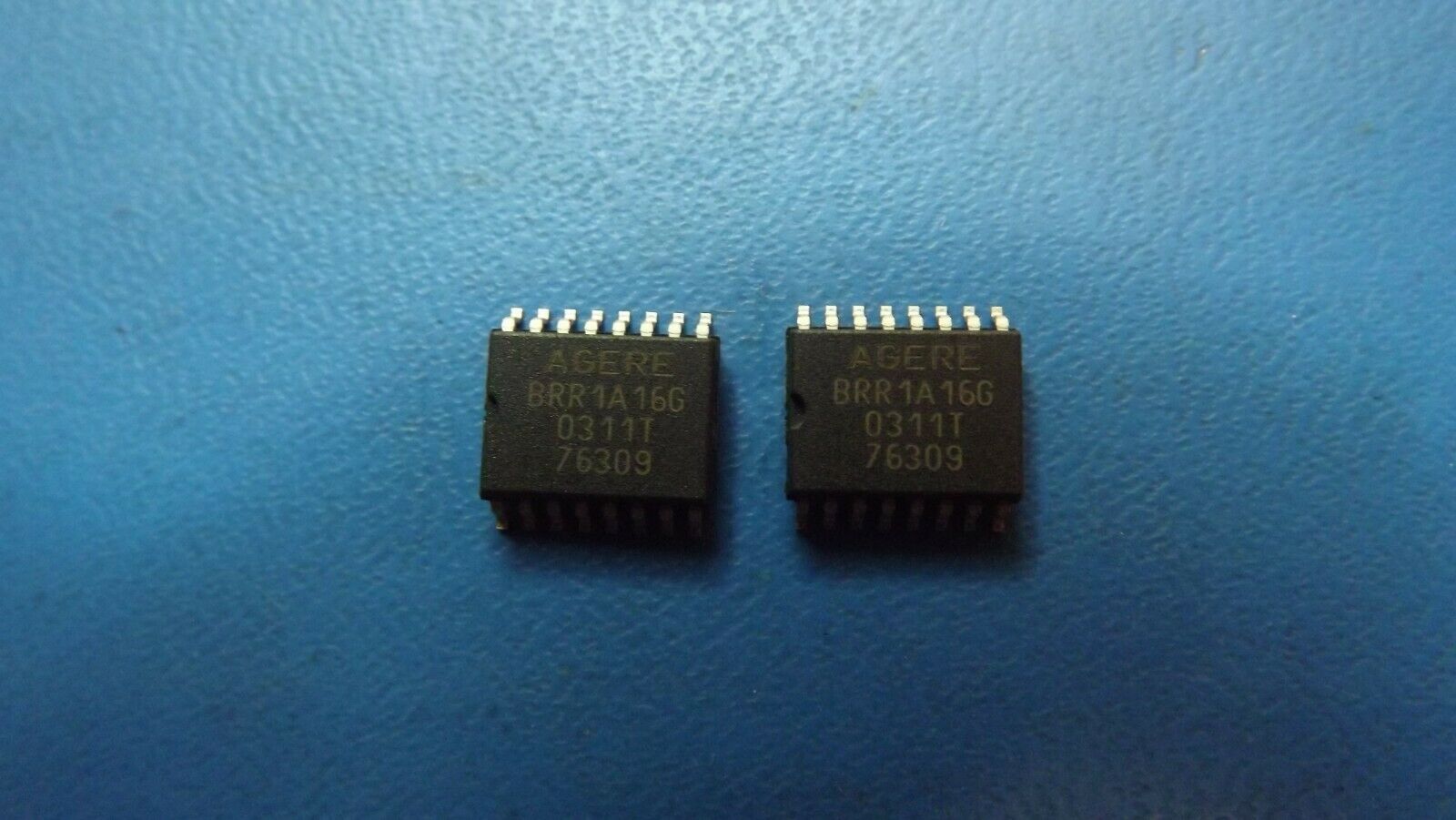

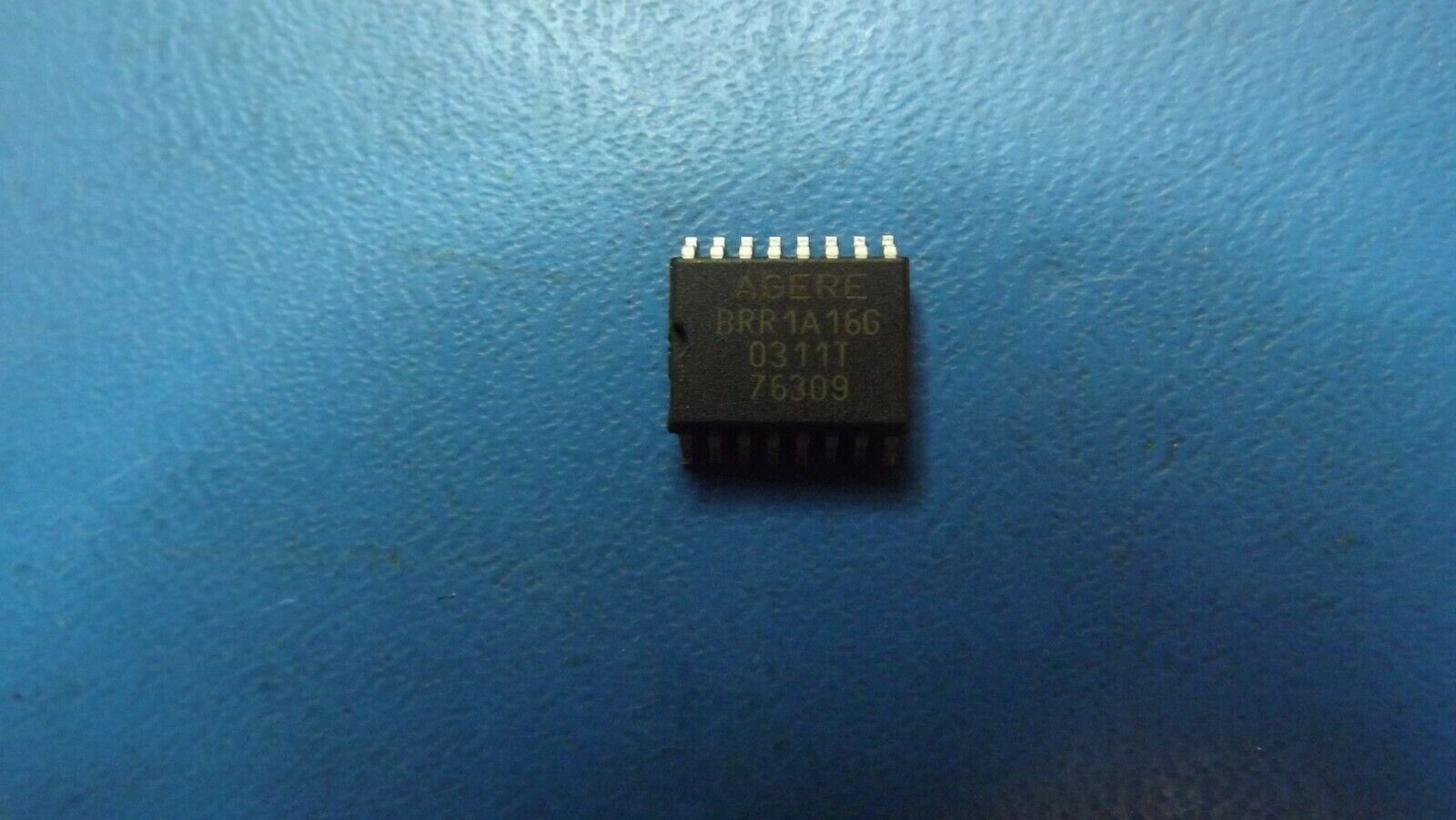

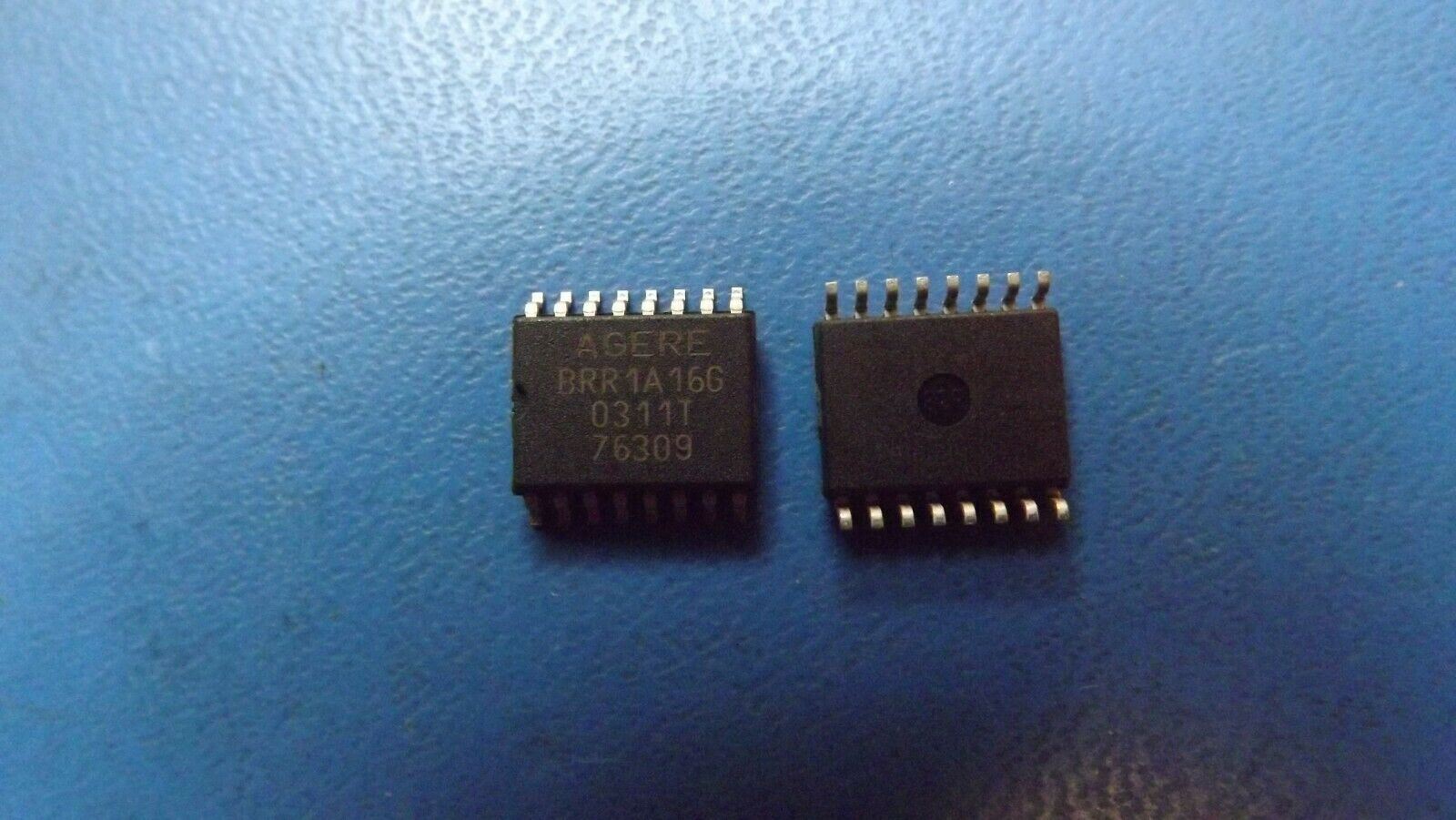

THIS LISTING IS FOR (2PCS) OF BRR1A16G BY AGERE
SPECIFICATIONS
| Mfr Package Description | PLASTIC, SO-16 |
| Status | Transferred |
| Interface IC Type | LINE RECEIVER |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER |
| Interface Standard | ESDI |
| JESD-30 Code | R-PDSO-G16 |
| JESD-609 Code | e0 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Output Characteristics | 3-STATE |
| Output Low Current-Max | 0.008 Amp |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP16,.4 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Power Supplies (V) | 5 |
| Qualification Status | Not Qualified |
| Receive Delay-Max | 4.0 ns |
| Receiver Number of Bits | 4.0 |
| Sub Category | Line Driver or Receivers |
| Supply Current-Max | 45.0 mA |
| Supply Voltage-Nom | 5.0 V |
| Surface Mount | YES |
| Technology | BICMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
