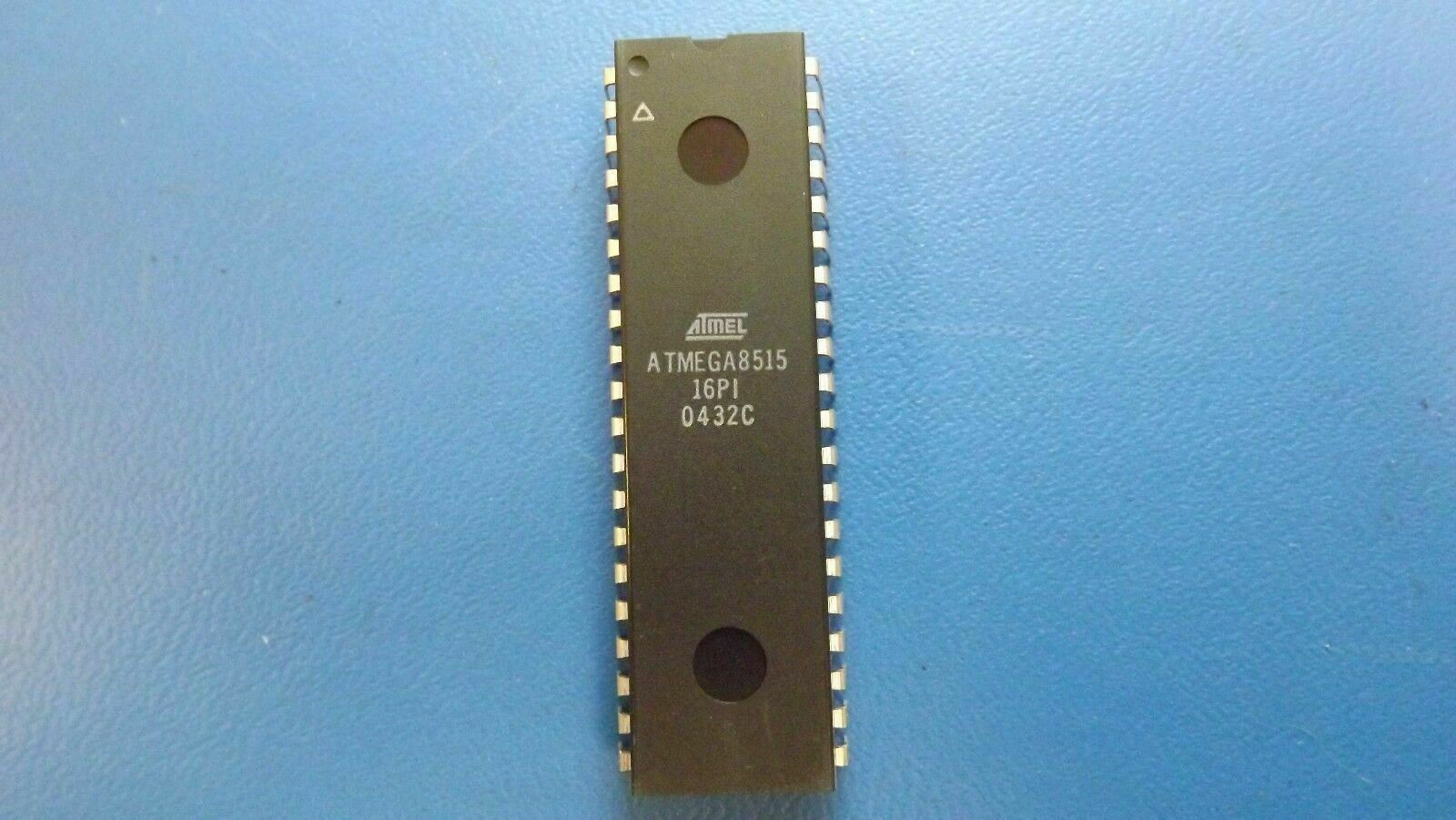

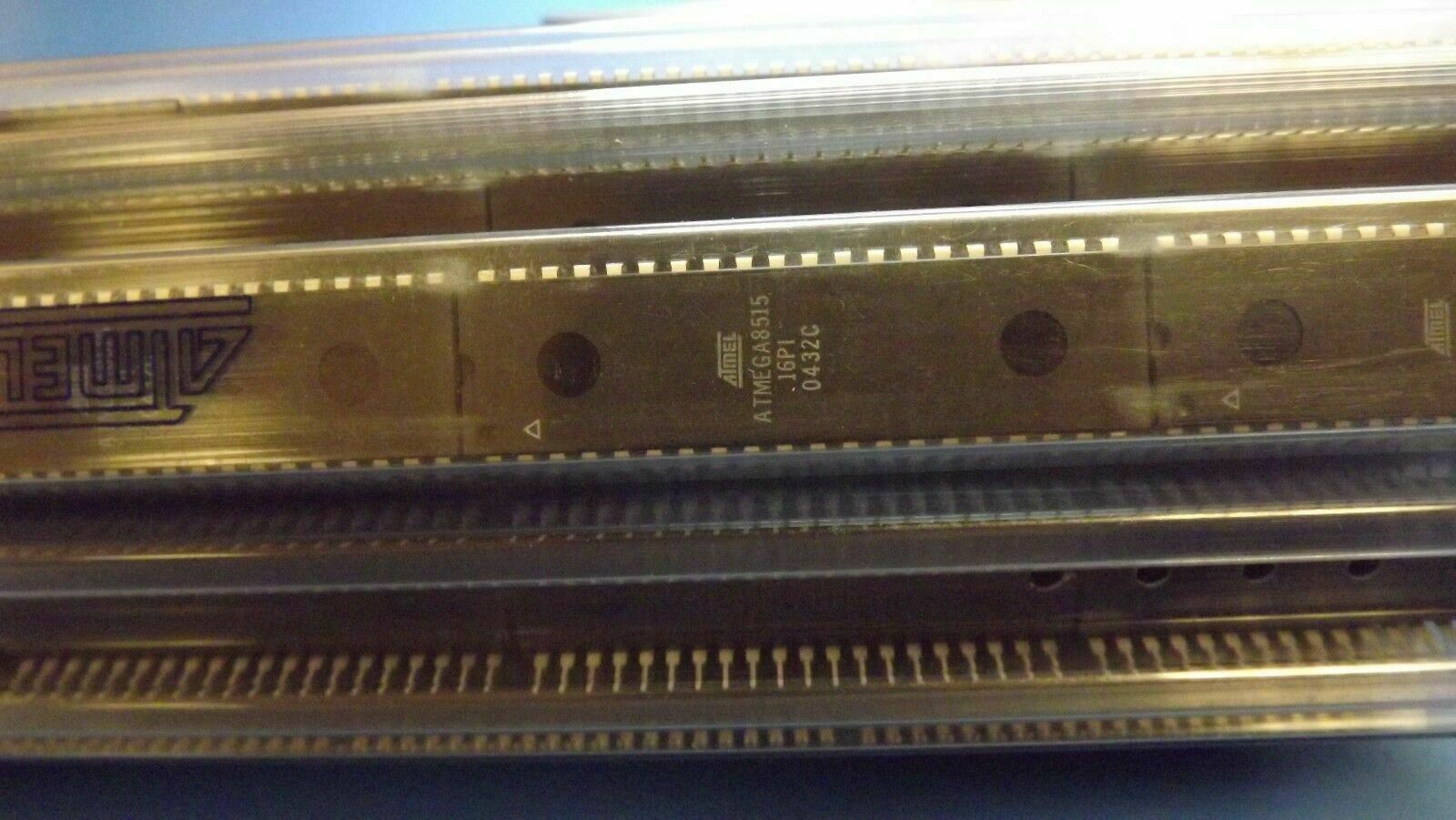

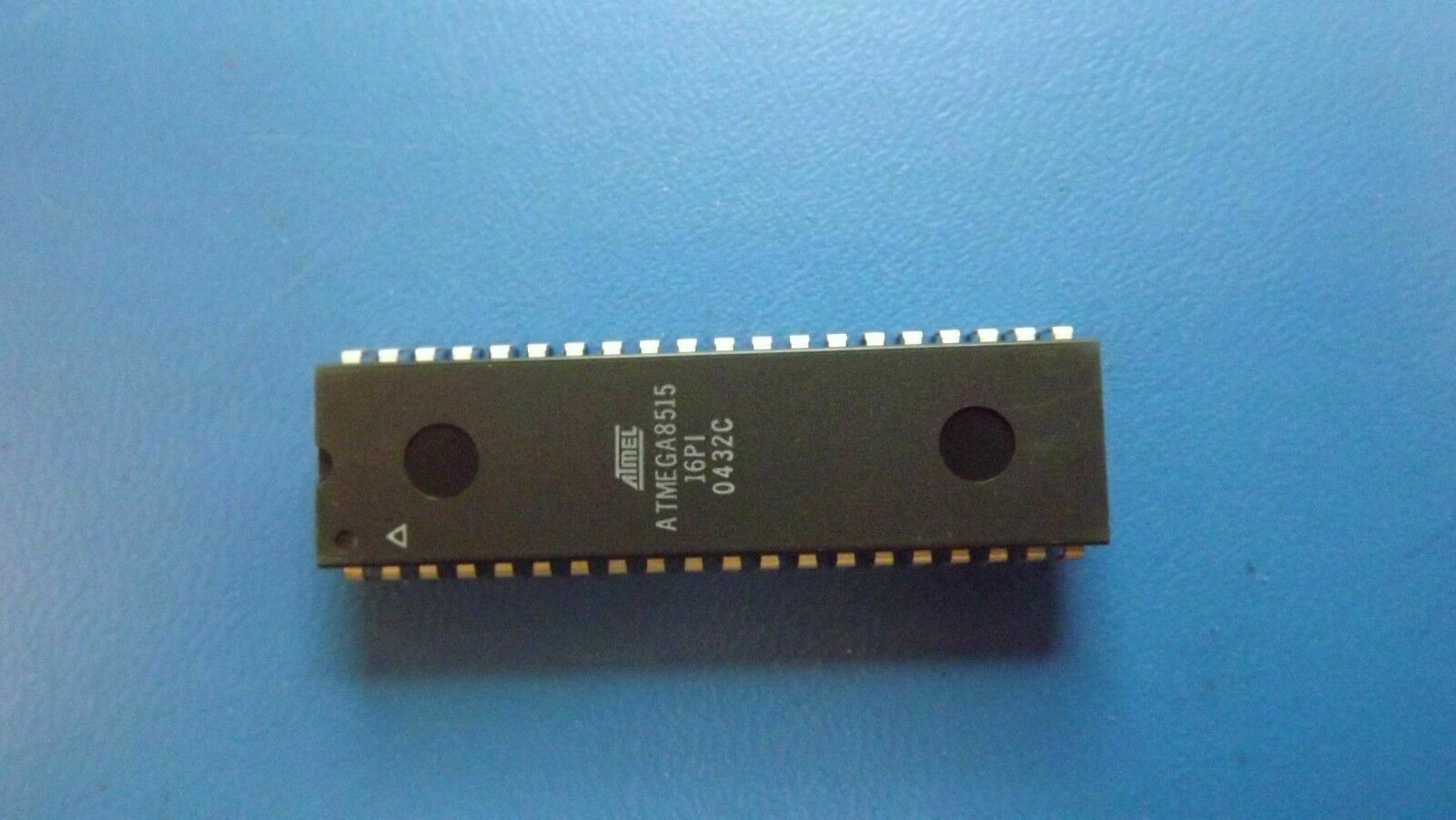

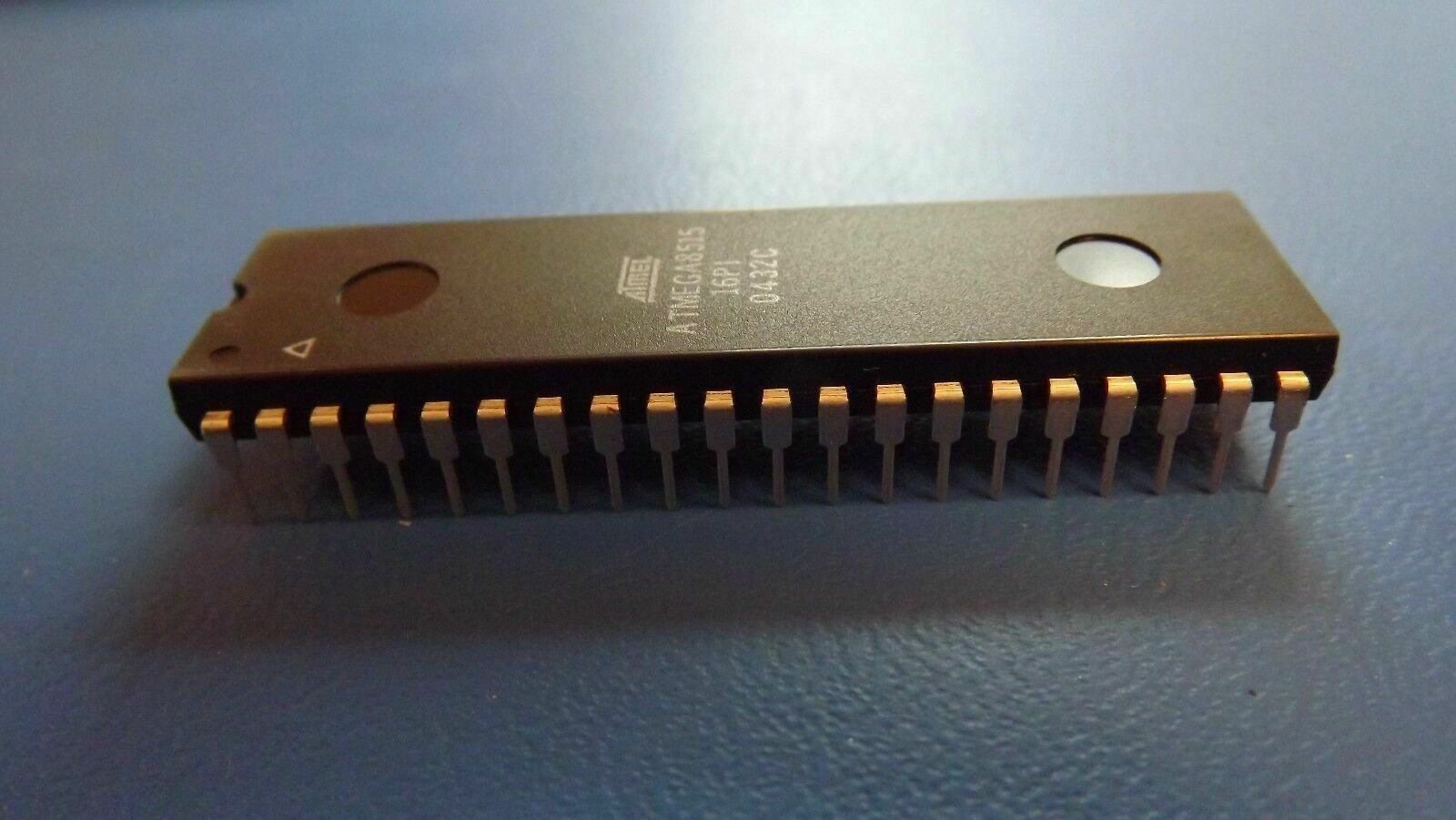

(2PCS) ATMEGA8515-16PI MCU 8-bit ATmega AVR RISC 8KB Flash 5V 40-Pin PDIP

  • $10.00
    Unit price per
Tax included.

Only 65 left!

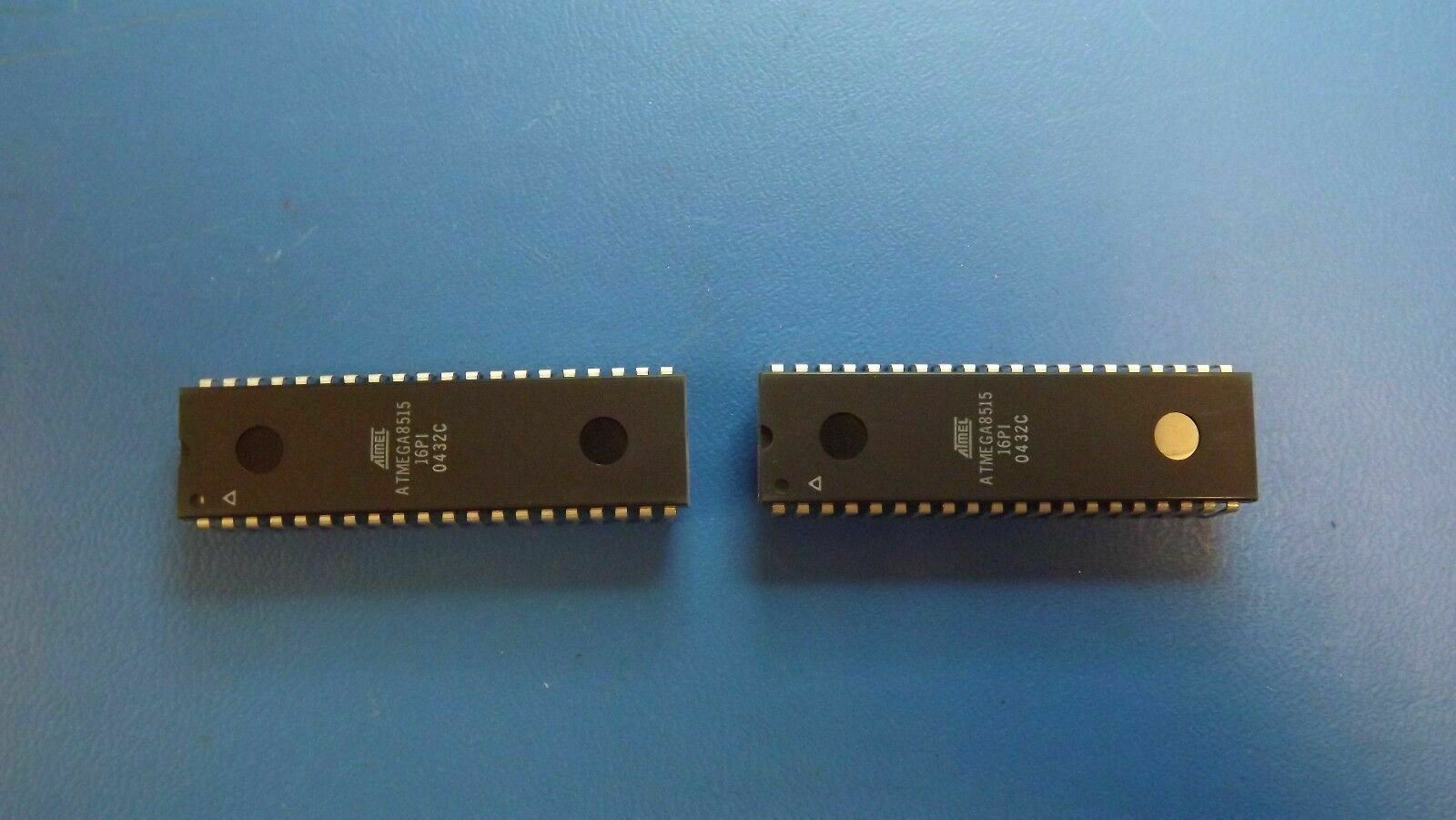

THIS LISTING IS FOR (2PCS) OF ATMEGA8515-16PI BY ATMEL

SPECIFICATIONS

Mfr Package Description 0.600 INCH, PLASTIC, MS-011AC, DIP-40
REACH Compliant Yes
Status Discontinued
Microprocessor/Microcontroller/Peripheral IC Type MICROCONTROLLER, RISC
ADC Channels NO
Address Bus Width 16
Bit Size 8
Clock Frequency-Max 16 MHz
CPU Family AVR RISC
DAC Channels NO
DMA Channels NO
External Data Bus Width 8
JESD-30 Code R-PDIP-T40
JESD-609 Code e0
Number of I/O Lines 35
Number of Terminals 40
Operating Temperature-Min -40 Cel
Operating Temperature-Max 85 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
PWM Channels YES
Qualification Status Not Qualified
RAM (bytes) 512
ROM Programmability FLASH
ROM (words) 4096
Seated Height-Max 4.83 mm
Speed 16 MHz
Sub Category Microcontrollers
Supply Voltage-Nom 5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 52.32 mm
Width 15.24 mm
