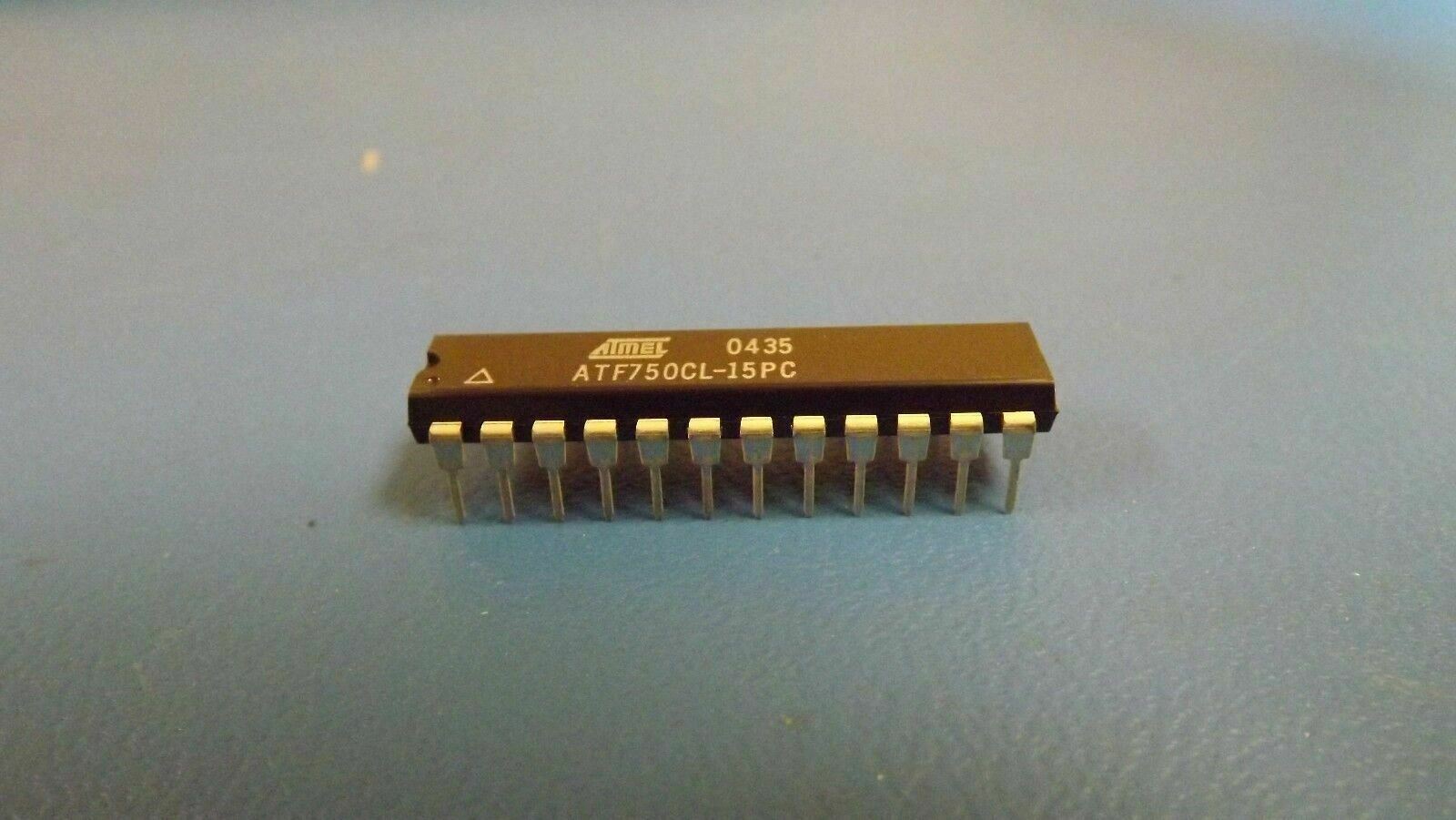

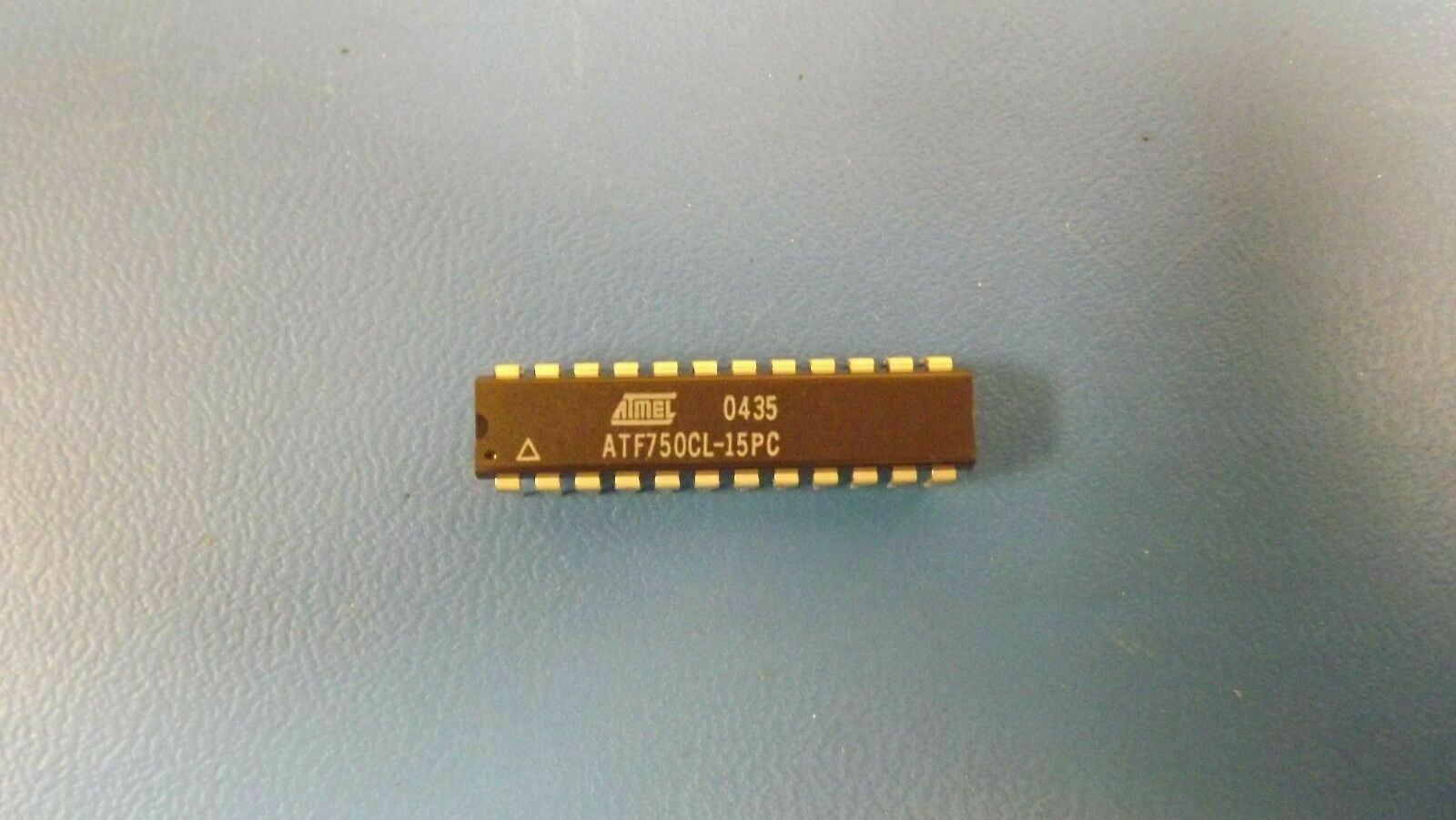

(2PCS) ATF750CL-15PC CPLD 750 Gates 10 Macro Cells 41MHz 5V 24-Pin PDIP
Tax included.

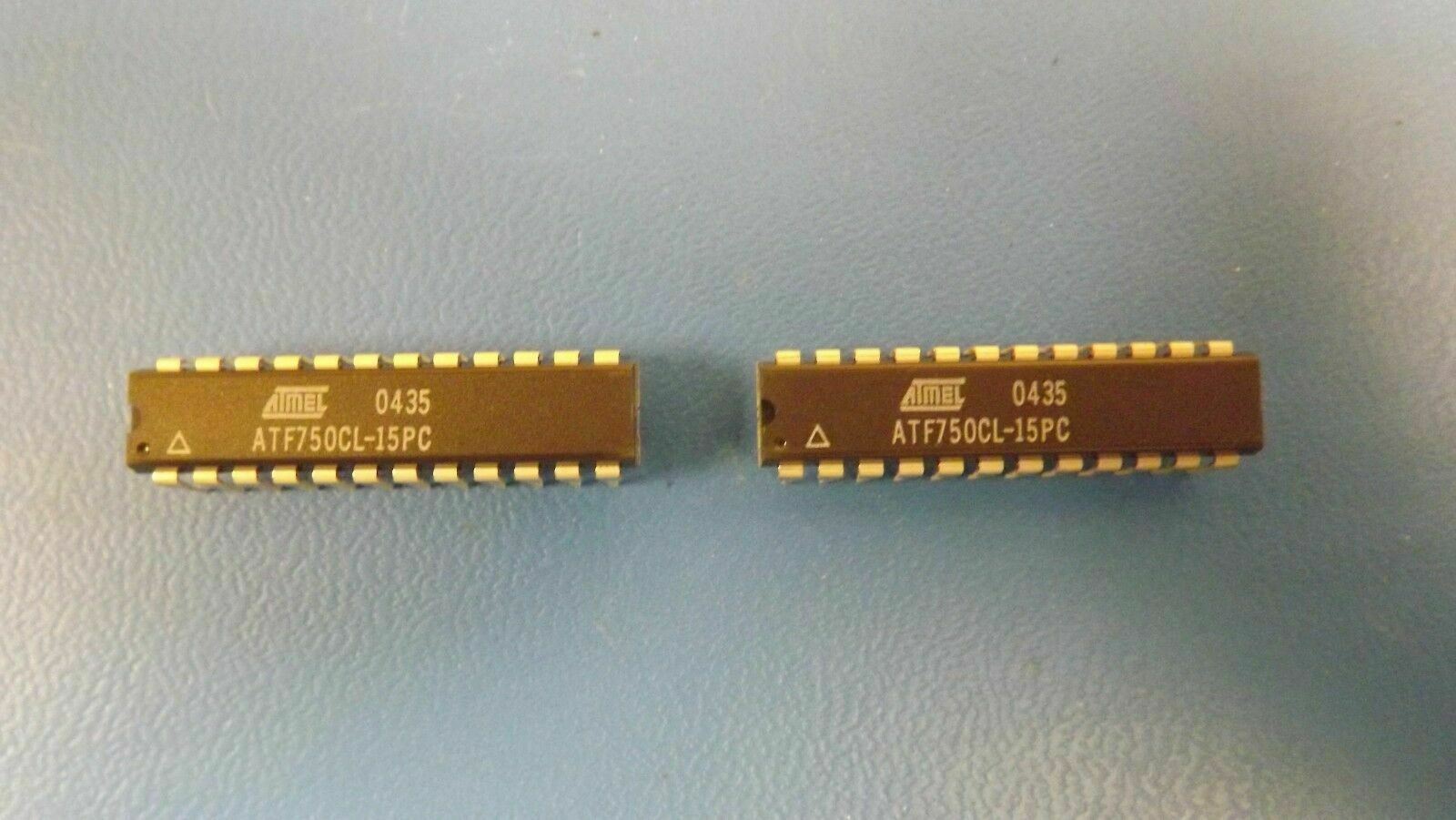

THIS LISTING IS FOR (2PCS) OF ATF750CL-15PC BY ATMEL
SPECIFICATIONS
| Mfr Package Description | 0.300 INCH, PLASTIC, MS-001AF, DIP-24 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Programmable Logic Type | EE PLD |
| Clock Frequency-Max | 44 MHz |
| In-System Programmable | NO |
| JESD-30 Code | R-PDIP-T24 |
| JESD-609 Code | e0 |
| JTAG BST | NO |
| Moisture Sensitivity Level | 1 |
| Number of Dedicated Inputs | 11 |
| Number of I/O Lines | 10 |
| Number of Macro Cells | 10 |
| Number of Terminals | 24 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70 Cel |
| Organization | 11 DEDICATED INPUTS, 10 I/O |
| Output Function | MACROCELL |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | 225 |
| Power Supplies | 5 |
| Propagation Delay | 15 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.33 mm |
| Sub Category | Programmable Logic Devices |
| Supply Voltage-Nom | 5 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 31.88 mm |
| Width | 7.62 mm |
| Additional Feature | NO |
