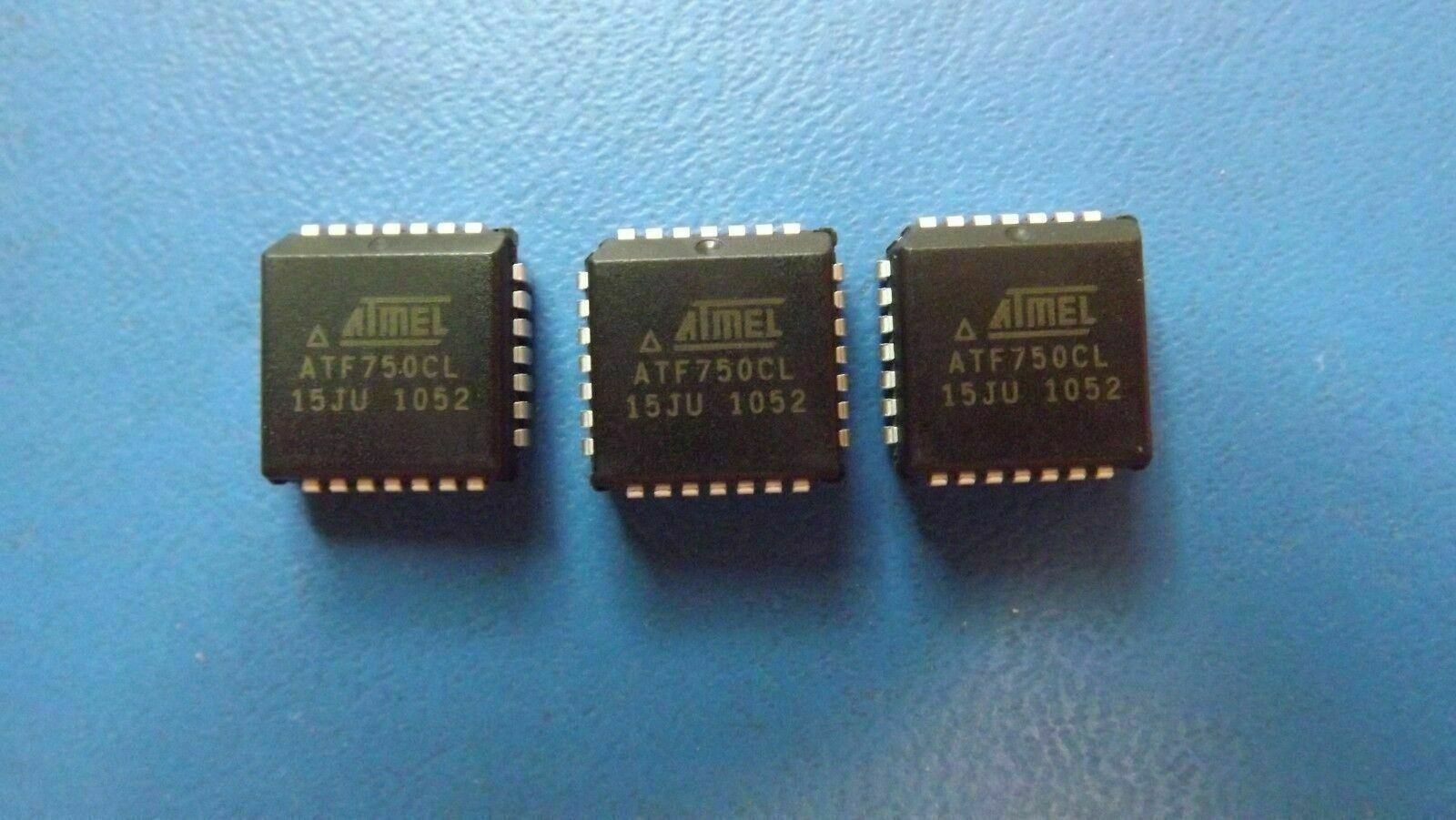

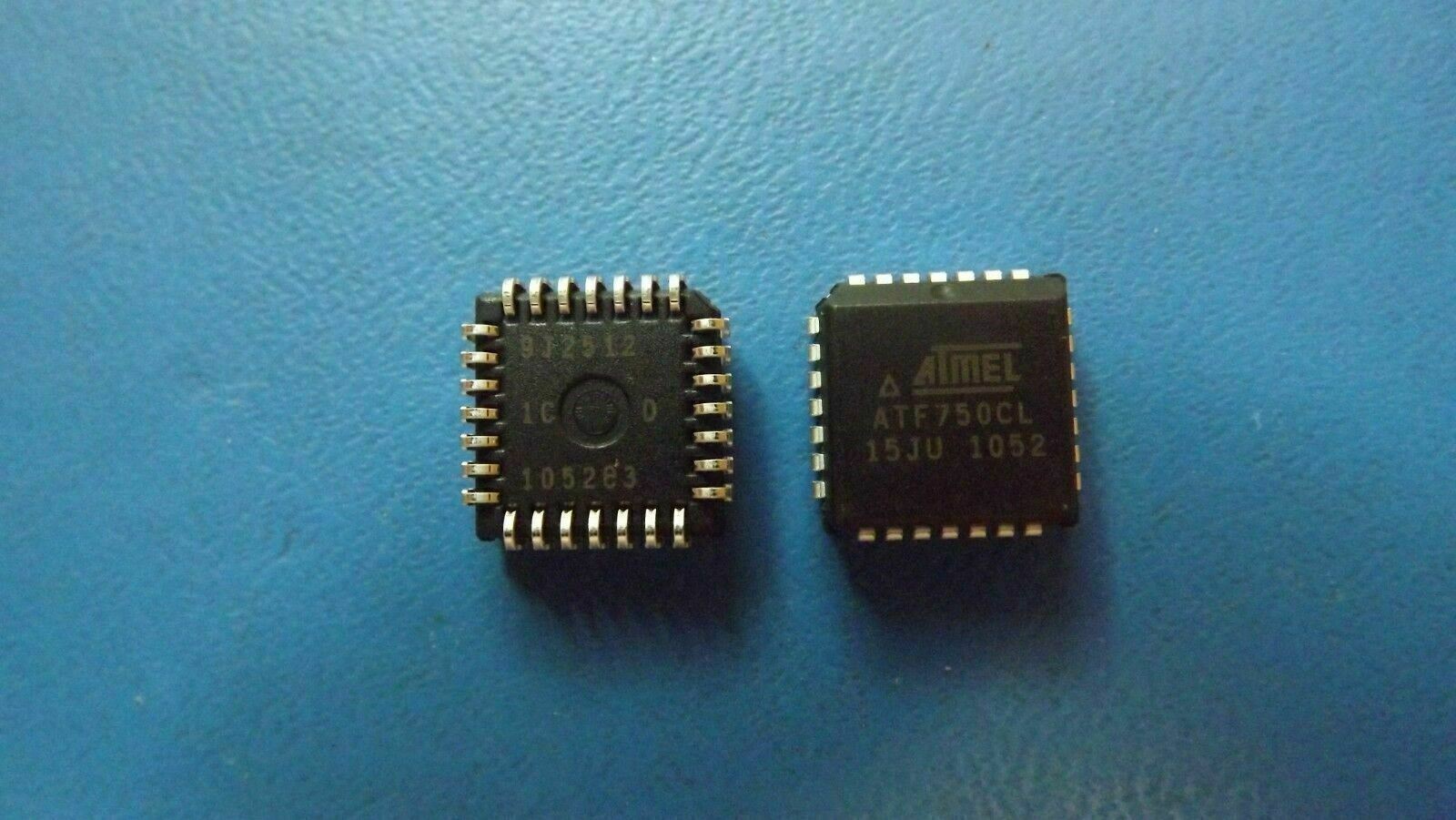

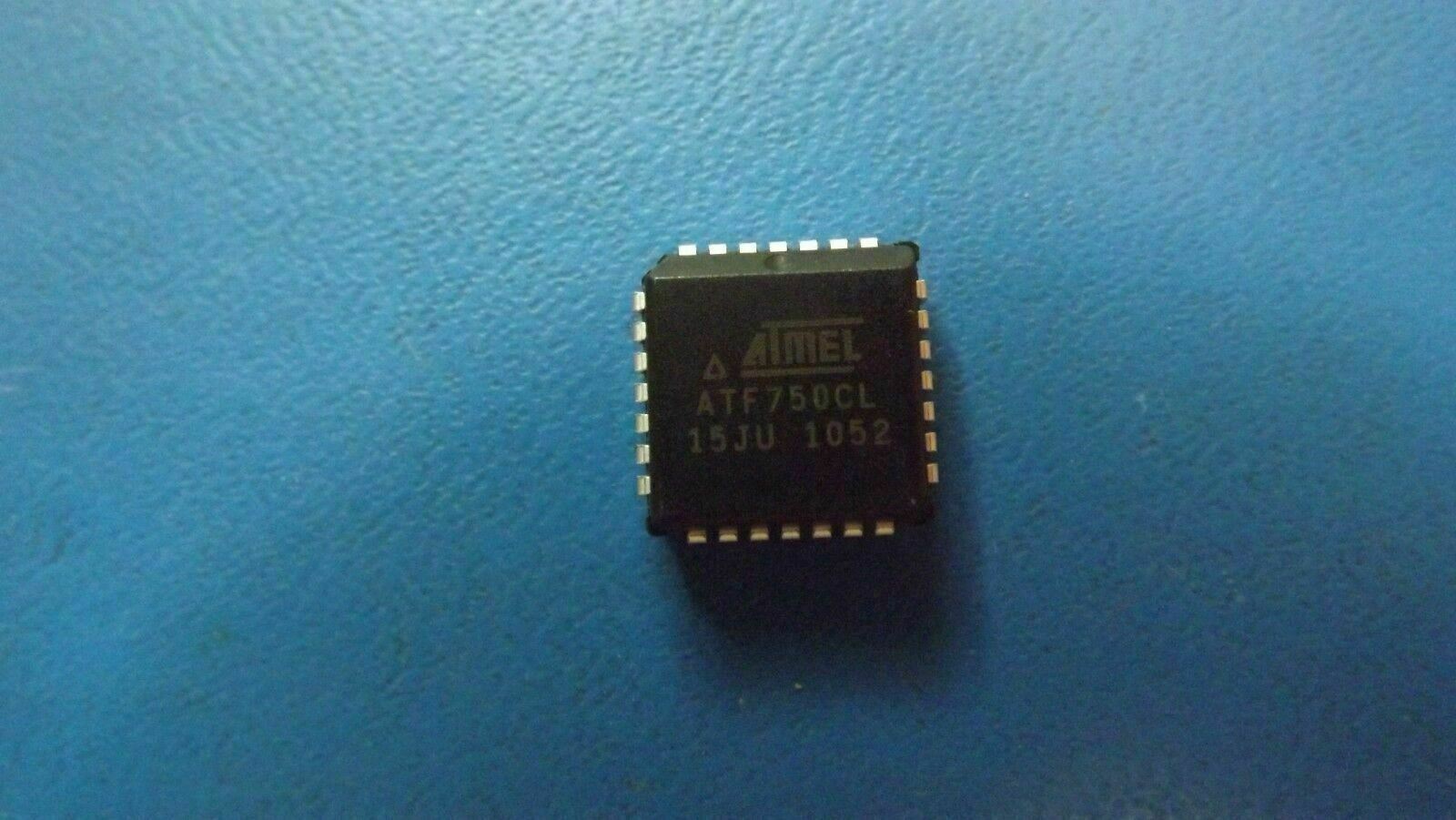

(2PCS) ATF750CL-15JU ATMEL IC CPLD 10MC 15NS 28PLCC
Tax included.

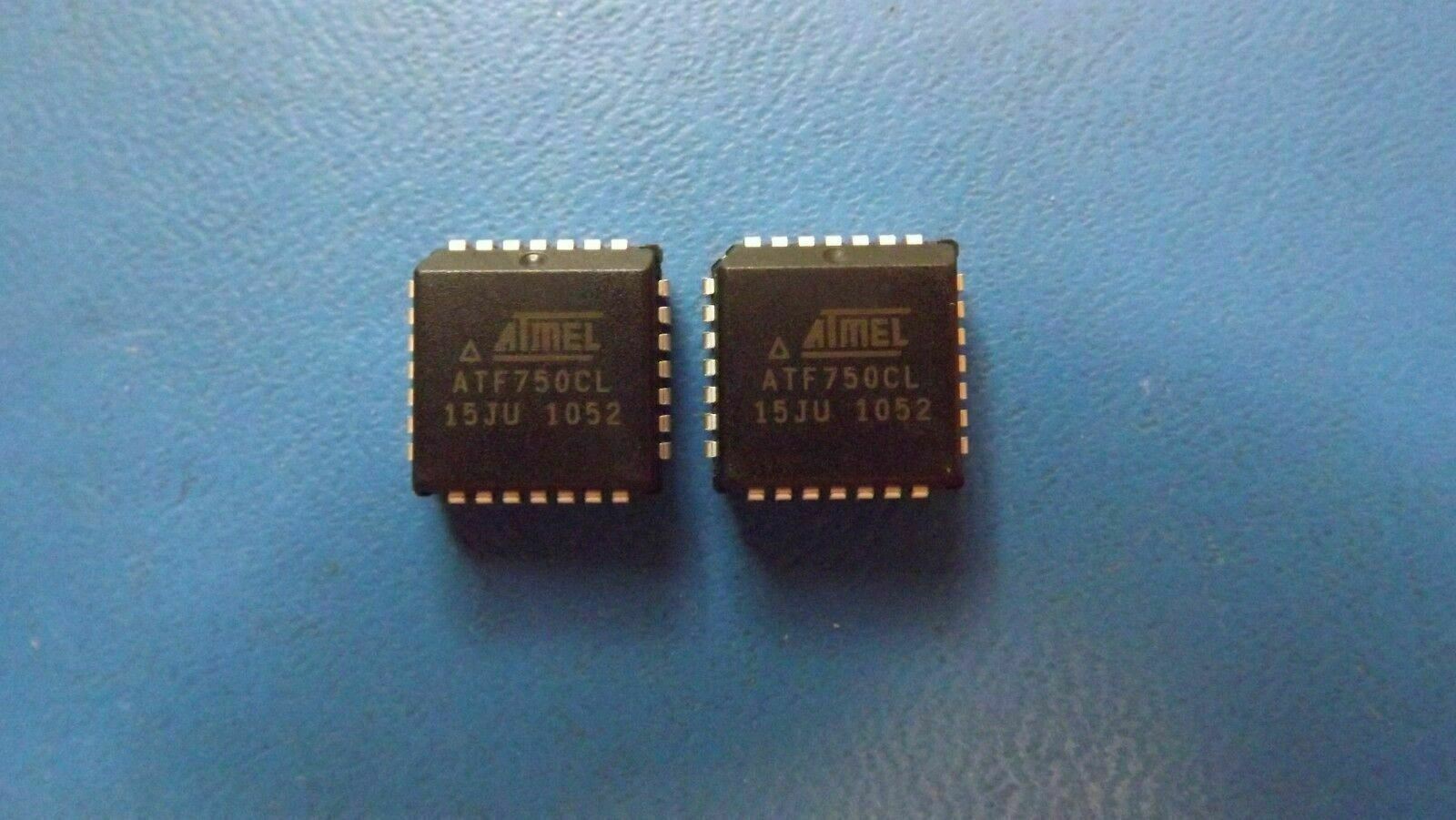

THIS LISTING IS FOR (2PCS) OF ATF750CL-15JU BY ATMEL
SPECIFICATIONS
| Mfr Package Description | GREEN, PLASTIC, MS-018AB, LCC-28 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Programmable Logic Type | EE PLD |
| Clock Frequency-Max | 44.0 MHz |
| In-System Programmable | NO |
| JESD-30 Code | S-PQCC-J28 |
| JESD-609 Code | e3 |
| JTAG BST | NO |
| Moisture Sensitivity Level | 2 |
| Number of Dedicated Inputs | 11.0 |
| Number of I/O Lines | 10.0 |
| Number of Macro Cells | 10.0 |
| Number of Terminals | 28 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Organization | 11 DEDICATED INPUTS, 10 I/O |
| Output Function | MACROCELL |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC28,.5SQ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| Peak Reflow Temperature (Cel) | 245 |
| Power Supplies | 5 |
| Propagation Delay | 15.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.572 mm |
| Sub Category | Programmable Logic Devices |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Max | 5.5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 11.5062 mm |
| Width | 11.5062 mm |
| Additional Feature | NO |
