(2PCS) AT29LV020-10JU IC FLASH 2MBIT PARALLEL 32PLCC
Tax included.

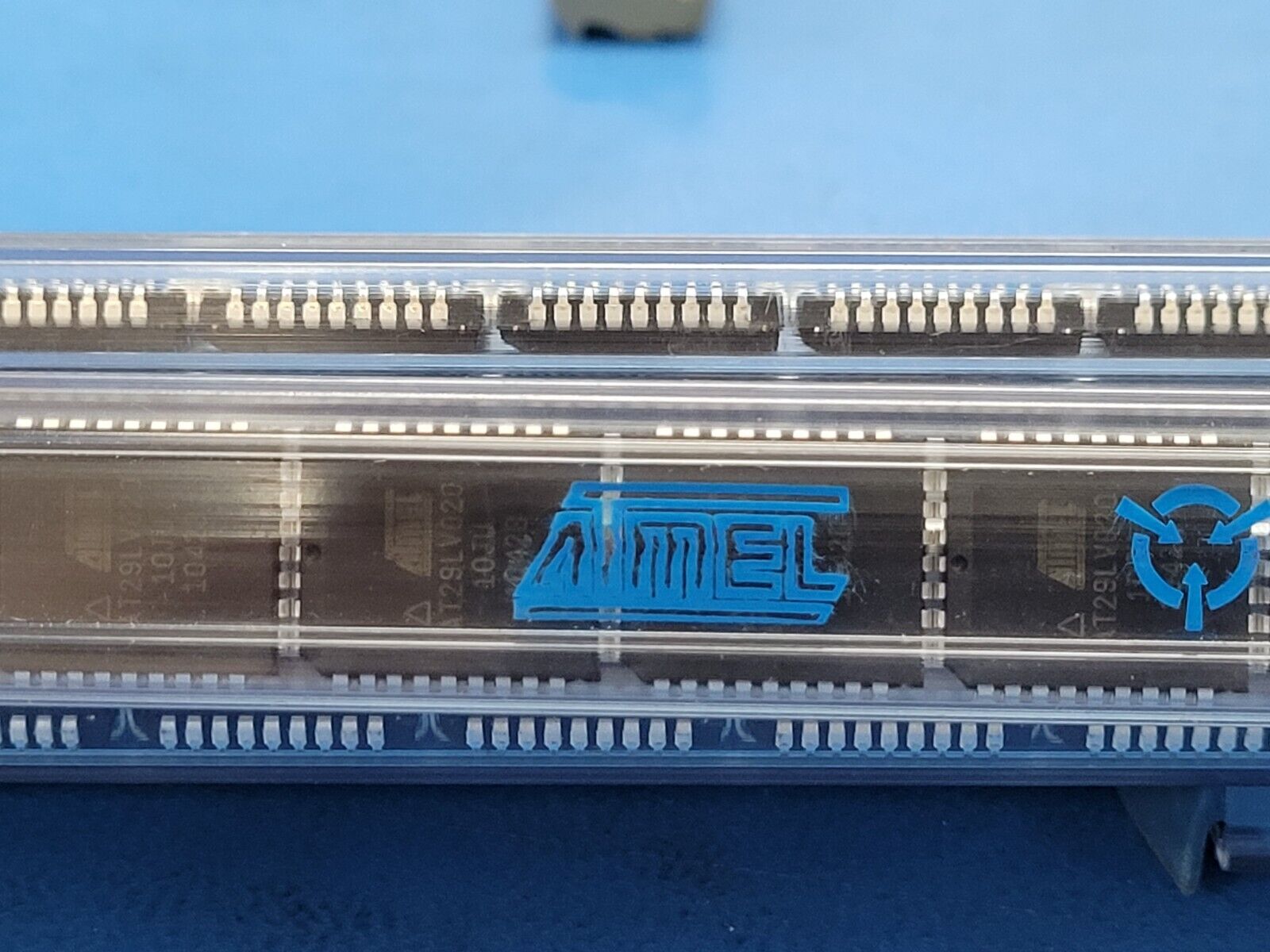

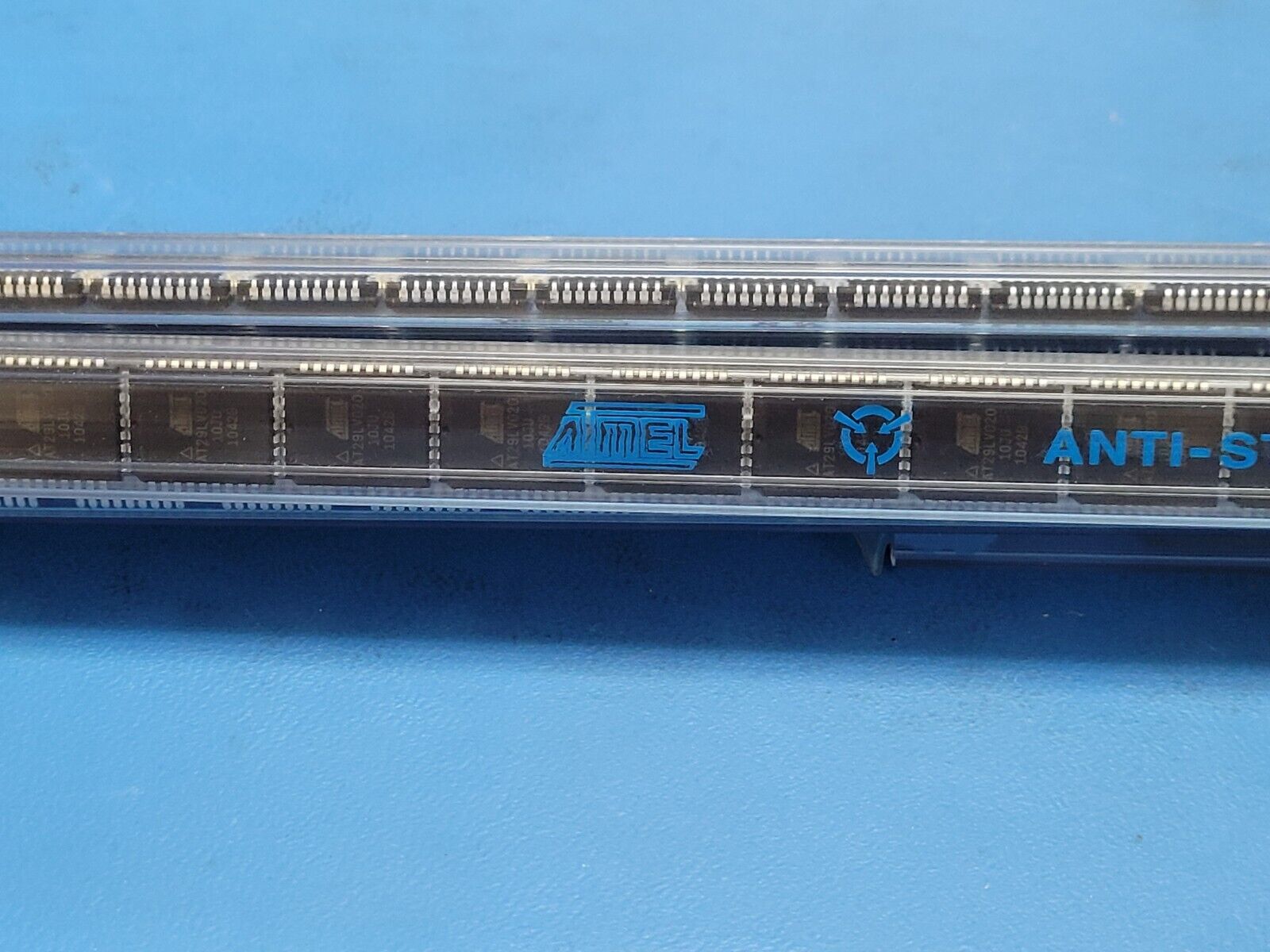

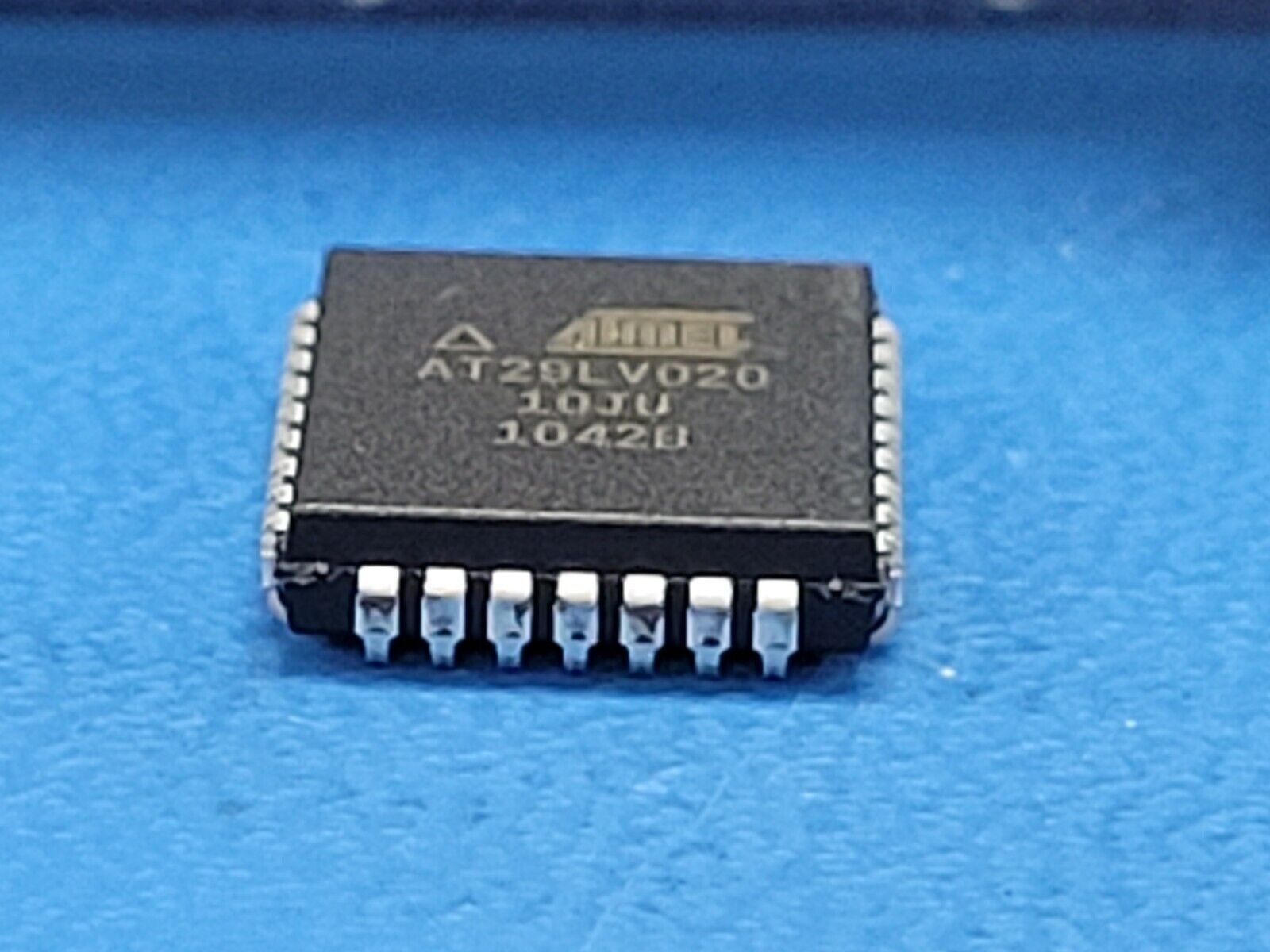

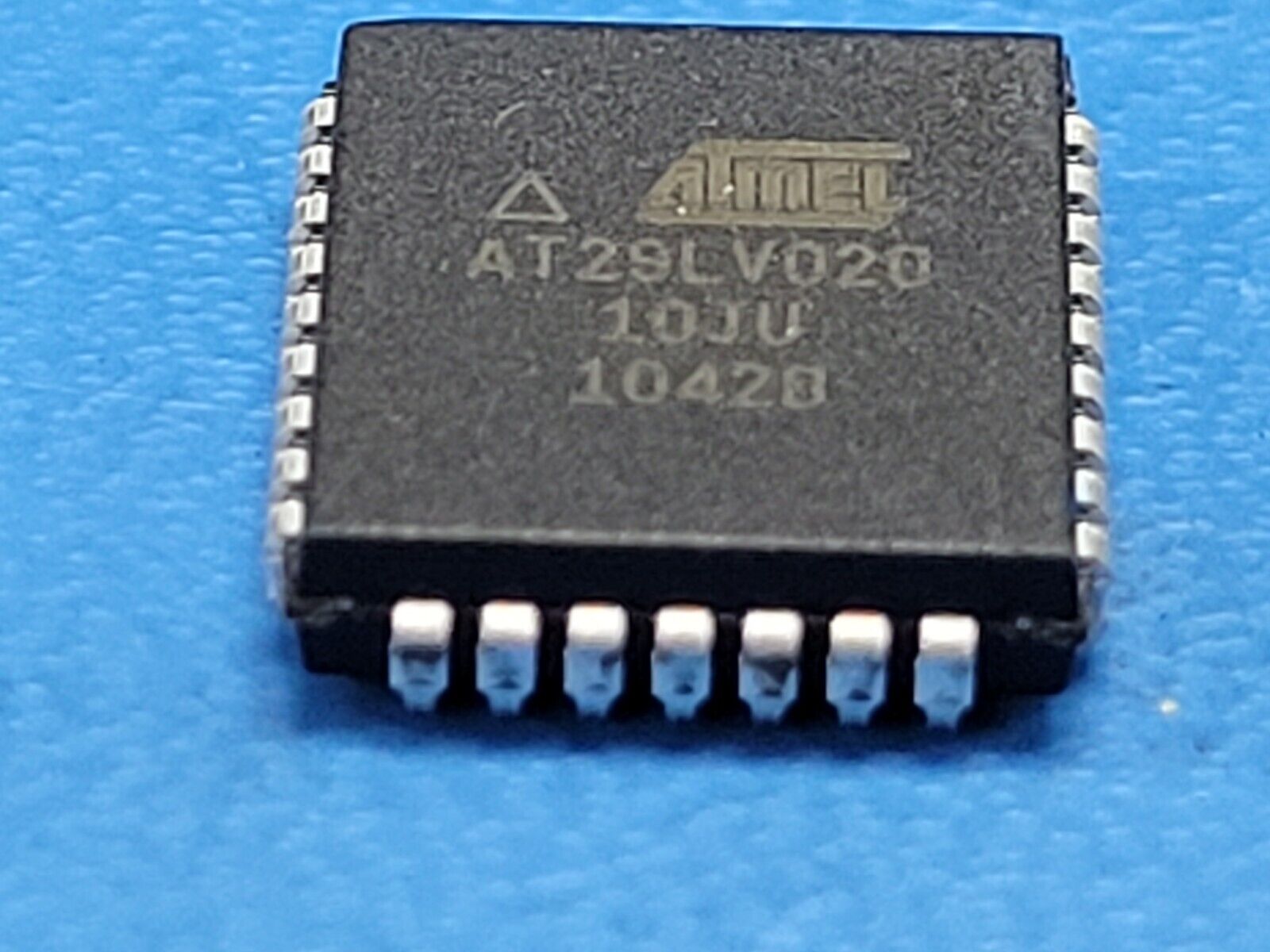

THIS LISTING IS FOR (2PCS) OF AT29LV020-10JU BY ATMEL
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 100.0 ns
Boot Block BOTTOM/TOP
Command User Interface NO
Data Polling YES
JESD-30 Code R-PQCC-J32
JESD-609 Code e3
Memory Density 2097152.0 bit
Memory IC Type FLASH
Memory Width 8
Moisture Sensitivity Level 2
Number of Functions 1
Number of Sectors/Size 1K
Number of Terminals 32
Number of Words 262144.0 words
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 256KX8
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 245
Qualification Status Not Qualified
Seated Height-Max 3.556 mm
Standby Current-Max 5.0E-5 Amp
Supply Current-Max 0.015 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Toggle Bit YES
Write Cycle Time-Max (tWC) 20.0 ms
Length 13.97 mm
Width 11.43 mm
