(2PCS) AS5SP512K36DQ-40XT SRAM Chip Sync 3.3V 18M-Bit 512K x 36 4ns 100-Pin TQFP
Tax included.

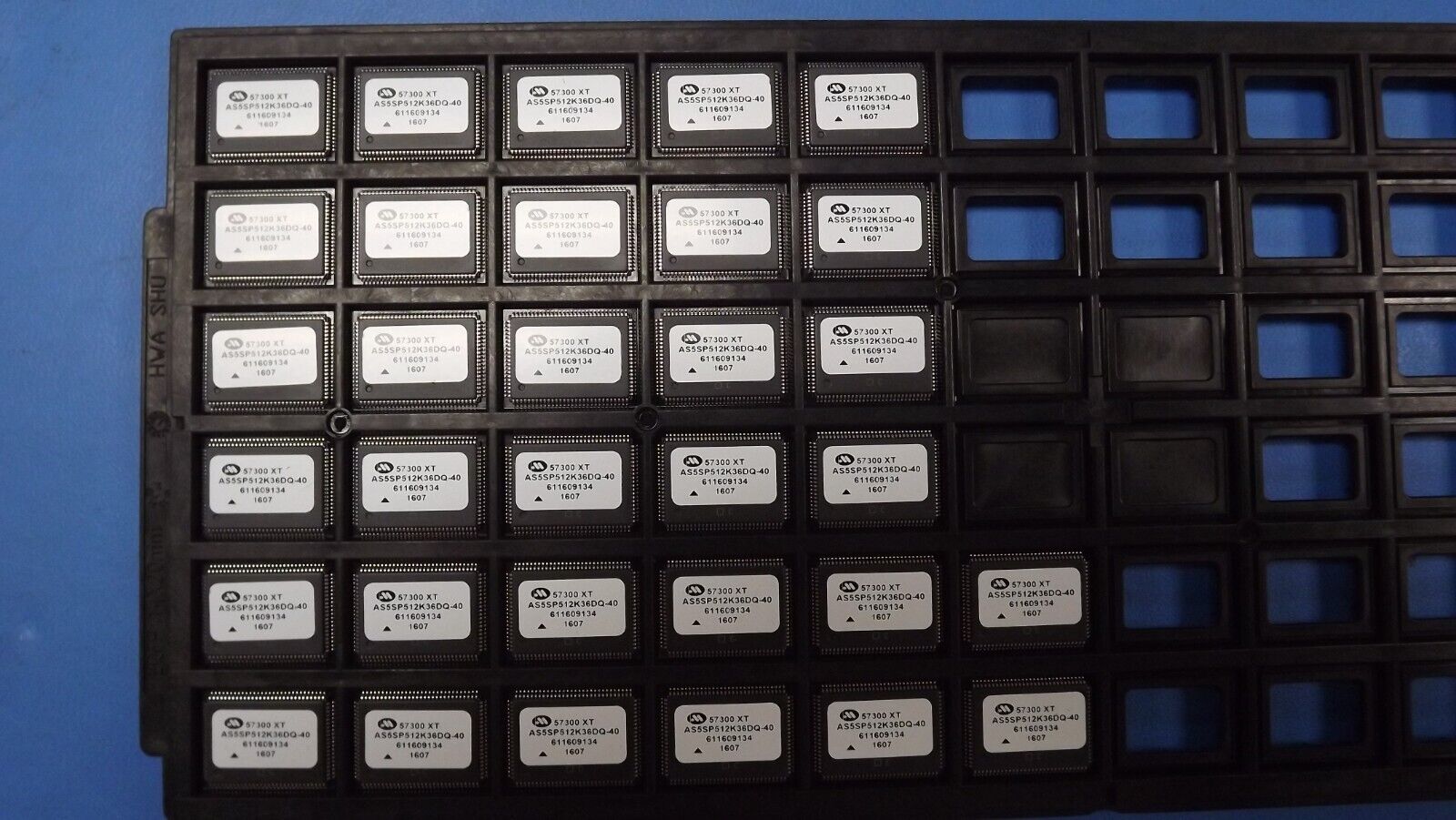

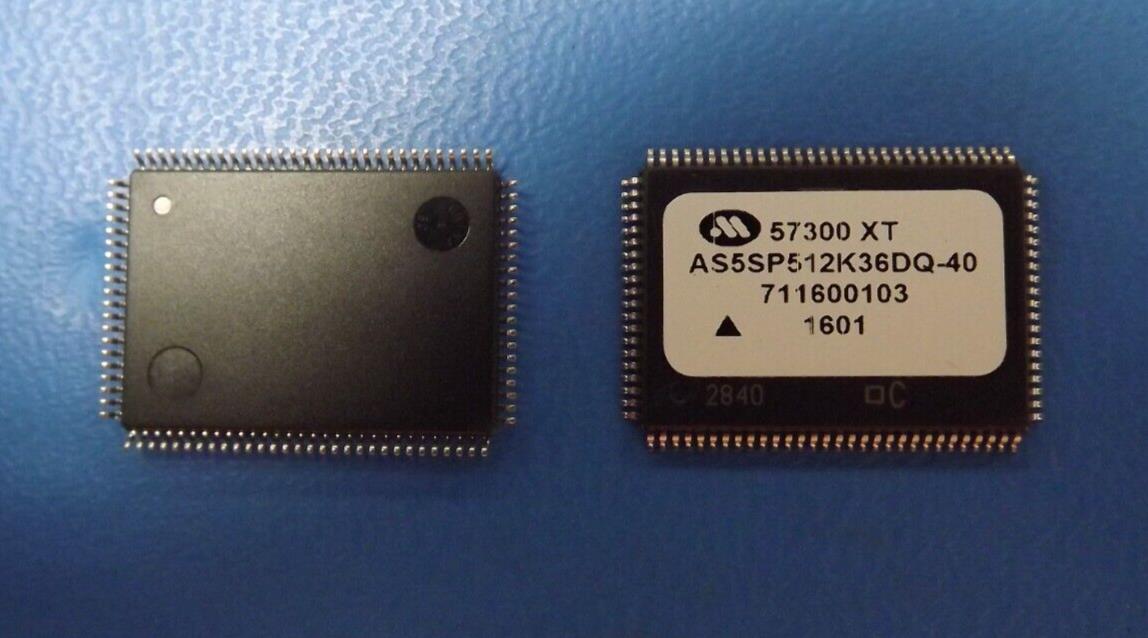

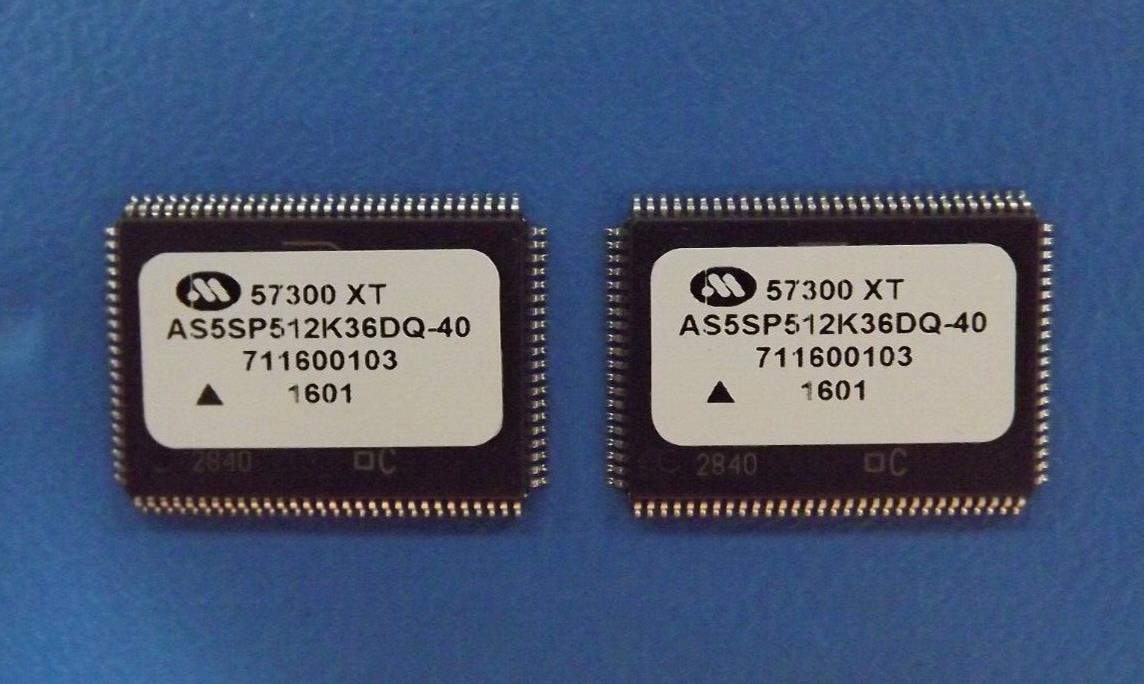

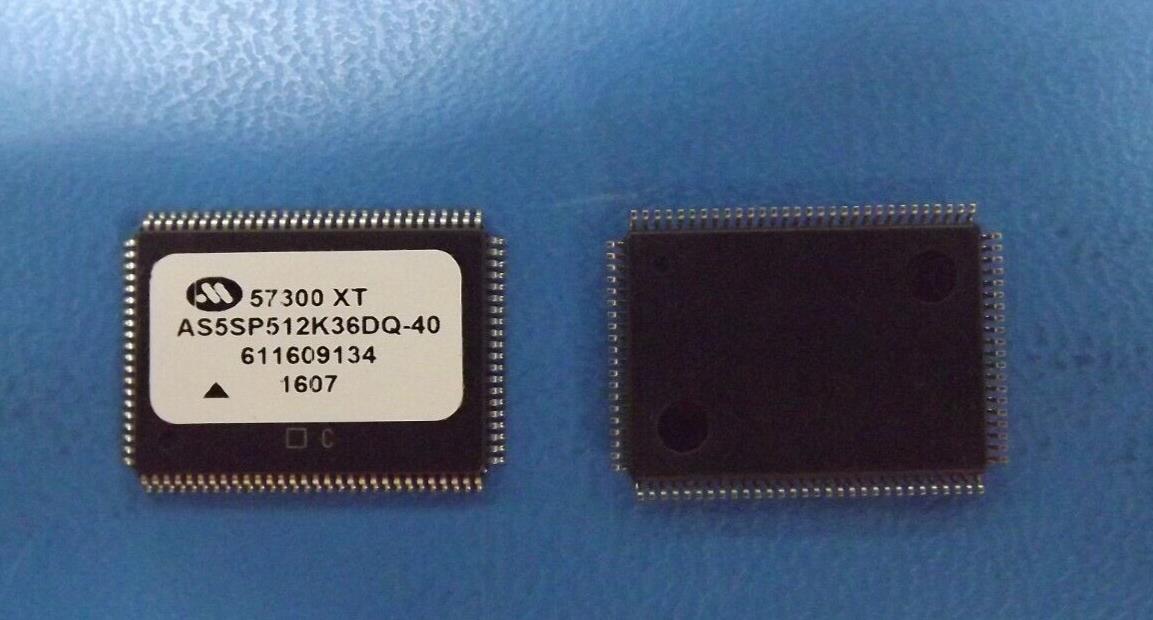

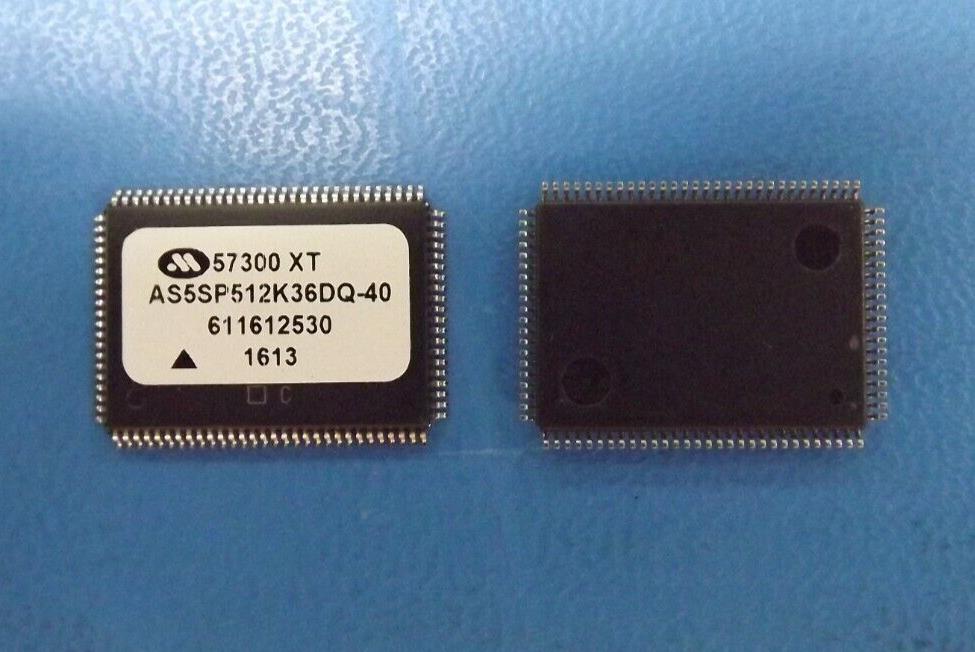

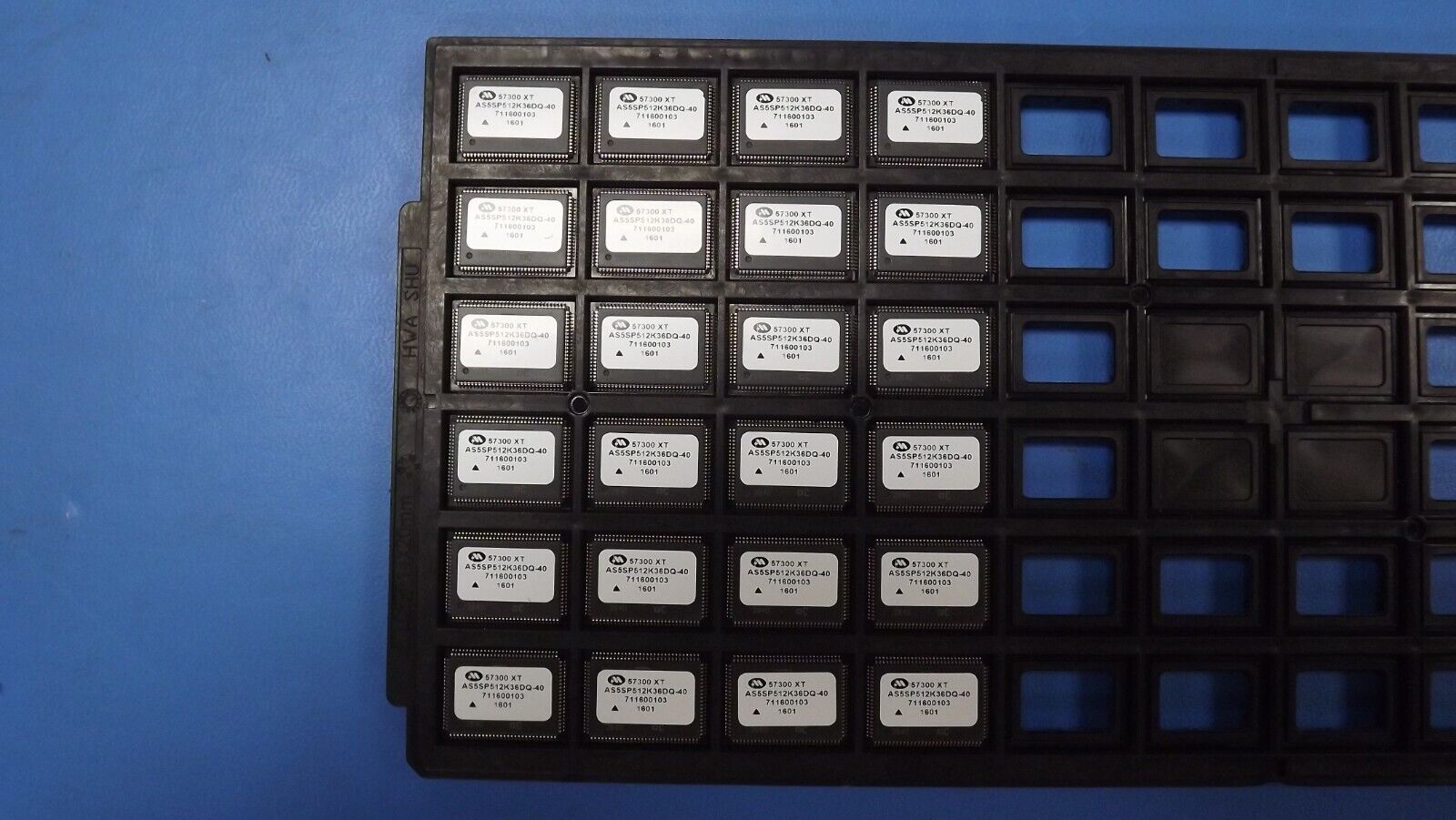

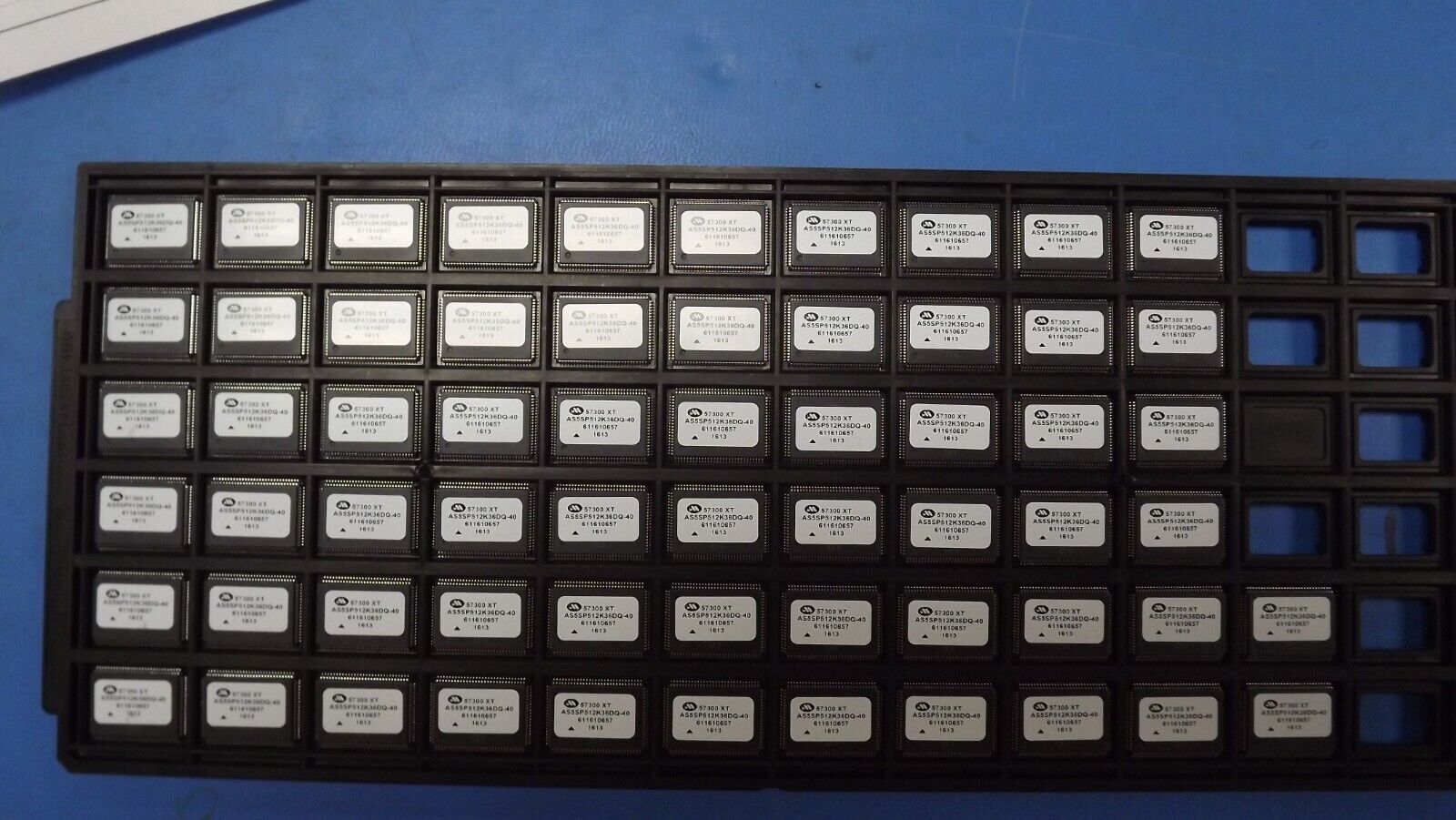

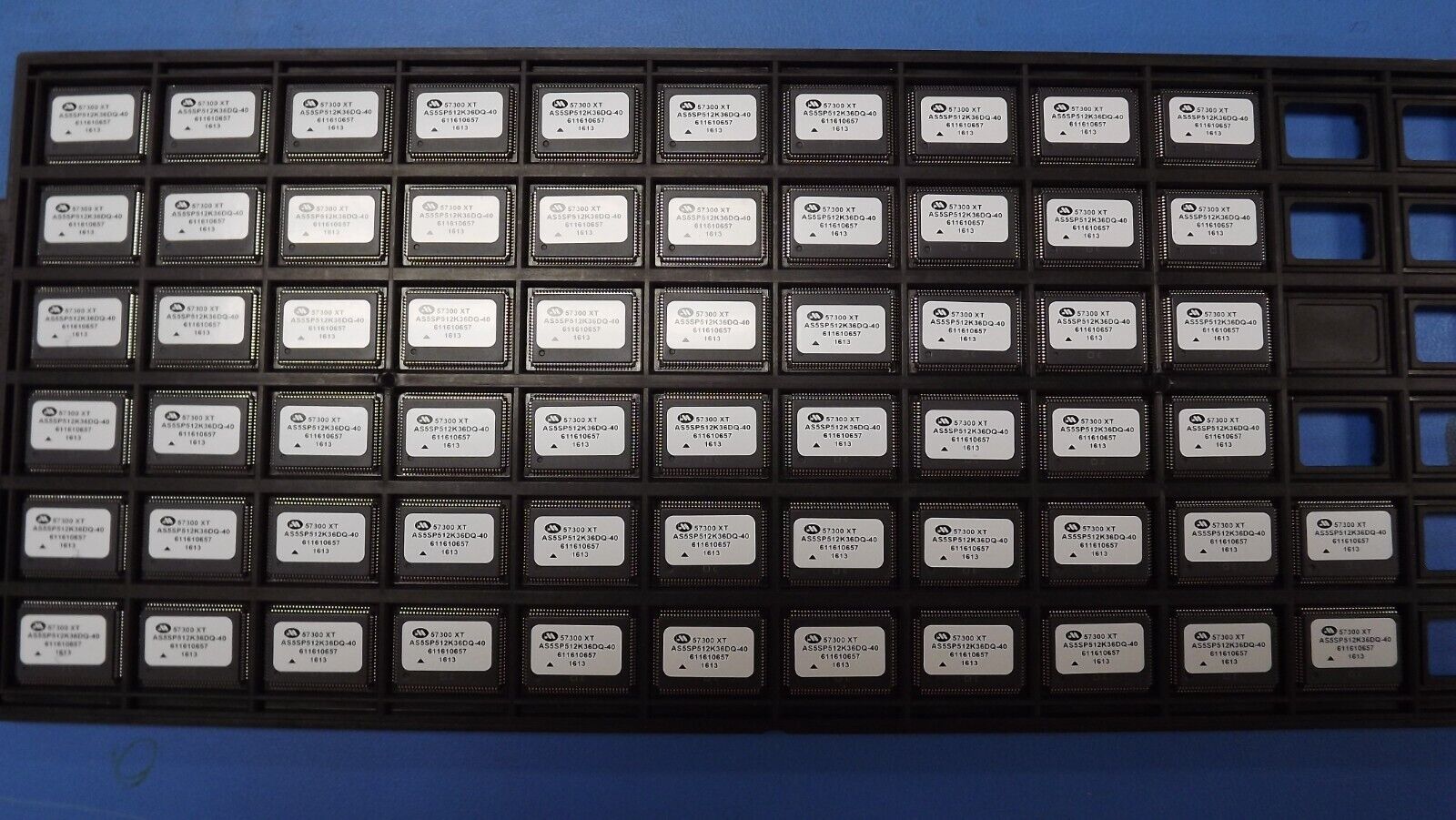

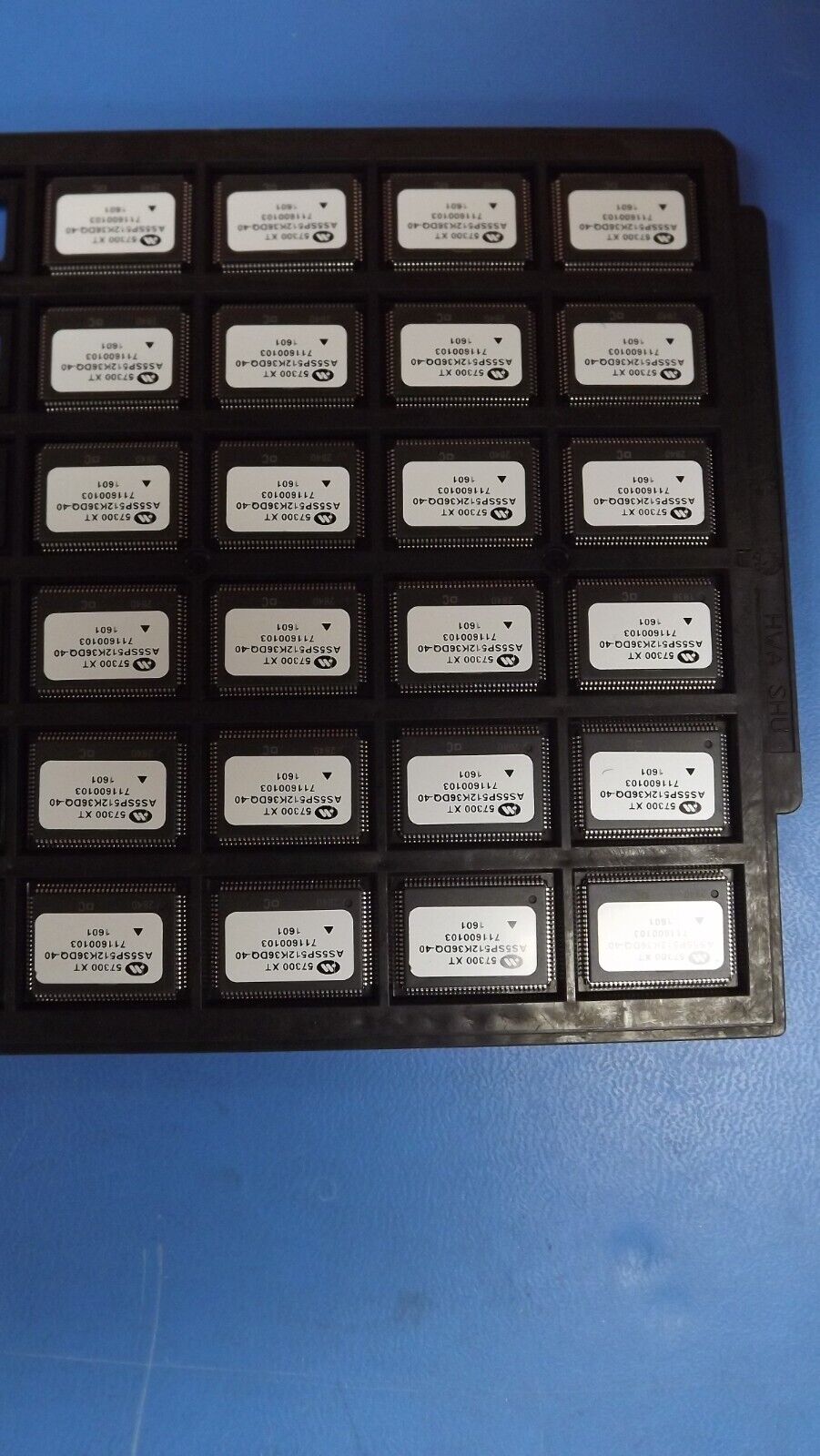

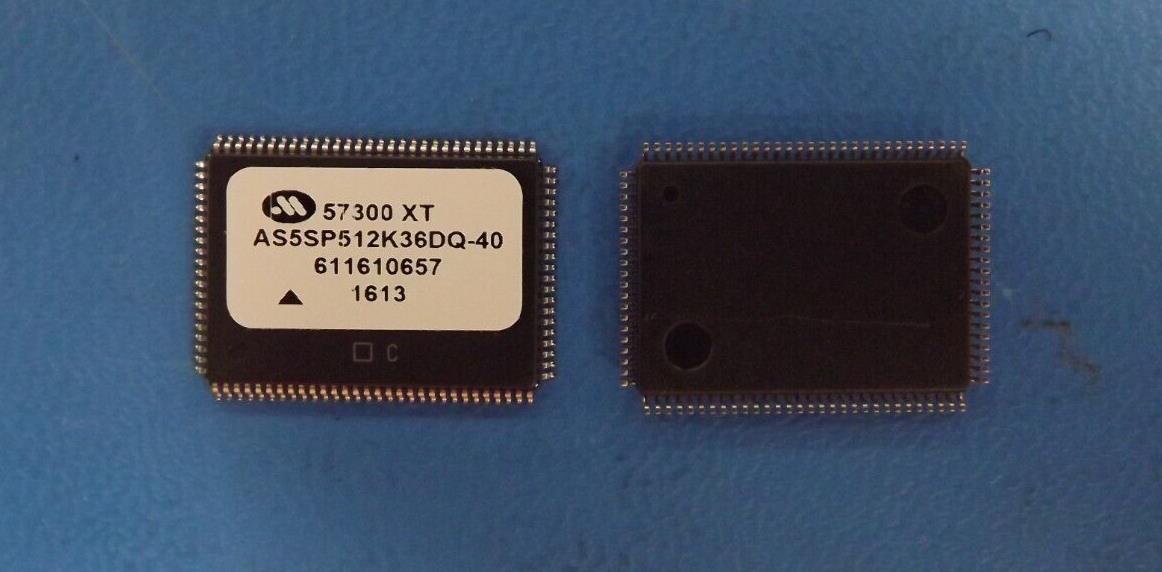

THIS LISTING IS FOR (2PCS) OF AS5SP512K36DQ-40XT BY MICROSS COMPONENTS
Mfr Package Description 14 X 20 MM, MS-026-D/BHA, TQFP-100
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Sub Category SRAMs
Access Time-Max 4.0 ns
Clock Frequency-Max (fCLK) 133.0 MHz
I/O Type COMMON
JESD-30 Code R-PQFP-G100
JESD-609 Code e3
Memory Density 1.8874368E7 bit
Memory IC Type CACHE SRAM
Memory Width 36
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 100
Number of Words 524288.0 words
Number of Words Code 512K
Operating Mode SYNCHRONOUS
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Organization 512KX36
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP100,.63X.87
Package Shape RECTANGULAR
Package Style FLATPACK, LOW PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Standby Current-Max 0.165 Amp
Supply Current-Max 0.375 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.135 V
Supply Voltage-Max (Vsup) 3.63 V
Surface Mount YES
Technology CMOS
Temperature Grade MILITARY
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Length 20.0 mm
Width 14.0 mm
Additional Feature PIPELINED ARCHITECTURE
