(2pcs) AM29LV160DB-70EC AMD Flash, 1MX16, 70ns, TSOP-48
Tax included.

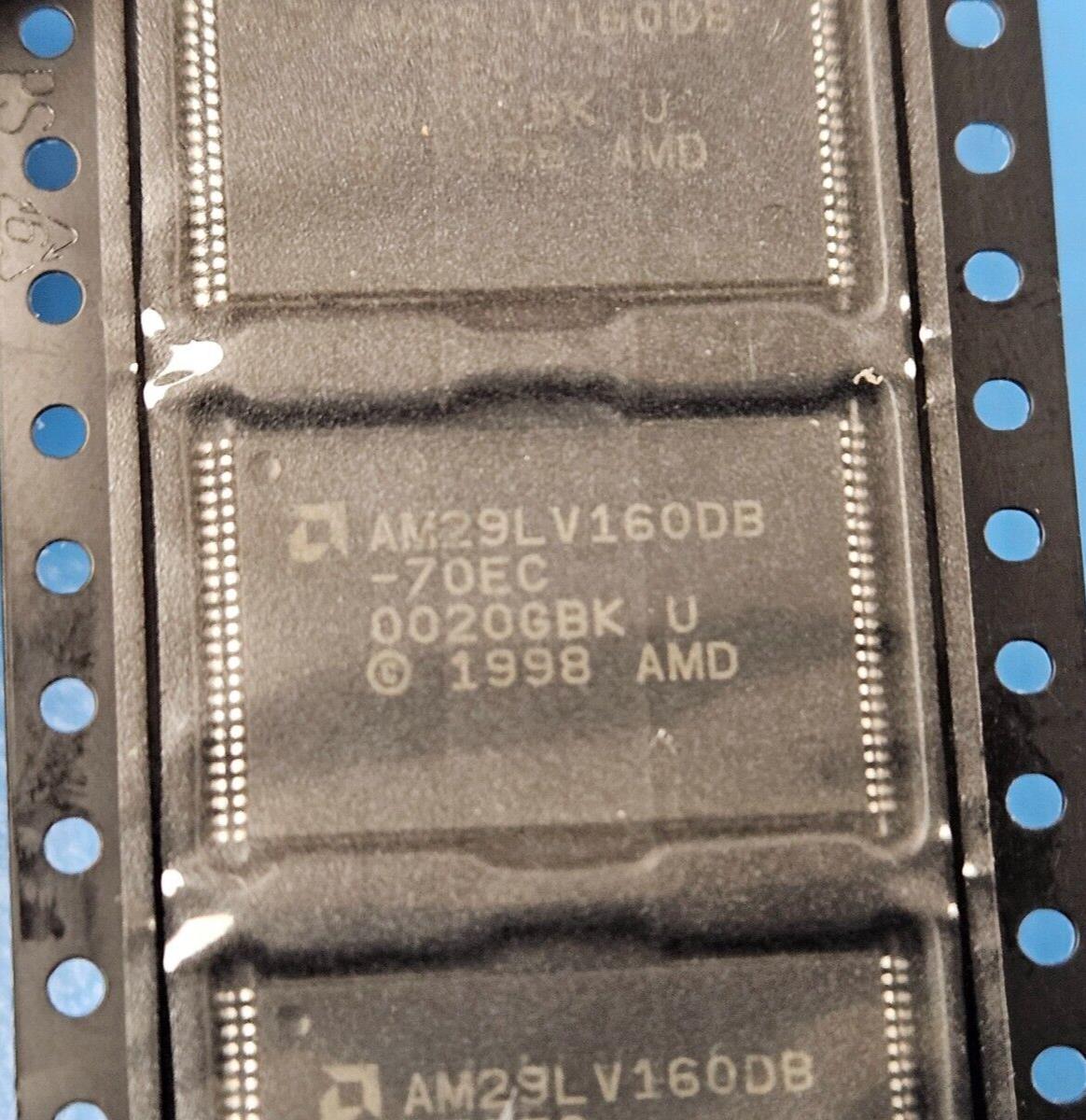

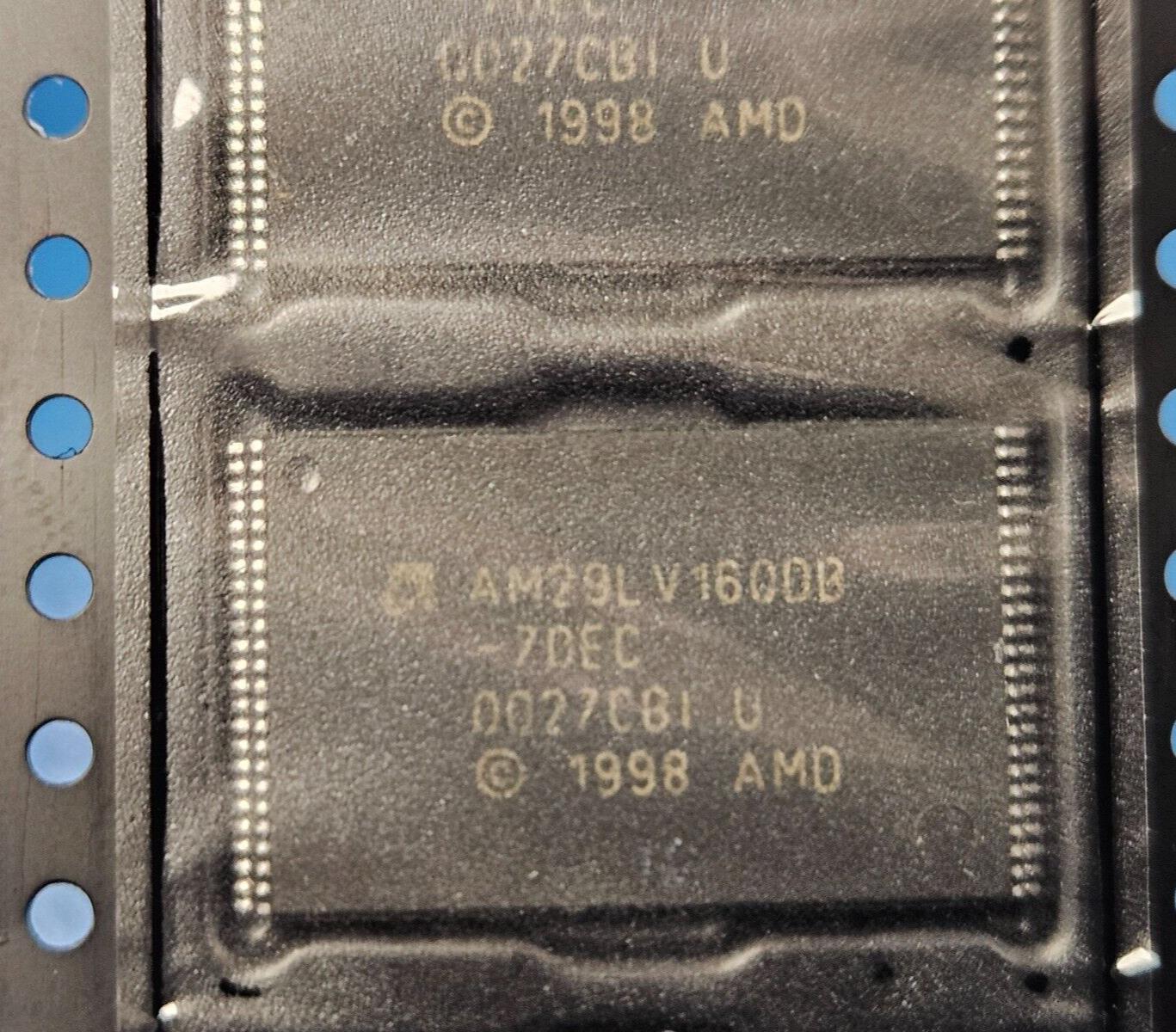

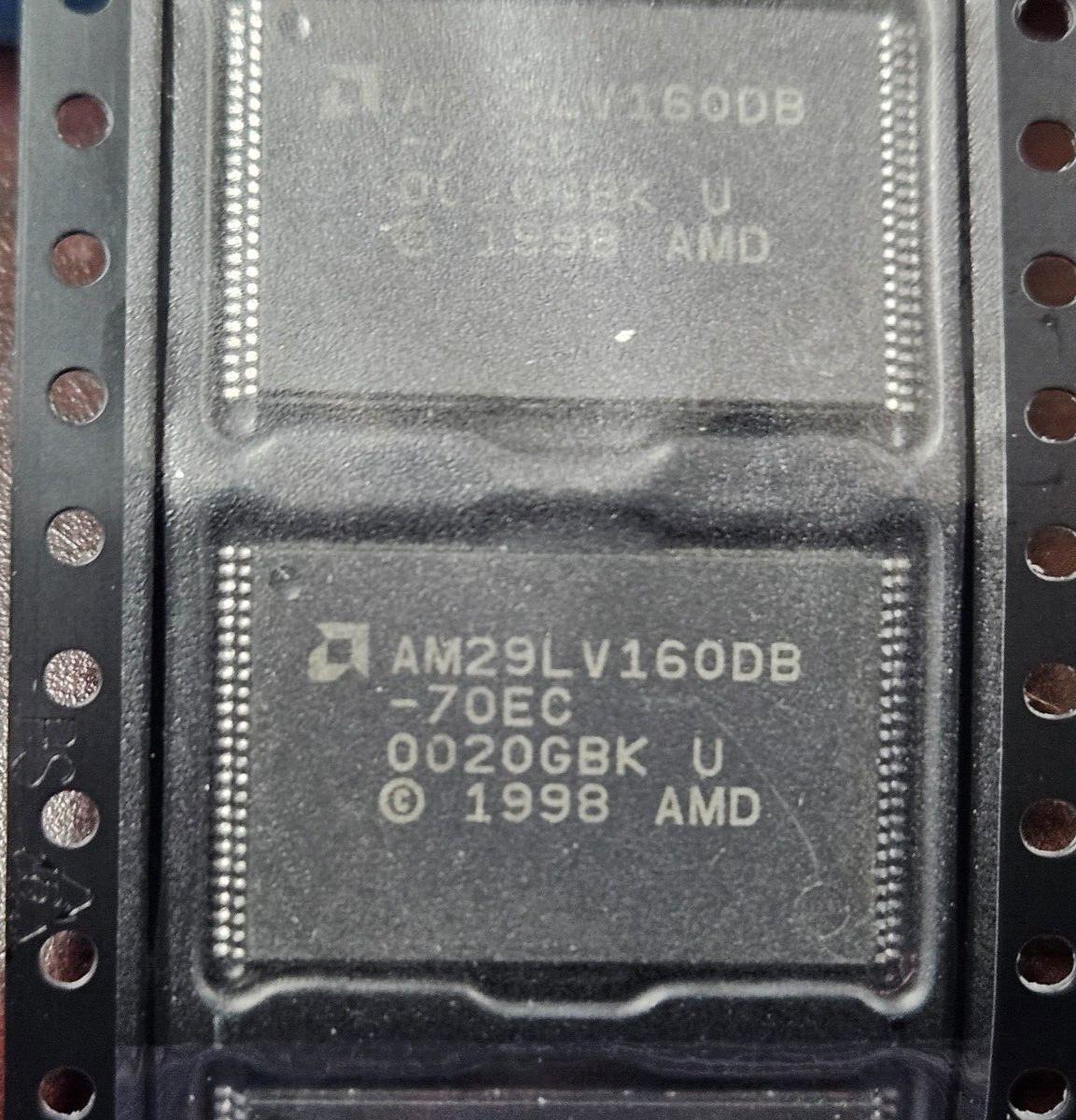

This listing is for (2pcs) of AM29LV160DB-70EC by AMD
Mfr Package Description TSOP-48
Status Transferred
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 70.0 ns
Boot Block BOTTOM
Command User Interface YES
Common Flash Interface YES
Data Polling YES
JESD-30 Code R-PDSO-G48
JESD-609 Code e0
Memory Density 1.6777216E7 bit
Memory IC Type FLASH
Memory Width 16
Alternate Memory Width 8.0
Number of Functions 1
Number of Sectors/Size 1,2,1,31
Number of Terminals 48
Number of Words 1048576.0 words
Number of Words Code 1M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 1MX16
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP48,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Ready/Busy YES
Seated Height-Max 1.2 mm
Standby Current-Max 5.0E-6 Amp
Supply Current-Max 0.03 Amp
Supply Voltage-Nom (Vsup) 3.0 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Toggle Bit YES
Length 18.4 mm
Width 12.0 mm
Additional Feature MIN 1000K WRITE CYCLES; BOTTOM BOOT BLOCK
