(2PCS) AM29LV116DT-120FI Flash Mem Parallel 3.3V 16M-Bit 2M x 8 120ns 40-PinTSOP
Tax included.

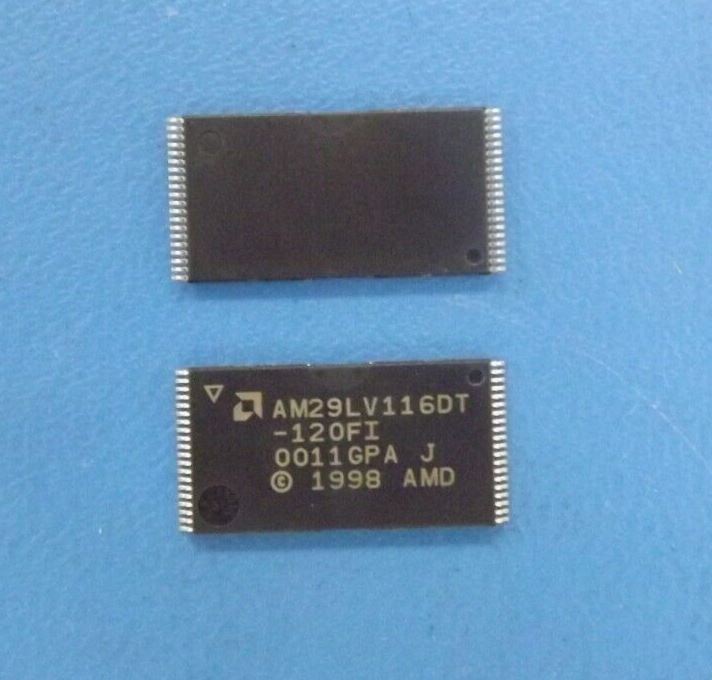

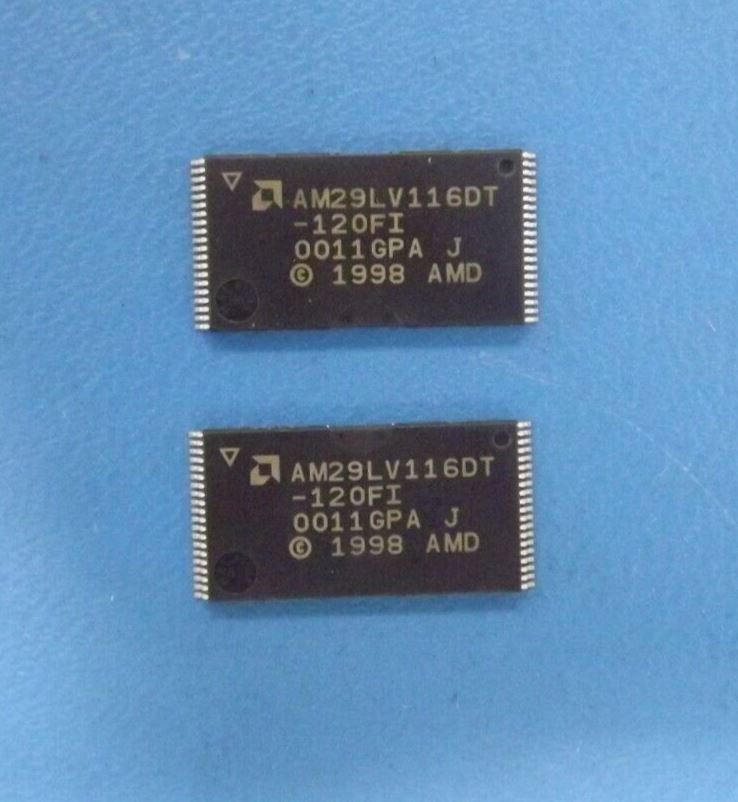

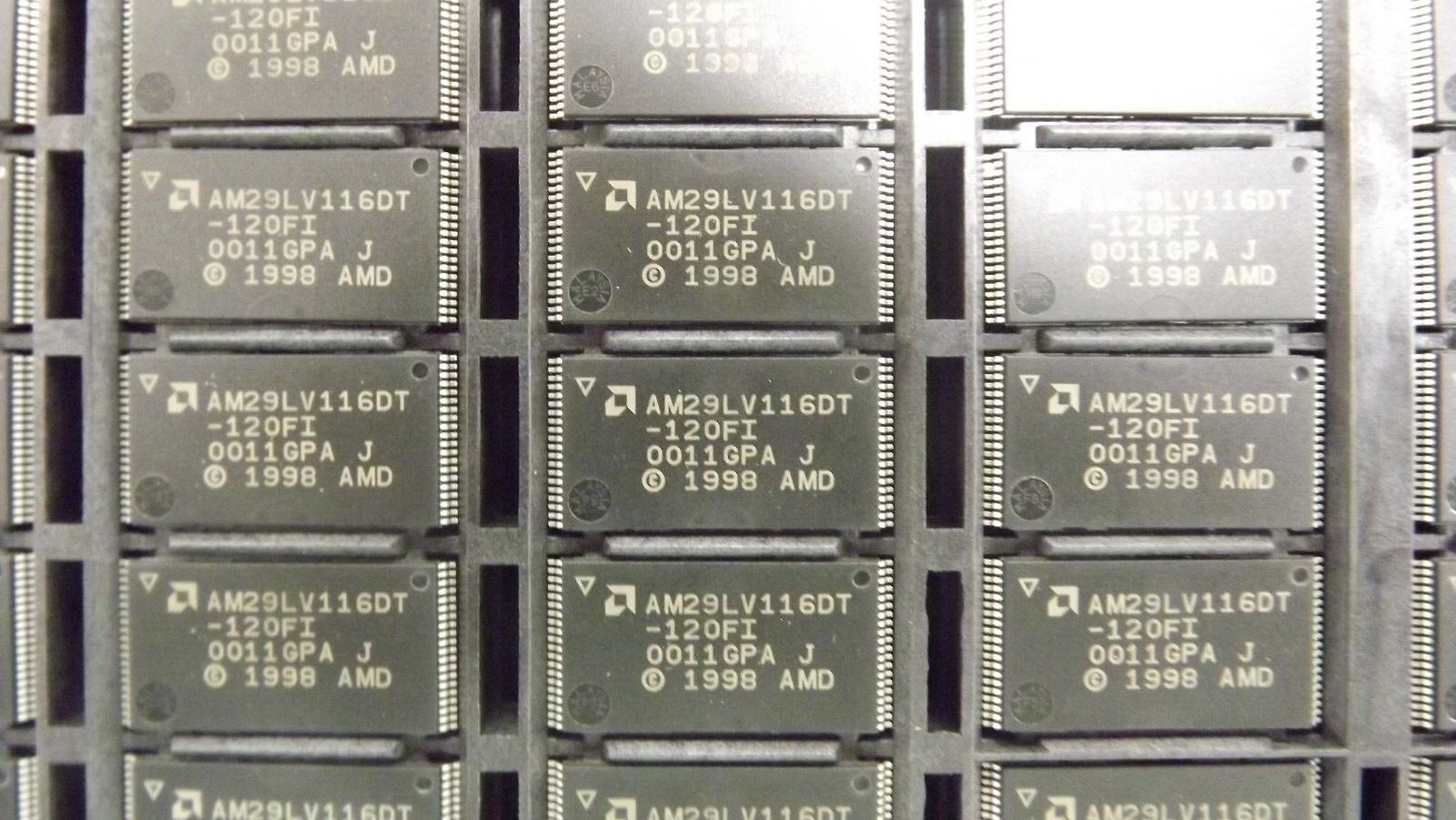

THIS LISTING IS FOR (2PCS) OF AM29LV116DT-120FI BY AMD
Mfr Package Description REVERSE, MO-142CD, TSOP-40
Status Transferred
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 120.0 ns
Boot Block TOP
Command User Interface YES
Common Flash Interface YES
Data Polling YES
JESD-30 Code R-PDSO-G40
JESD-609 Code e0
Memory Density 1.6777216E7 bit
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Sectors/Size 1,2,1,31
Number of Terminals 40
Number of Words 2097152.0 words
Number of Words Code 2M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 2MX8
Package Body Material PLASTIC/EPOXY
Package Code TSOP1-R
Package Equivalence Code TSSOP40,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Ready/Busy YES
Reverse Pinout YES
Seated Height-Max 1.2 mm
Standby Current-Max 5.0E-6 Amp
Supply Current-Max 0.03 Amp
Supply Voltage-Nom (Vsup) 3.0 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Toggle Bit YES
Length 18.4 mm
Width 10.0 mm
