(2PCS) AM29F080B-120EC Flash, 1MX8, 120ns, TSOP40 **Program Stickers**
Tax included.

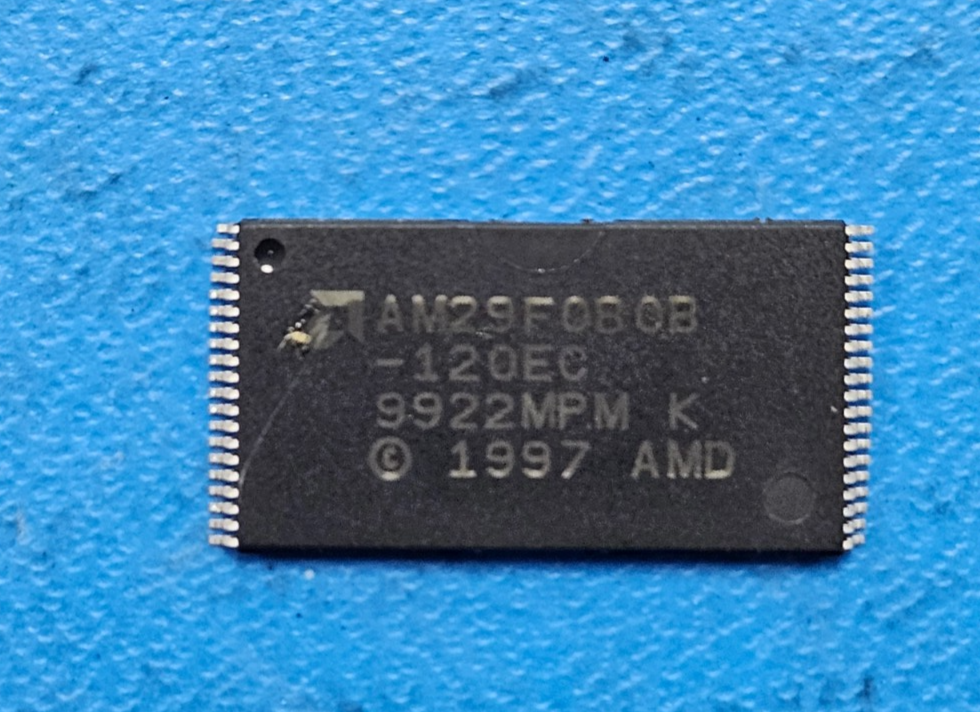

This listing is for (2PCS) of AM29F080B-120EC by AMD

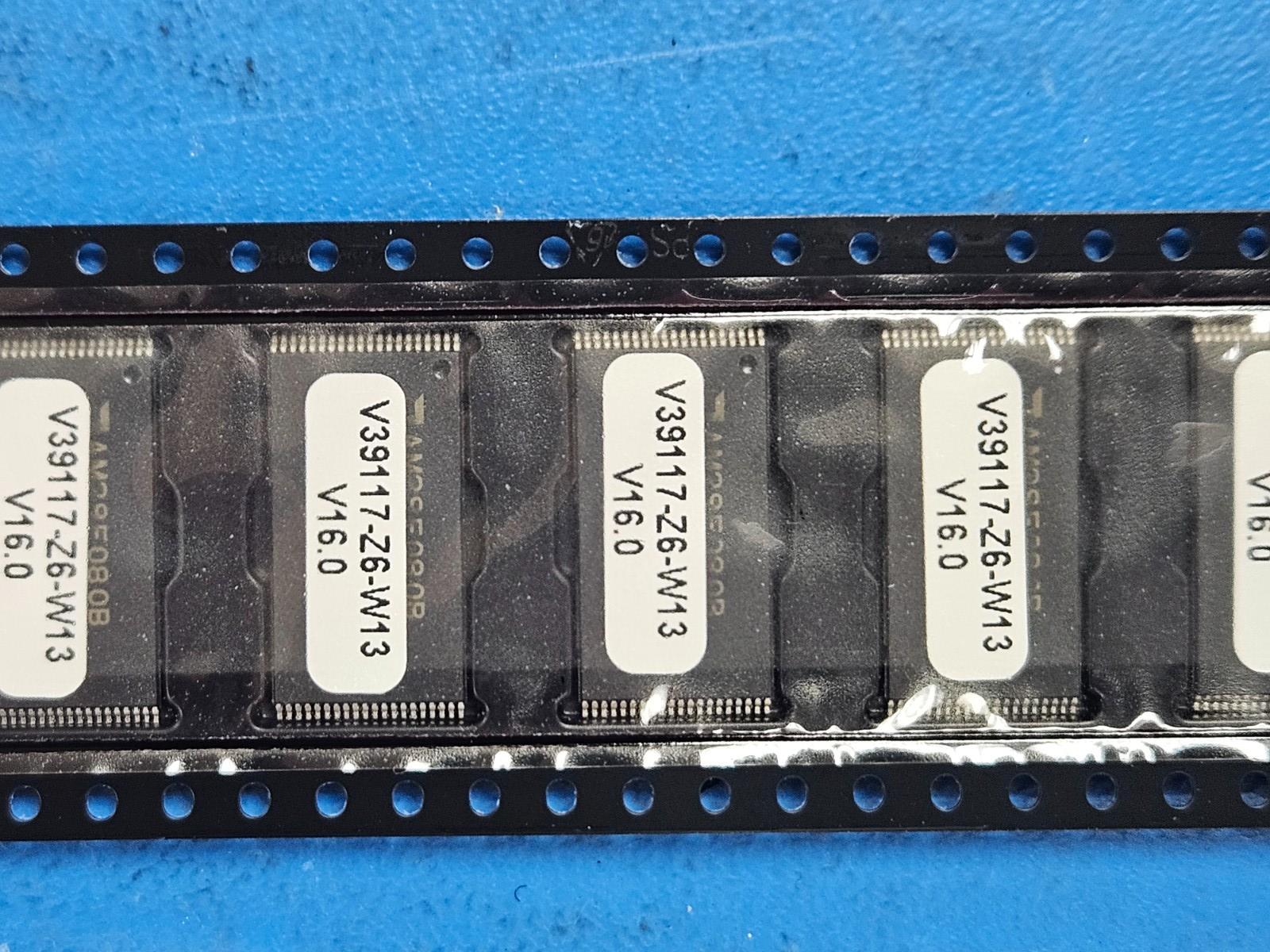

These components have never been used. They have been programmed. These are electronically erasable.
Access Time-Max (ns) 120.0000000000000000
Additional Feature MINIMUM 1000K PROGRAM/ERASE CYCLE ;20 YEAR DATA RETENTION
Command User Interface YES
Data Polling YES
Data Retention Time-Min 20
JESD-30 Code R-PDSO-G40
J-STD-609 Code e0
Length (mm) 18.4000
Memory Density (bits) 8388608.0000000000000000
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Sectors/Size 16
Number of Terminals 40
Number of Words (words) 1048576.0000000000000000
Number of Words Code 1M
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 1MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP40,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Programming Voltage (V) 5
DLA Qualification Not Qualified
Ready/Busy YES
Seated Height-Max (mm) 1.2000
Sector Size (words) 64K
Standby Current-Max (A) 0.000005000000000
Supply Current-Max (mA) 40.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position DUAL
Toggle Bit YES
Type NOR TYPE
Width (mm) 10.0000
