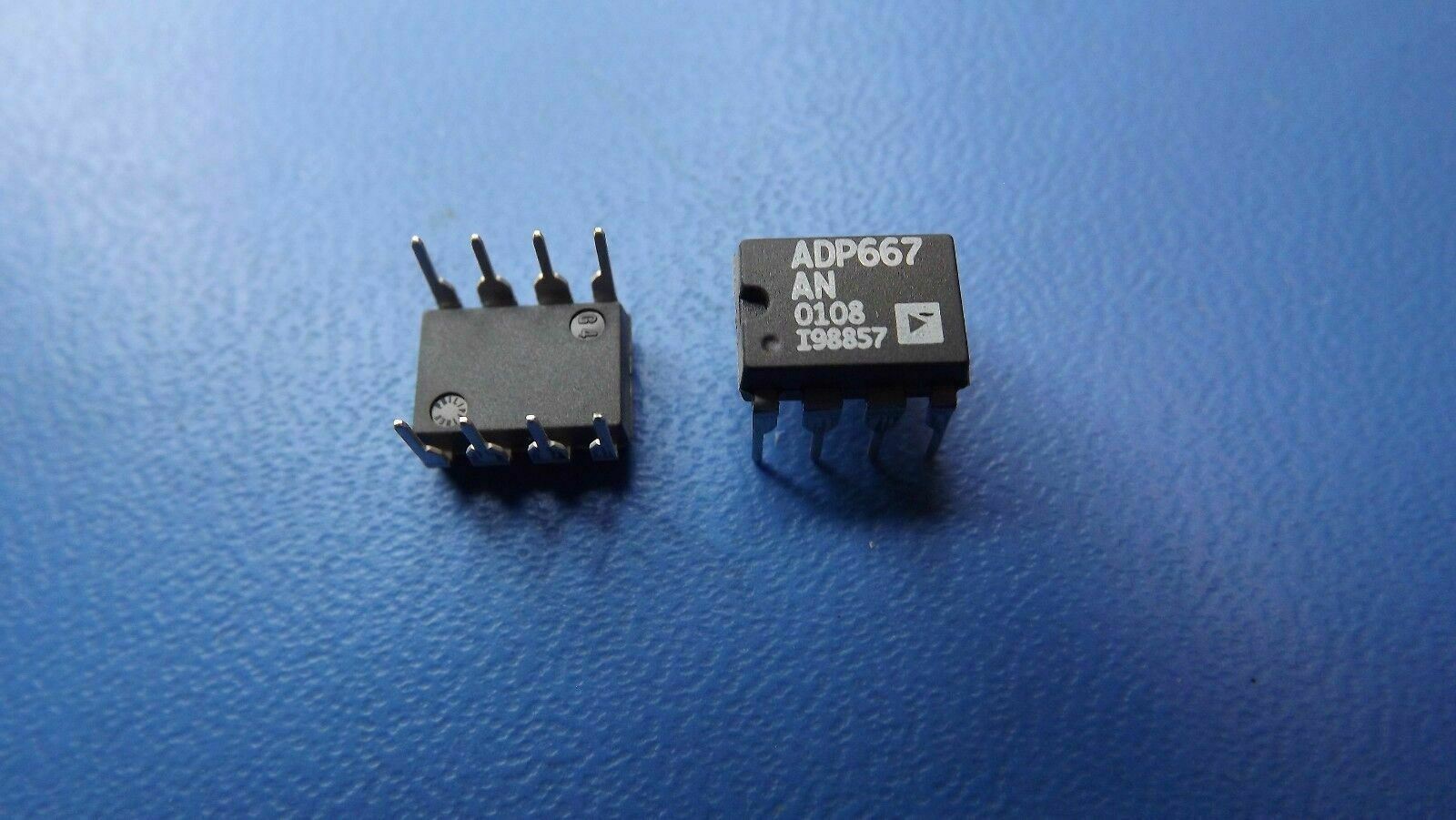

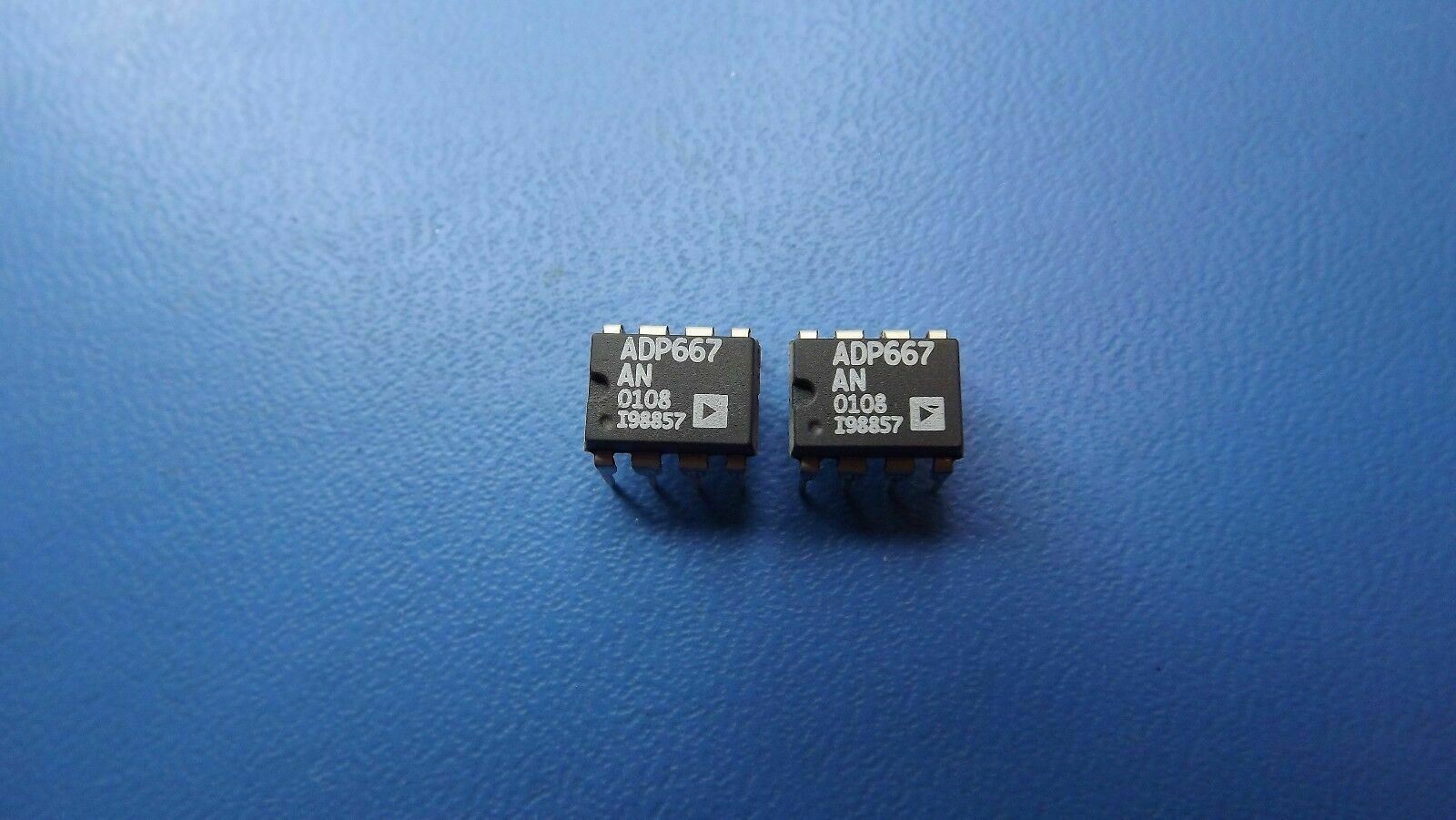

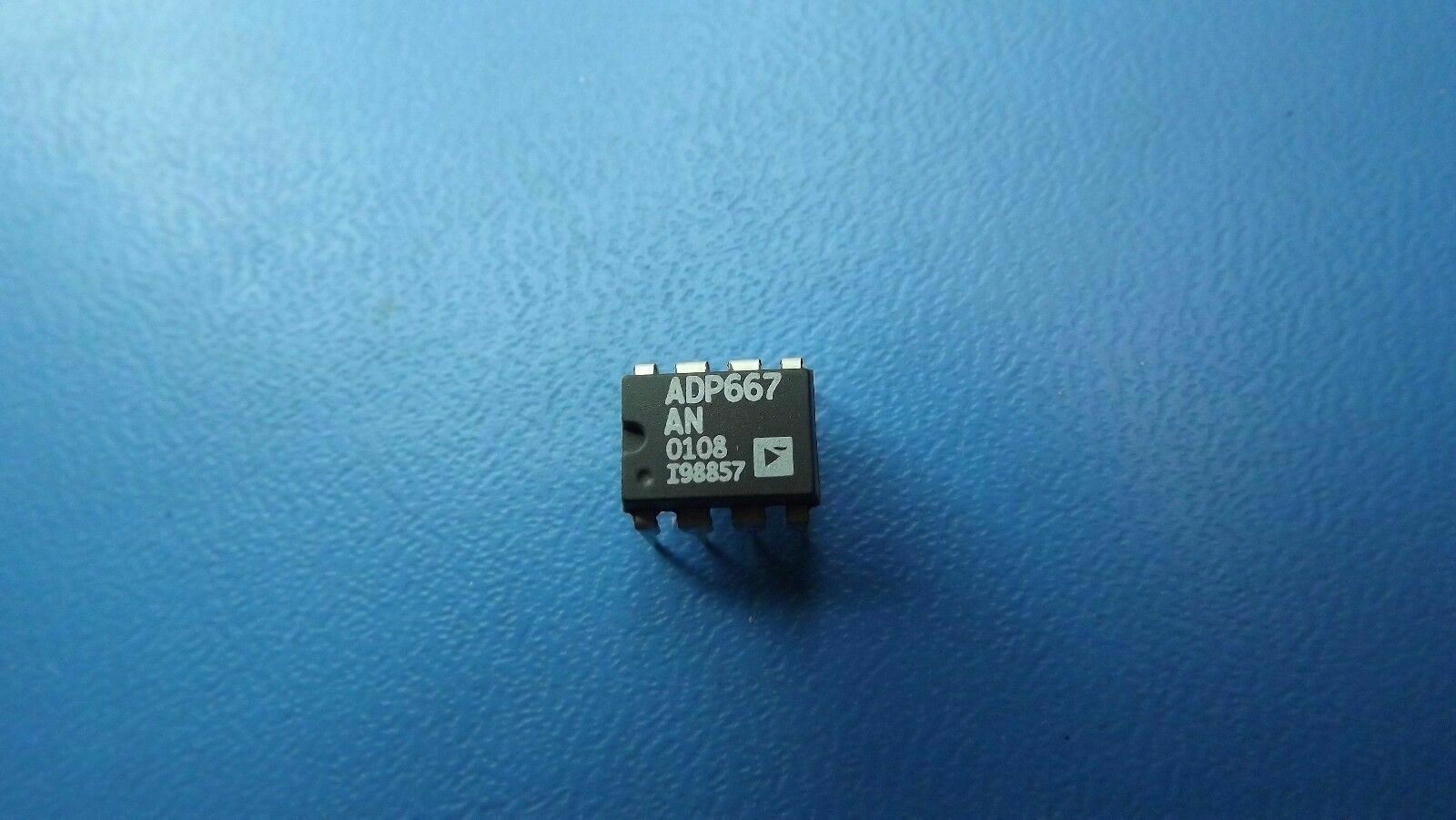

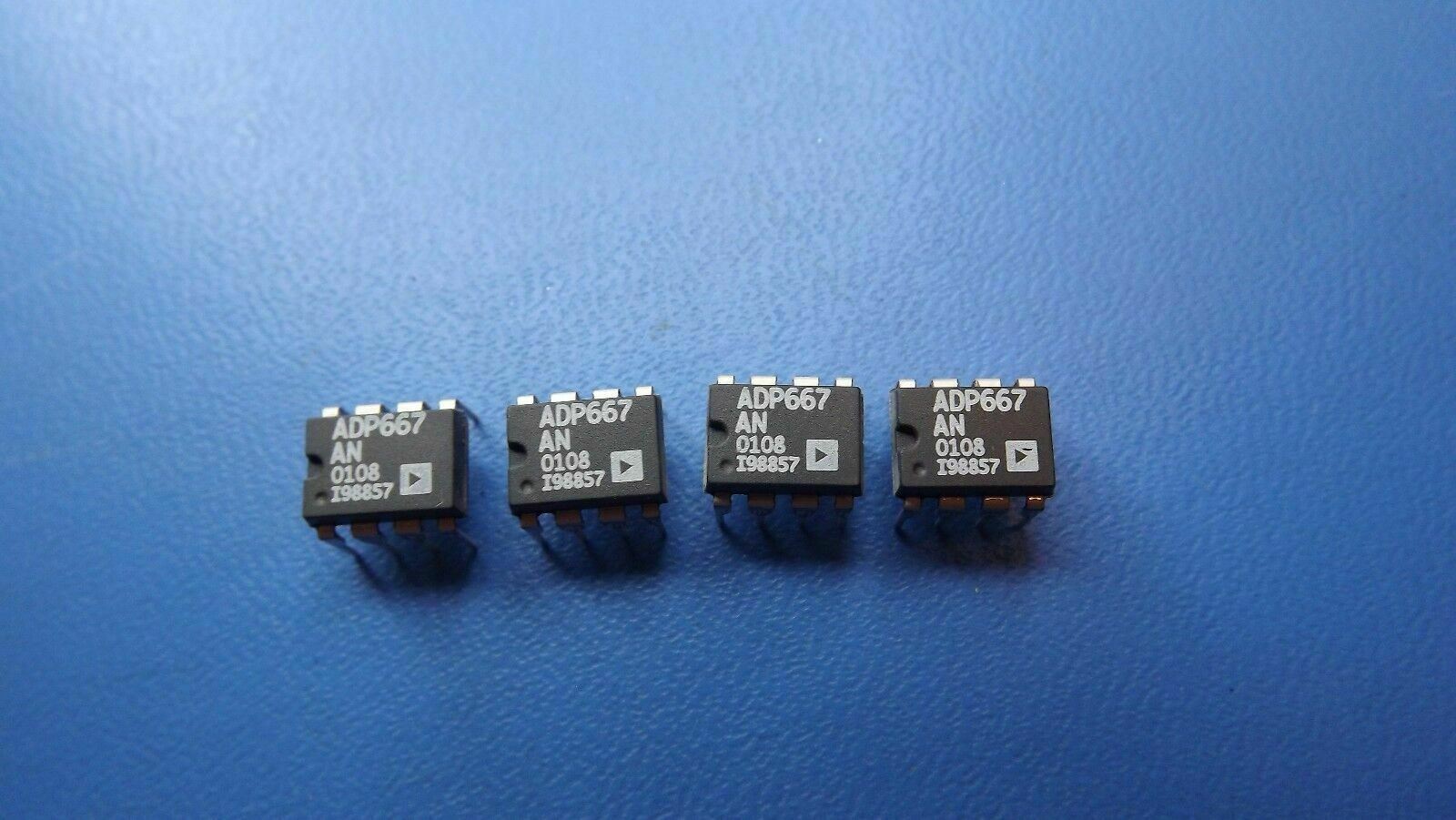

(2PCS) ADP667AN ANALOG DEVICES LDO Regulator Pos 1.3V to 16V5V 0.25A 8-Pin PDIP
Tax included.
THIS LISTING IS FOR (2PCS) OF ADP667AN BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | PLASTIC, DIP-8 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Regulator Type | FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR |
| Adjustability | ADJUSTABLE |
| Dropout Voltage1-Nom | 0.35 V |
| Dropout Voltage1-Max | 0.35 V |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Line Regulation-Max (%/V) | 0.078 |
| Load Regulation-Max(%) | 5.2 % |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Output Current1-Max | 0.25 A |
| Output Voltage1-Nom | 5.0 V |
| Output Voltage1-Min | 4.8 V |
| Output Voltage1-Max | 5.2 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.33 mm |
| Sub Category | Other Regulators |
| Surface Mount | NO |
| Technology | BICMOS |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE |
| Length | 9.88 mm |
| Width | 7.62 mm |
