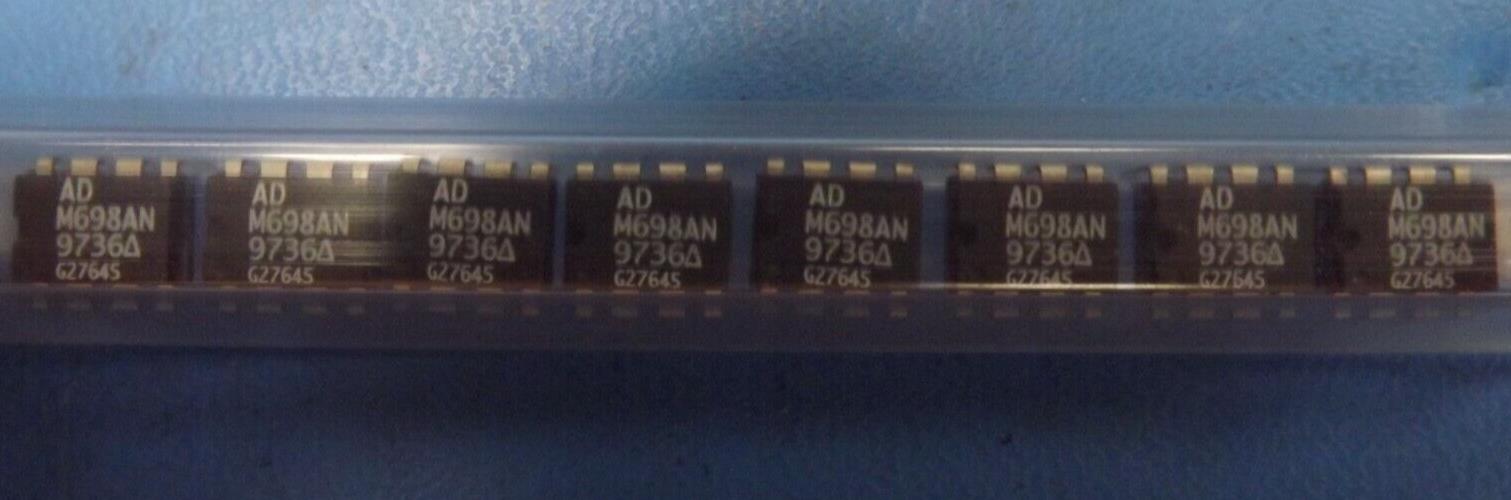

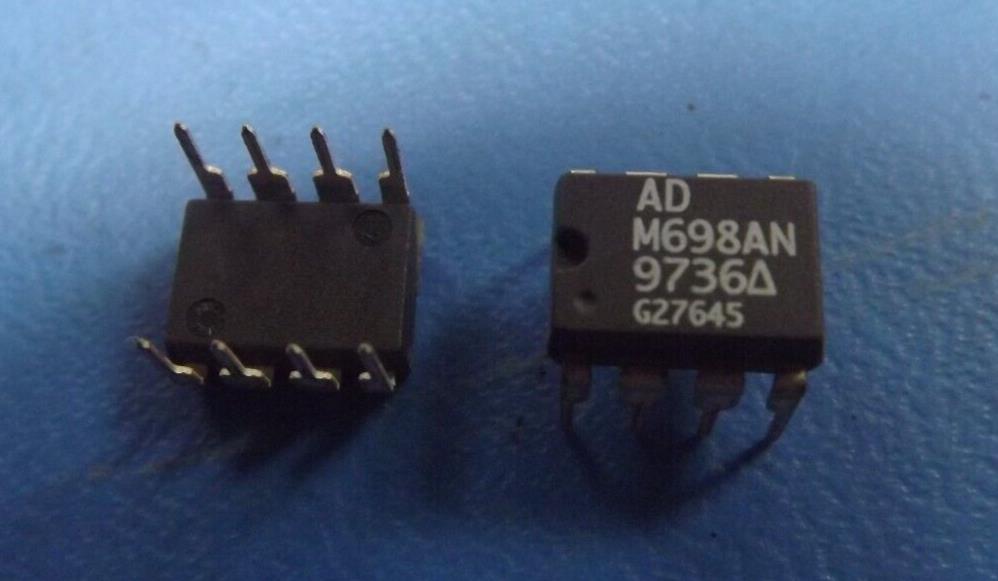

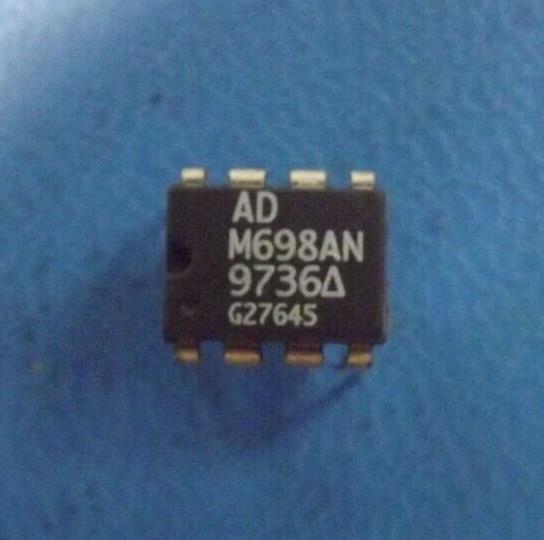

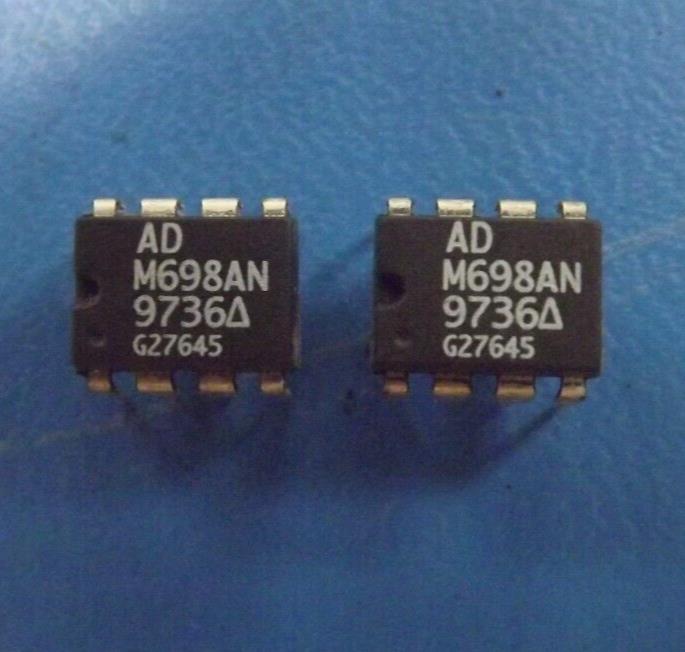

(2PCS) ADM698AN Power Supply Support Circuit, Fixed, 1 Channel, +4.65VV, PDIP8
Tax included.
THIS LISTING IS FOR (2PCS) OF ADM698AN BY ANALOG DEVICES
Mfr Package Description PLASTIC, DIP-8
REACH Compliant Yes
Status Discontinued
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Adjustable Threshold NO
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Number of Channels 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Sub Category Power Management Circuits
Supply Current-Max (Isup) 1.95 mA
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 9.88 mm
Width 7.62 mm
