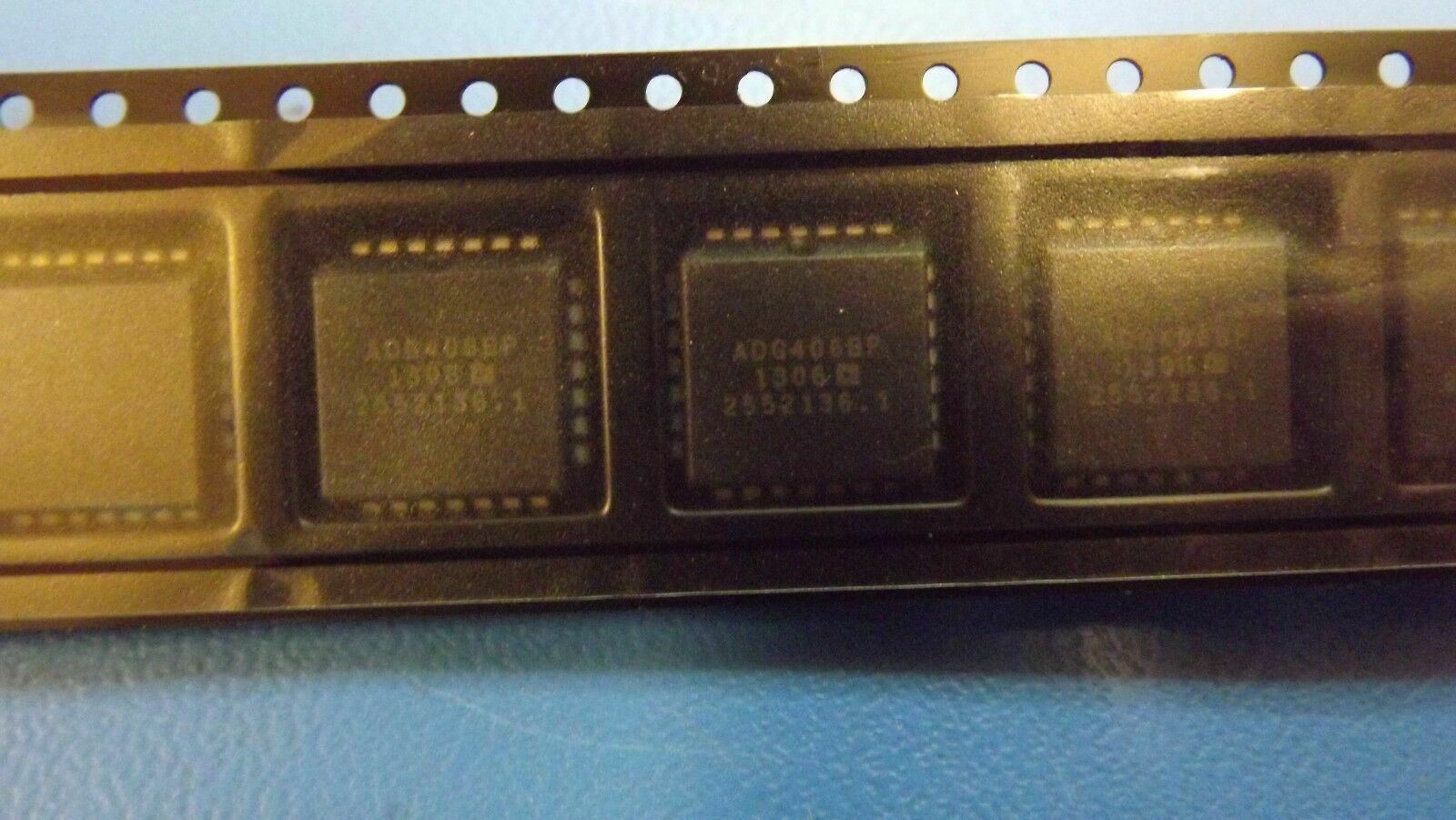

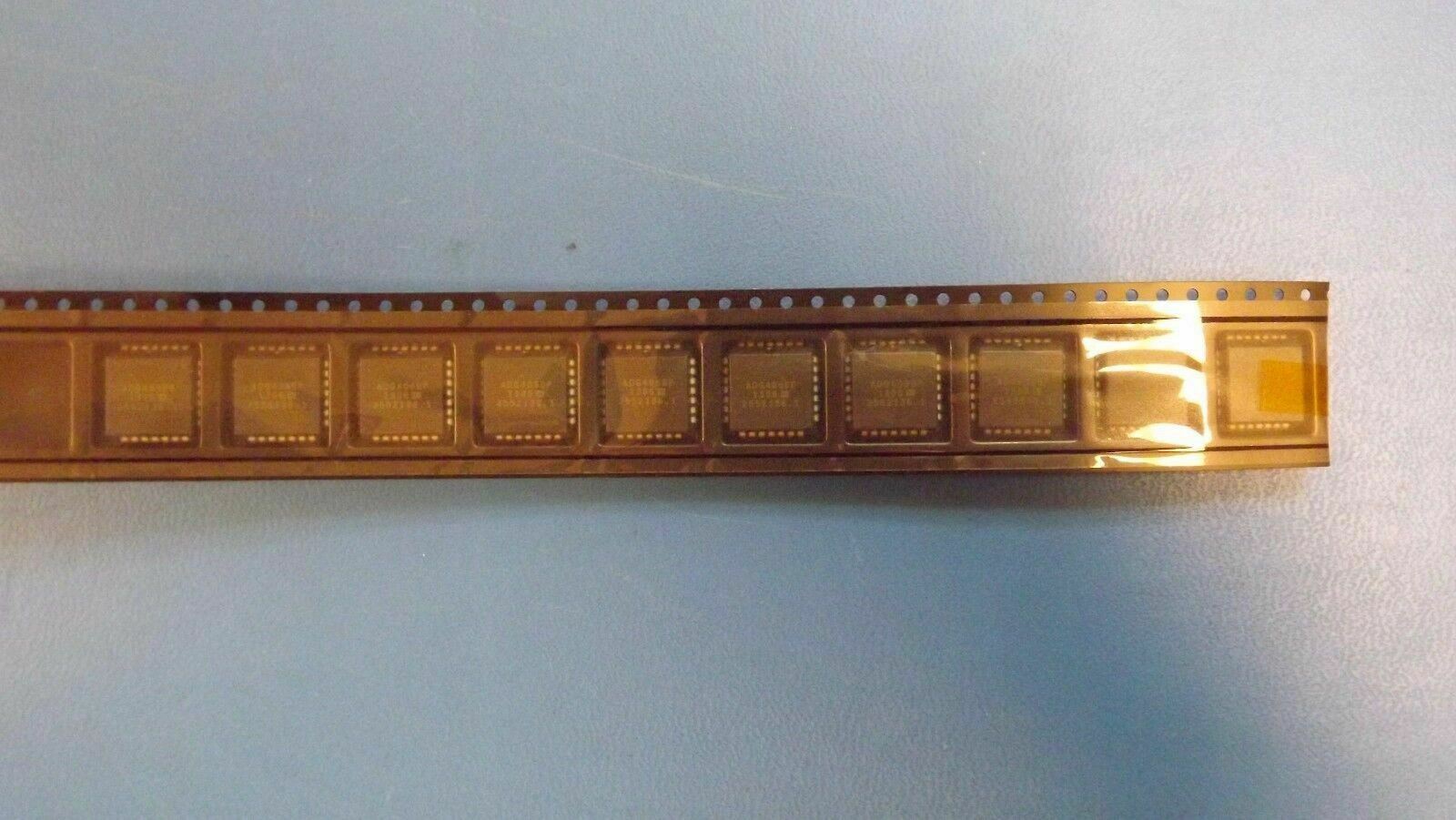

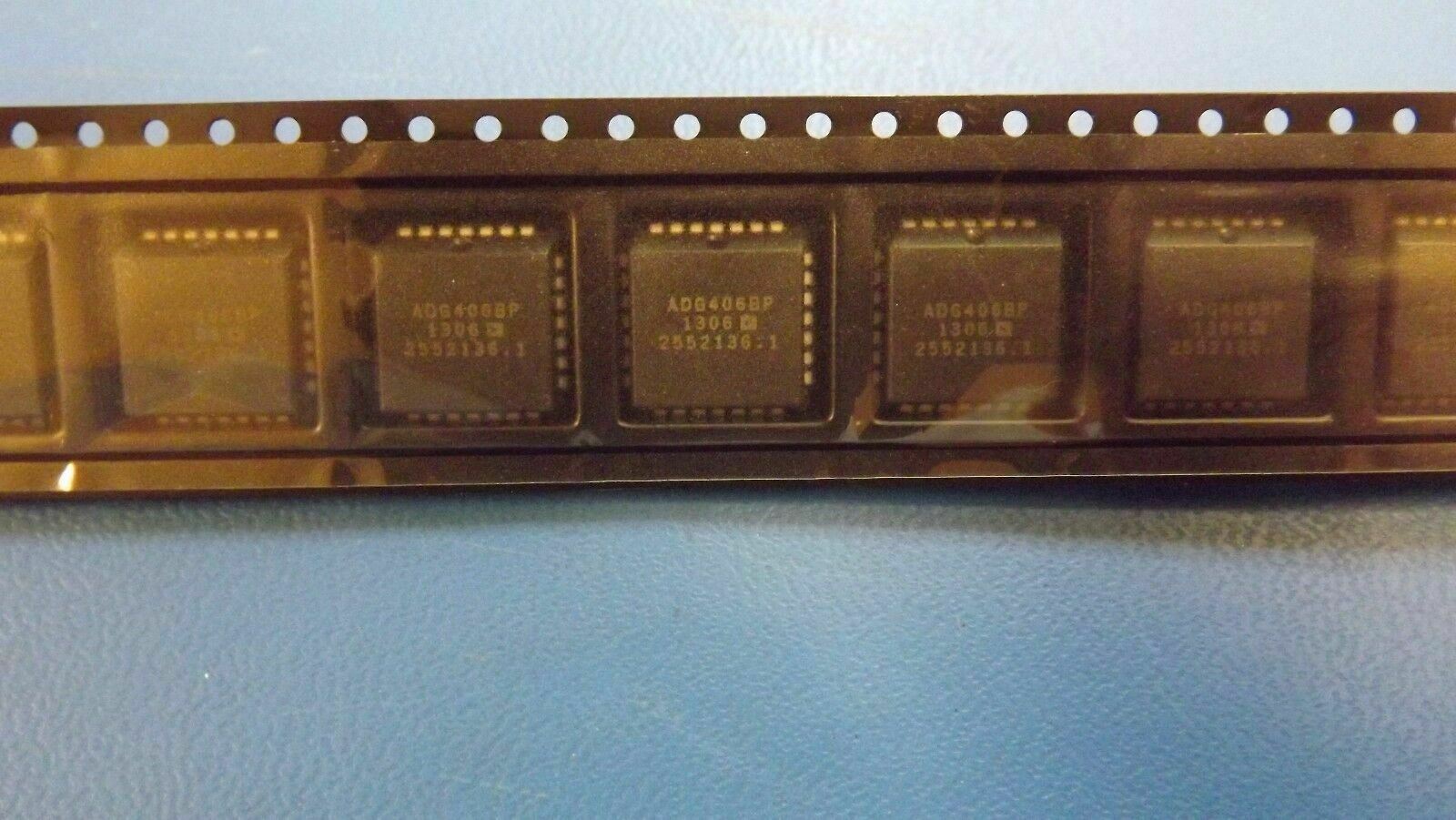

(2PCS) ADG406BP ANALOG DEVICES Analog Multiplexer Single 16:1 28-Pin PLCC
Tax included.
THIS LISTING IS FOR (2PCS) OF ADG406BP BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | PLASTIC, LCC-28 |
| REACH Compliant | Yes |
| Status | Active |
| Analog IC - Other Type | SINGLE-ENDED MULTIPLEXER |
| JESD-30 Code | S-PQCC-J28 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Neg Supply Voltage-Nom (Vsup) | -15.0 V |
| Neg Supply Voltage-Min (Vsup) | -13.5 V |
| Neg Supply Voltage-Max (Vsup) | -16.5 V |
| Number of Channels | 16 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Off-state Isolation-Nom | 75.0 dB |
| On-state Resistance Match-Nom | 4.0 ohm |
| On-state Resistance-Max (Ron) | 80.0 ohm |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC28,.5SQ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| Peak Reflow Temperature (Cel) | 225 |
| Power Supplies (V) | 12/+-15 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.57 mm |
| Signal Current-Max | 0.02 A |
| Sub Category | Multiplexer or Switches |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Supply Voltage-Min (Vsup) | 13.5 V |
| Supply Voltage-Max (Vsup) | 16.5 V |
| Surface Mount | YES |
| Switch-off Time-Max | 150.0 ns |
| Switch-on Time-Max | 150.0 ns |
| Switching (V) | BREAK-BEFORE-MAKE |
| Technology | BICMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 11.505 mm |
| Width | 11.505 mm |
| Additional Feature | CAN ALSO OPERATE WITH SINGLE 12V SUPPLY |
