(2PCS) AD586JR V-Ref Precision 5V 10mA 8-Pin SOIC
Tax included.

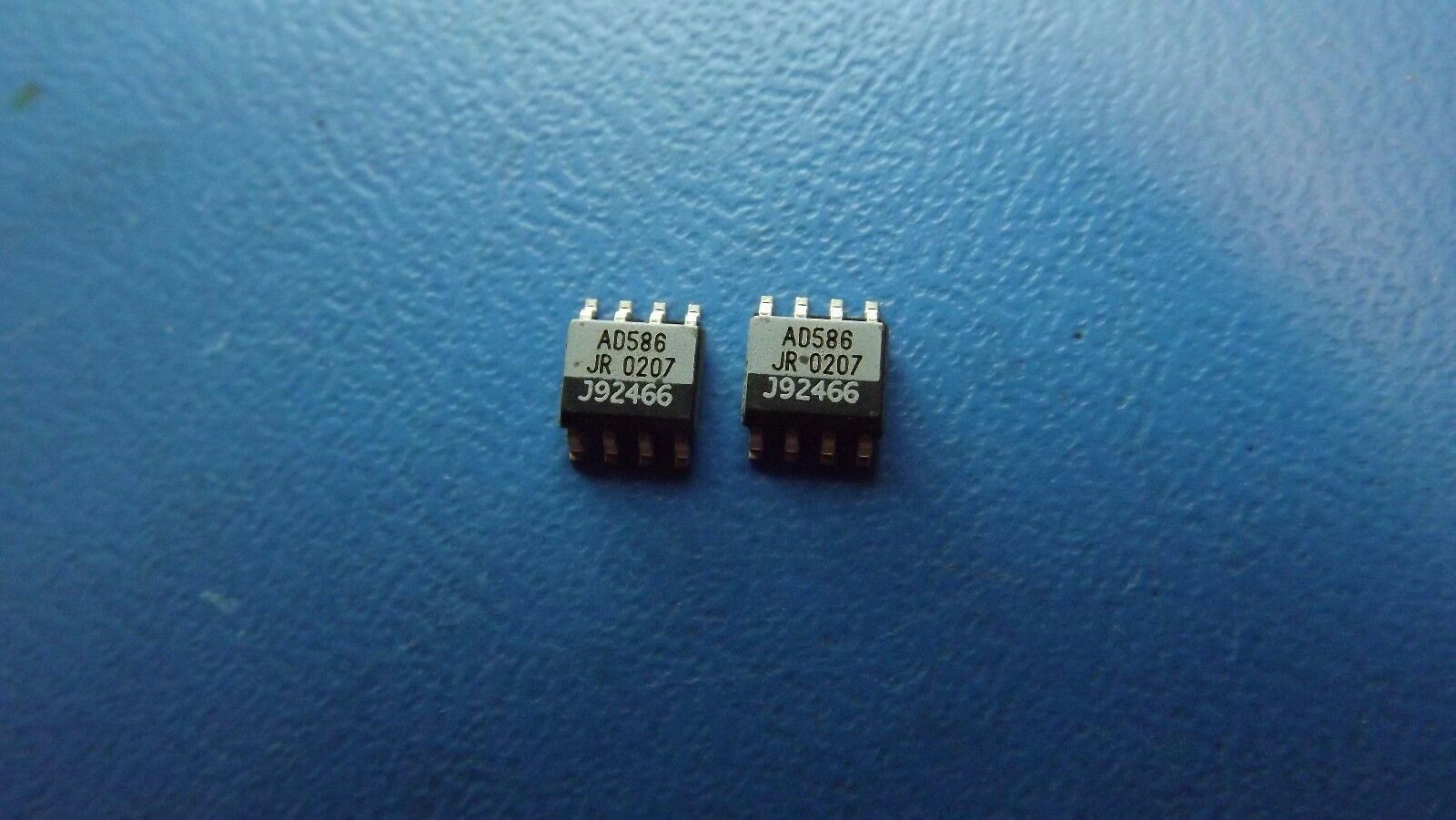

THIS LISTING IS FOR (2PCS) OF AD586JR BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | PLASTIC, MS-012AA, SOIC-8 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 8 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Voltage-Nom | 5.0 V |
| Output Voltage-Min | 4.98 V |
| Output Voltage-Max | 5.02 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 240 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Sub Category | Voltage References |
| Supply Current-Max (Isup) | 3.0 mA |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Supply Voltage-Min (Vsup) | 10.8 V |
| Supply Voltage-Max (Vsup) | 36.0 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temp Coef of Voltage-Max | 25.0 ppm/Cel |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Trim/Adjustable Output (V) | YES |
| Voltage Tolerance-Max | 0.4 % |
| Length | 4.9 mm |
| Width | 3.9 mm |
