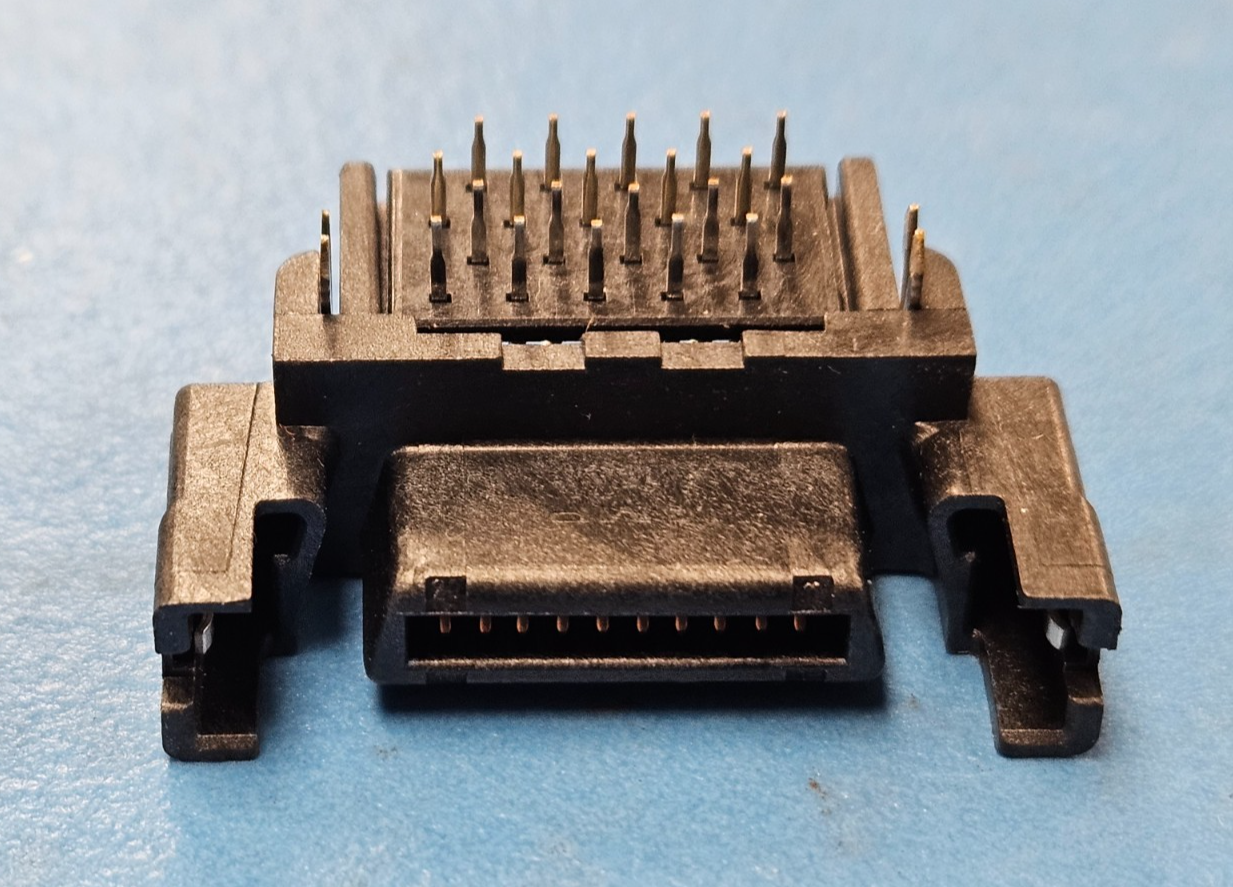

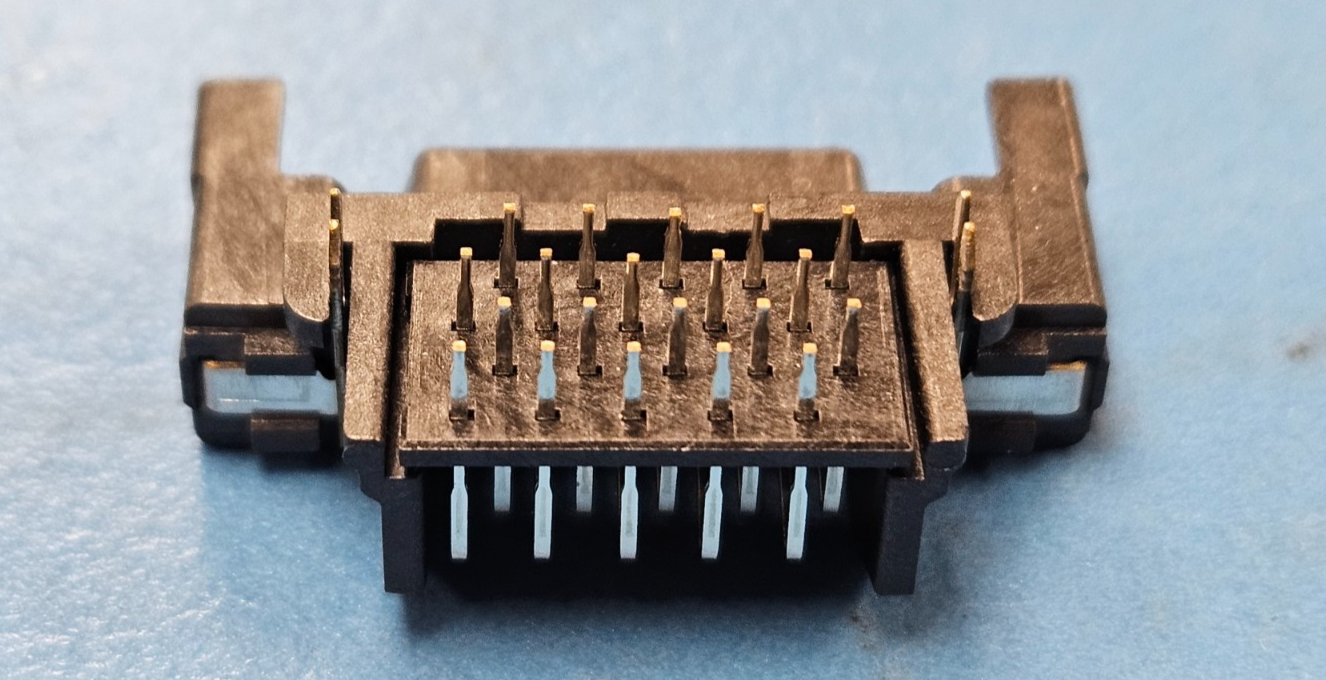

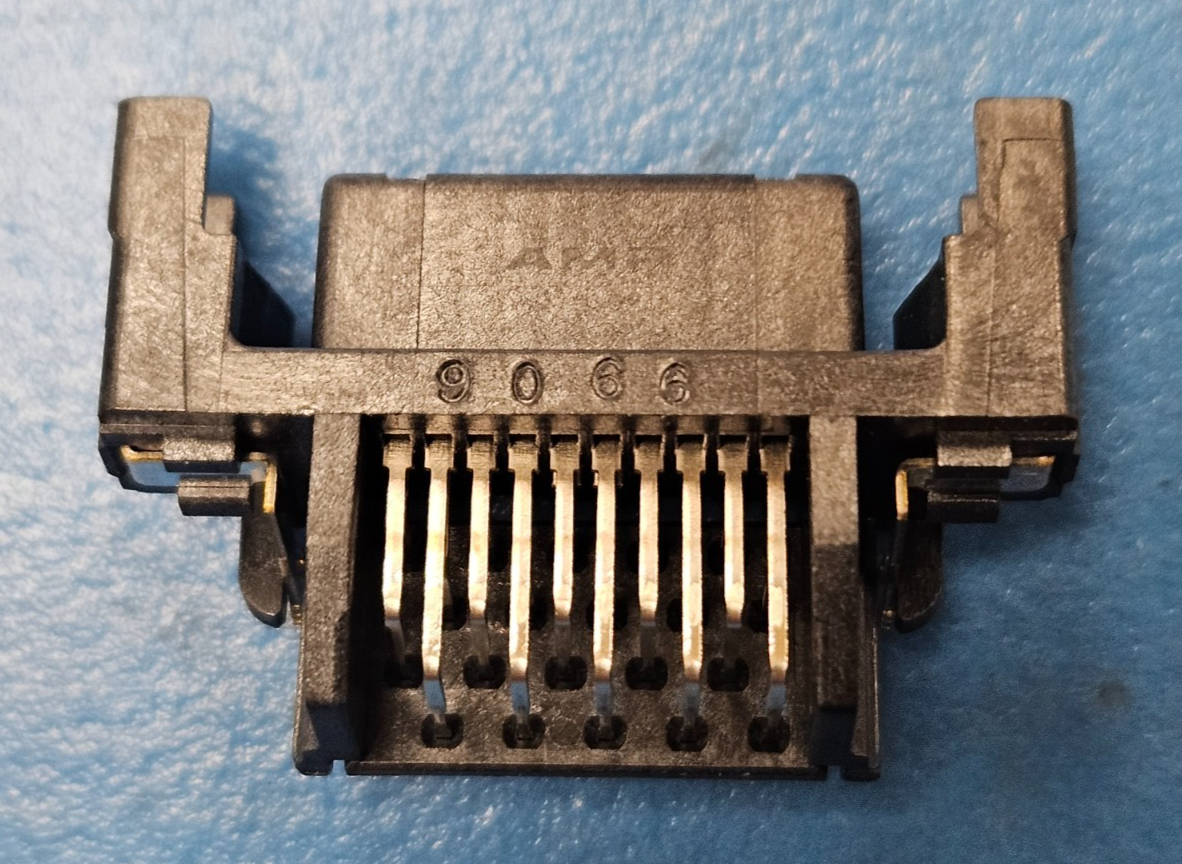

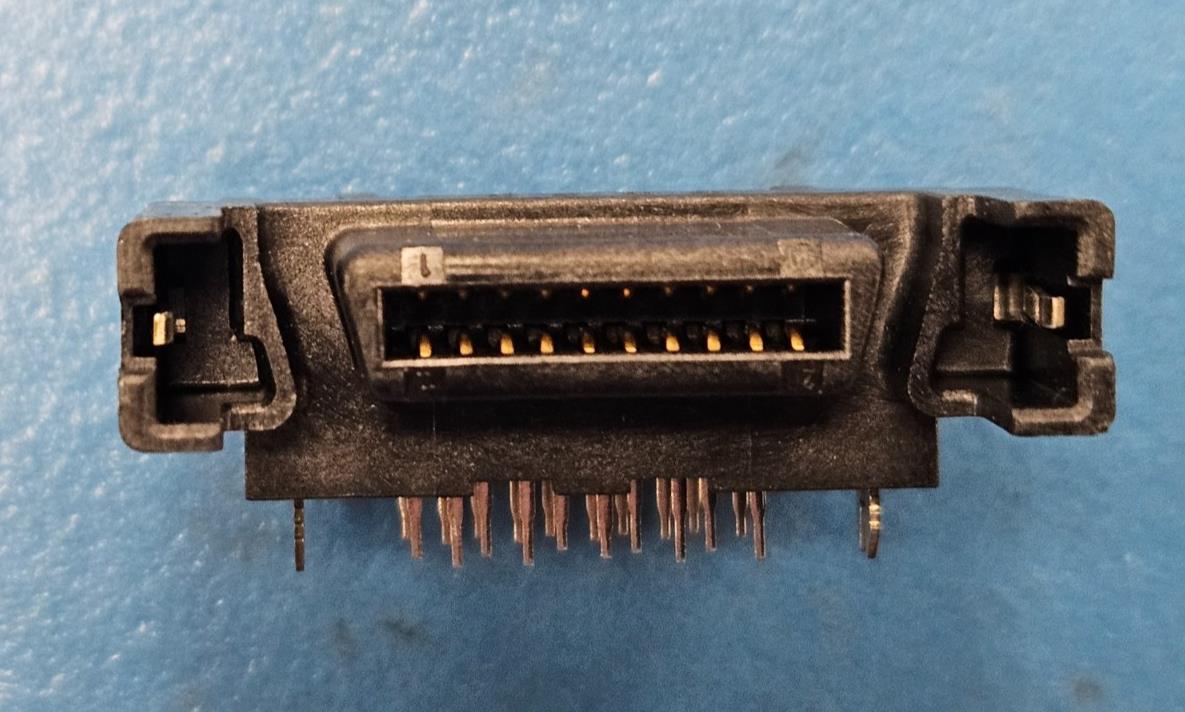

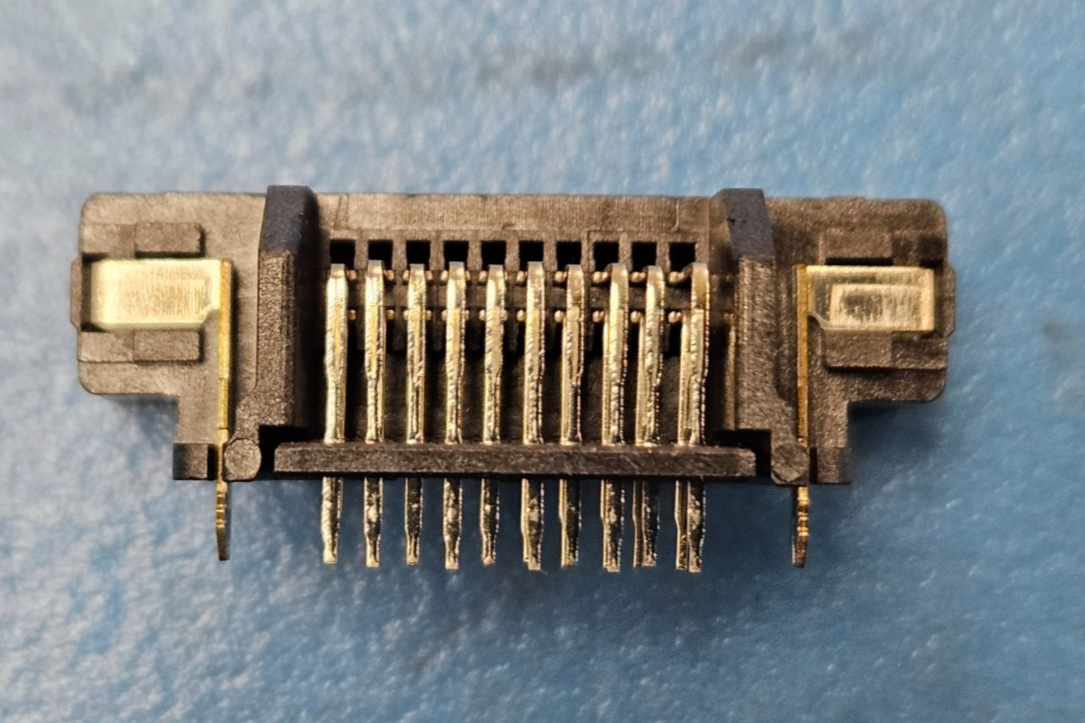

(2PCS) 787653-1 AMP Telecom and Datacom Connector, 20 Contact, Female, RA
Tax included.
This listing is for (2PCS) of 787653-1 by AMP
Status Discontinued
Additional Feature CHAMP
Board Mounting Option SPLIT BOARD LOCK
Body Breadth (inch) 0.388000
Body Depth (inch) 0.747000
Body Length (inch) 1.176000
Body/Shell Style RECEPTACLE
Connector Type TELECOM AND DATACOM CONNECTOR
Contact Design PREASSEM CONN
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 35.000000000000000
Contact Style BELLOWED TYPE
DIN Conformance NO
Dielectric Withstanding Voltage (V) 300VAC
Durability (Cycles) 500
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) 1.112
Insulation Resistance (ohm) 1000000000.000000000000000
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
J-STD-609 Code e0
MIL Conformance NO
Mating Contact Pitch (inch) 0.05
Mating Information 787643-1
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
Plating Thickness (inch) 30u
Rated Current (Signal) (A) 1.0000000000000000
Screening Level / Reference Standard UL
Termination Type SOLDER
Number of Contacts 20
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .139
