(2PCS) 5KP54CA LITTELFUSE TVS DIODE 54VWM 87.1VC AXIAL
Tax included.

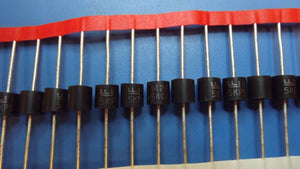

THIS LISTING IS FOR (2PCS) OF 5KP54CA BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Breakdown Voltage-Nom | 63.1 V |
| Breakdown Voltage-Min | 60.0 V |
| Breakdown Voltage-Max | 66.3 V |
| Case Connection | ISOLATED |
| Clamping Voltage-Max | 87.1 V |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| JESD-30 Code | O-PALF-W2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Non-rep Peak Rev Power Dis-Max | 5000.0 W |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 175.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity | BIDIRECTIONAL |
| Power Dissipation-Max | 8.0 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 54.0 V |
| Sub Category | Transient Suppressors |
| Surface Mount | NO |
| Technology | AVALANCHE |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Additional Feature | UL RECOGNIZED |
