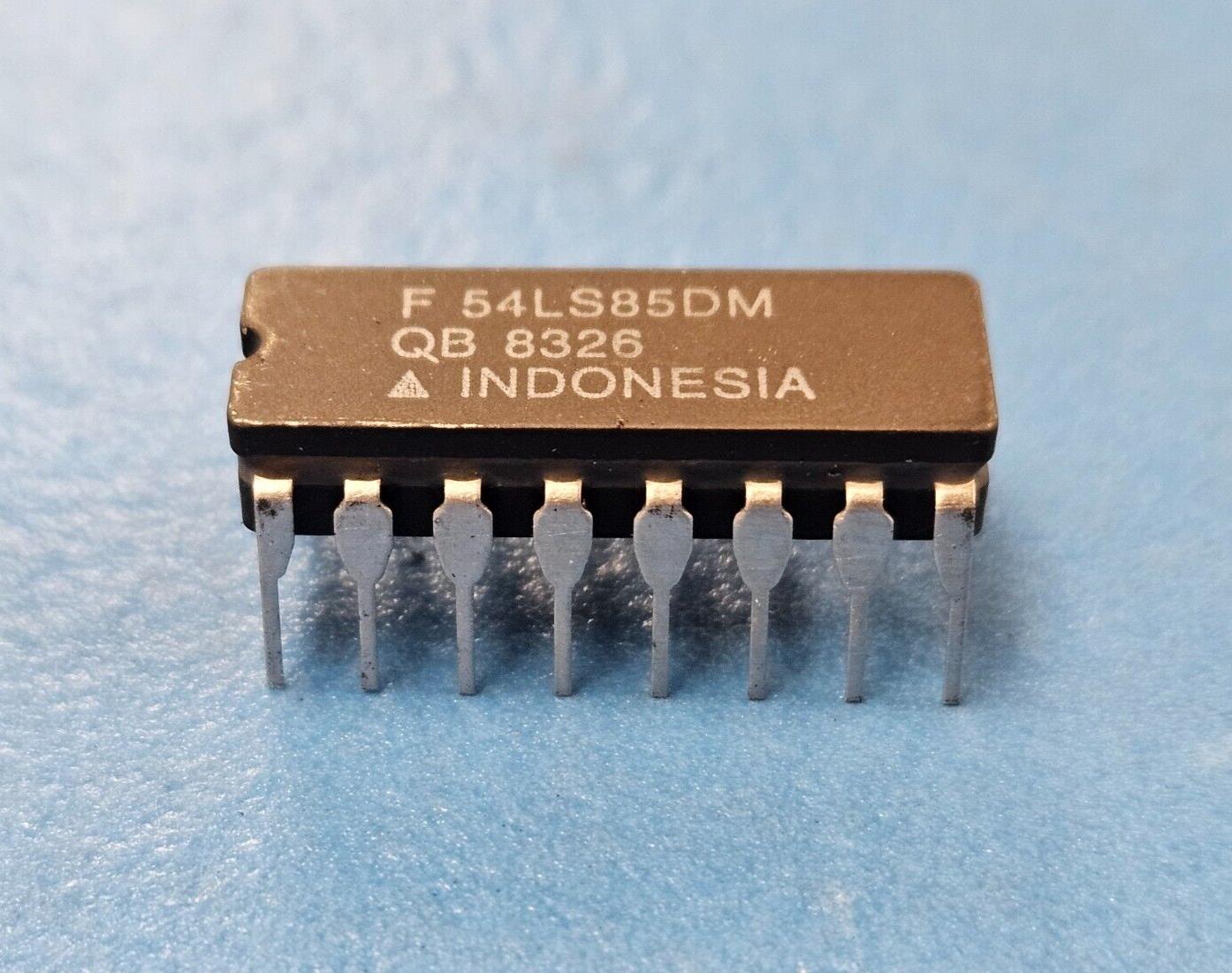

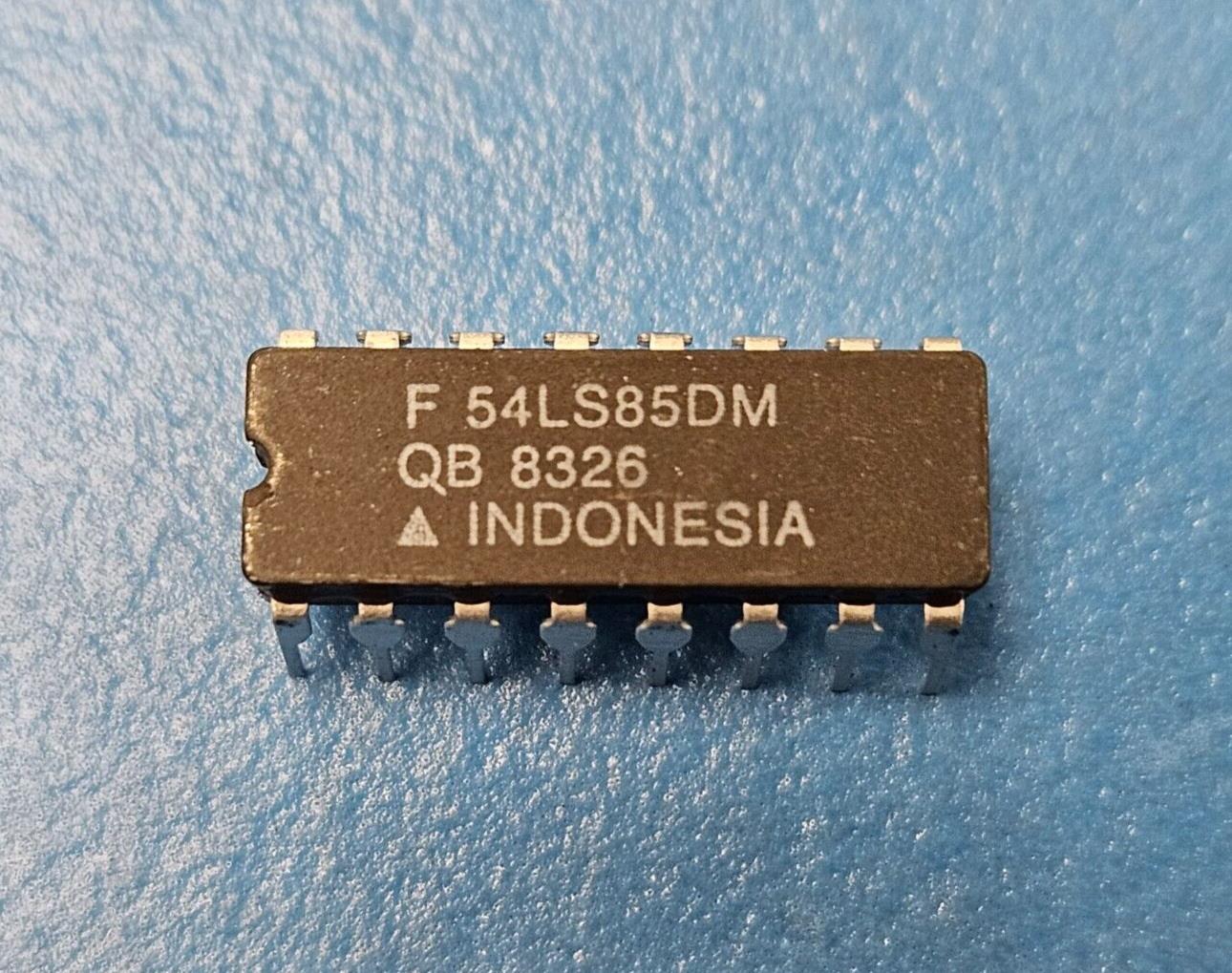

(2PCS) 54LS85DMQB Magnitude Comparator, 4-Bit, True Output, TTL, CDIP16
Tax included.
This listing is for (2PCS) of 54LS85DMQB by FSC
Mfr Package Description CERAMIC, DIP-16
Status Discontinued
Logic IC Type MAGNITUDE COMPARATOR
Sub Category Arithmetic Circuits
Family LS
JESD-30 Code R-GDIP-T16
JESD-609 Code e0
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Polarity TRUE
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Propagation Delay (tpd) 40.0 ns
Qualification Status Not Qualified
Screening Level 38535Q/M;38534H;883B
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology TTL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 19.43 mm
Width 7.62 mm
Additional Feature CASCADABLE
