(2PCS) 535032-5 Board Connector, 96 Contact, 3 Row, Female, Straight, Locking,
Tax included.

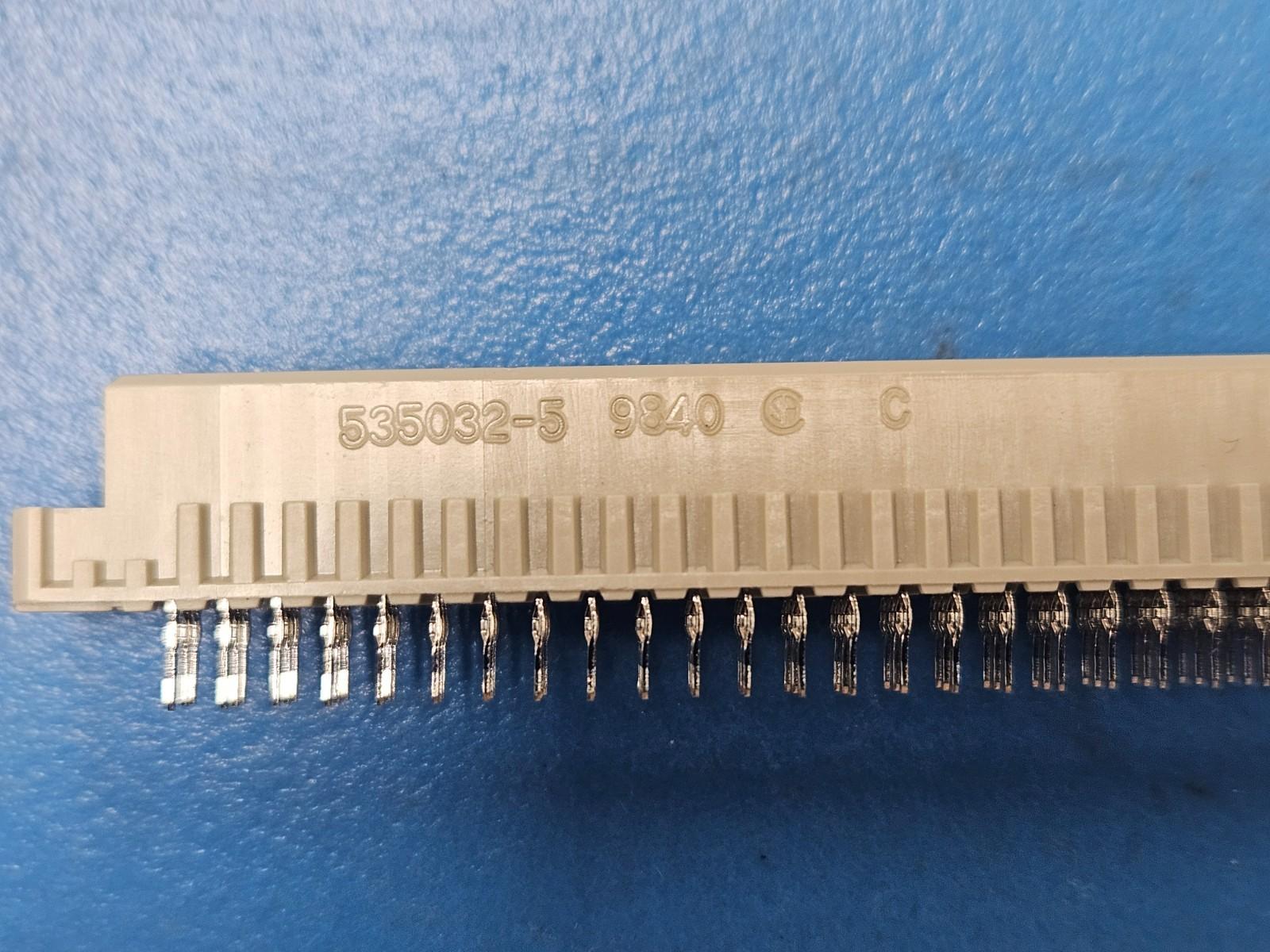

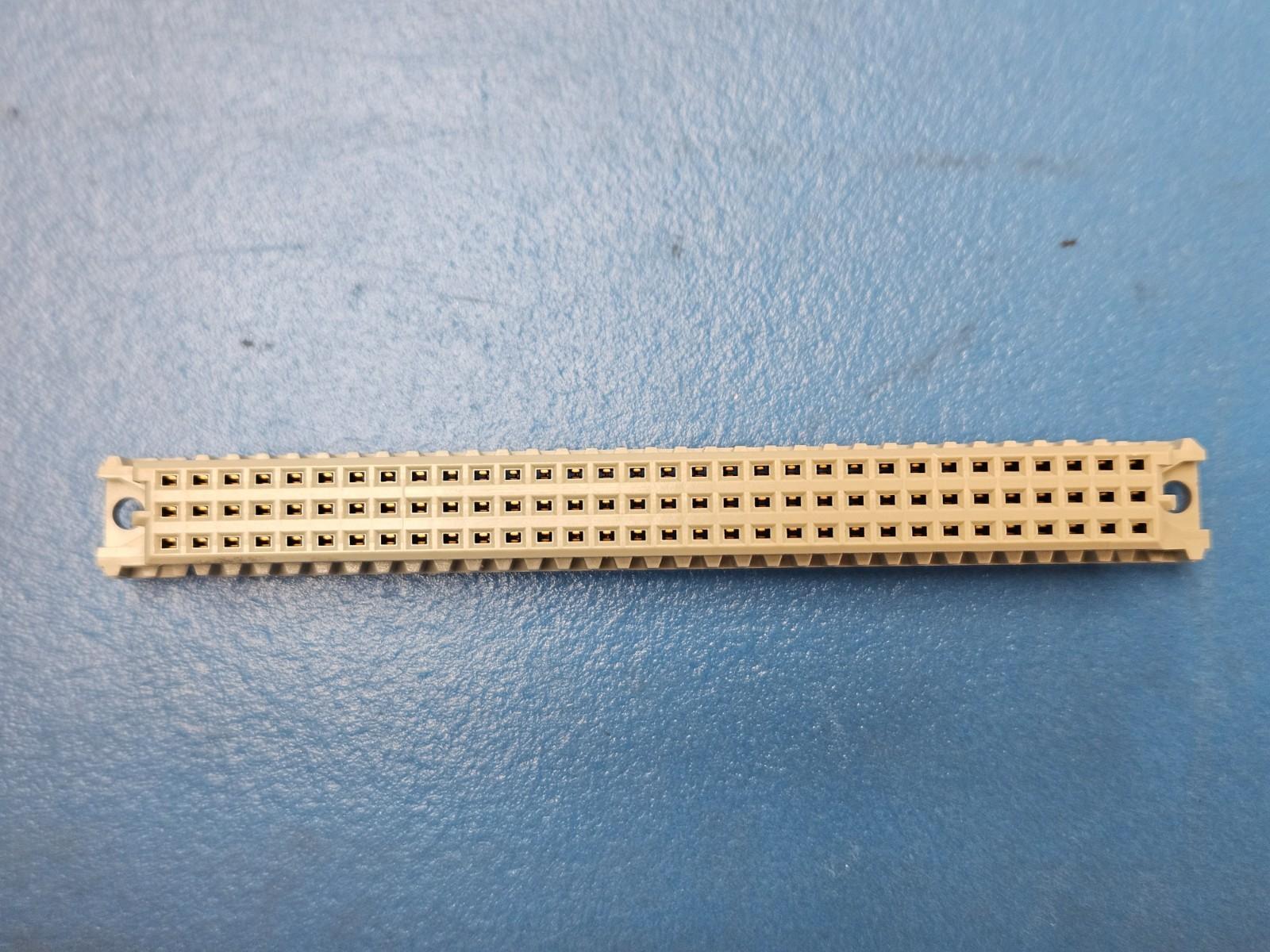

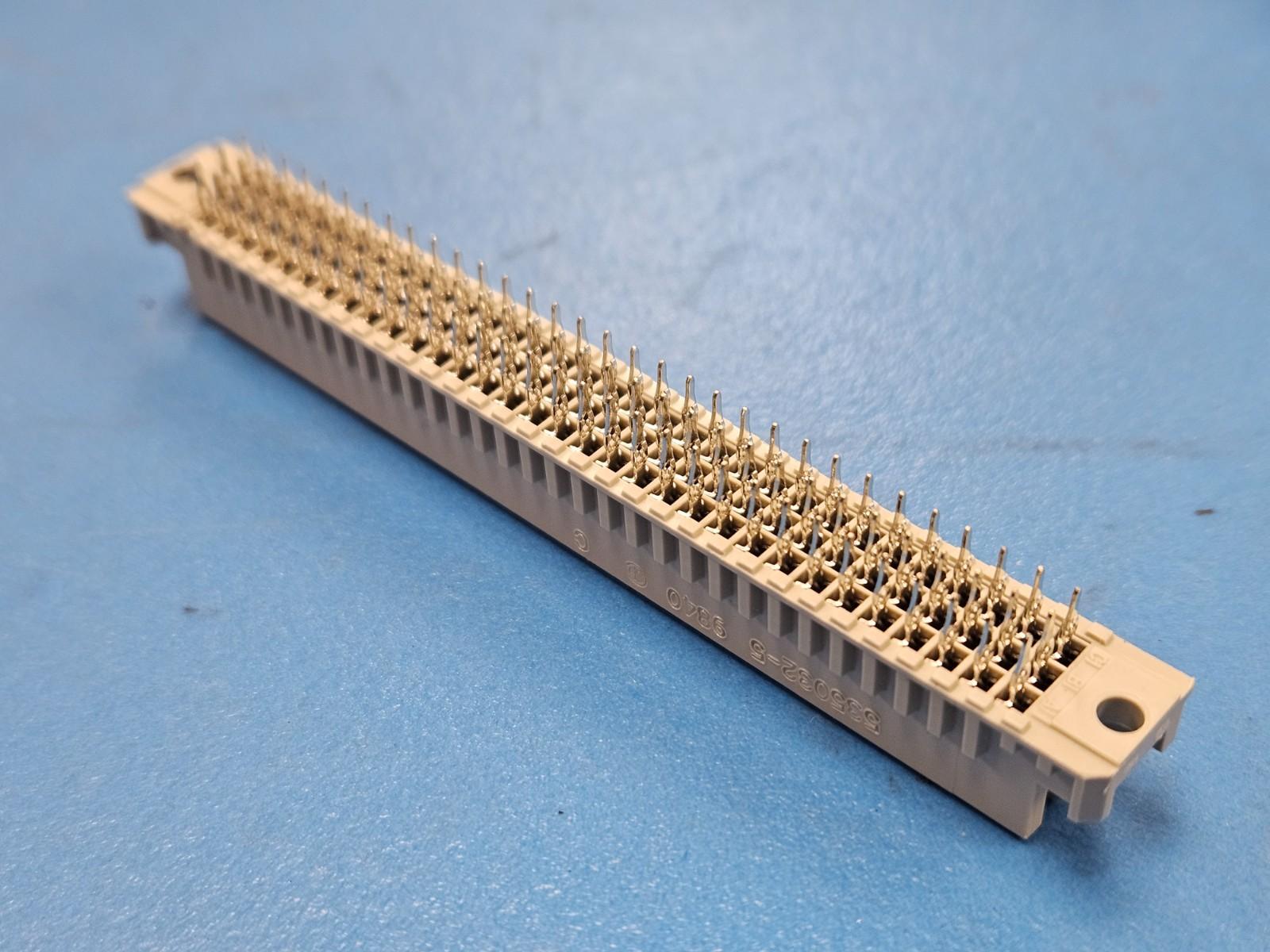

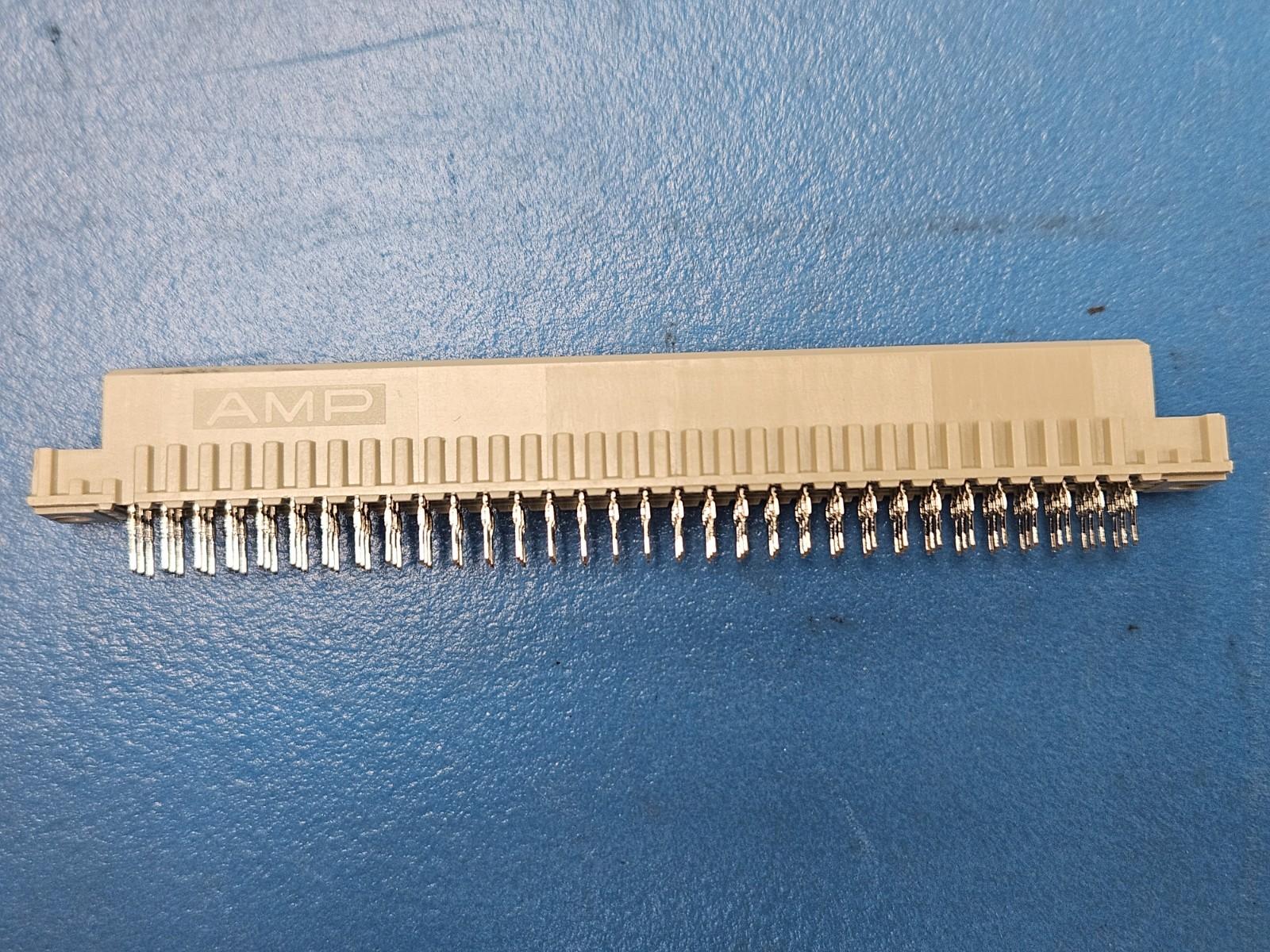

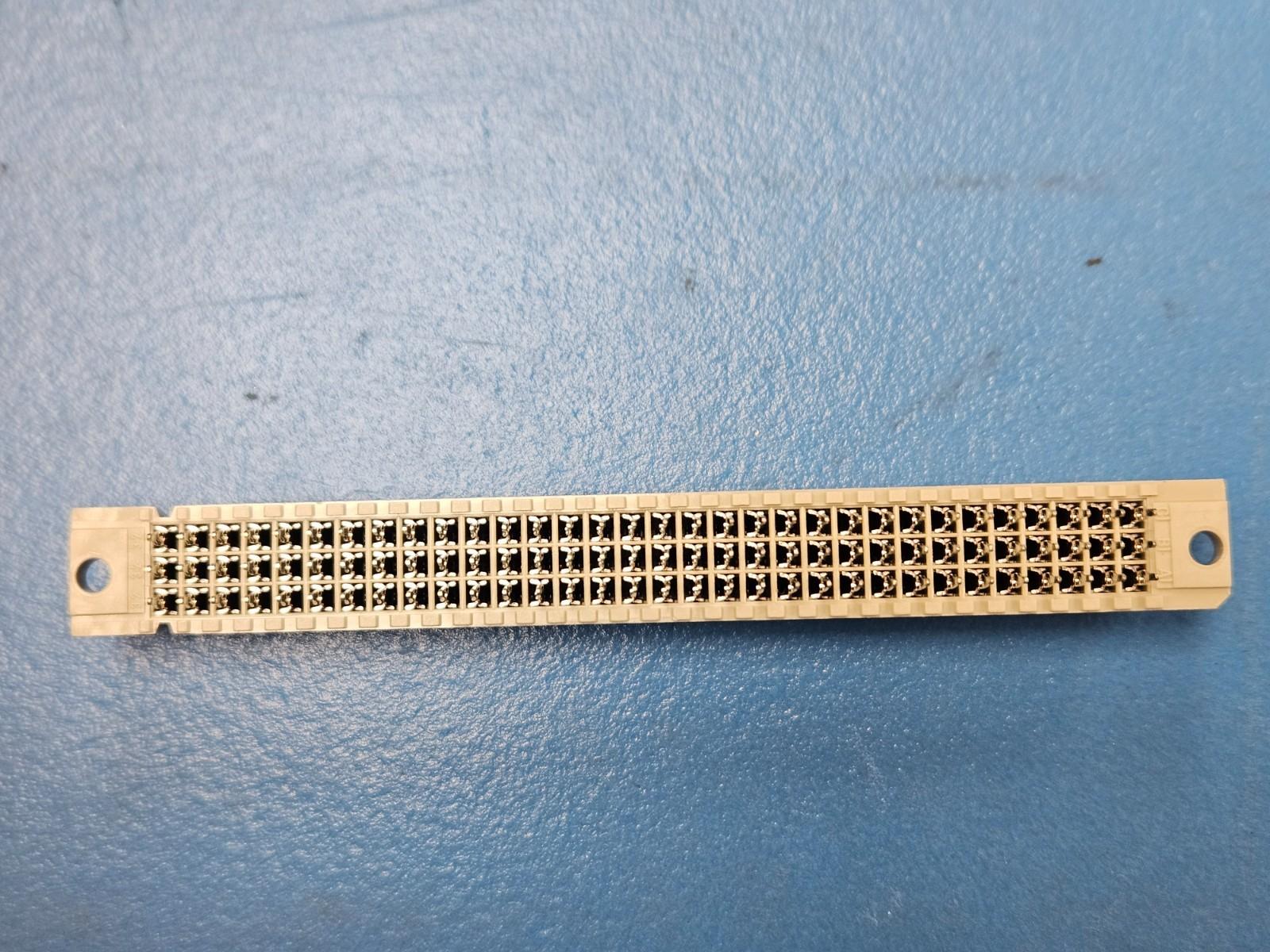

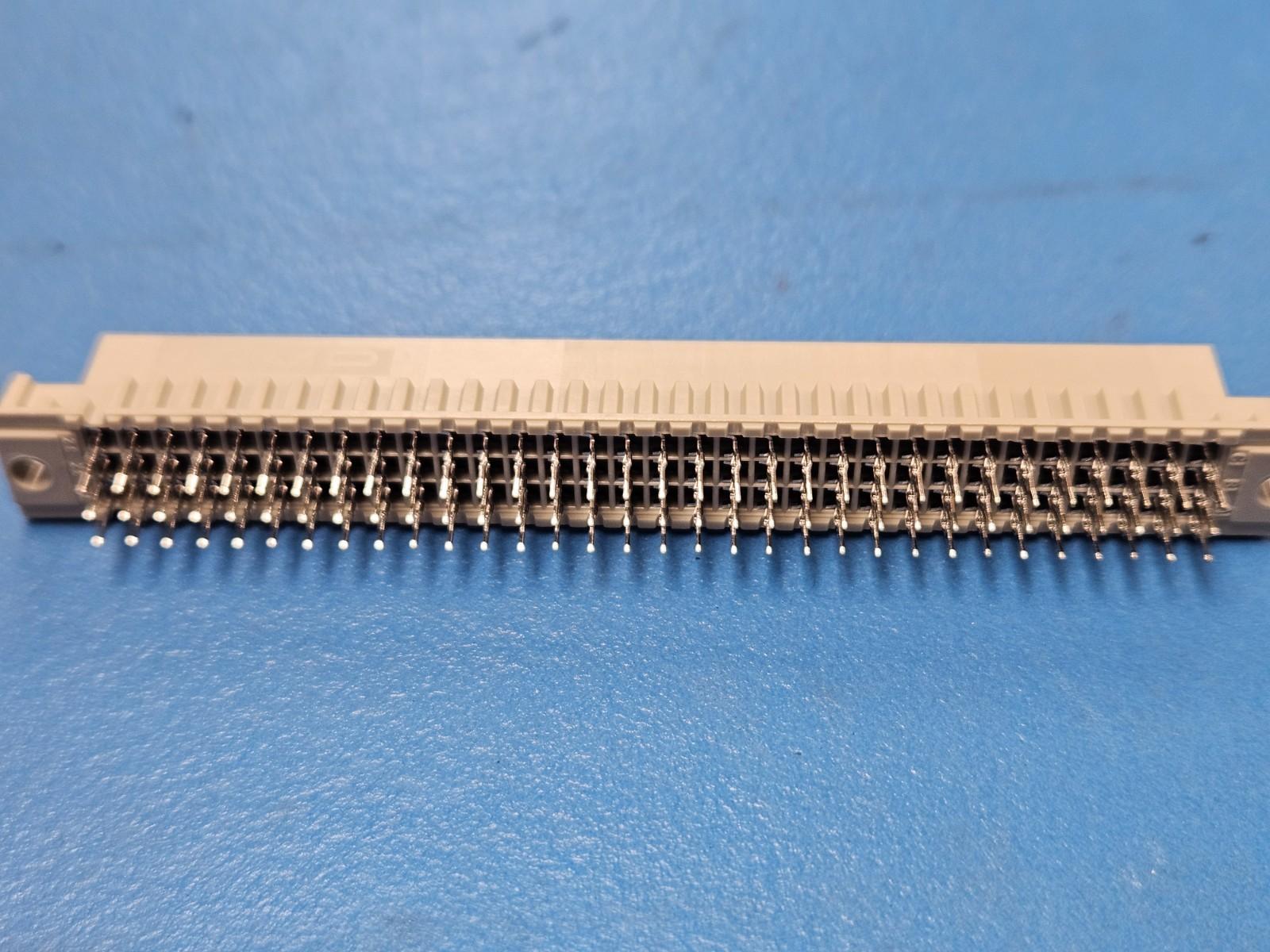

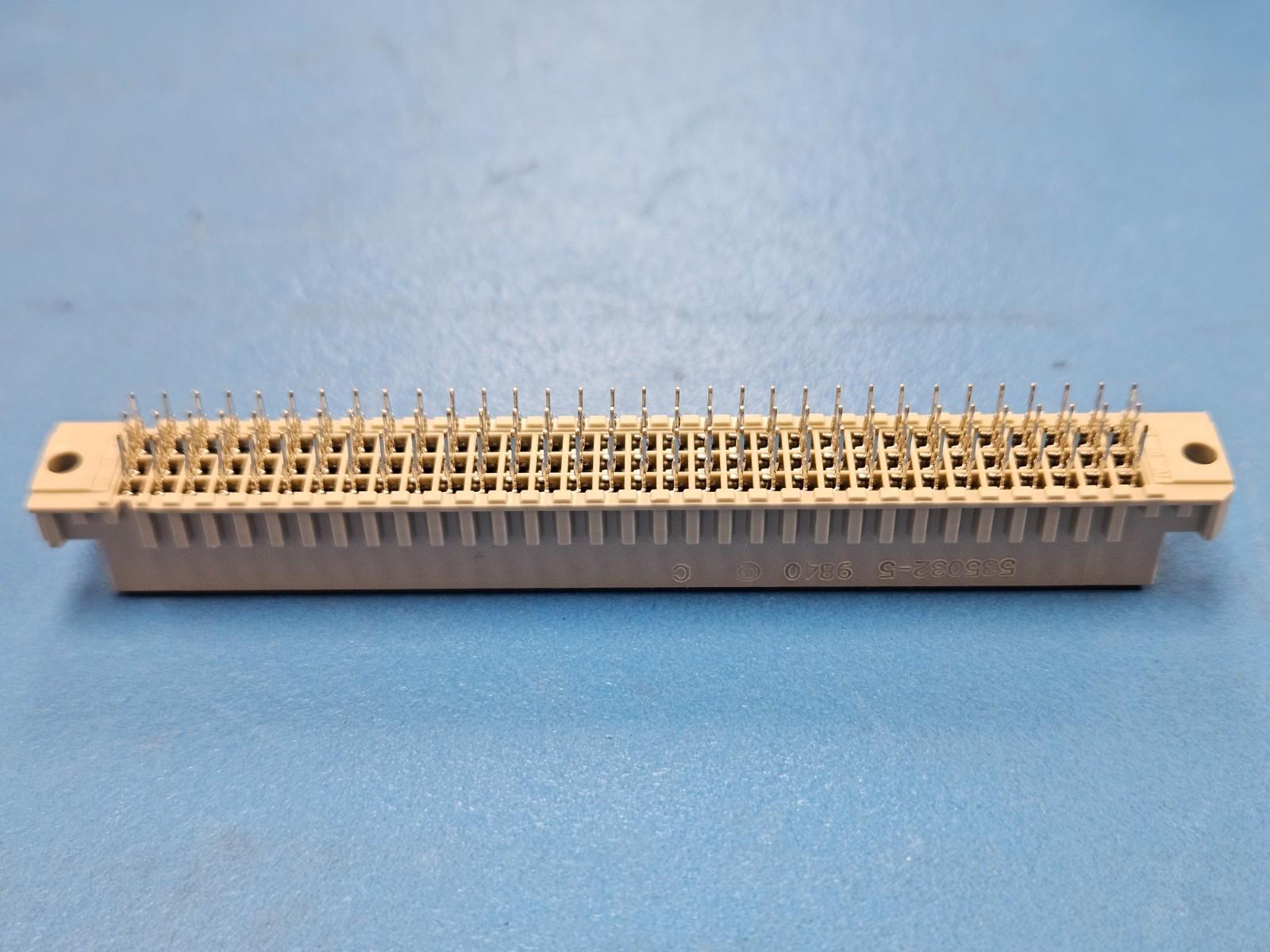

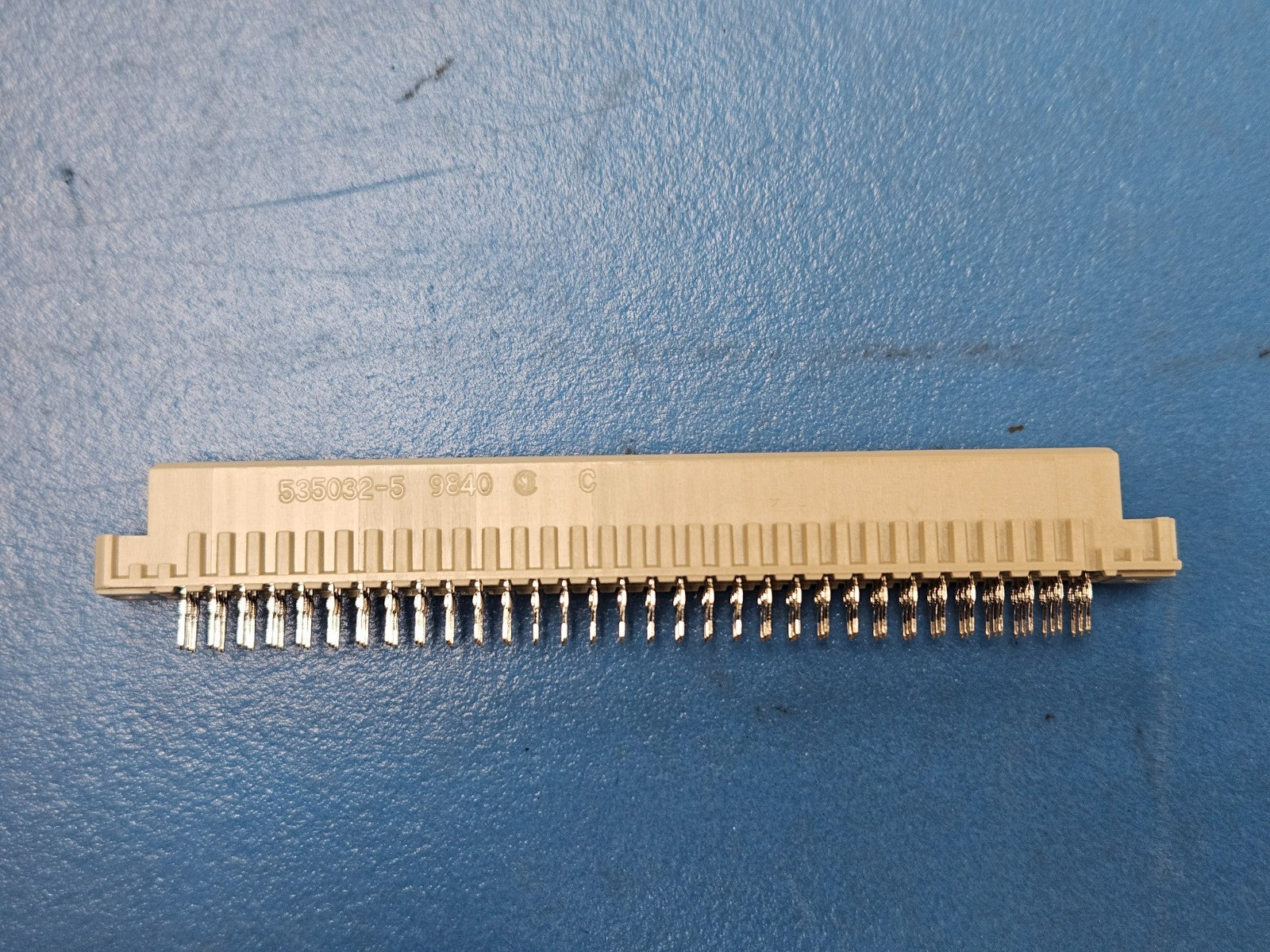

This listing is for (2PCS) of 535032-5 by AMP
Status Active
Additional Feature STANDARDS: DIN 41612; IEC 603-2
Body Breadth (inch) 0.417000
Body Depth (inch) 0.453000
Body Length (inch) 3.700000
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 15.000000000000000
Contact Style BELLOWED TYPE
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) .9452
Insulation Resistance (ohm) 1000000000000.000000000000000
Insulator Color GRAY
Insulator Material GLASS FILLED POLYESTER
MIL Conformance NO
Mains Connector Rating 115/230VAC
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Name of Rows Loaded B,A,C
Number of Connectors ONE
Number of PCB Rows 3
Number of Ports 1
Number of Rows Loaded 3
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Panel Mount NO
Polarization Key POLARIZED HOUSING
Rated Current (Signal) (A) 1.5000000000000000
Screening Level / Reference Standard UL, CSA
Terminal Length (inch) 0.190000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 96
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .15012
