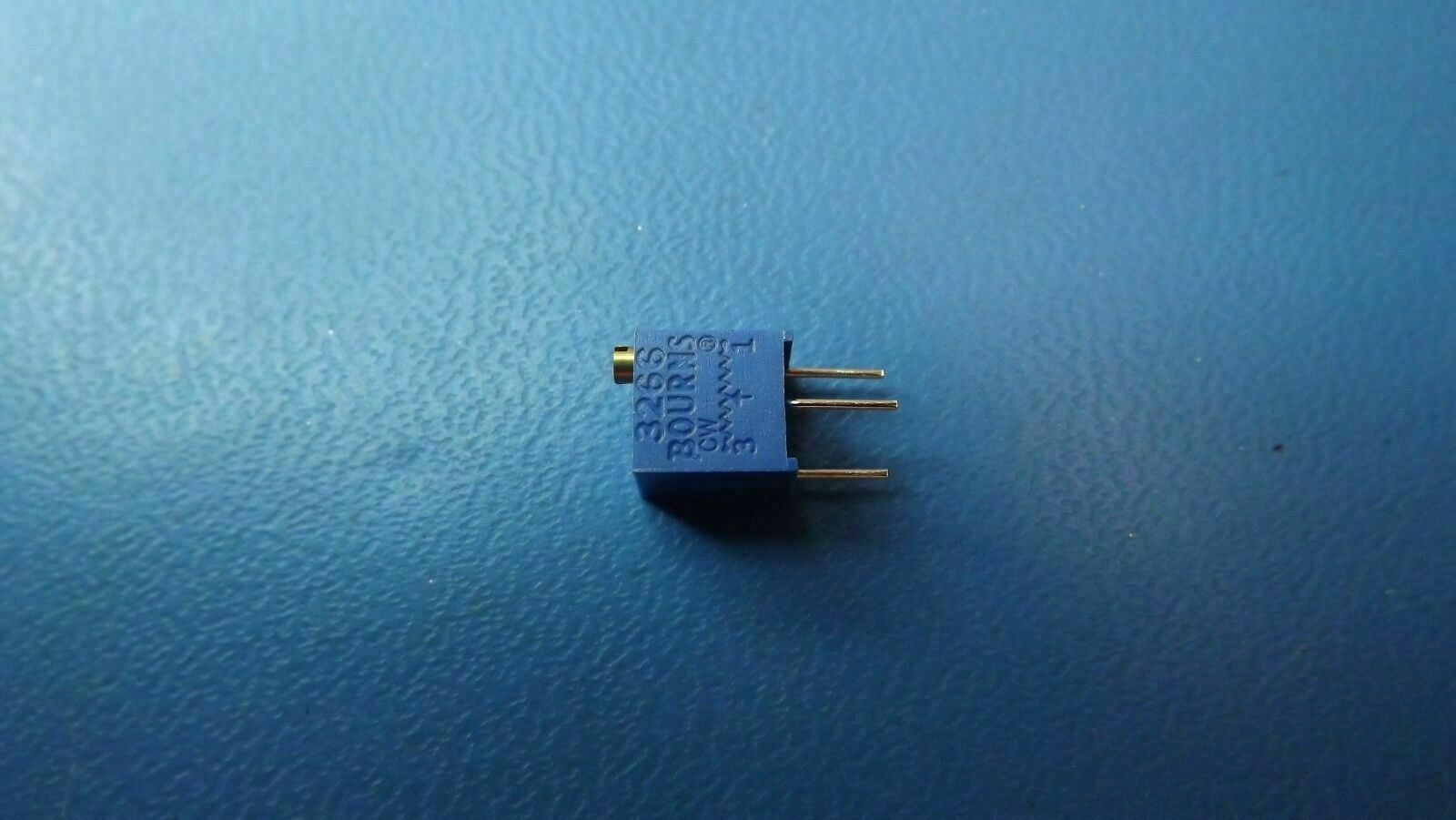

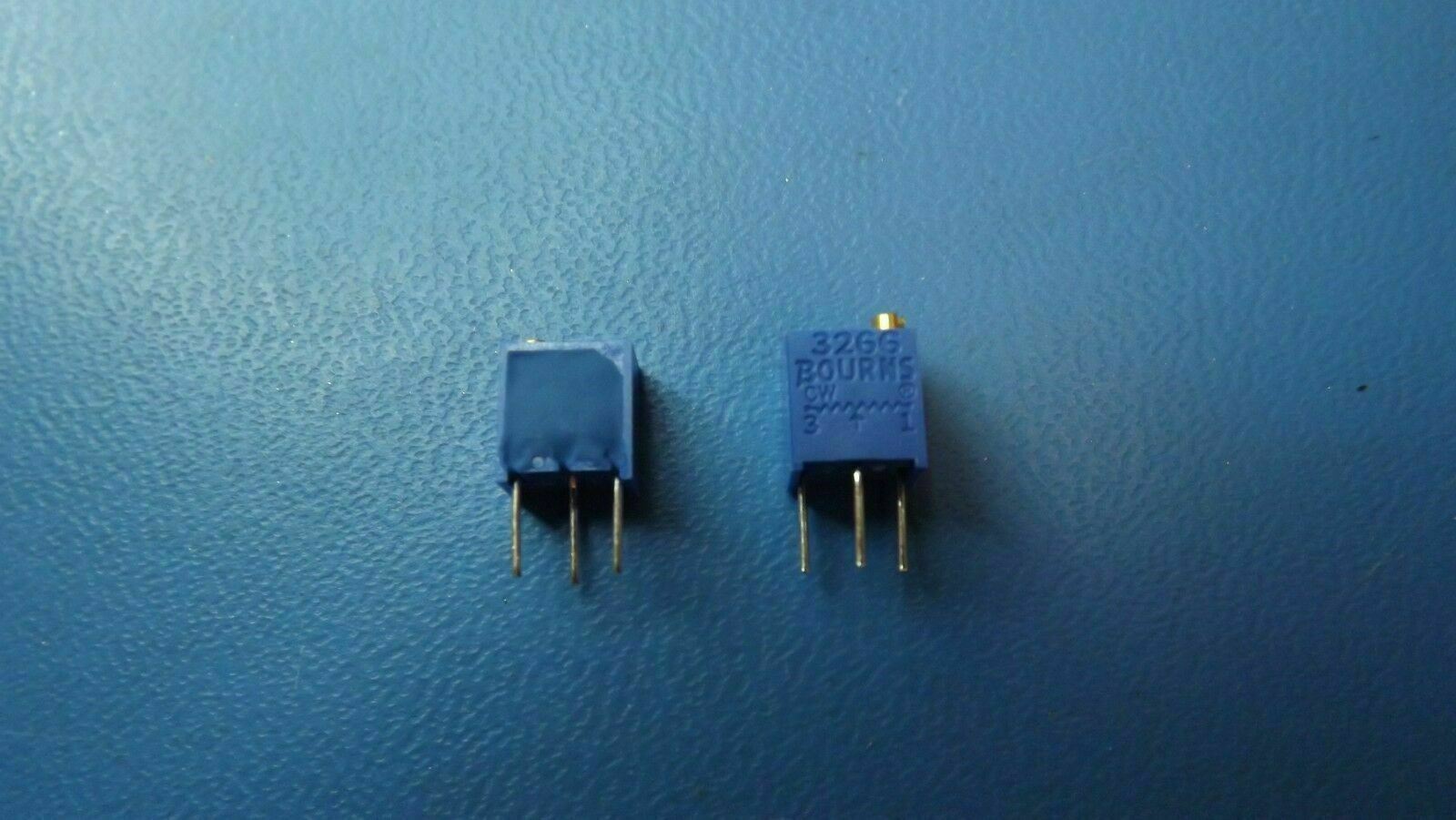

(2PCS) 3266W-1-104LF BOURNS TRIMMER 100K OHM 0.25W PC PIN

Tax included.
Only 1 left!

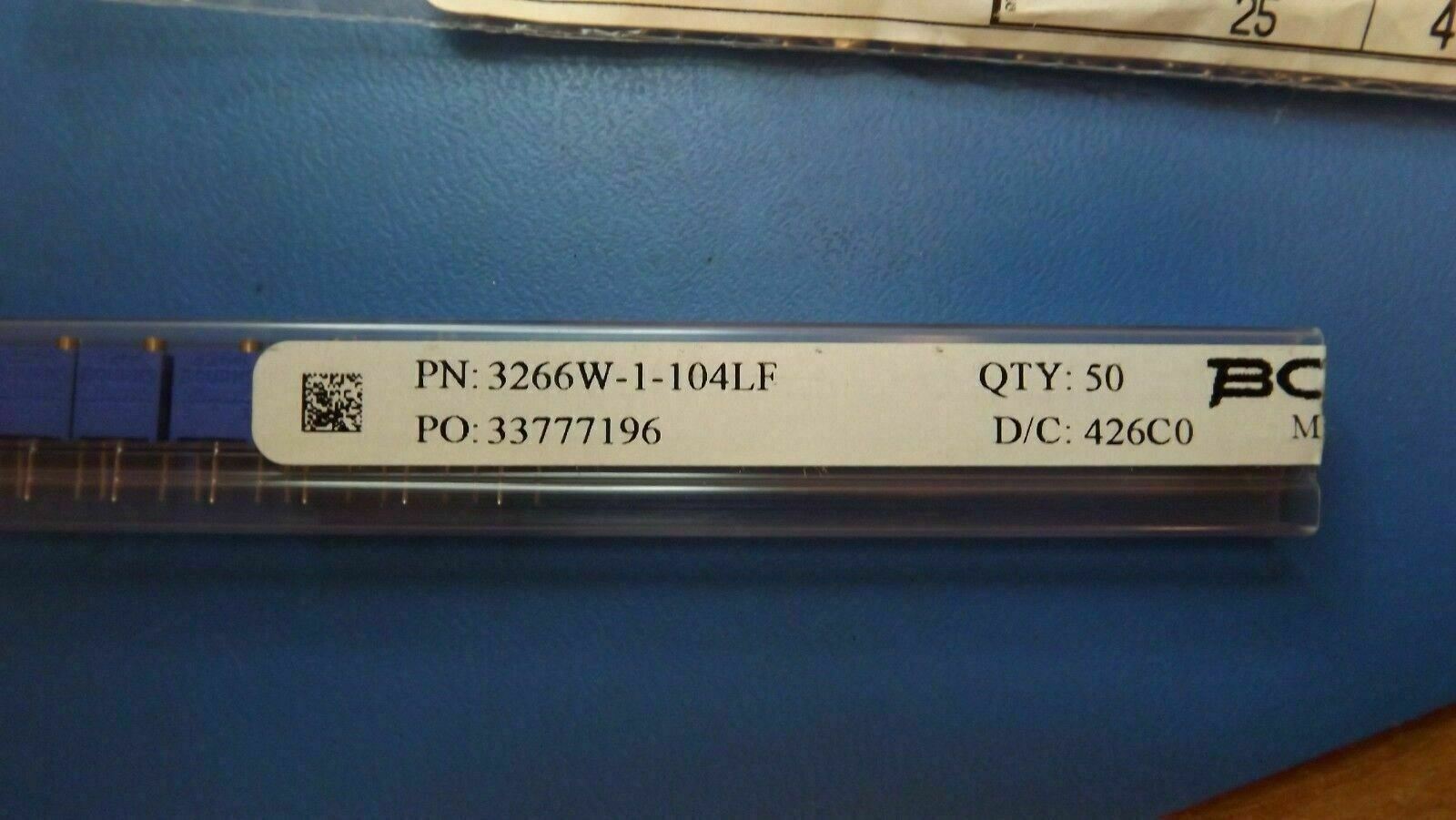

THIS LISTING IS FOR (2PCS) OF 3266W-1-104LF BY BOURNS

Product Technical Specifications

EU RoHS Compliant with Exemption
ECCN (US) EAR99
Type Trimmer
Resistance Value (Ohm) 100K
Tolerance 10%
Maximum Voltage Rating (V) 300
Power Rating (W) 0.25 (1/4)
Technology Cermet
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 125
Temperature Coefficient (ppm/°C) ±100
Linear or Logarithmic Lin
Termination Style Pin
Positions of Adjustment Top
Shaft Diameter (mm) 1.78
Number of Turns (Turns) 12(Elec)
Number of Elements 1
Electrical Rotation (°) 4320
Mechanical Rotational Life (Cycles) 200
Packaging Tube
Product Length (mm) 6.71
Product Depth (mm) 4.5
Product Height (mm) 8.26
Product Weight (g) 0.425
Mounting Through Hole
