(2PCS) 21652733-5 SAGEM , 4-Bit, MROM, 1.5MHz, MOS, SSOP-42 UPD750066GT-313 NEC
Tax included.

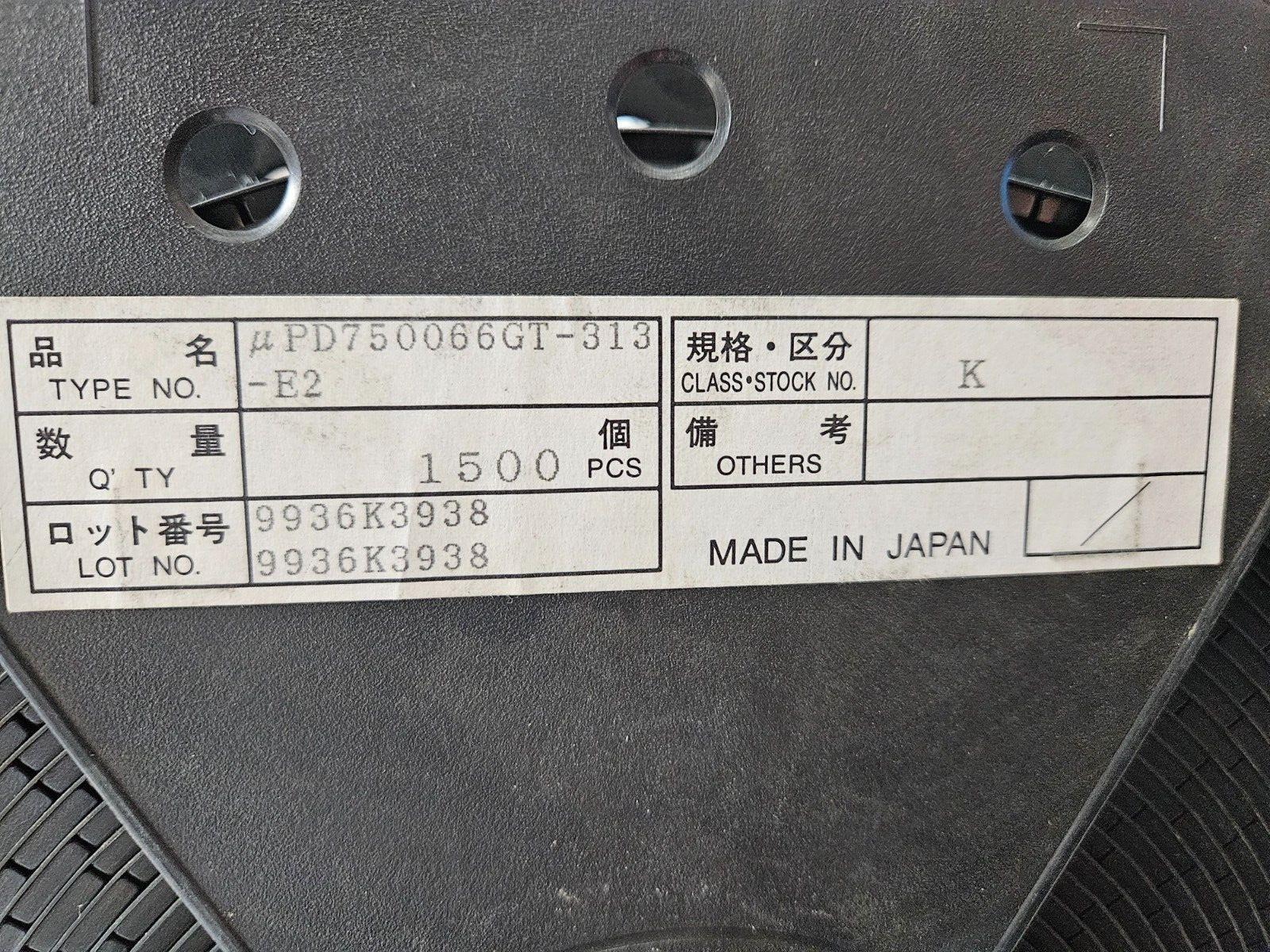

This listing is for (2pcs) of UPD750066GT-313-E2 by NEC

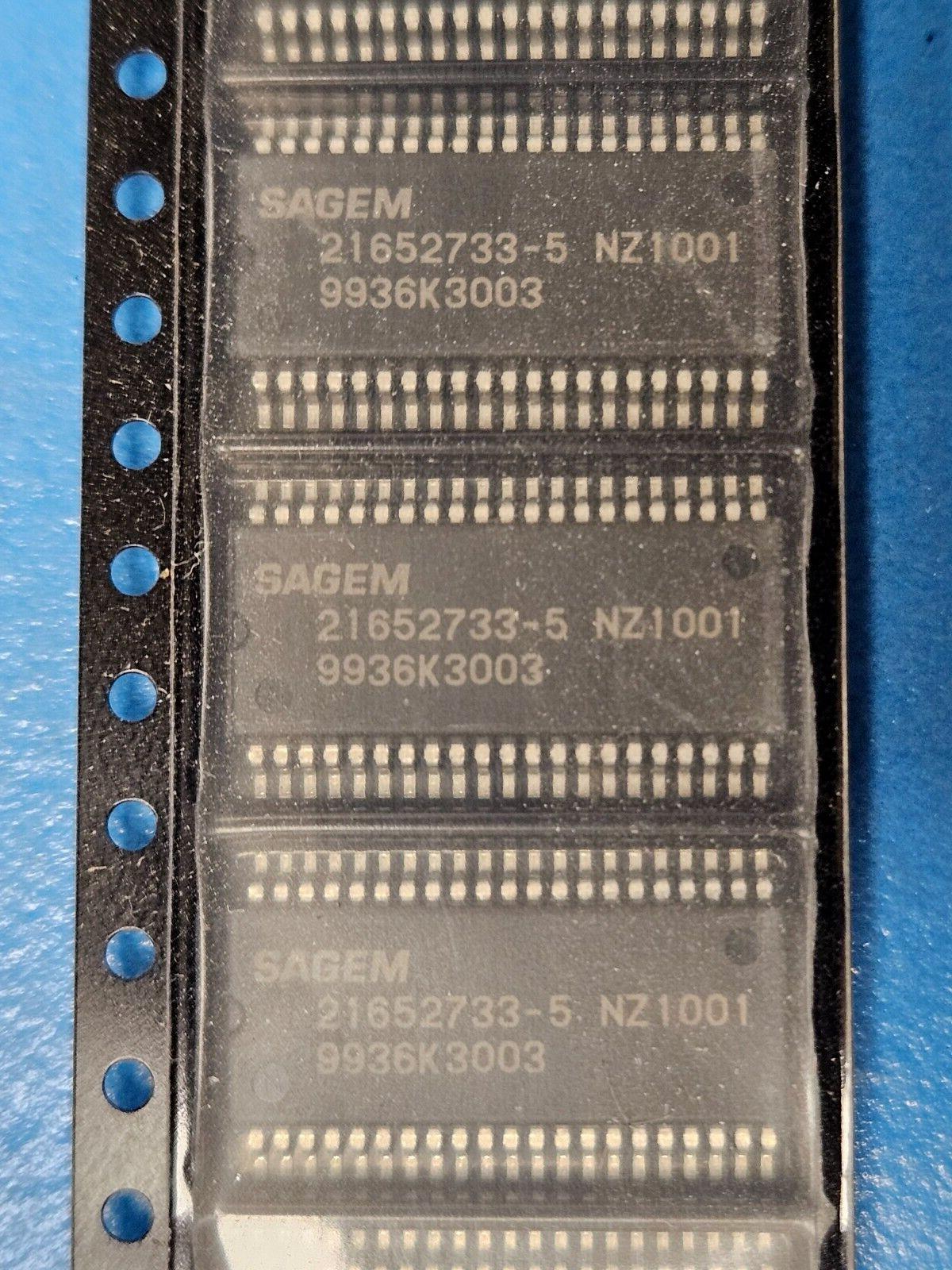

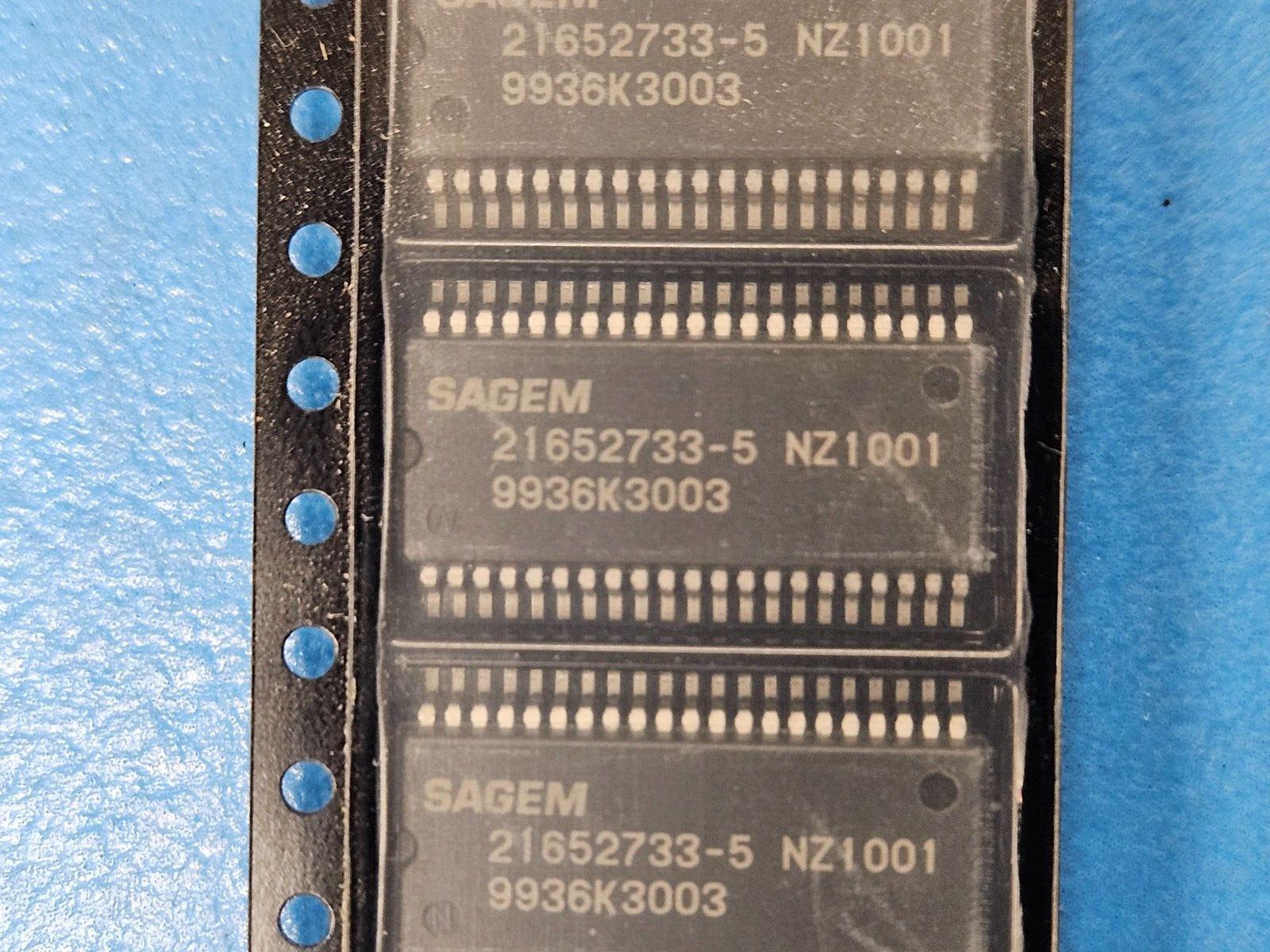

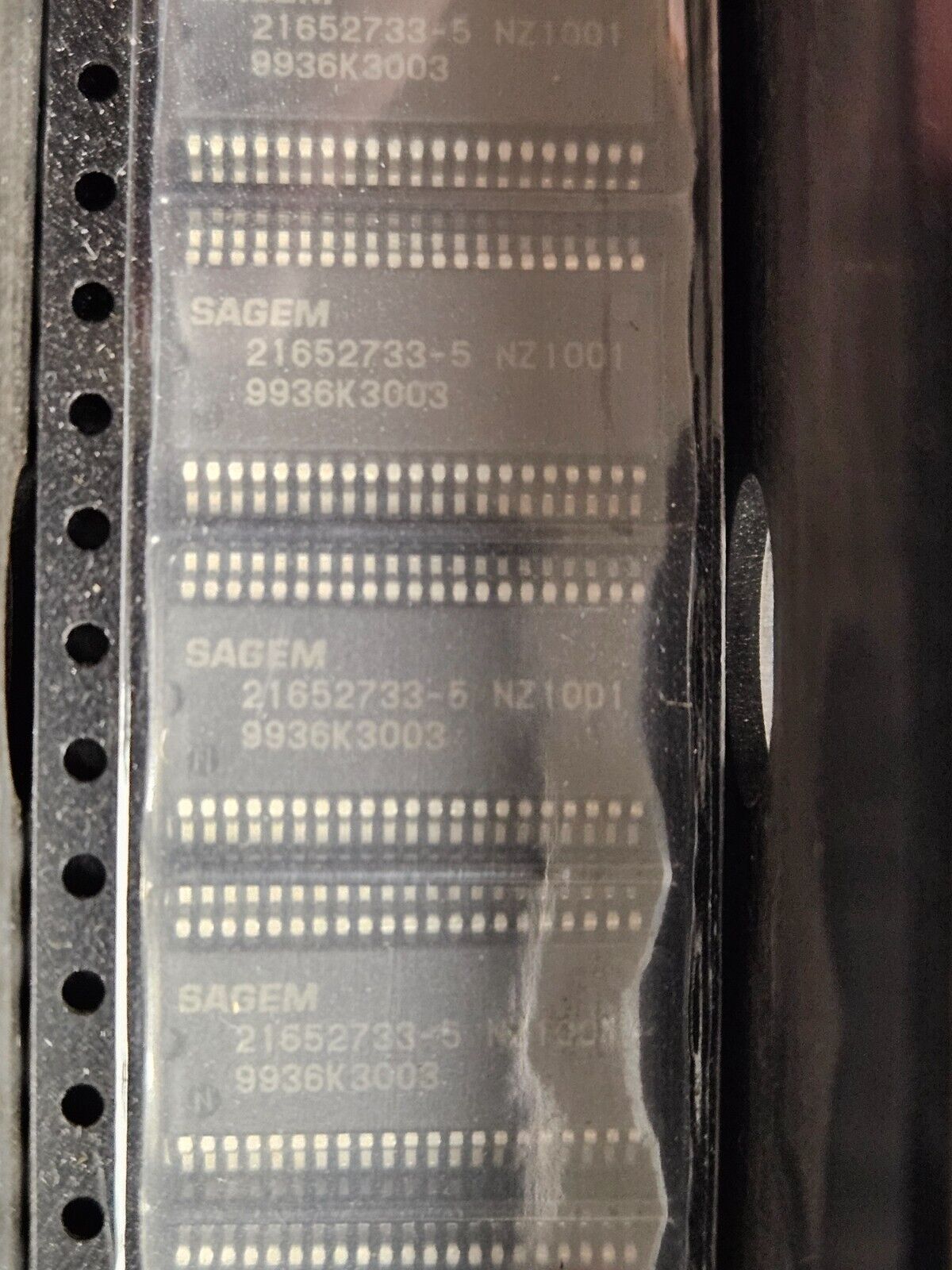

This component was made for SAGEM and marked with the corresponding number 21652733-5
Mfr Package Description 0.375 INCH, 0.80 MM PITCH, SHRINK, PLASTIC, SOP-42
Status Discontinued
ADC Channels YES
Address Bus Width 0.0
Bit Size 4
Clock Frequency-Max 6.0 MHz
CPU Family UPD75XL
DAC Channels NO
DMA Channels NO
External Data Bus Width 0.0
JESD-30 Code R-PDSO-G42
Number of I/O Lines 32.0
Number of Terminals 42
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SOP42,.4,32
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Power Supplies 2/5
PWM Channels NO
Qualification Status Not Qualified
RAM (bytes) 256.0
ROM Programmability MROM
ROM (words) 12288
Seated Height-Max 2.9 mm
Speed 1.5 MHz
Sub Category Microcontrollers
Supply Current-Max 6.6 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 1.8 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology MOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position DUAL
Width 7.15 mm
