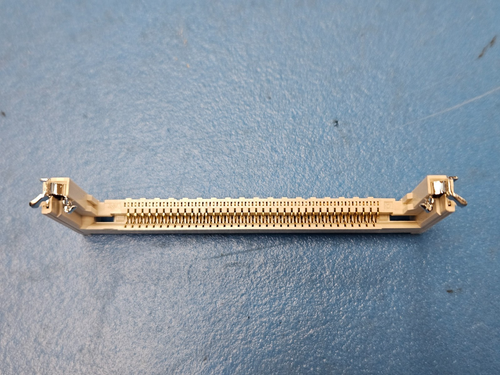

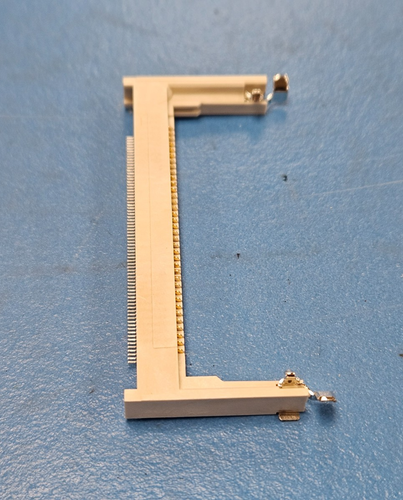

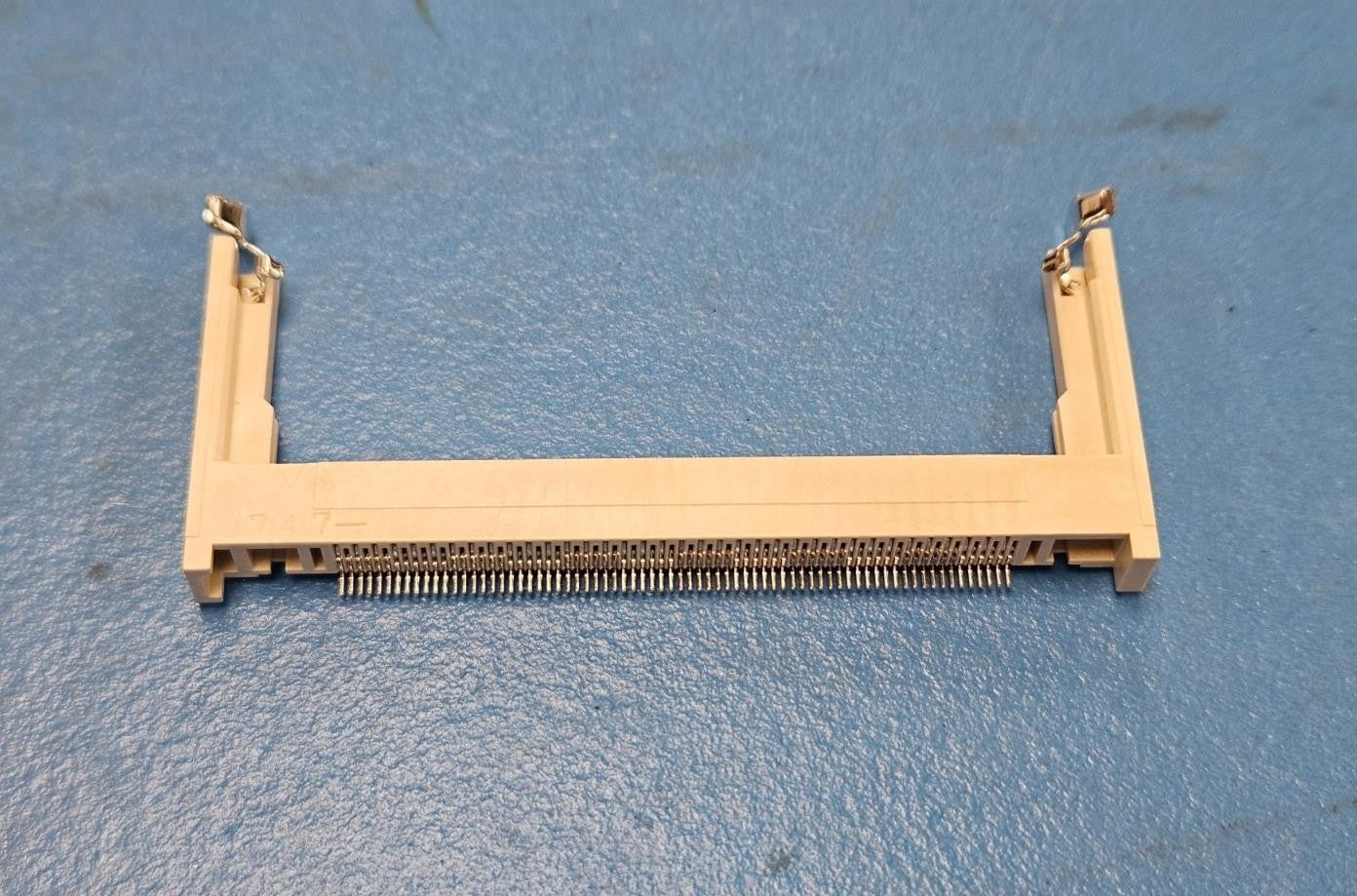

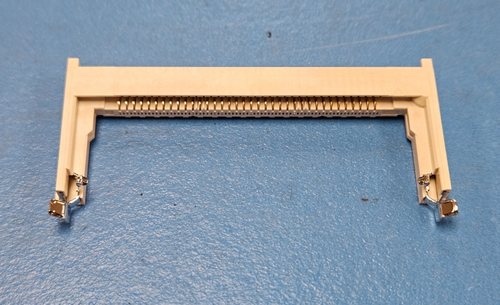

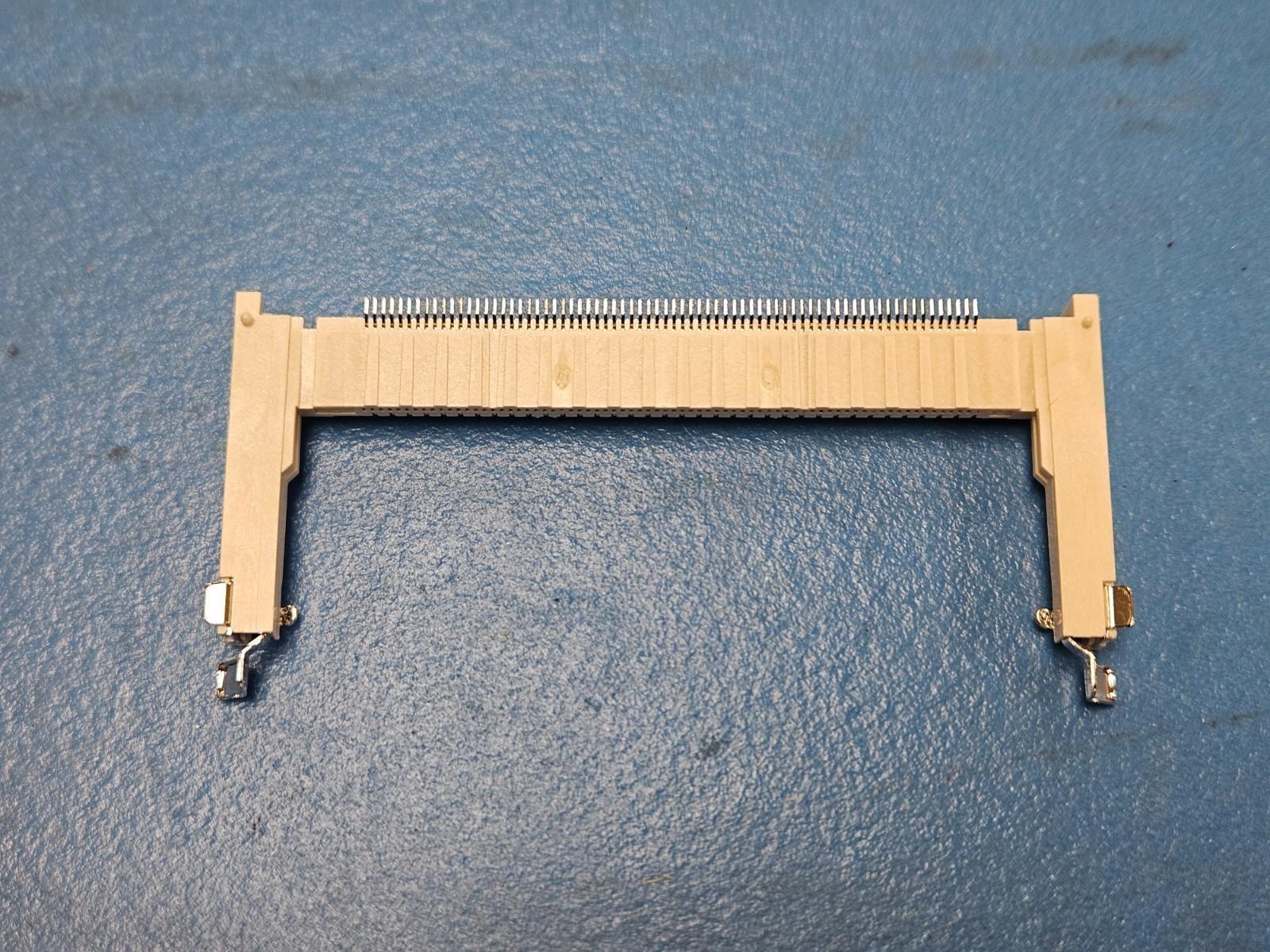

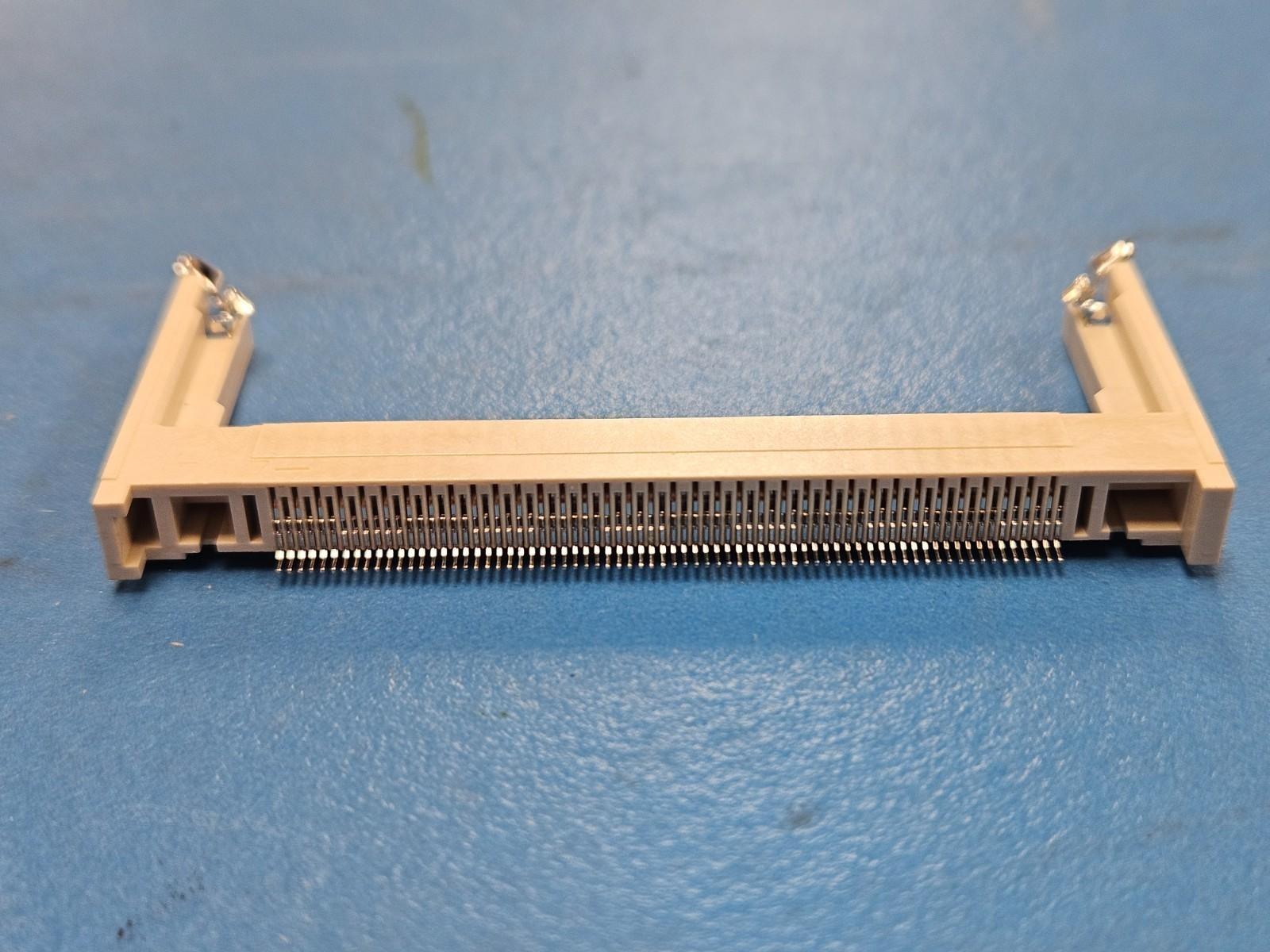

(2PCS) 177827-1 Card Edge Connector, 72 Contact, Female, Straight, 2 Row
Tax included.
This listing is for (2PCS) of 177827-1 by AMP
Status Discontinued
Additional Feature STAGGERED CONFIGURATION
Body Breadth (inch) 0.217000
Body Depth (inch) 1.165000
Body Length (inch) 2.594000
Body/Shell Style SOCKET
Connector Type CARD EDGE CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Resistance (mohm) 30.000000000000000
Contact Style BELLOWED TYPE
DIN Conformance NO
Dielectric Withstanding Voltage (V) 250VAC
Durability (Cycles) 30
Filter Feature NO
IEC Conformance NO
Insulation Resistance (ohm) 250000000.000000000000000
Insulator Material LIQUID CRYSTAL POLYMER
J-STD-609 Code e0
MIL Conformance NO
Mating Contact Pitch (inch) 0.025
Mixed Contacts NO
Mounting Option 1 LATCH
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 1
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Polarization Key POLARIZED HOUSING
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 72
UL Flammability Code 94V-0
