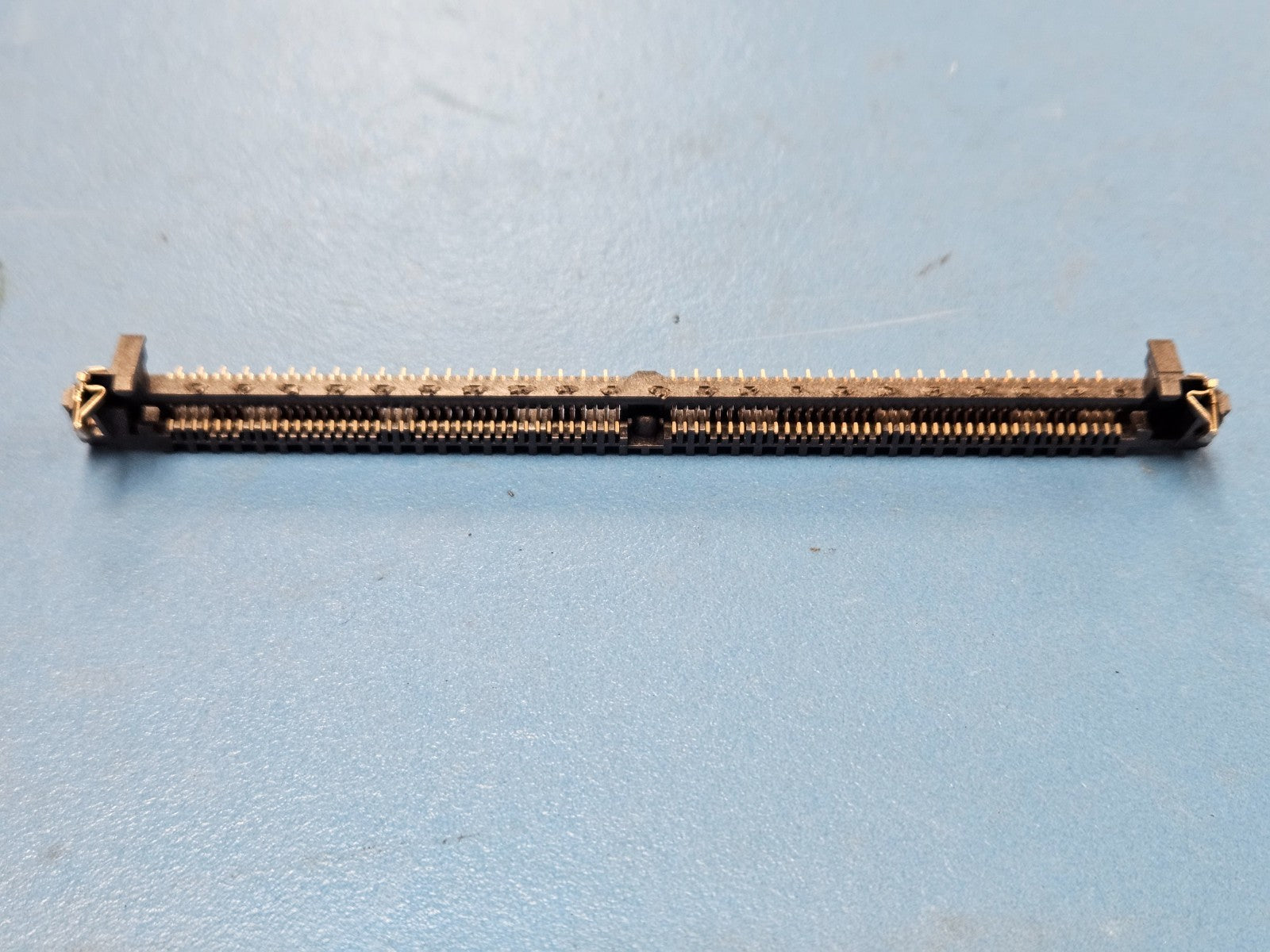

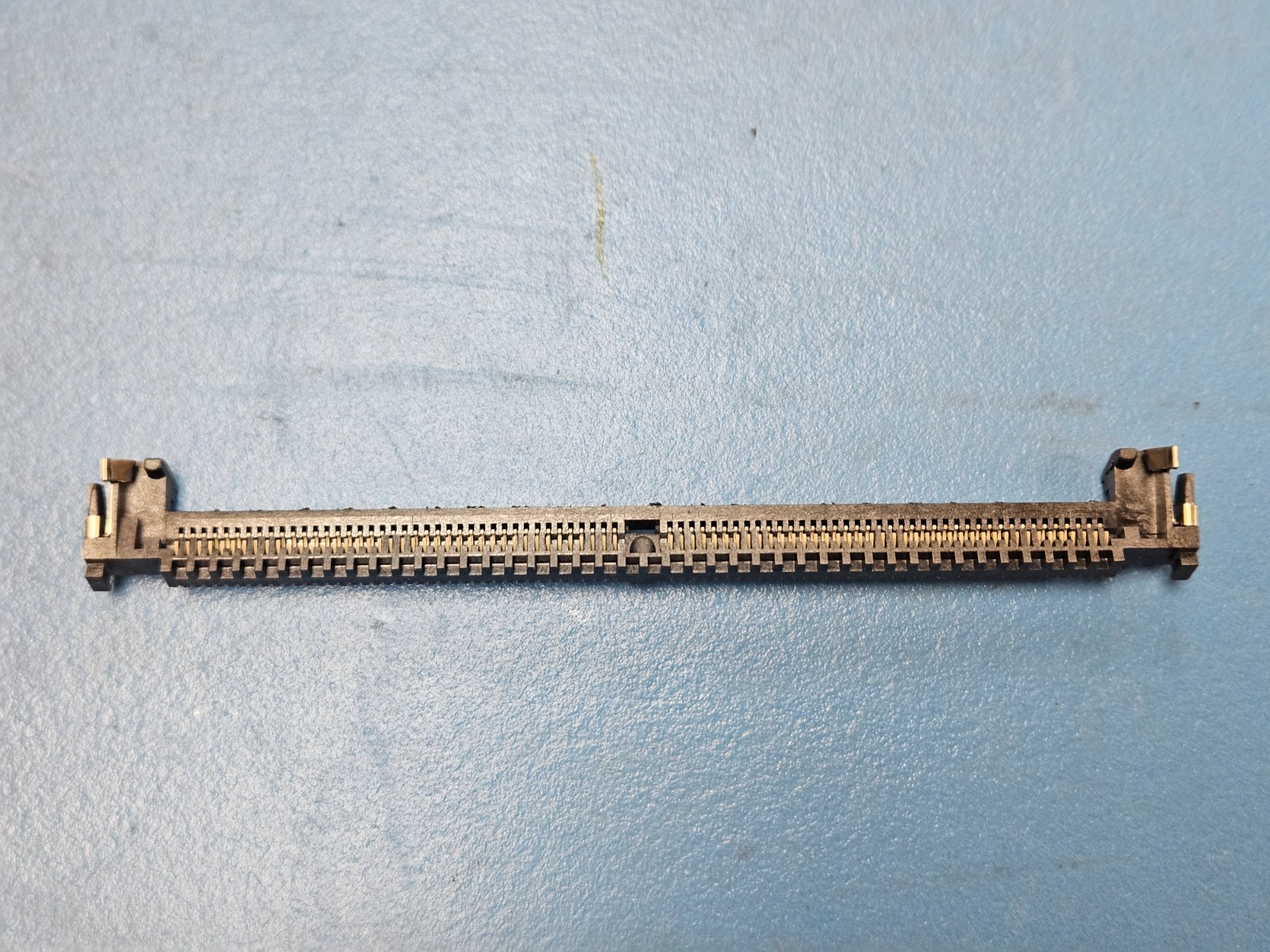

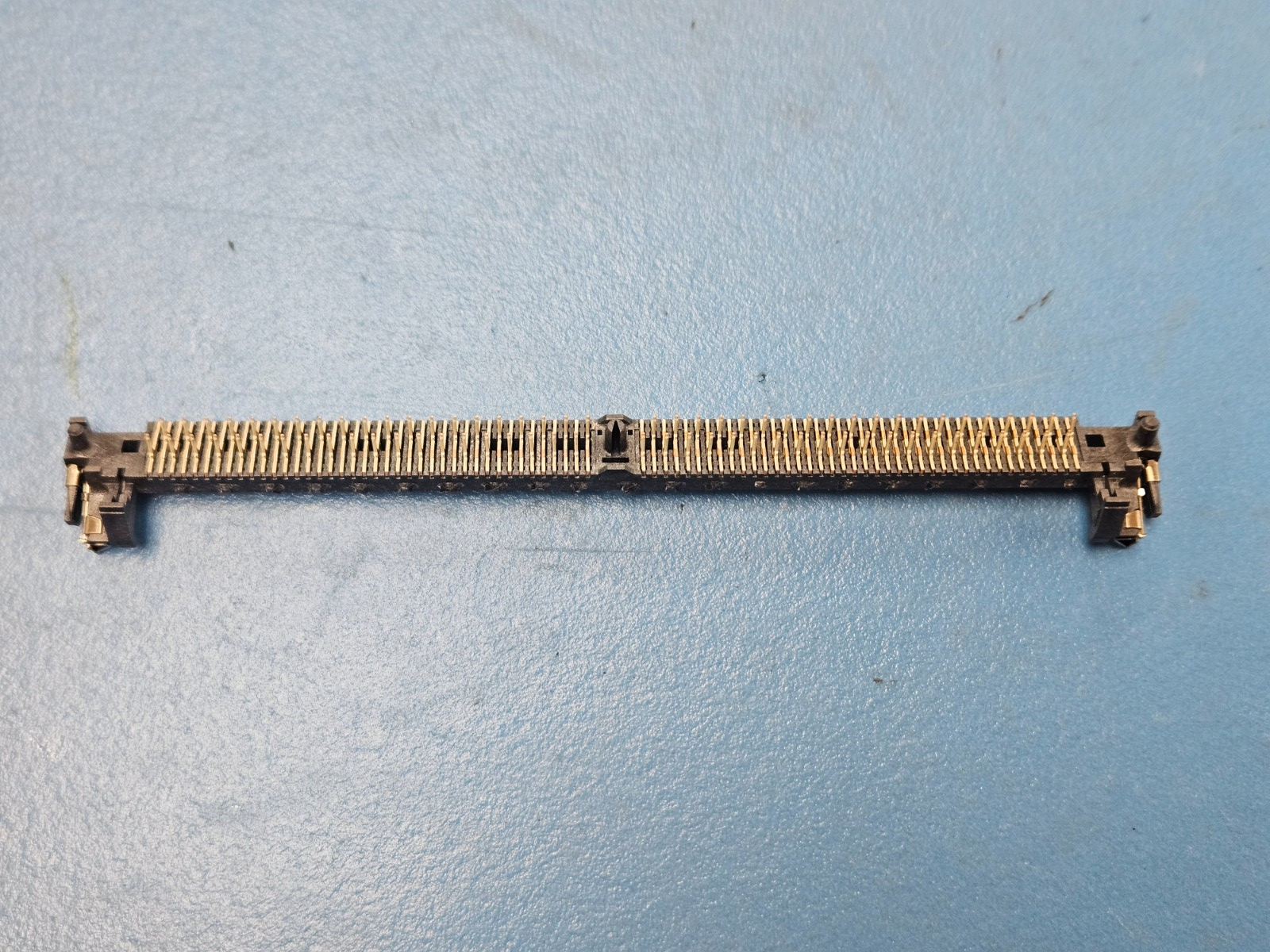

(2PCS) 15-82-0685 Molex Card Edge Connector, 80 Contact, 1 Row, Female, Latch
Tax included.
This listing is for (2PCS) of 15-82-0685 by Molex
Status Discontinued
Additional Feature LATCHED; POLARIZED
Board Mounting Option POLARIZATION POST
Body Depth (inch) 0.538000
Body Length (inch) 4.950000
Body/Shell Style SOCKET
Connector Type CARD EDGE CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Resistance (mohm) 30.000000000000000
Contact Style BELLOWED TYPE
DIN Conformance NO
Dielectric Withstanding Voltage (V) 1000VAC
Durability (Cycles) 25
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) ZIF
Insulation Resistance (ohm) 5000000000.000000000000000
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mating Contact Pitch (inch) 0.05
Mixed Contacts NO
Mounting Option 1 LATCH
Mounting Option 2 LOCKING
Mounting Style 22.5 DEGREE
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Rows Loaded 1
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 0.1
Plating Thickness (inch) 200u
Polarization Key SHRD LEFT
Rated Current (Signal) (A) 1.0000000000000000
Screening Level / Reference Standard UL, CSA
Terminal Length (inch) 0.110000
Terminal Pitch (mm) 1.27
Termination Type SOLDER
Number of Contacts 80
UL Flammability Code 94V-0
Withdrawl Force-Min (N) ZIF
