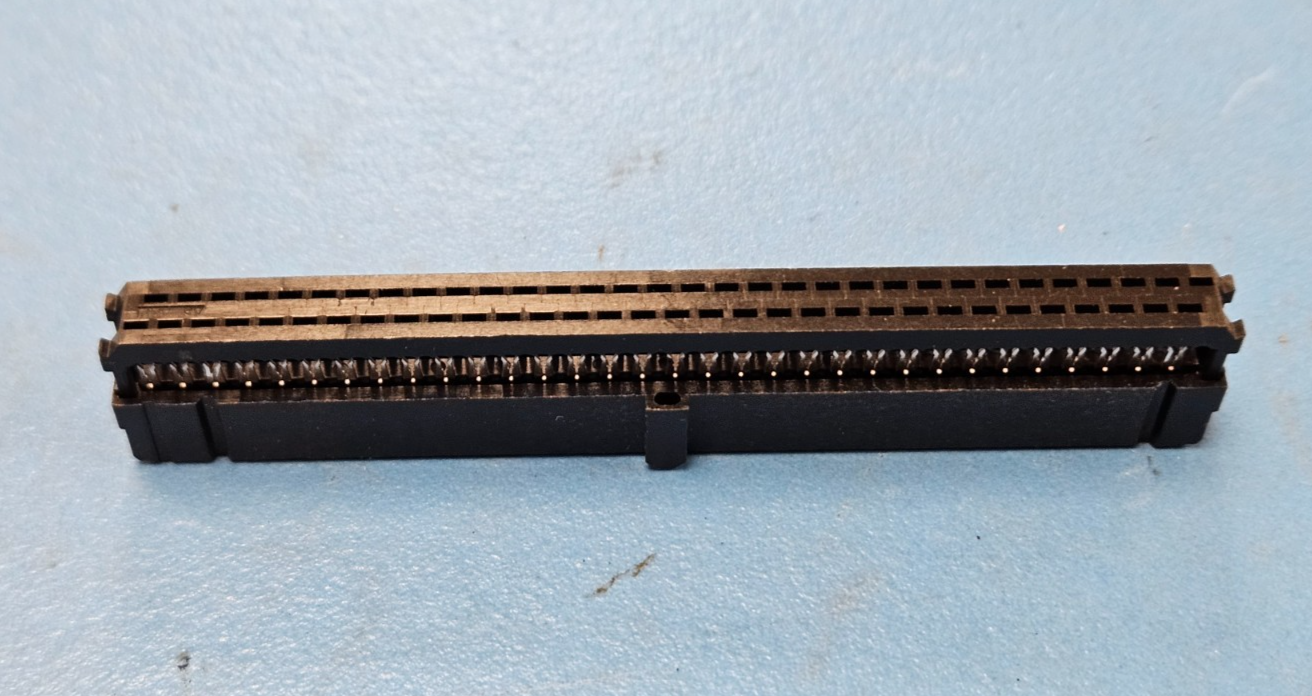

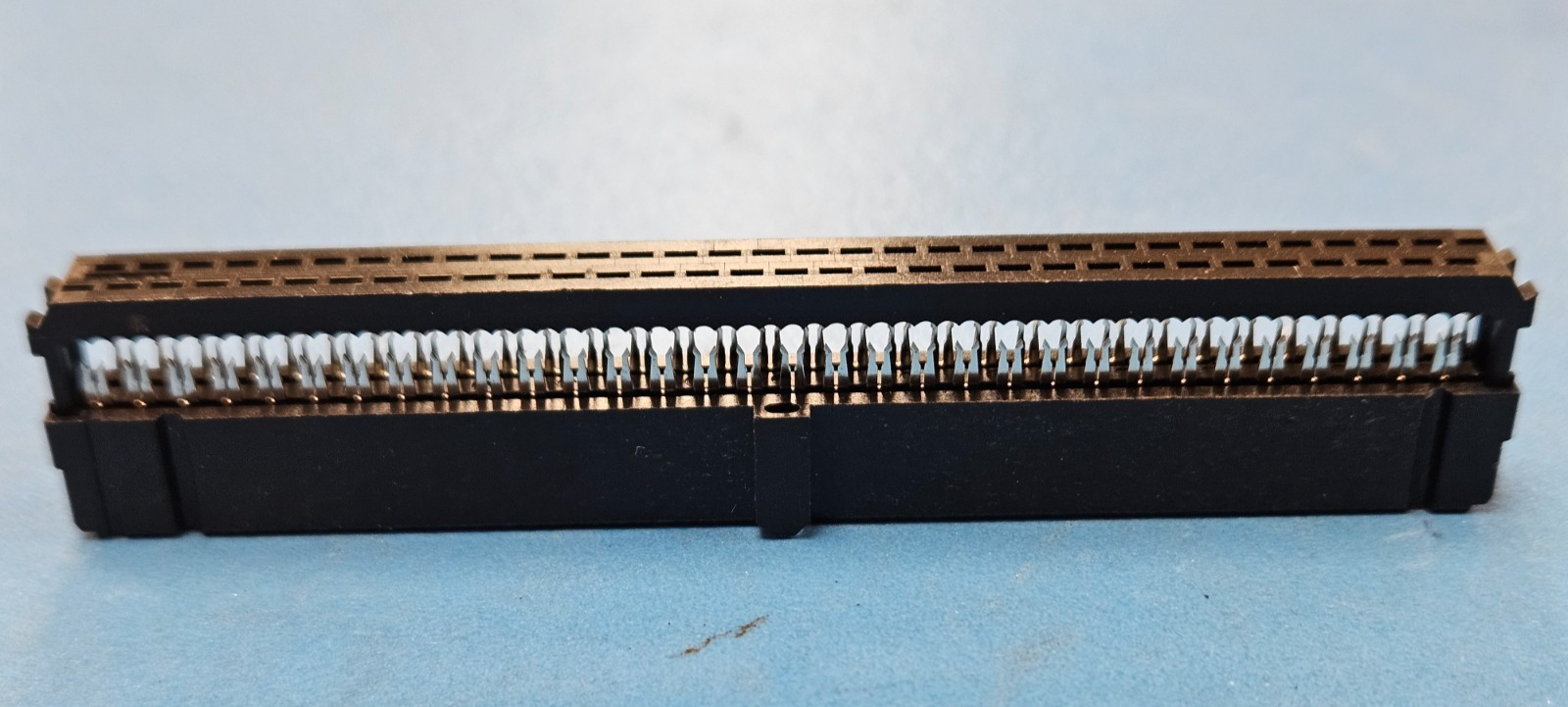

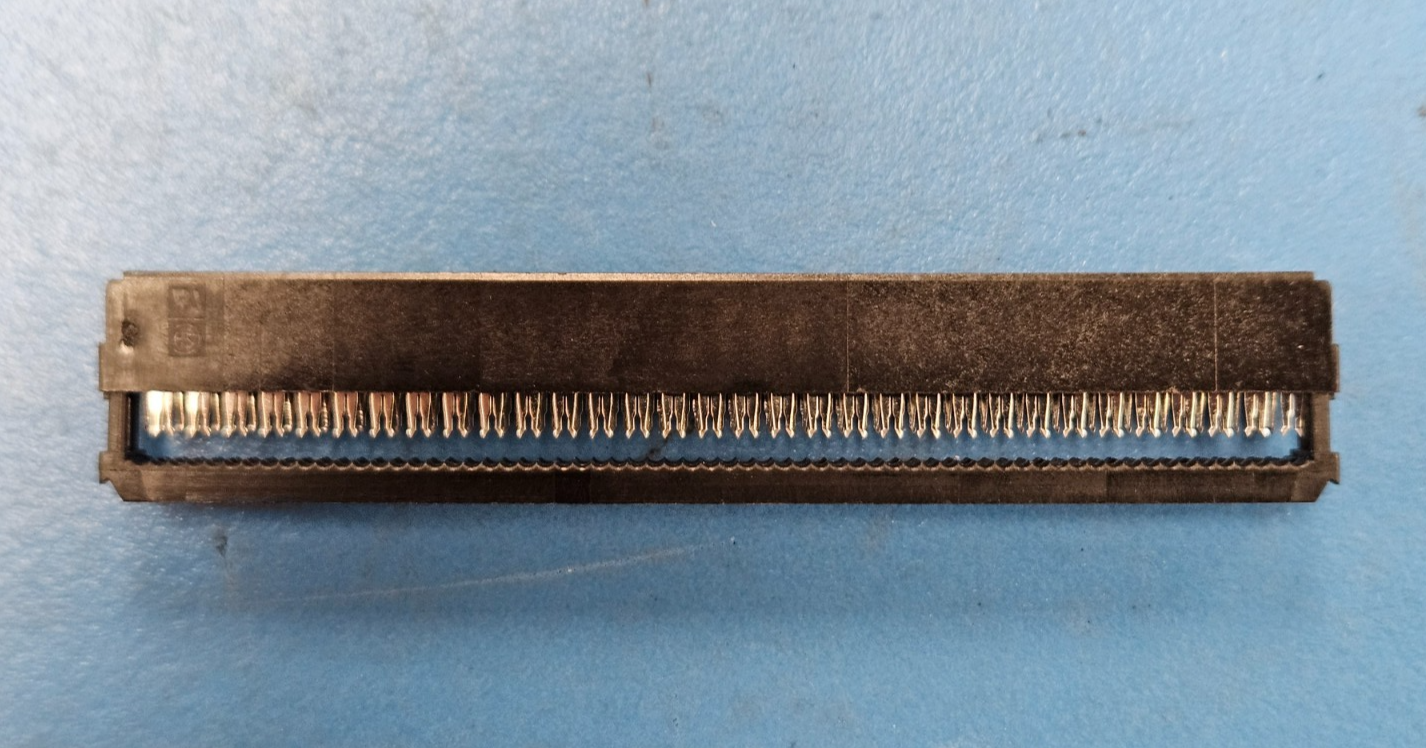

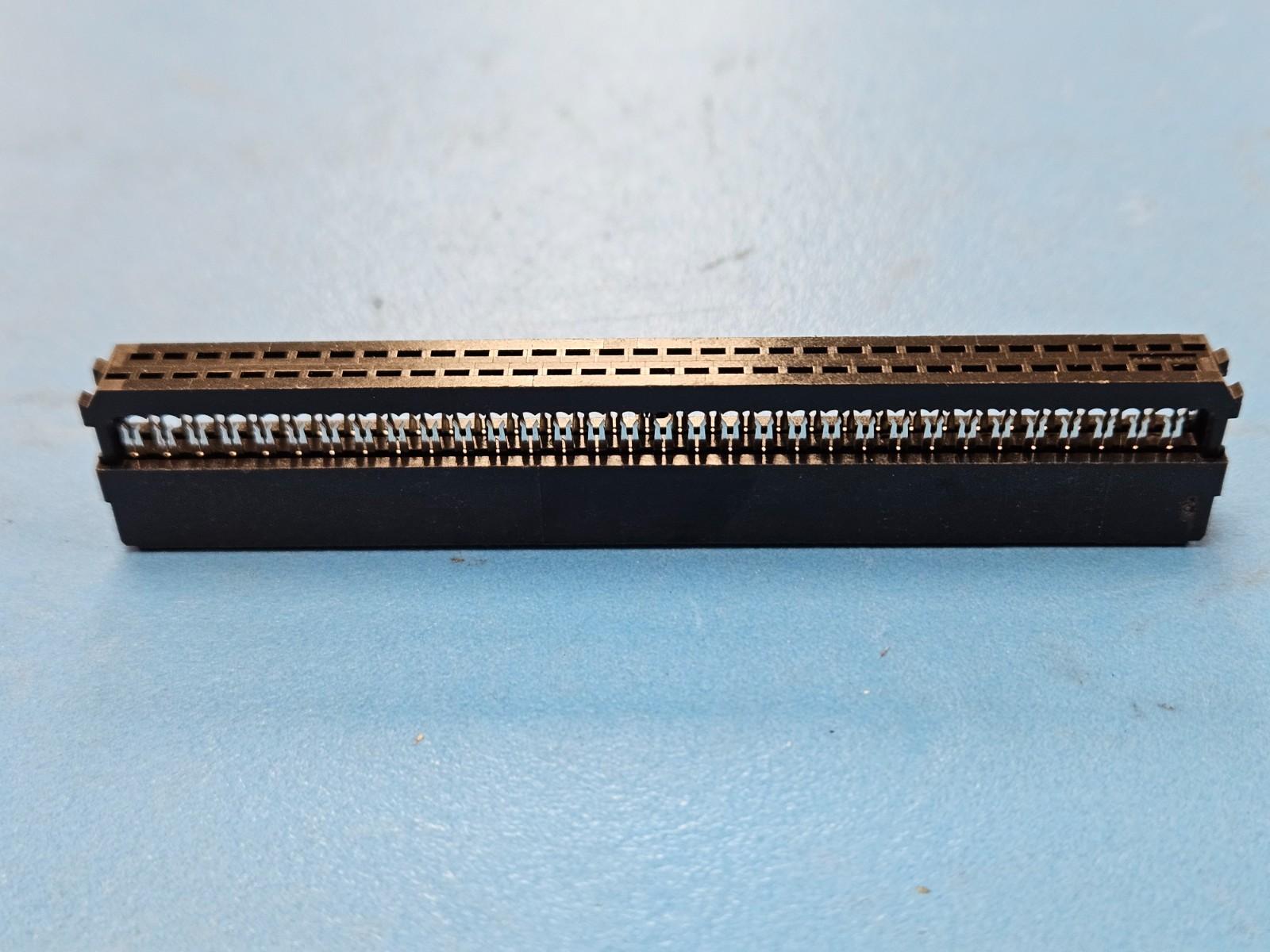

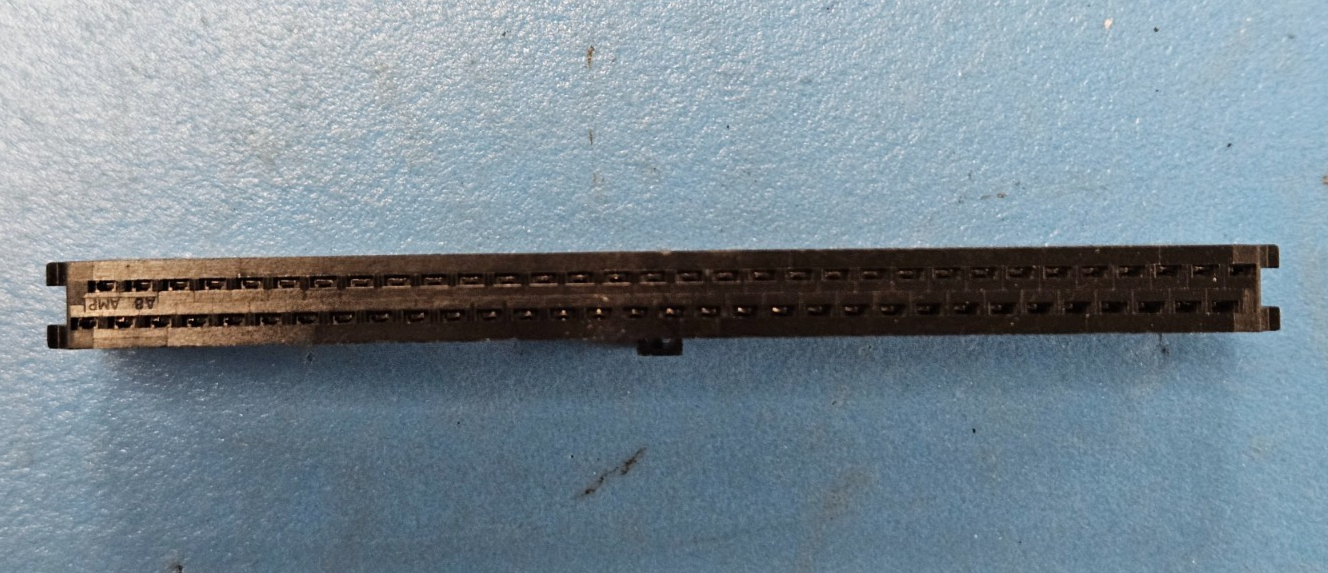

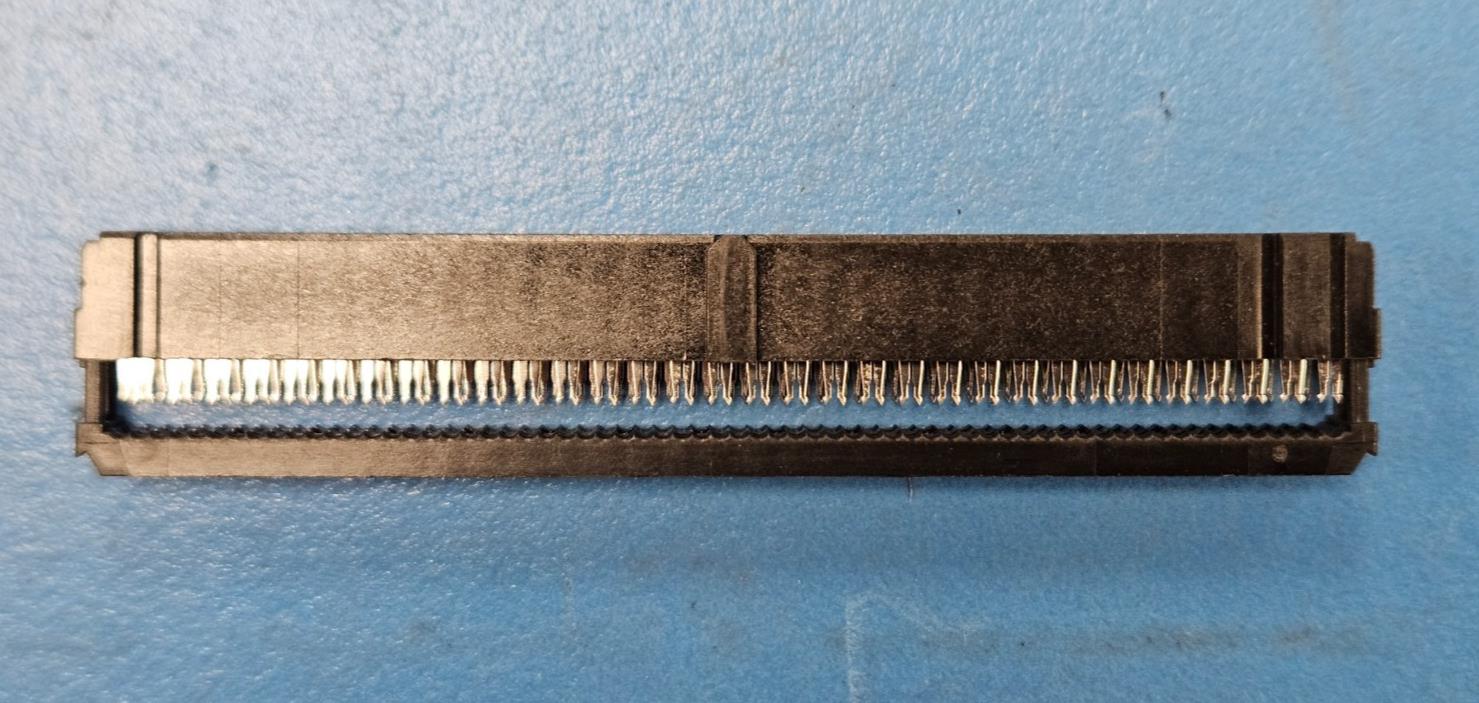

(2PCS) 1-746285-2 Board Connector, 64 Contact, 2 Row, Female, IDC Terminal
Tax included.

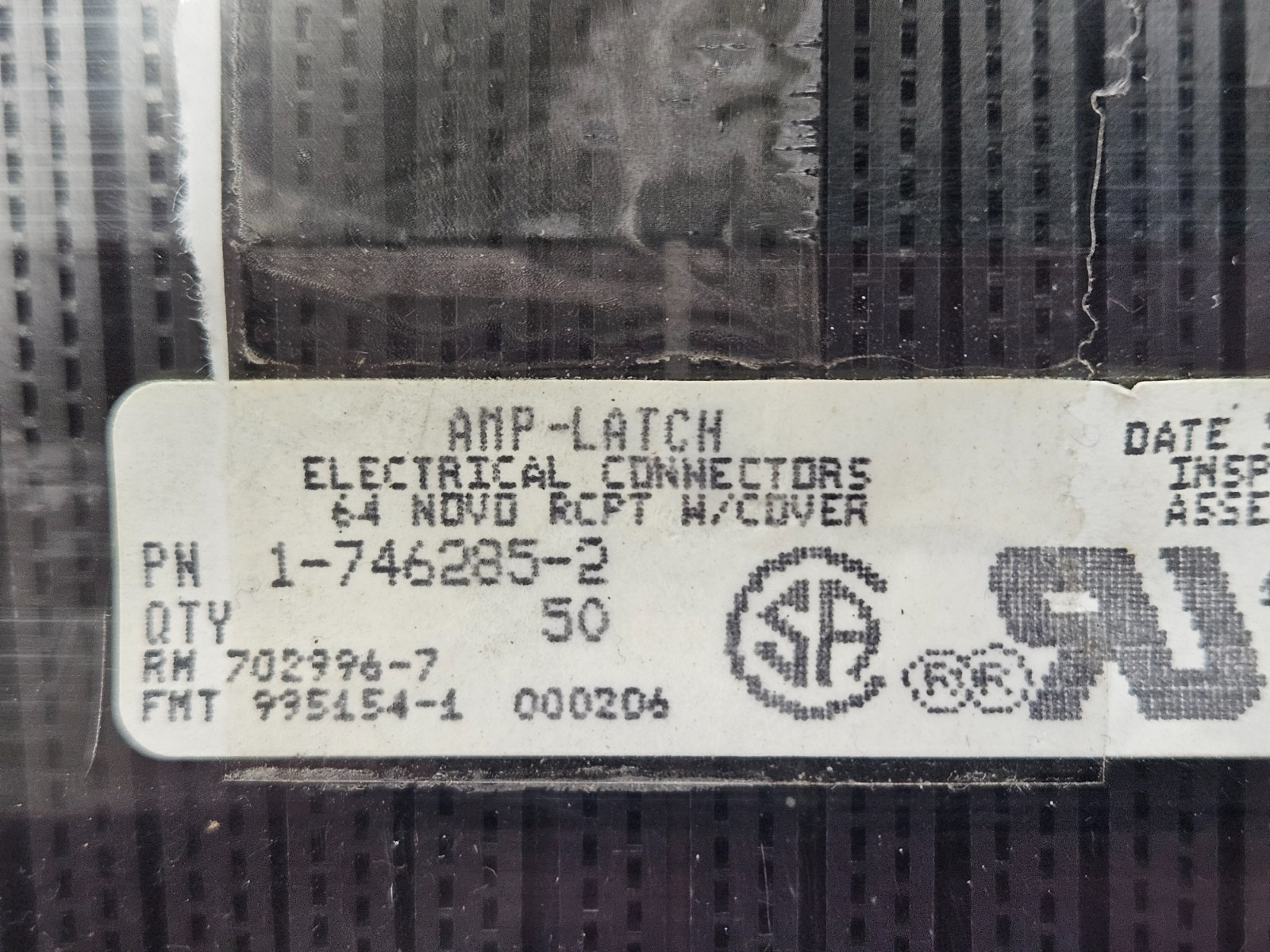

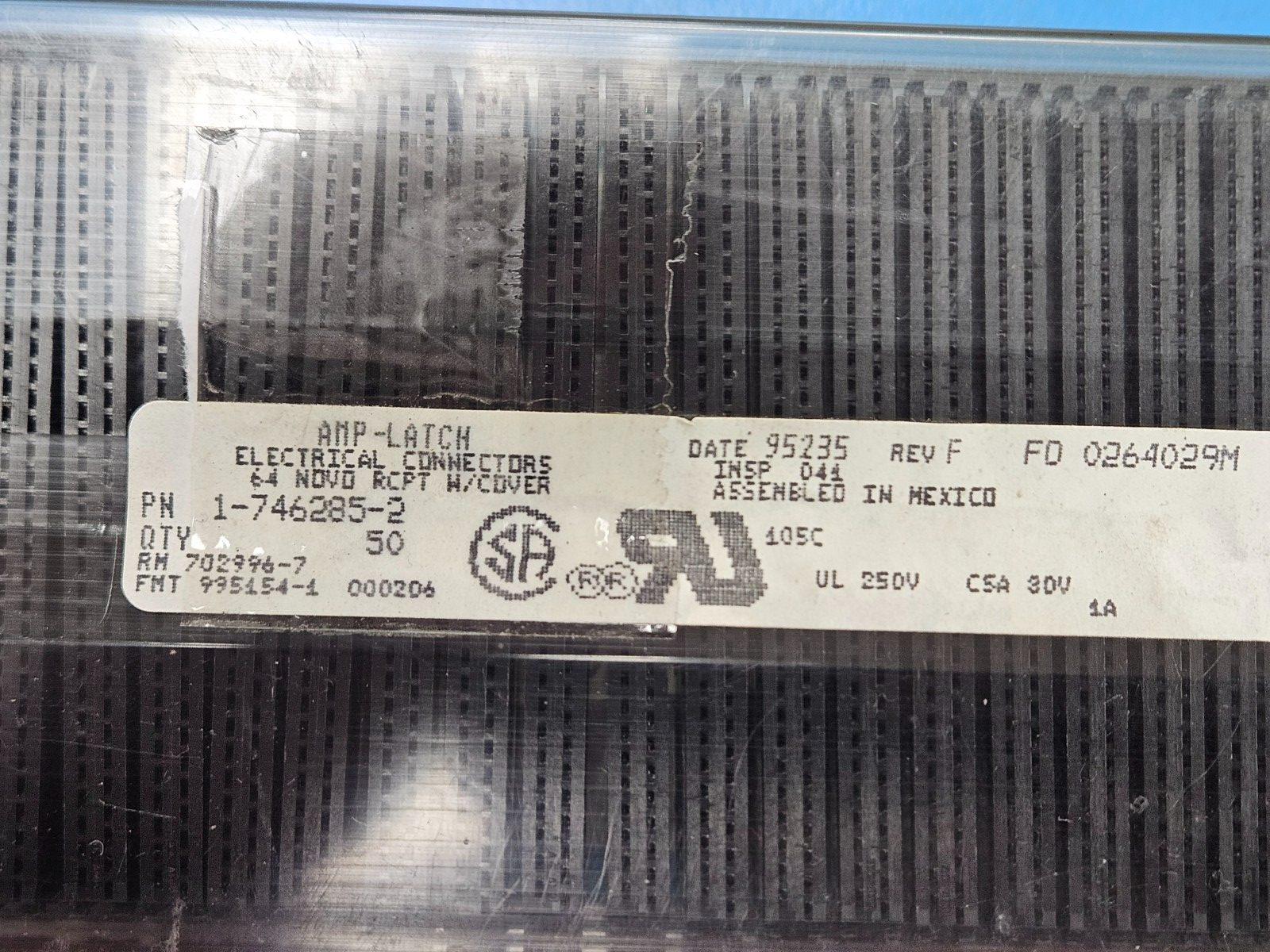

This listing is for (2PCS) of 1-746285-2 by AMP
Status Discontinued
Body Breadth (inch) 0.240000
Body Depth (inch) 0.464000
Body Length (inch) 3.380000
Body/Shell Style PLUG
Connector Type BOARD CONNECTOR
Contact Finish - Mating AU
Contact Finish - Termination NICKEL
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 2000VAC
Filter Feature NO
Insulator Color BLACK
Insulator Material POLYETHYLENE
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mixed Contacts NO
Mounting Type CABLE
Number of Connectors ONE
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -55
Plating Thickness (inch) 15u
Rated Current (Signal) (A) 1.0000000000000000
Screening Level / Reference Standard UL
Termination Type IDC
Number of Contacts 64
Wire Size-Max (AWG) 28
