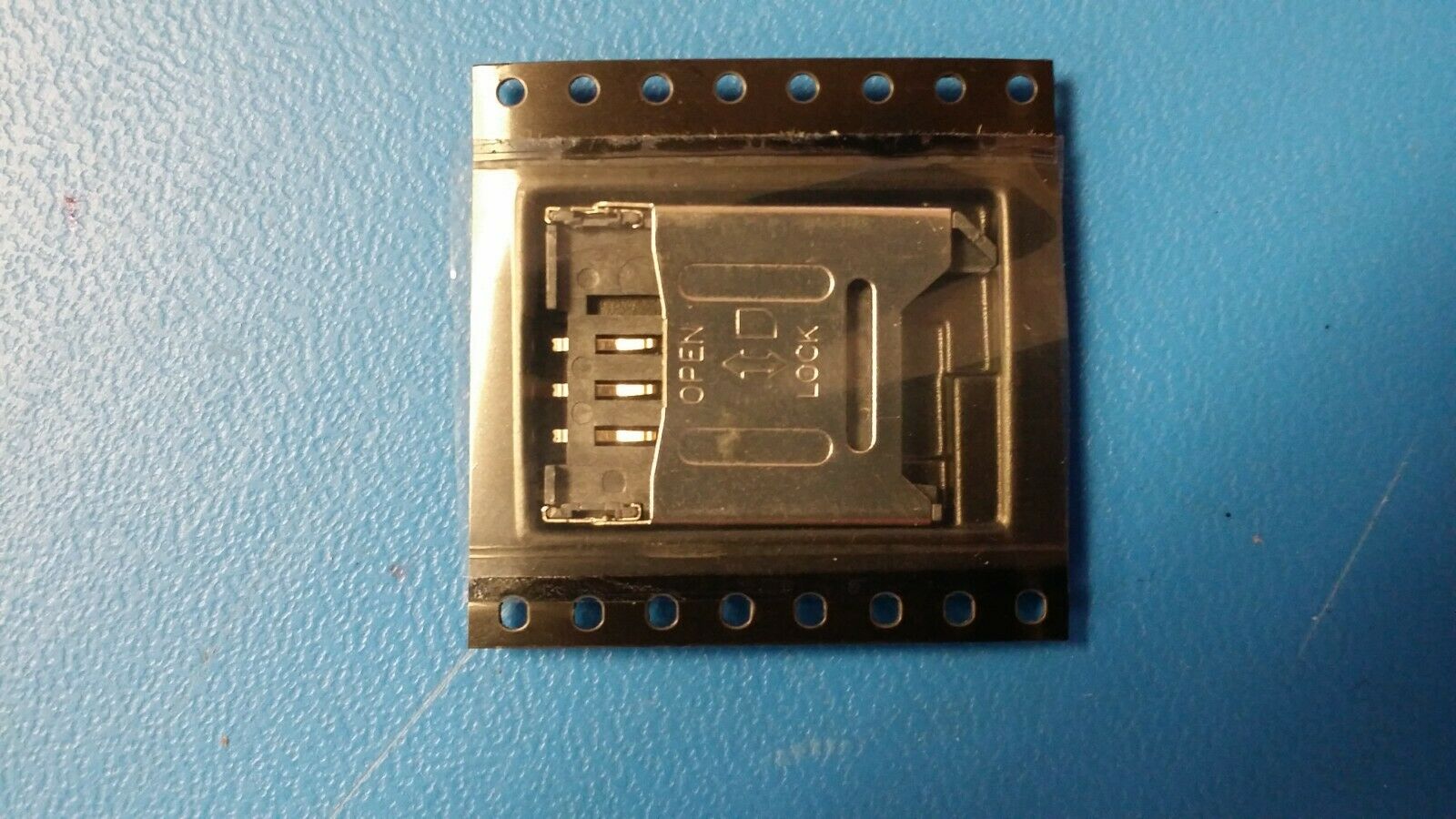

(2PC) SIM5050-6-0-18-00-A 6 Postion SMT 1.8 mm Profile HInged SIM Card Connector

Part #: SIM5050-6-0-18-00-A

Part Category: Connectors

Manufacturer: Global Connector Technology, Inc.

Description: PCMCIA Connector, 6 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

REACH Compliant Yes

EU RoHS Compliant Yes

Status Contact Mfr

Connector Type PCMCIA CONNECTOR

Body Breadth 0.071  inch

Body Depth 0.969  inch

Body Length 0.697  inch

Body/Shell Style RECEPTACLE

Contact Finish - Mating AU ON NI

Contact Finish - Termination Tin (Sn) - with Nickel (Ni) barrier

Contact Gender MALE

Contact Material PHOSPHOR BRONZE

Contact Pattern RECTANGULAR

Contact Resistance 20.0  mohm

Contact Style COMPRESSION

Durability 5000.0  Cycles

Insulation Resistance 1.0E9  ohm

Insulator Color BLACK

Insulator Material THERMOPLASTIC

JESD-609 Code e3

Manufacturer Series SIM5050

Mounting Style STRAIGHT

Mounting Type BOARD

Number Of Connectors ONE

Number Of PCB Rows 3

Number of Ports 1

Number of Rows Loaded 3

Operating Temperature-Min -25.0  Cel

PCB Contact Pattern RECTANGULAR

Rated Current (Signal) 0.5  A

Reference Standard UL

Reliability COMMERCIAL

Sub Category Headers and Edge Type Connectors

Terminal Pitch 2.54  mm

Total Number of Contacts 6

Additional Feature ROHS COMPLIANT
