(2PC) MAX333CPP Maxim SPDT, 4 Func, 1 Channel, CMOS, PDIP20
Tax included.

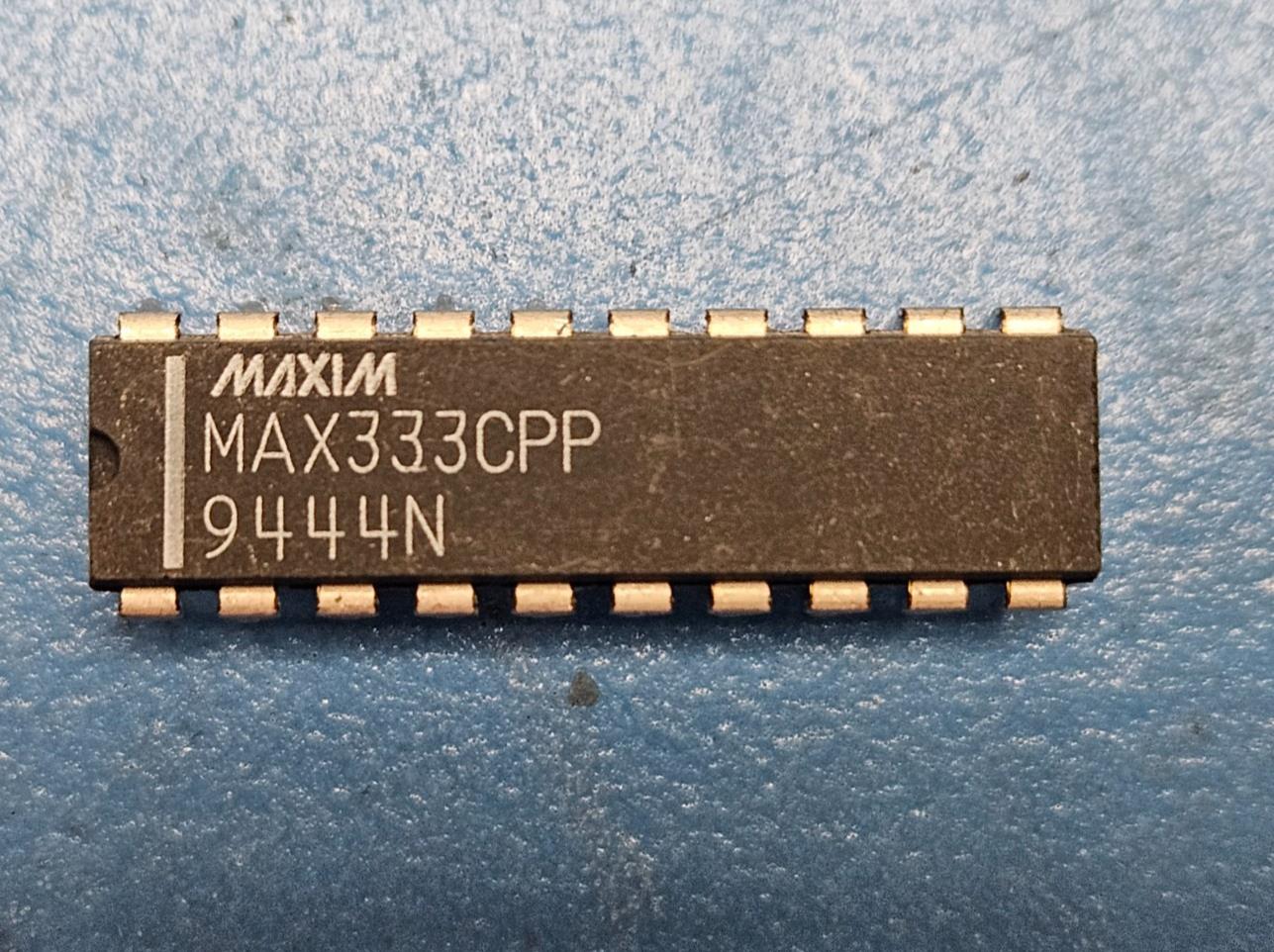

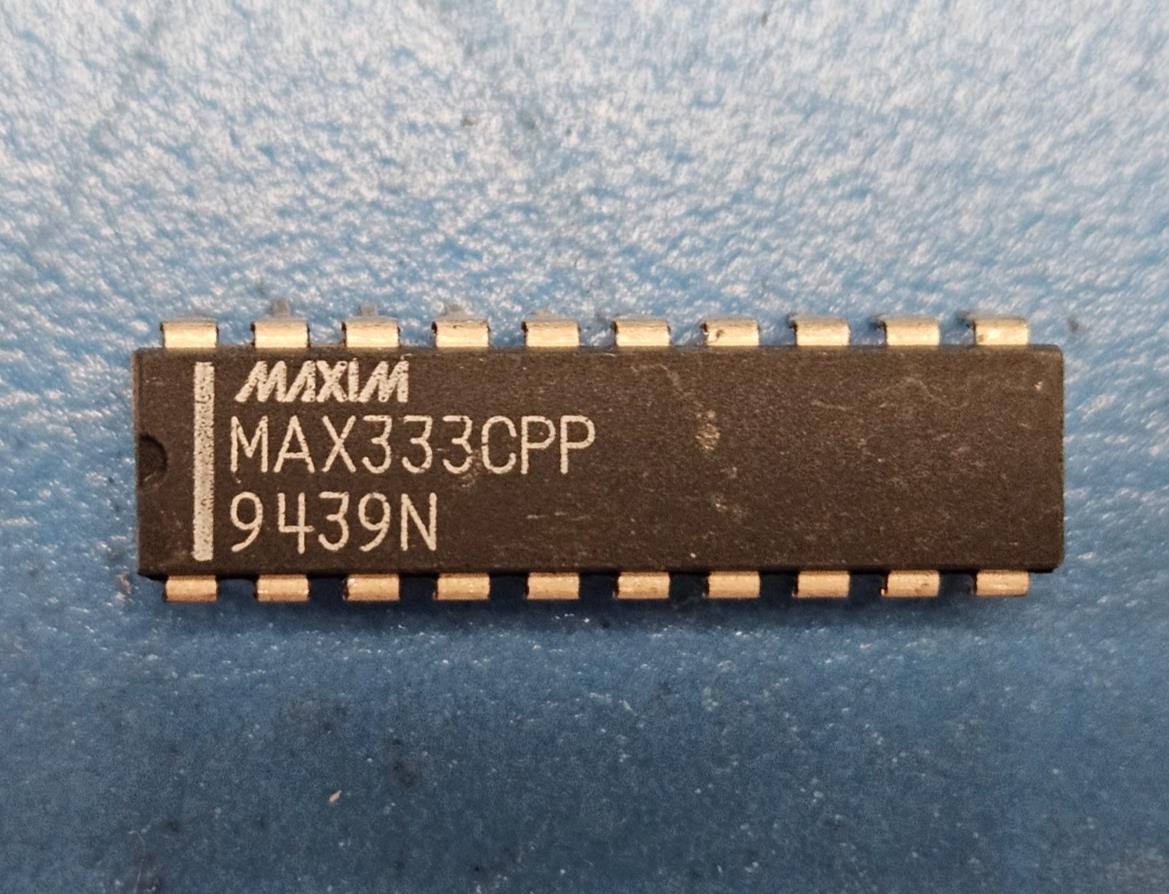

This listing is for (2PC) of MAX333CPP by Maxim
Mfr Package Description PLASTIC, DIP-20
REACH Compliant Yes
Status Discontinued
Analog IC - Other Type SPDT
JESD-30 Code R-PDIP-T20
JESD-609 Code e0
Moisture Sensitivity Level 1
Neg Supply Voltage-Nom (Vsup) -15.0 V
Neg Supply Voltage-Min (Vsup) -5.0 V
Neg Supply Voltage-Max (Vsup) -18.0 V
Number of Channels 1
Number of Functions 4
Number of Terminals 20
Off-state Isolation-Nom 72.0 dB
On-state Resistance-Max (Ron) 175.0 ohm
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 4.572 mm
Sub Category Multiplexer or Switches
Supply Voltage-Nom (Vsup) 15.0 V
Supply Voltage-Min (Vsup) 5.0 V
Supply Voltage-Max (Vsup) 18.0 V
Surface Mount NO
Switch-off Time-Max 500.0 ns
Switch-on Time-Max 1000.0 ns
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
