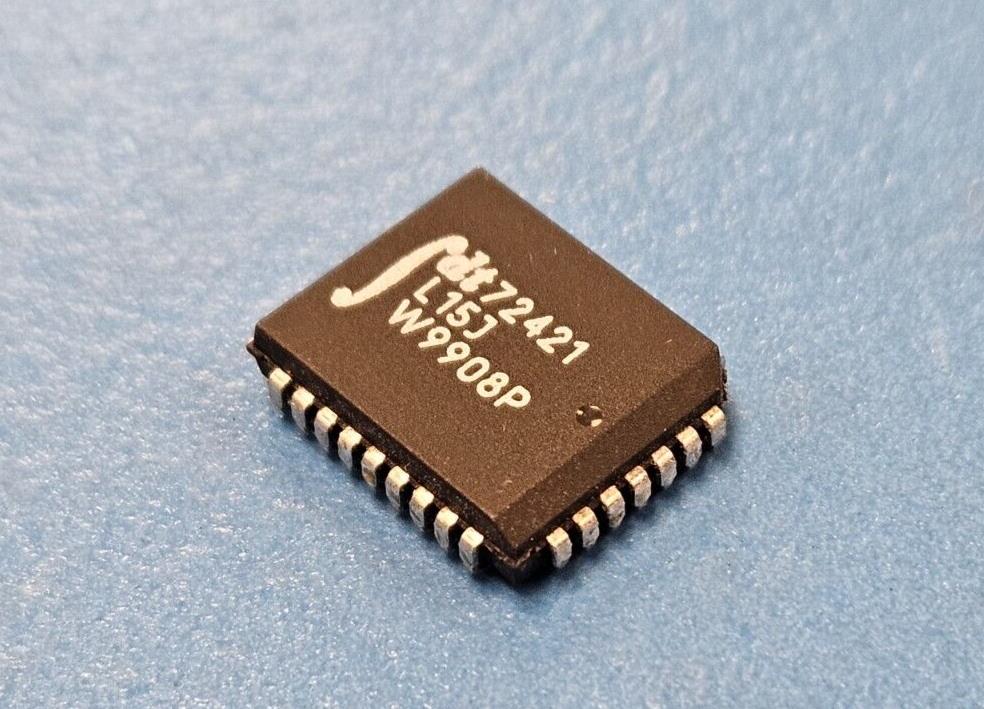

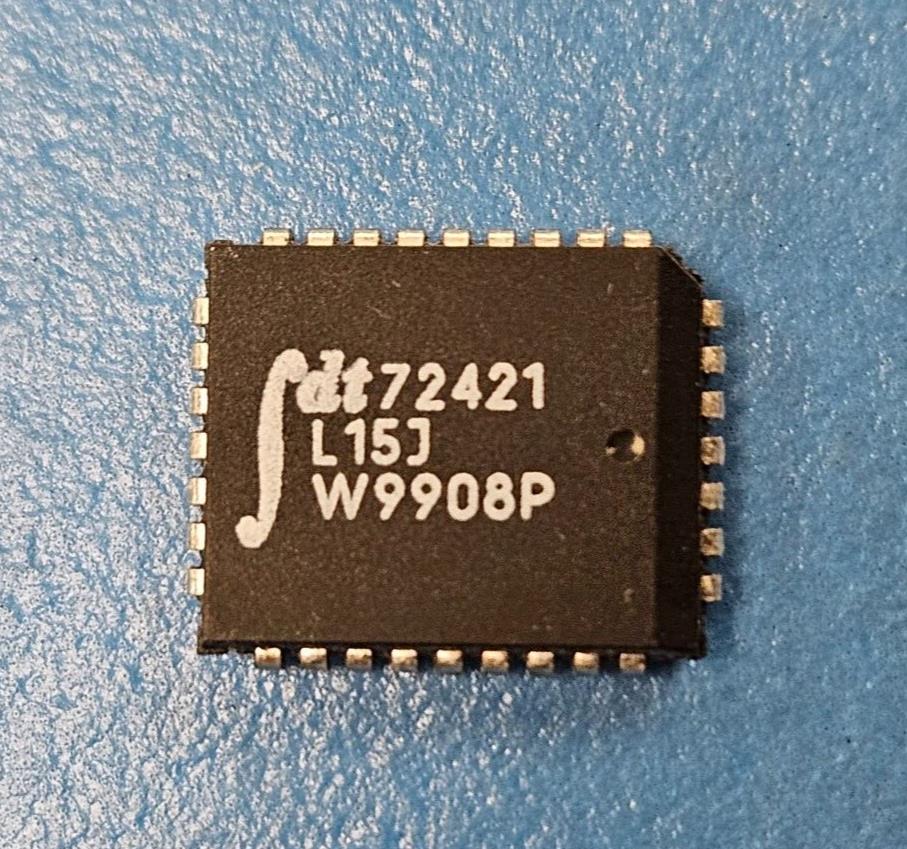

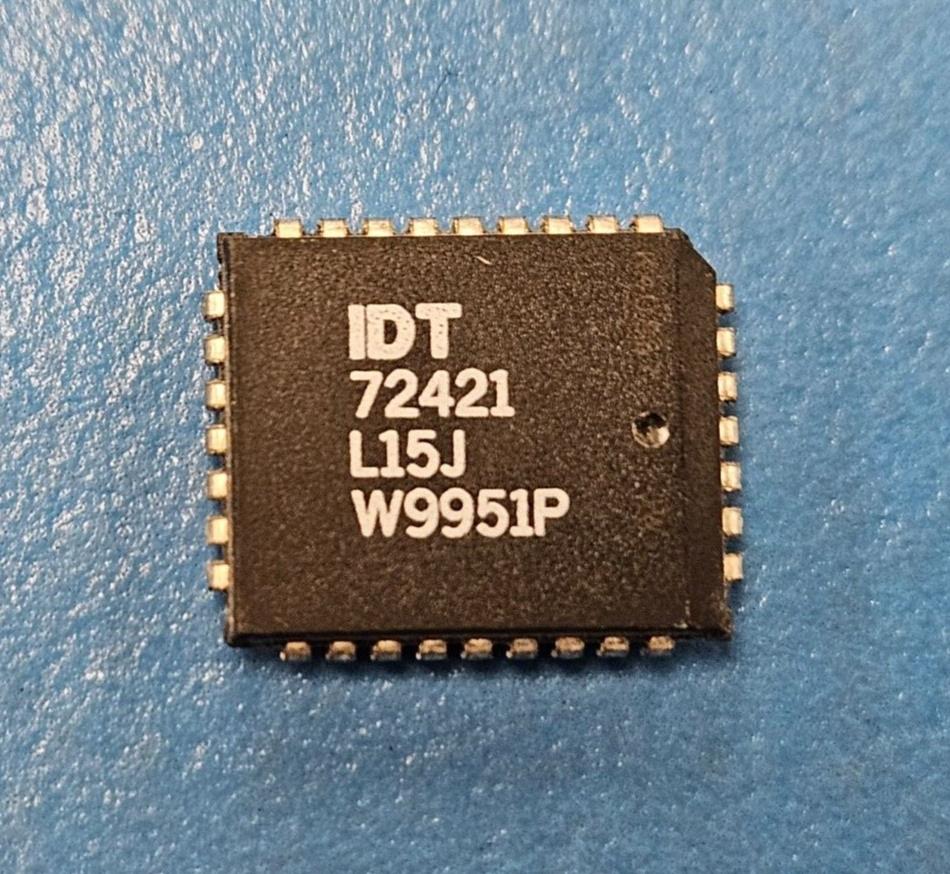

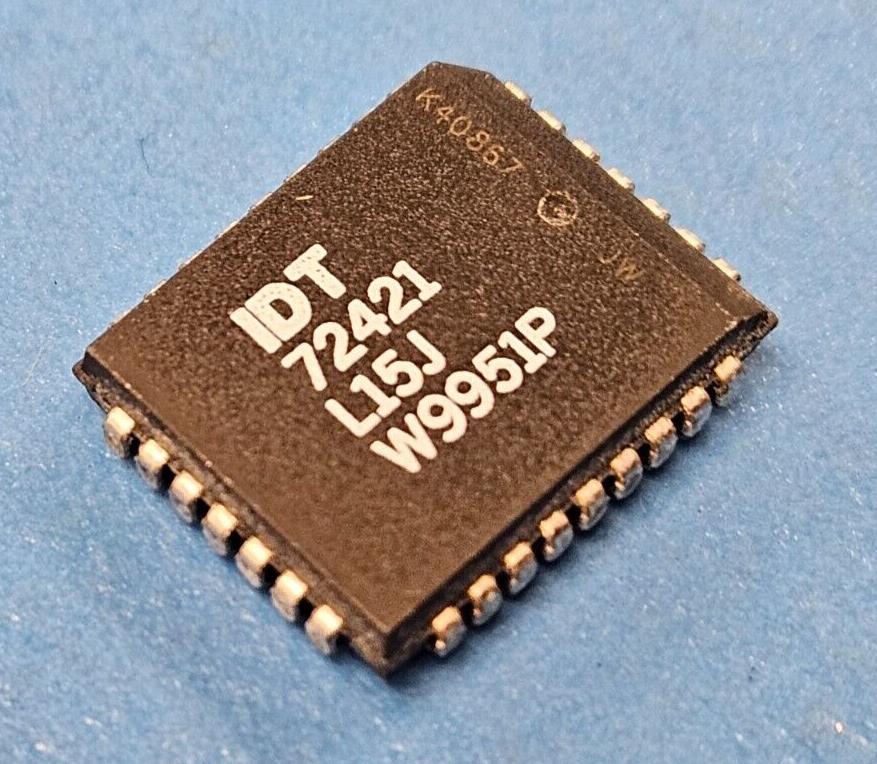

(2PC) IDT72421L15J FIFO, 64X9, 10ns, Synchronous, CMOS, PLCC32
Tax included.
This listing is for (2PCS) of IDT72421L15J by IDT
Mfr Package Description PLASTIC, LCC-32
Status Discontinued
Sub Category FIFOs
Access Time-Max 10.0 ns
Clock Frequency-Max (fCLK) 66.7 MHz
Cycle Time 15.0 ns
JESD-30 Code R-PQCC-J32
JESD-609 Code e0
Memory Density 576.0 bit
Memory IC Type OTHER FIFO
Memory Width 9
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 32
Number of Words 64.0 words
Number of Words Code 64
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 64X9
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Seated Height-Max 3.556 mm
Standby Current-Max 0.08 Amp
Supply Current-Max 0.08 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 13.9954 mm
Width 11.4554 mm
