(2PC) EPM3064ATC100-10 CPLD 1.25K Gates 64 Macro Cells 100MHz 3.3V TQFP100
Tax included.

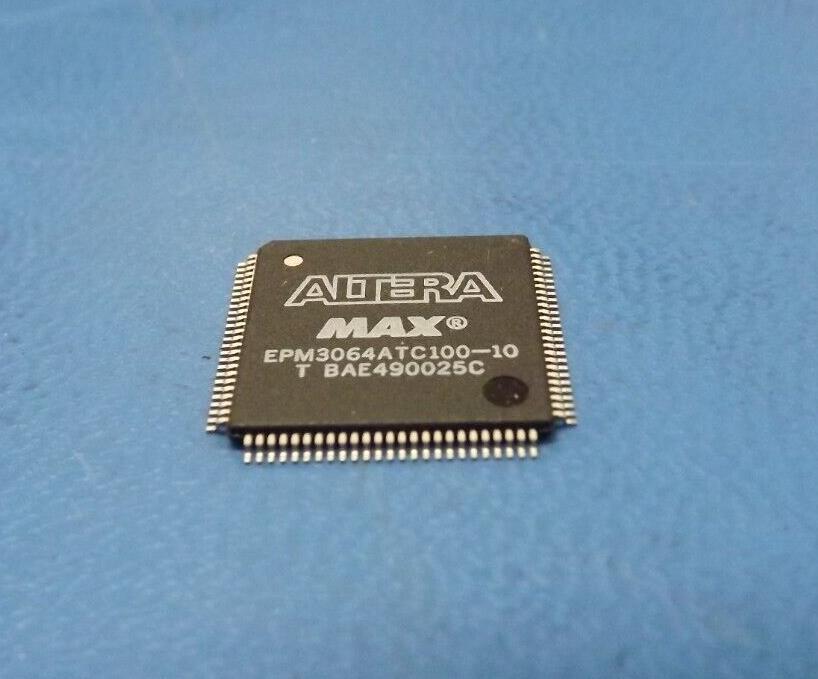

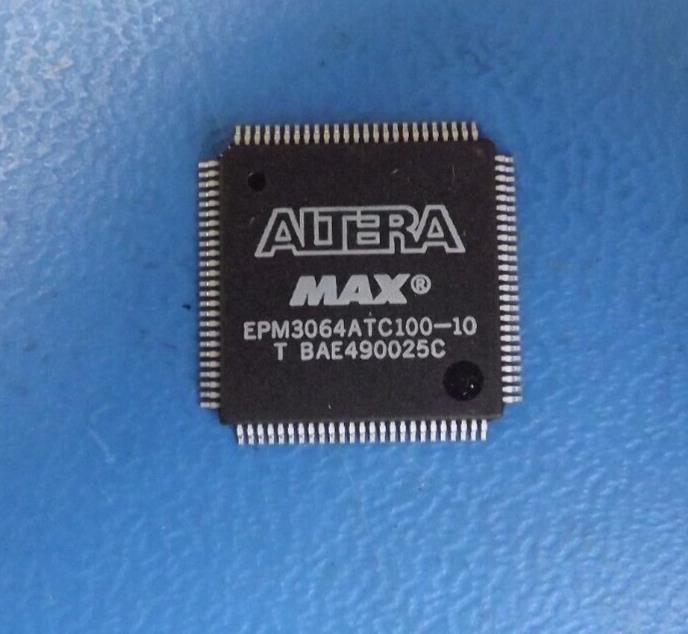

THIS LISTING IS FOR (2PCS) OF EPM3064ATC100-10 BY ALTERA
Mfr Package Description TQFP-100
Status Transferred
Programmable Logic Type EE PLD
Clock Frequency-Max 100.0 MHz
In-System Programmable YES
JESD-30 Code S-PQFP-G100
JESD-609 Code e0
JTAG BST YES
Moisture Sensitivity Level 3
Number of Dedicated Inputs 0.0
Number of I/O Lines 66.0
Number of Macro Cells 64.0
Number of Terminals 100
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 0 DEDICATED INPUTS, 66 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code TQFP100,.63SQ
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 235
Power Supplies 2.5/3.3,3.3
Propagation Delay 10.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.27 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 14.0 mm
Width 14.0 mm
Additional Feature YES
