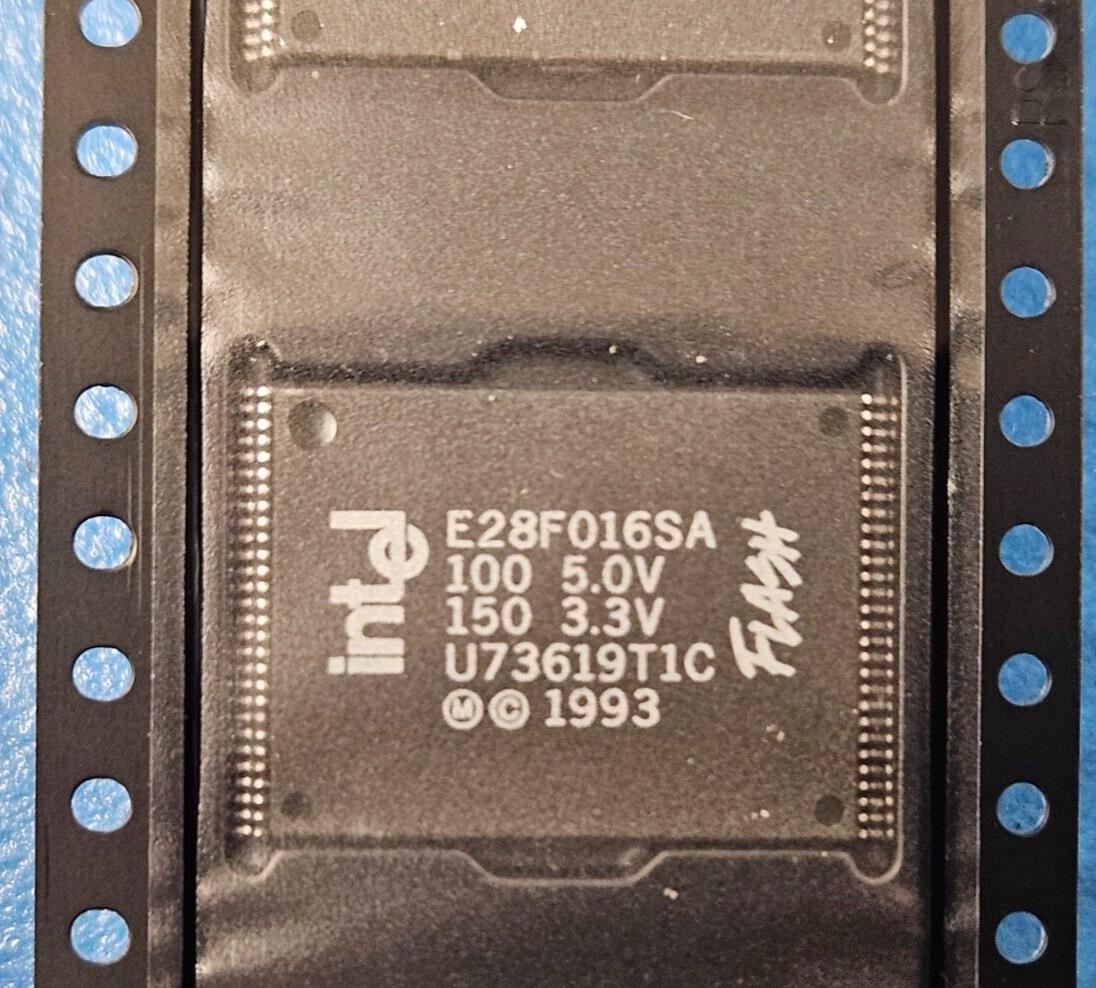

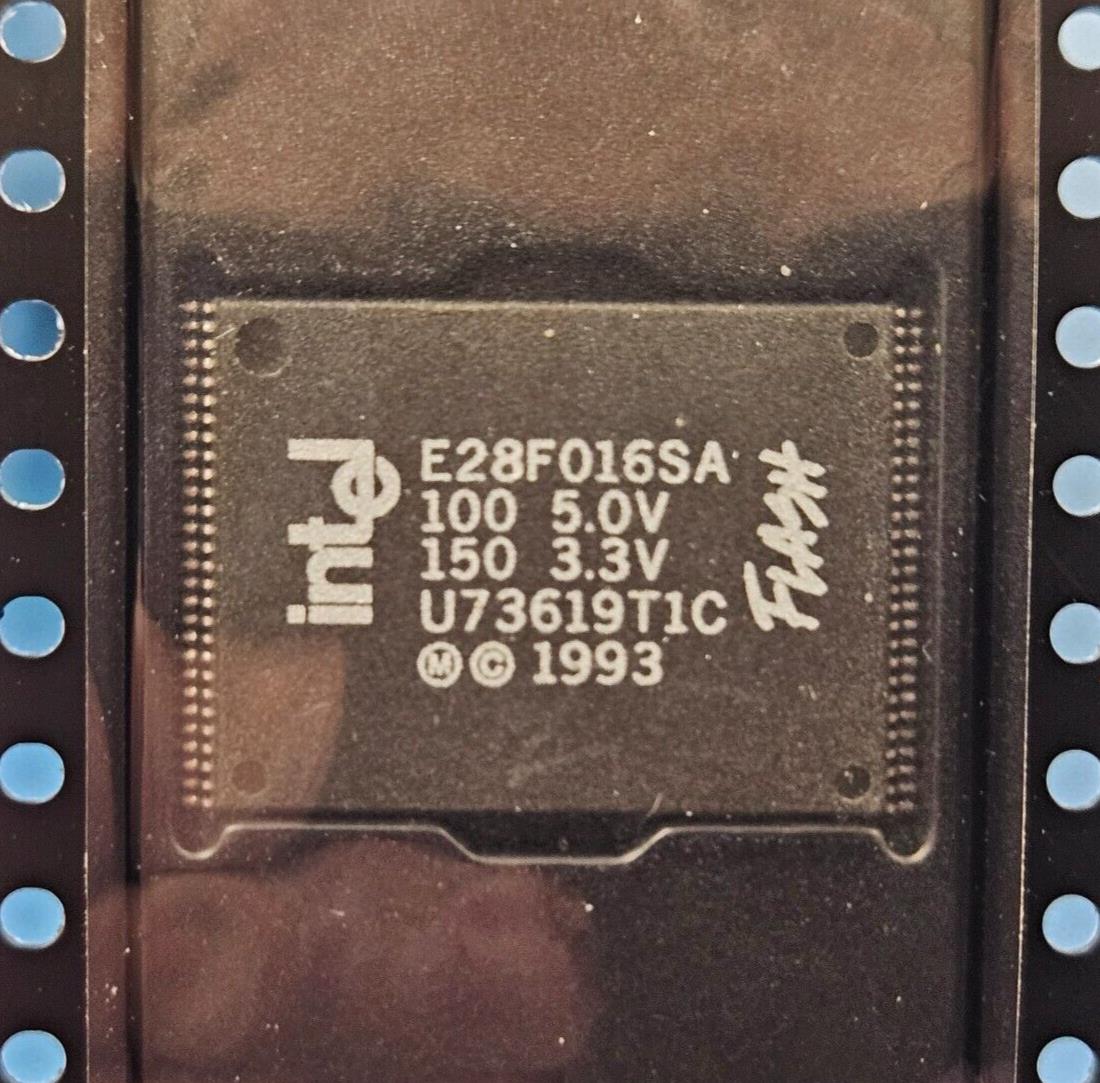

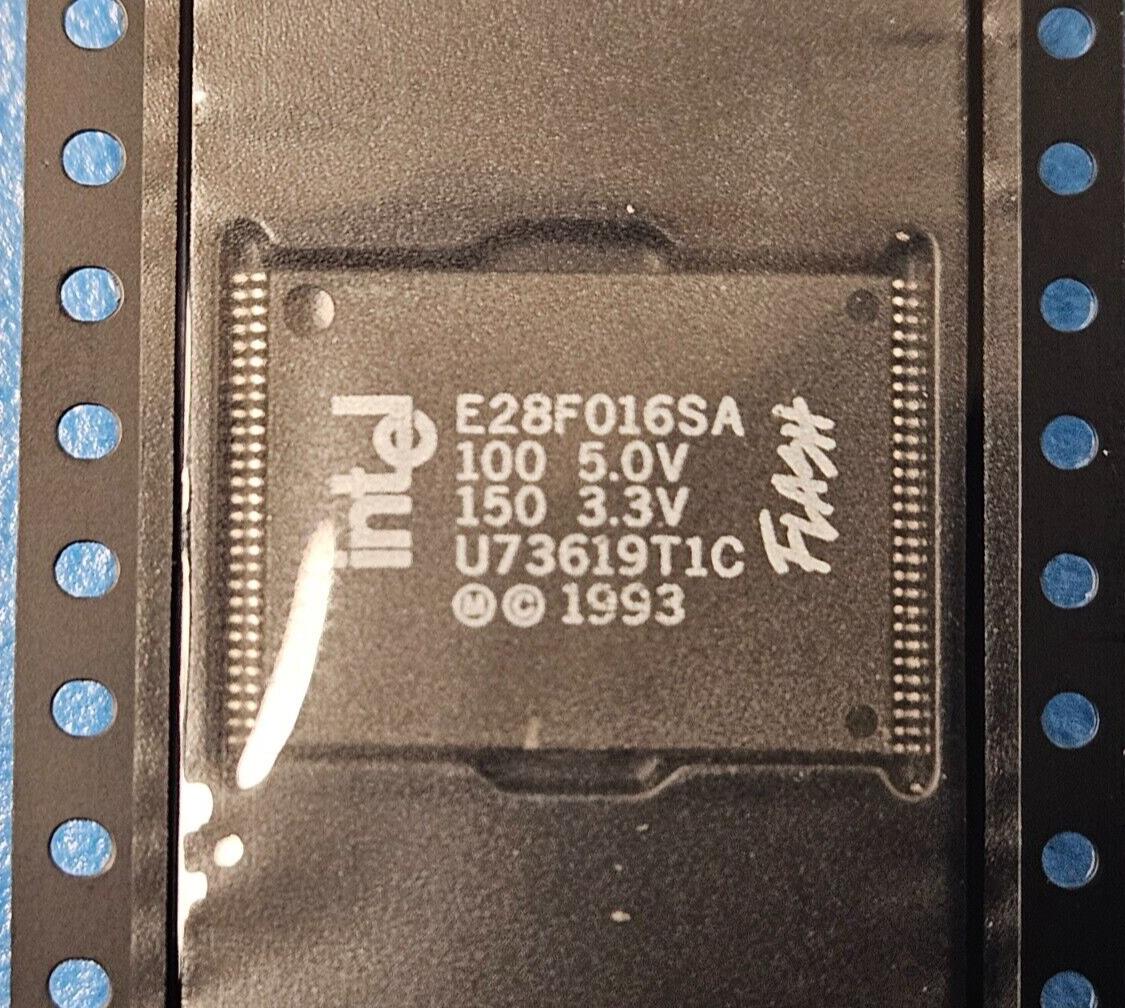

(2PC) E28F016SA (100 5.0V) (150 3.3V) INTEL Flash, 1MX16, 100ns, TSOP-56
Tax included.
This listing is for (2PCS) of E28F016SA by Intel
Mfr Package Description 20 X 14 MM, 1.20 MM HEIGHT, TSOP1-56
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 100.0 ns
Command User Interface YES
Data Polling NO
JESD-30 Code R-PDSO-G56
Memory Density 1.6777216E7 bit
Memory IC Type FLASH
Memory Width 16
Alternate Memory Width 8.0
Number of Functions 1
Number of Sectors/Size 32
Number of Terminals 56
Number of Words 1048576.0 words
Number of Words Code 1M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 1MX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP56,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Ready/Busy YES
Seated Height-Max 1.2 mm
Standby Current-Max 5.0E-6 Amp
Supply Current-Max 0.06 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology MOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Toggle Bit NO
Length 18.4 mm
Width 14.0 mm
Additional Feature ALSO CAN BE CONFIGURED AS 1M X 16
