(2PC) AM29LV400BT-70EC AMD Flash, 256KX16, 70ns, PDSO48 **Program Stamps**
Tax included.

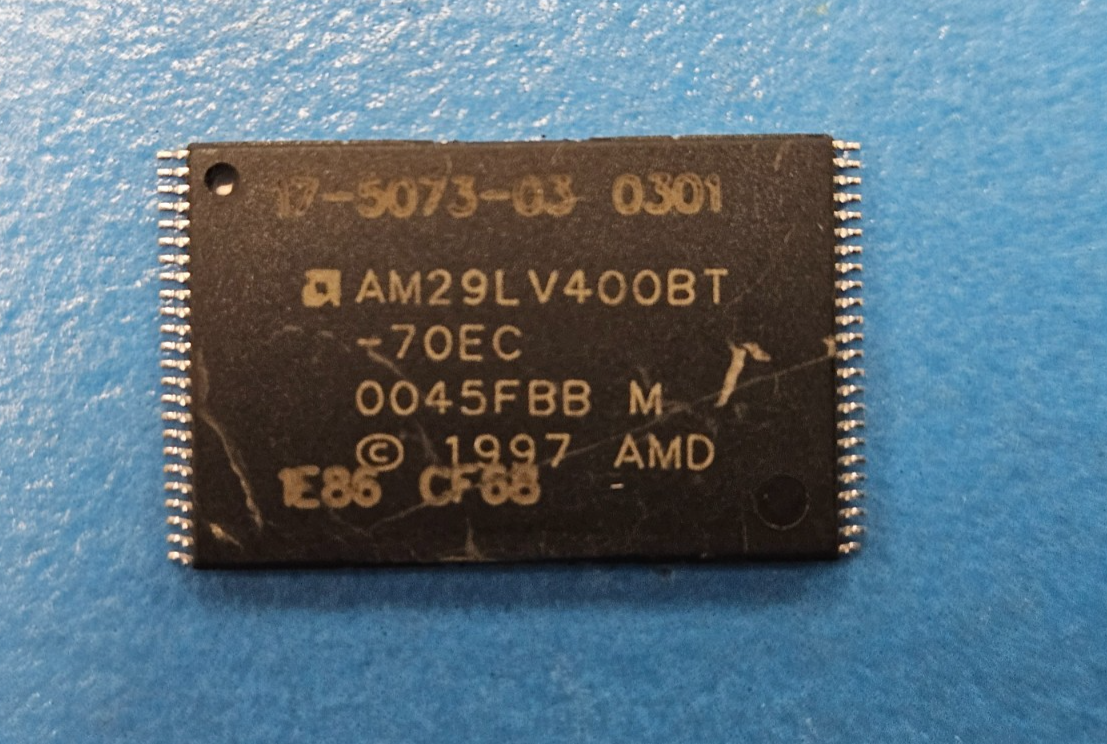

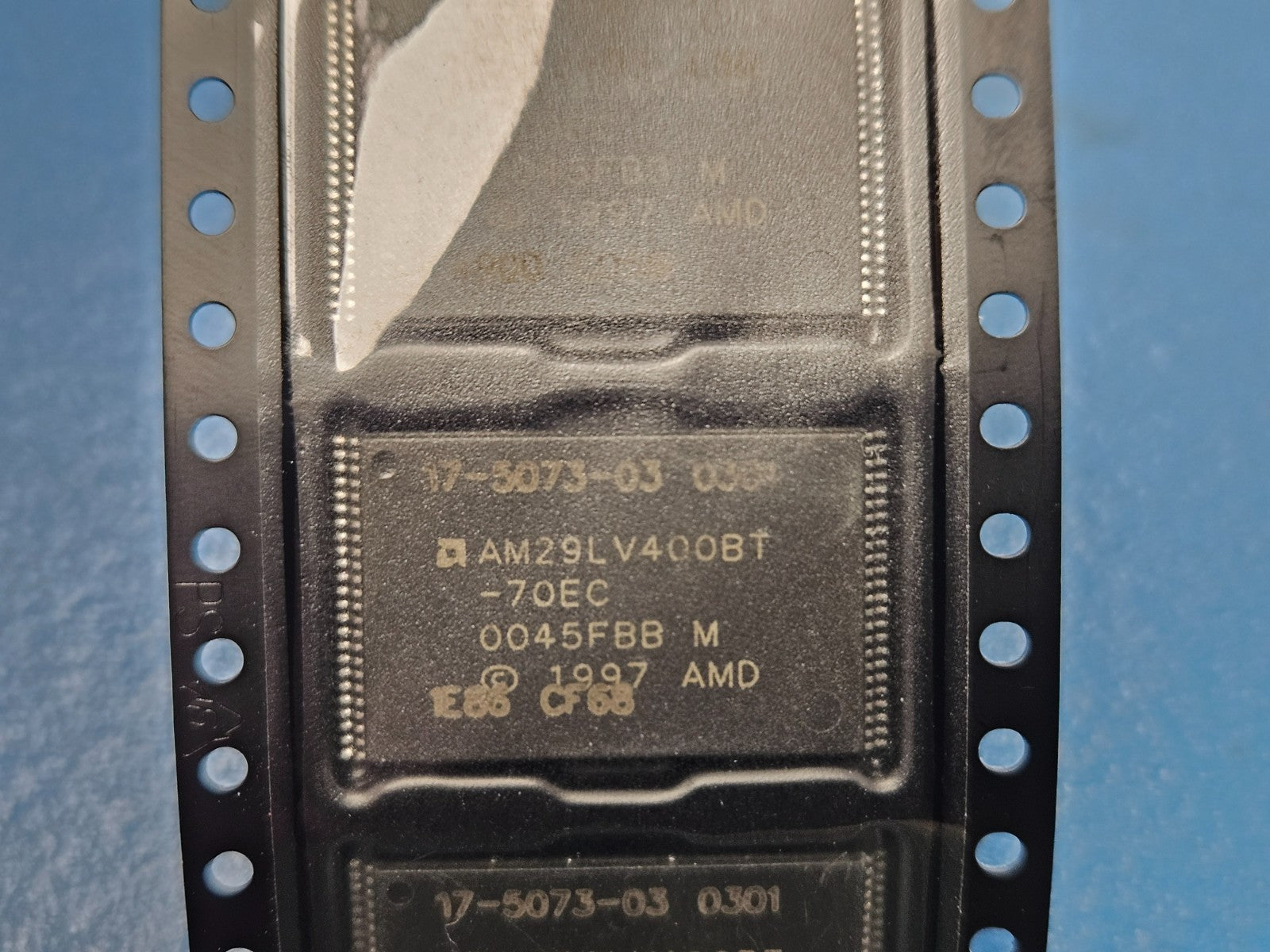

This listing is for (2PCS) of AM29LV400BT-70EC by AMD
Access Time-Max (ns) 70.0000000000000000
Additional Feature MINIMUM 1000K WRITE CYCLES; 20 YEAR DATA RETENTION; CAN ALSO BE CONFIGURED AS 256K X 16
Alternate Memory Width 8
Boot Block TOP
Command User Interface YES
Data Polling YES
Data Retention Time-Min 20
Endurance (Write/Erase Cycles) 1000000.000000000000000
JESD-30 Code R-PDSO-G48
J-STD-609 Code e0
Length (mm) 18.4000
Memory Density (bits) 4194304.0000000000000000
Memory IC Type FLASH
Memory Width 16
Number of Functions 1
Number of Sectors/Size 1,2,1,7
Number of Terminals 48
Number of Words (words) 262144.0000000000000000
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 256KX16
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP48,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Programming Voltage (V) 3
DLA Qualification Not Qualified
Ready/Busy YES
Seated Height-Max (mm) 1.2000
Sector Size (words) 16K,8K,32K,64K
Standby Current-Max (A) 0.000005000000000
Supply Current-Max (mA) 30.000000000000000
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 2.70000
Supply Voltage-Nom (V) 3
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position DUAL
Toggle Bit YES
Type NOR TYPE
Width (mm) 12.0000
