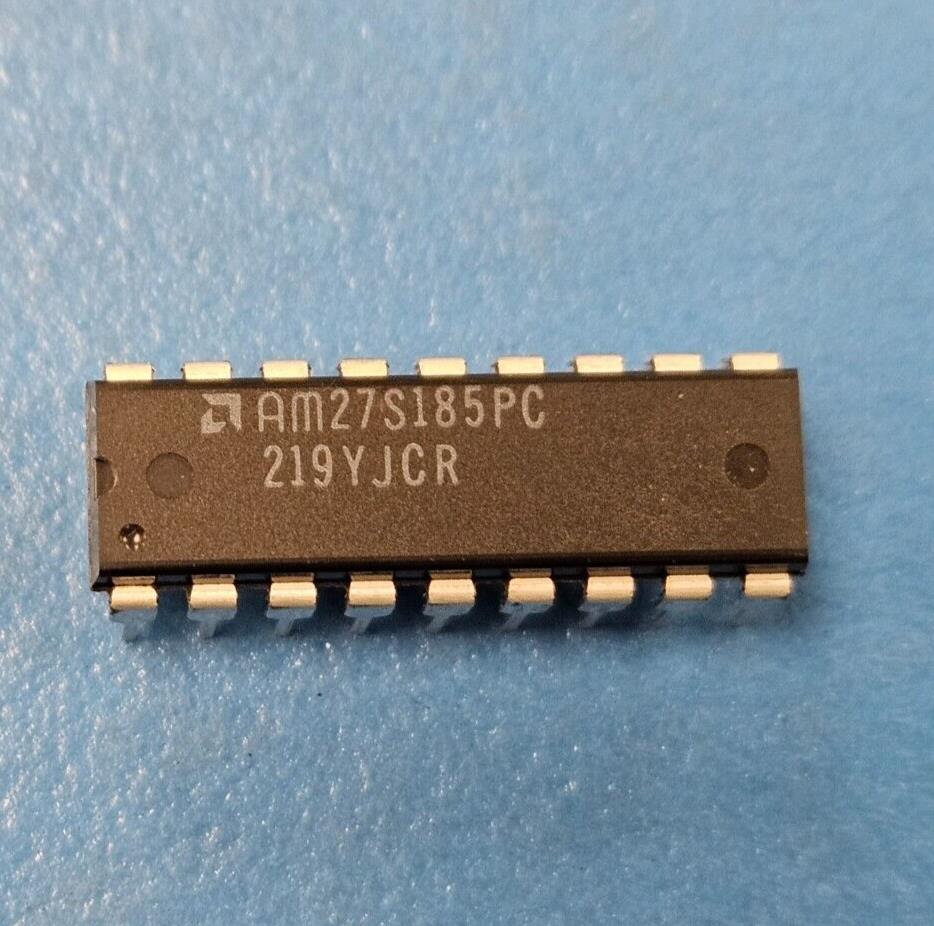

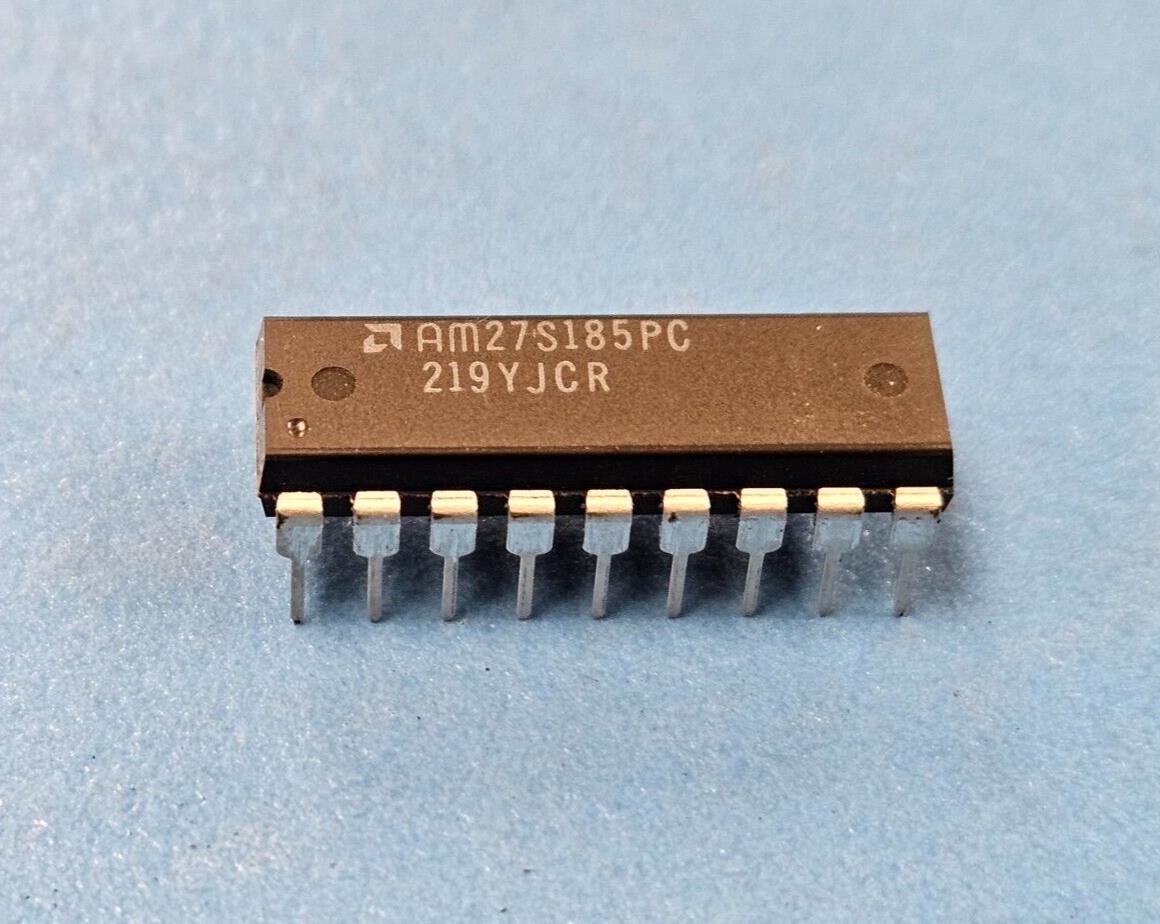

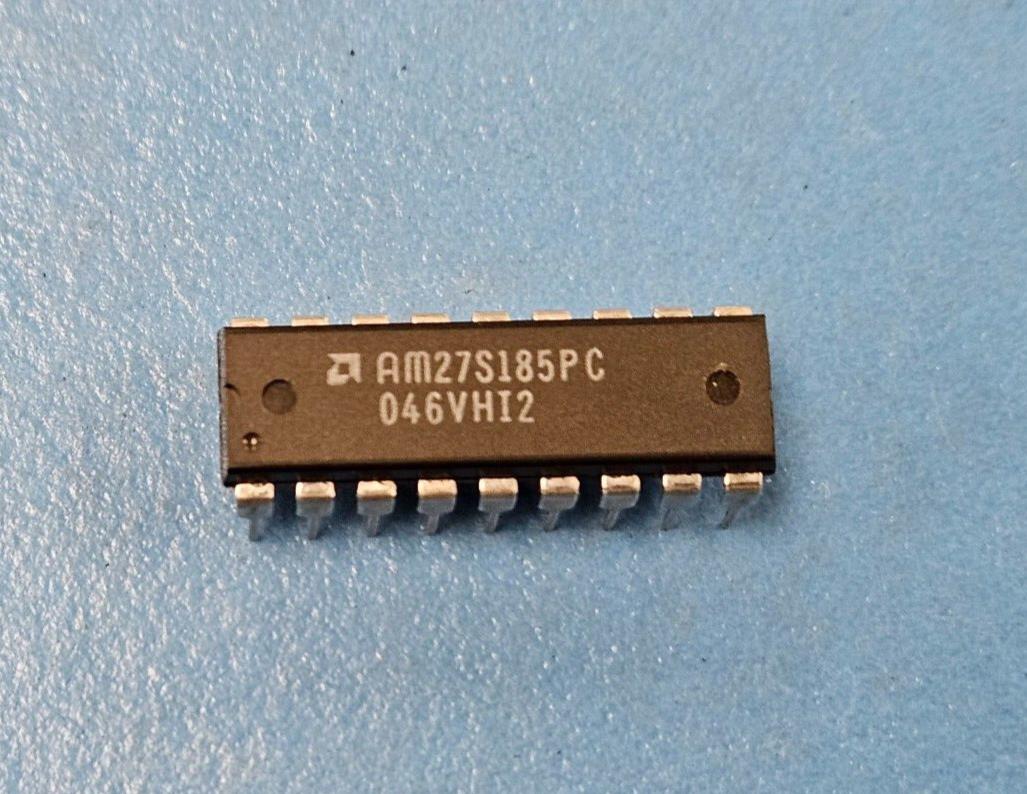

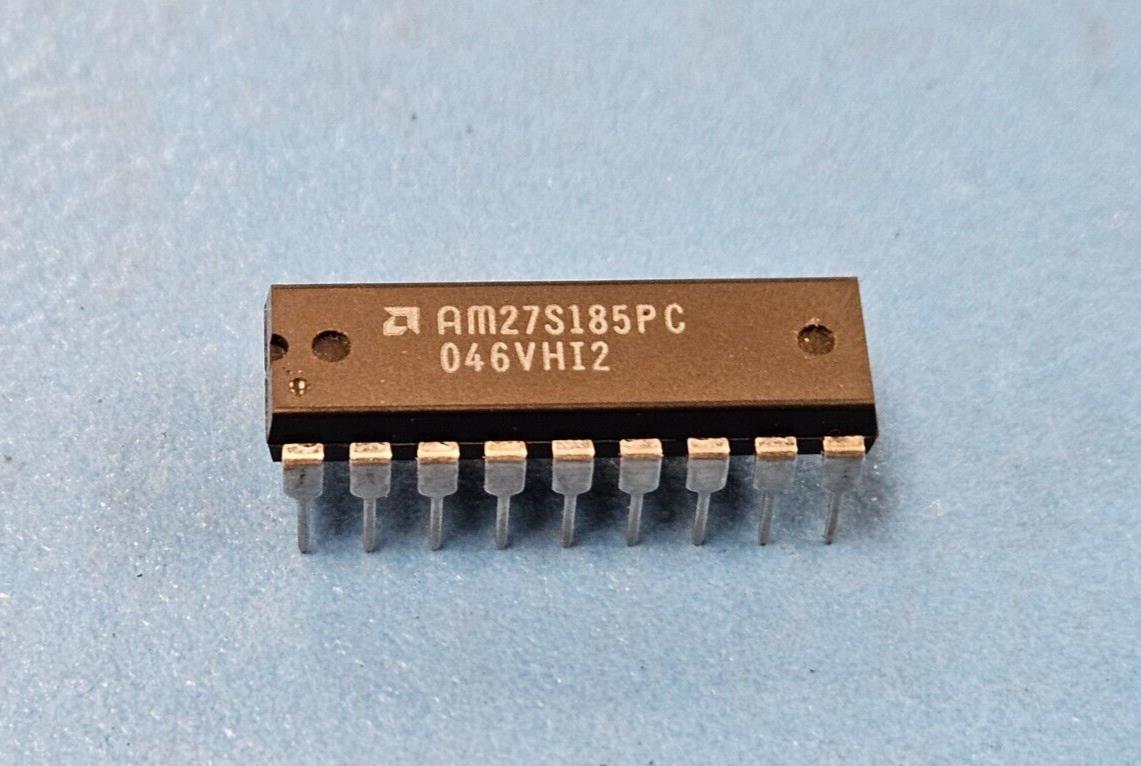

(2PC) AM27S185PC AMD OTP ROM, 2KX4, 50ns, Bipolar, PDIP18
Tax included.
This listing is for (2pcs) of AM27S185PC by AMD
Mfr Package Description PLASTIC, DIP-18
Status Discontinued
Sub Category OTP ROMs
Access Time-Max 50.0 ns
JESD-30 Code R-PDIP-T18
JESD-609 Code e0
Memory Density 8192.0 bit
Memory IC Type OTP ROM
Memory Width 4
Number of Functions 1
Number of Terminals 18
Number of Words 2048.0 words
Number of Words Code 2K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 75.0 Cel
Organization 2KX4
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP18,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Current-Max 0.15 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 22.987 mm
Width 7.62 mm
