(2PC) 70246-1002 MOLEX Connector Header Through Hole 10 position 0.100" (2.54mm)
(2PC) 70246-1002 MOLEX Connector Header Through Hole 10 position 0.100" (2.54mm)
(2PC) 70246-1002 MOLEX Connector Header Through Hole 10 position 0.100" (2.54mm)
(2PC) 70246-1002 MOLEX Connector Header Through Hole 10 position 0.100" (2.54mm)

(2PC) 70246-1002 MOLEX Connector Header Through Hole 10 position 0.100" (2.54mm)

Tax included.
Only 2 left!

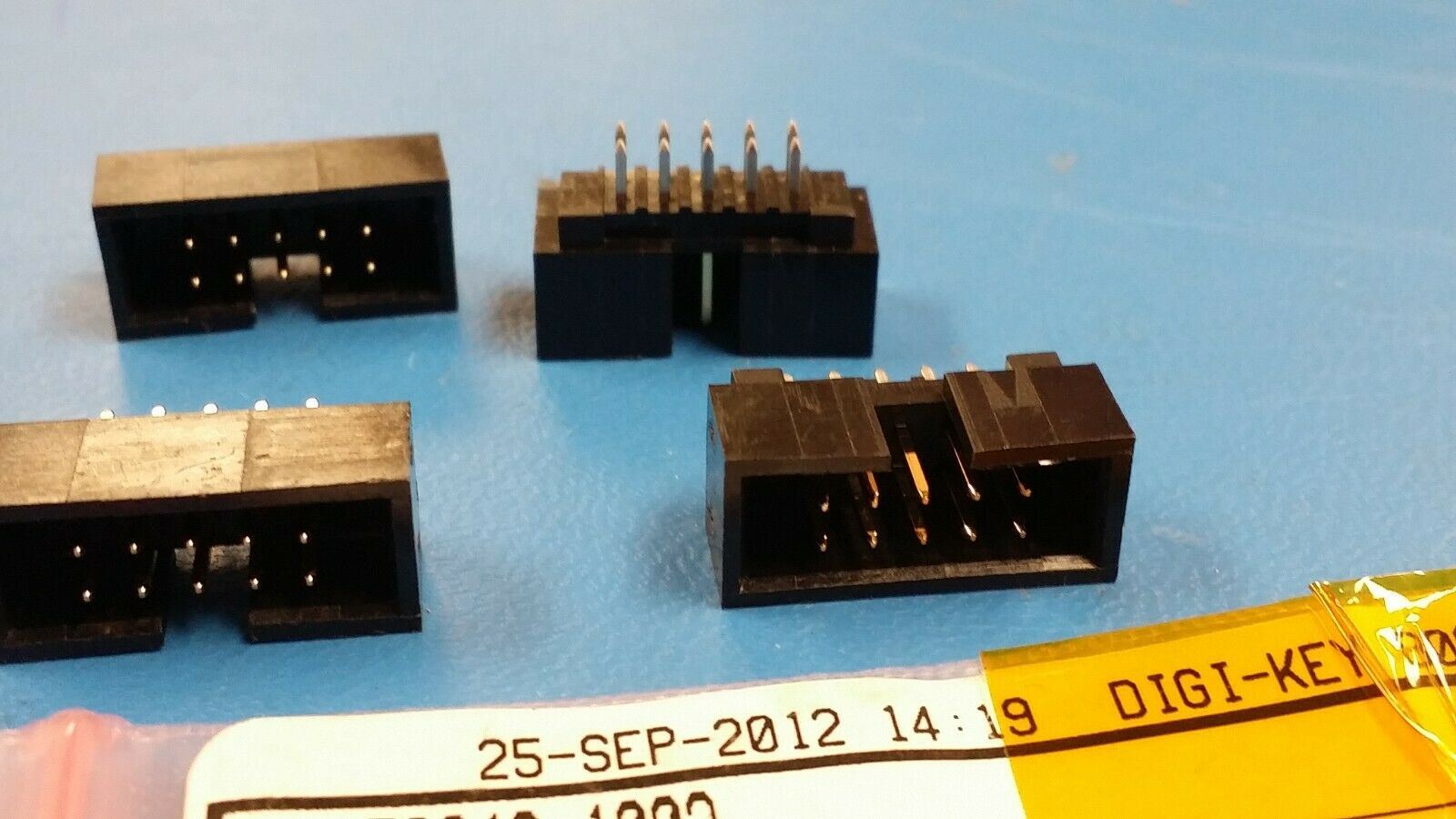

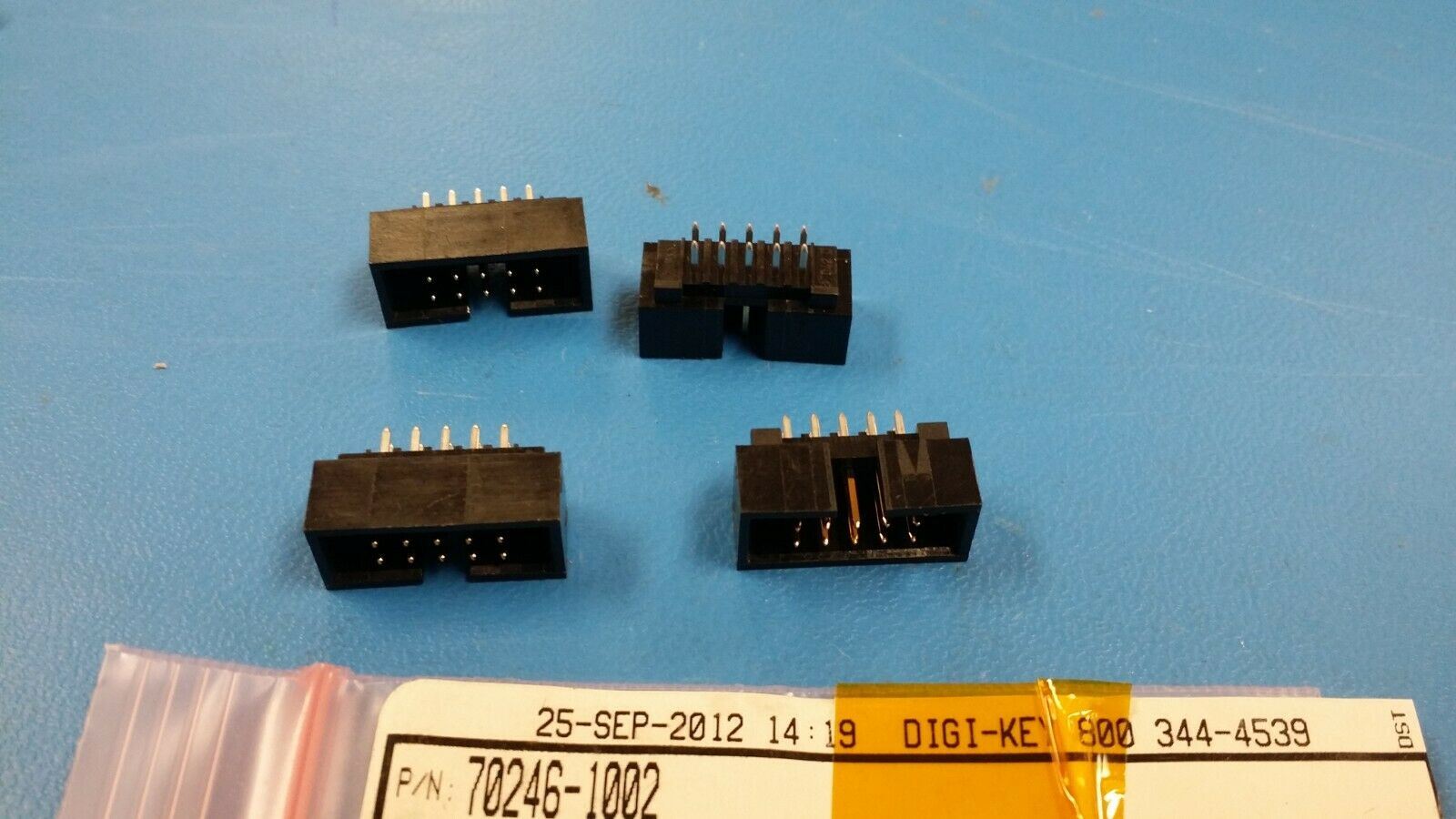

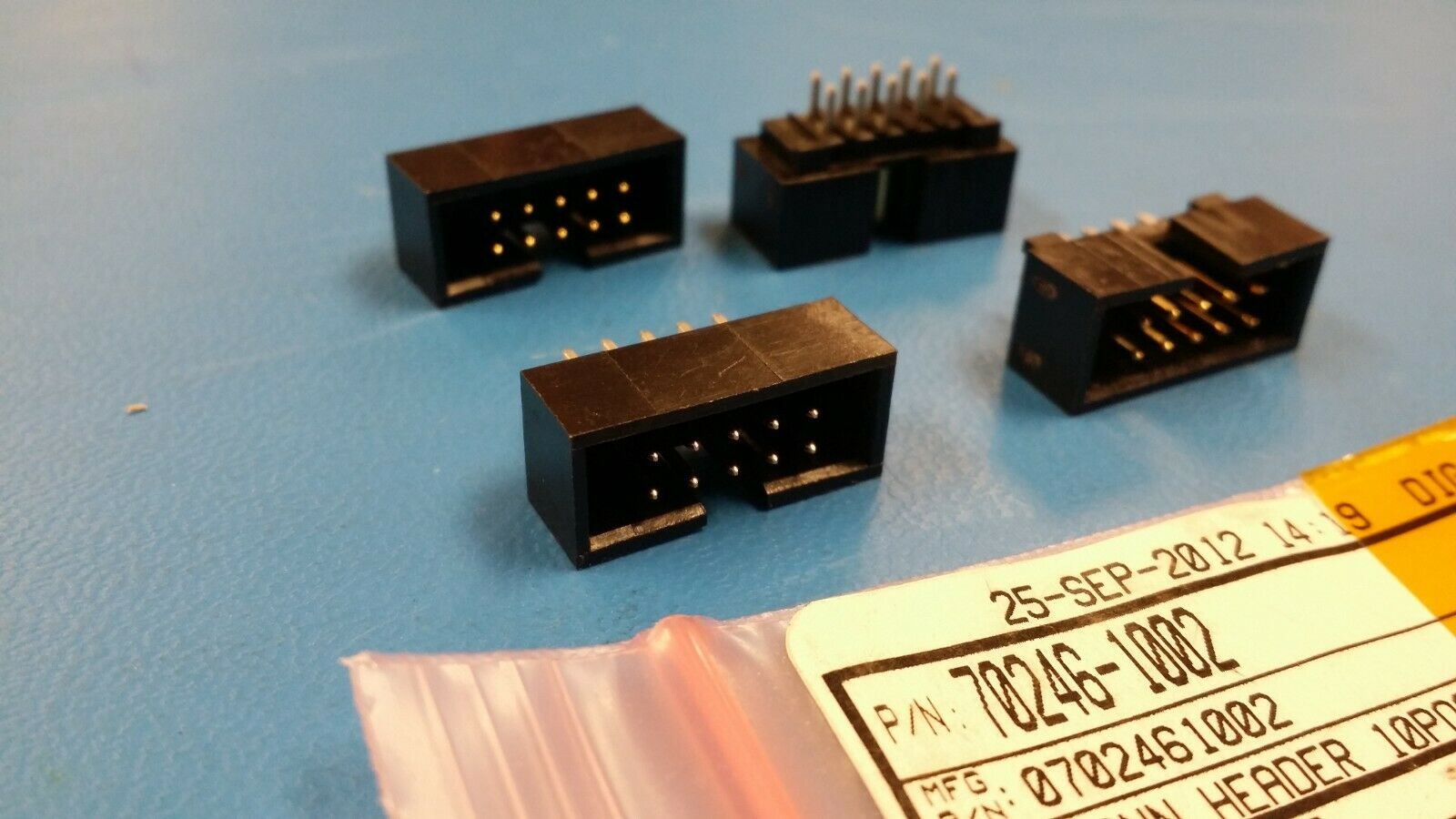

THIS IS FOR (2 PCS) OF 70246-1002 BY MOLEX
Connector Header Through Hole 10 position 0.100" (2.54mm)

Manufacturer: Molex
Product Category: Headers & Wire Housings
RoHS: YES
Product: Headers
Type: Shrouded
Number of Positions: 10 Position
Pitch: 2.54 mm
Number of Rows: 2 Row
Row Spacing: 2.54 mm
Mounting Style: Through Hole
Termination Style: Solder Pin
Mounting Angle: Straight
Contact Gender: Pin (Male)
Contact Plating: Gold
Mating Post Length: 6.1 mm
Termination Post Length: 3.43 mm
Series: 70246
Tradename: C-Grid
Application: Signal, Wire-to-Board
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 120 C
Packaging: Tray
Accessory Type: -
Contact Type: -
Current Rating: 2.5 A
Housing Material: Polyester
Voltage Rating: 250 VDC
Brand: Molex
Contact Material: Tin
Flammability Rating: UL 94 V-0
Housing Color: Black
Product Type: Headers & Wire Housings
Factory Pack Quantity: 120
Subcategory: Headers & Wire Housings
Part # Aliases: 0702461002
Unit Weight: 0.051747 oz
