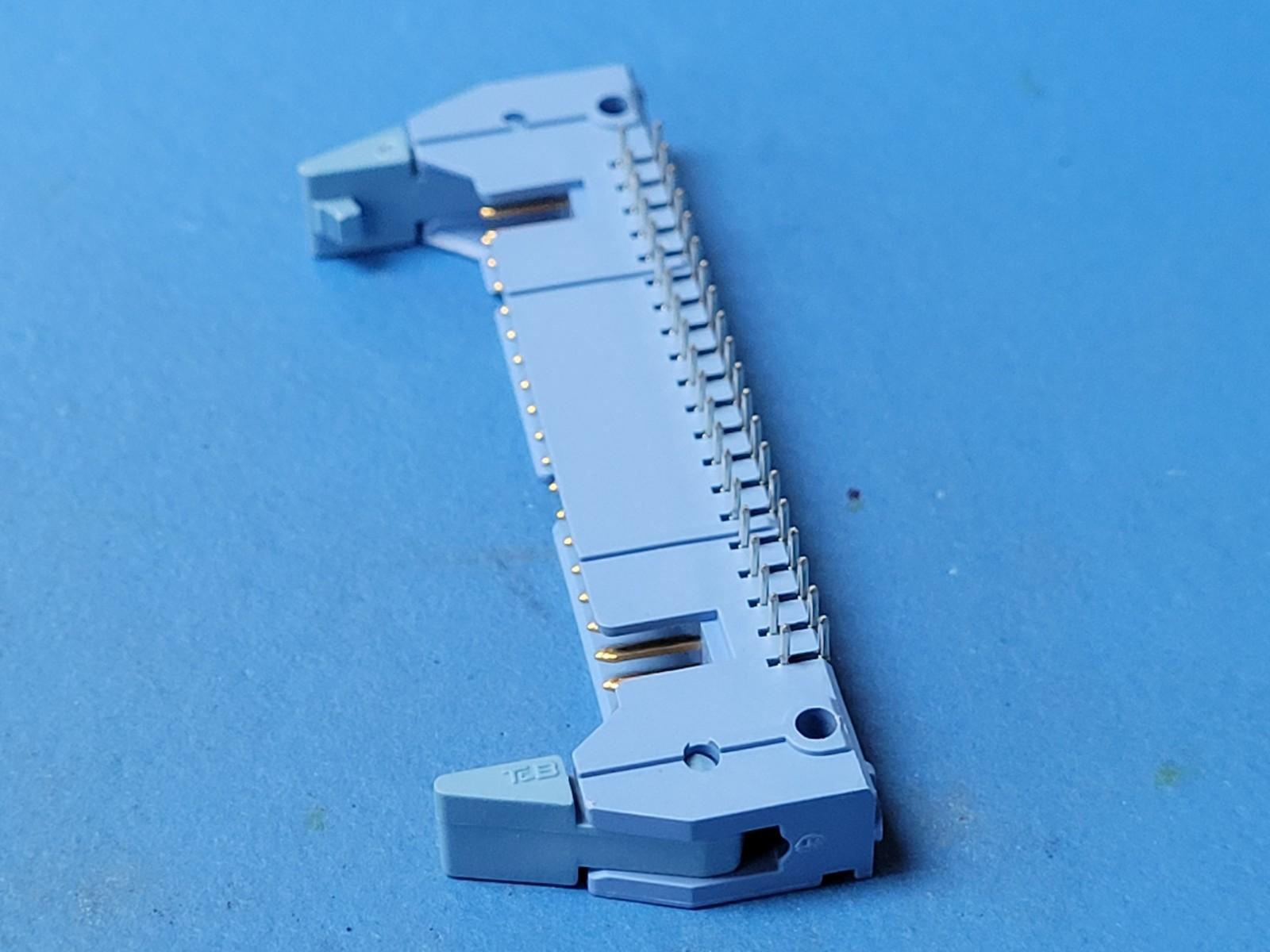

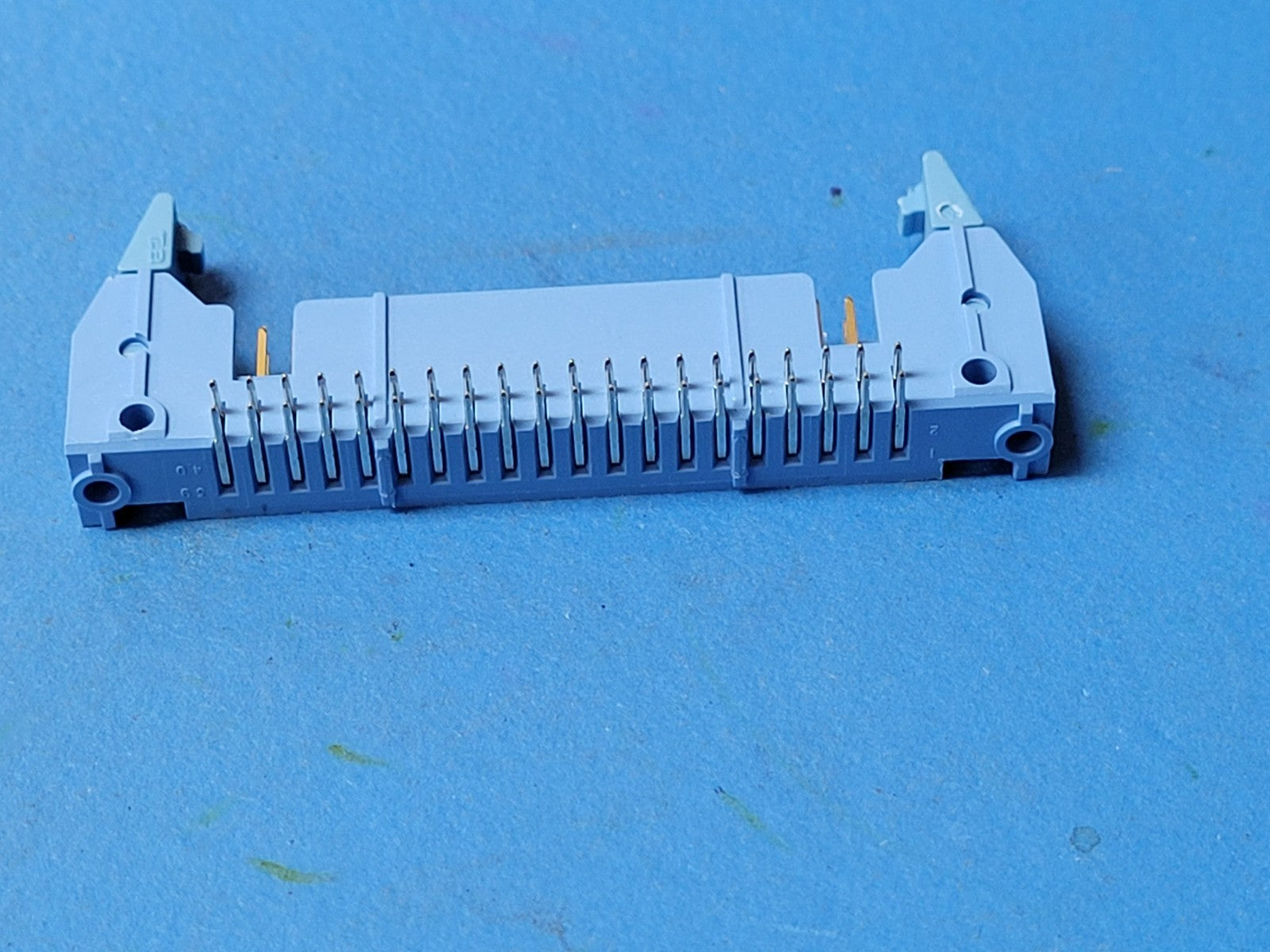

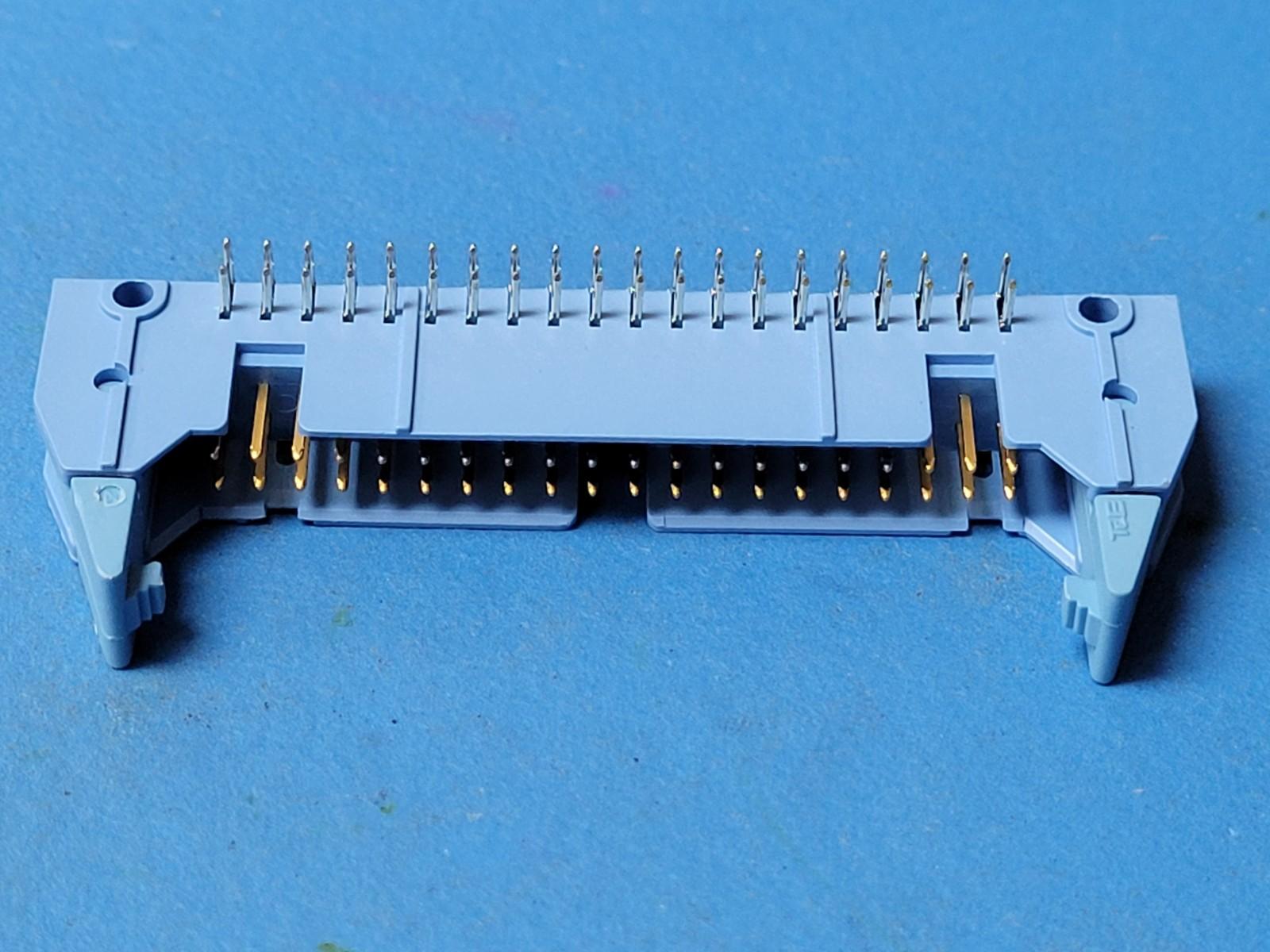

(2PC) 609-4004ES T&B Header 40 Contacts 2 Rows Male Right Angle 0.1 inch Pitch
Tax included.
THIS IS FOR (2 PCS) OF 609-4004ES BY T&B
Header 40 Contacts 2 Rows Male Right Angle 0.1 inch Pitch
Status Discontinued
Additional Feature EJECTOR, LATCHED, POLARIZED
Board Mounting Option HOLE .099-.111
Body Breadth (inch) 0.350000
Body Depth (inch) 0.700000
Body Length (inch) 2.760000
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating GOLD (30) OVER NICKEL (50)
Contact Finish - Termination TIN LEAD OVER NICKEL
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage (V) 1000VAC
Filter Feature NO
IEC Conformance NO
Insulation Resistance (ohm) 1000000000.000000000000000
Insulator Color BLUE
Insulator Material GLASS FILLED POLYETHYLENE
J-STD-609 Code e0
MIL Conformance NO
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mixed Contacts NO
Mounting Option 1 LATCH & EJECT
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Plating Thickness (inch) 30u
Polarization Key CTR W/GUIDE SLOTS
Rated Current (Signal) (A) 1.0000000000000000
Screening Level / Reference Standard UL, CSA
Terminal Length (inch) 0.114000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 40
UL Flammability Code 94V-0
